Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	4,548
Ruptures Above Sect Min Mag	4,541
Ruptures w/ Nonzero Rates	26
Magnitude Range	[6.95, 8.55]
Length Range	[23, 925] km
Total Rate	2.1587285E-4 /yr
Multi-Fault Rate	9.126386E-5 /yr (42.28%)
Directly-Connected Faults	5
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

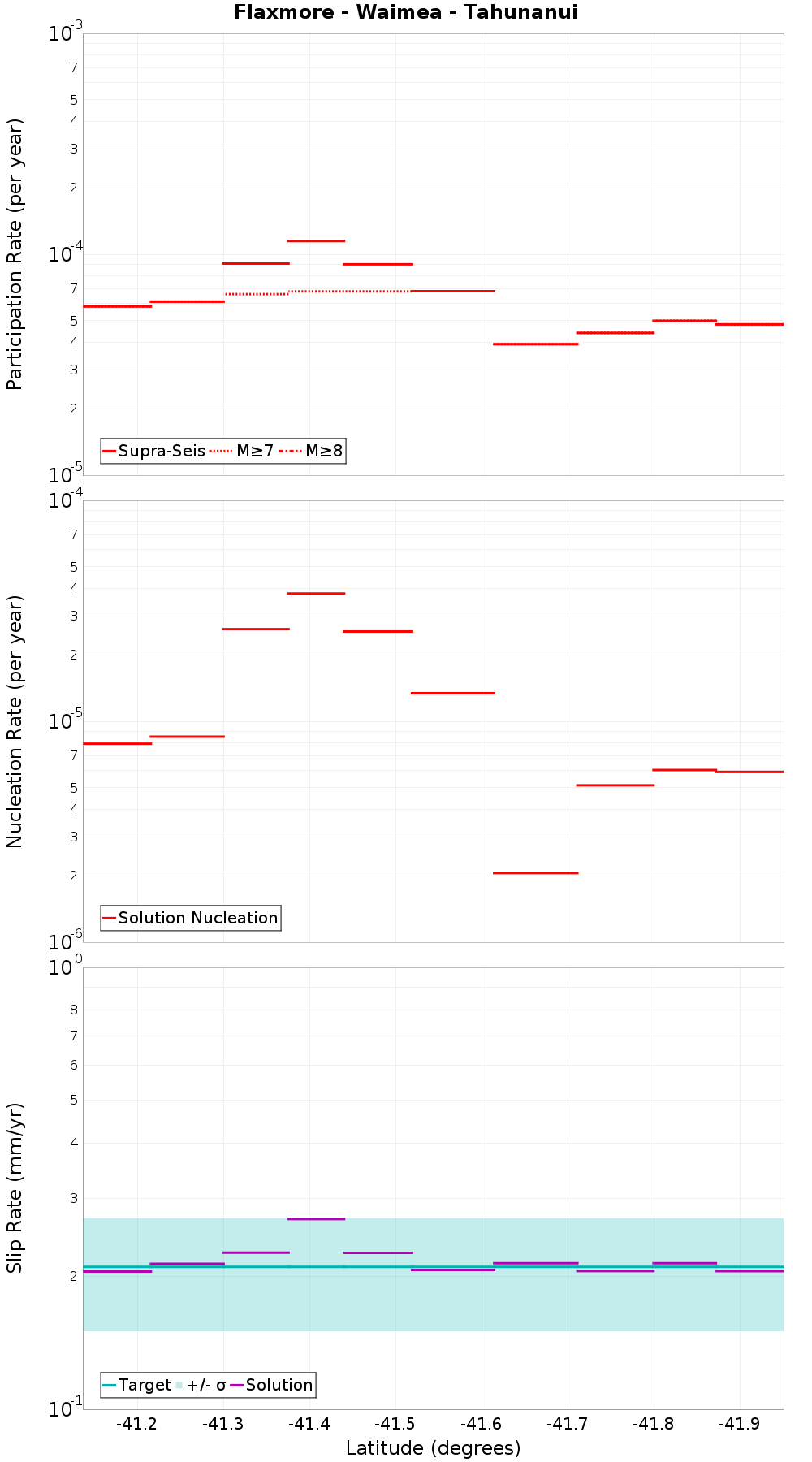

Along-Strike Values

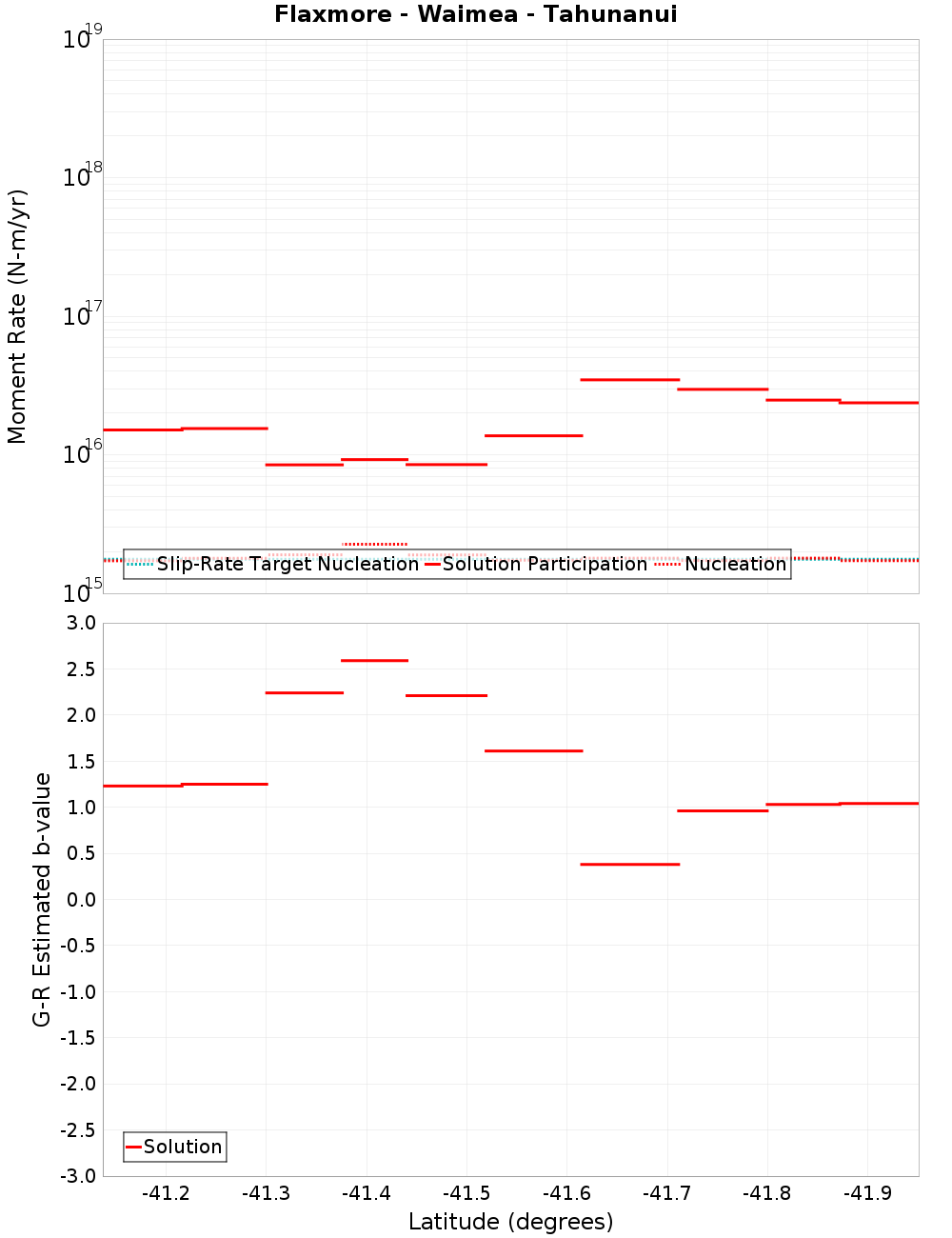

Moment-Rates and b-Values

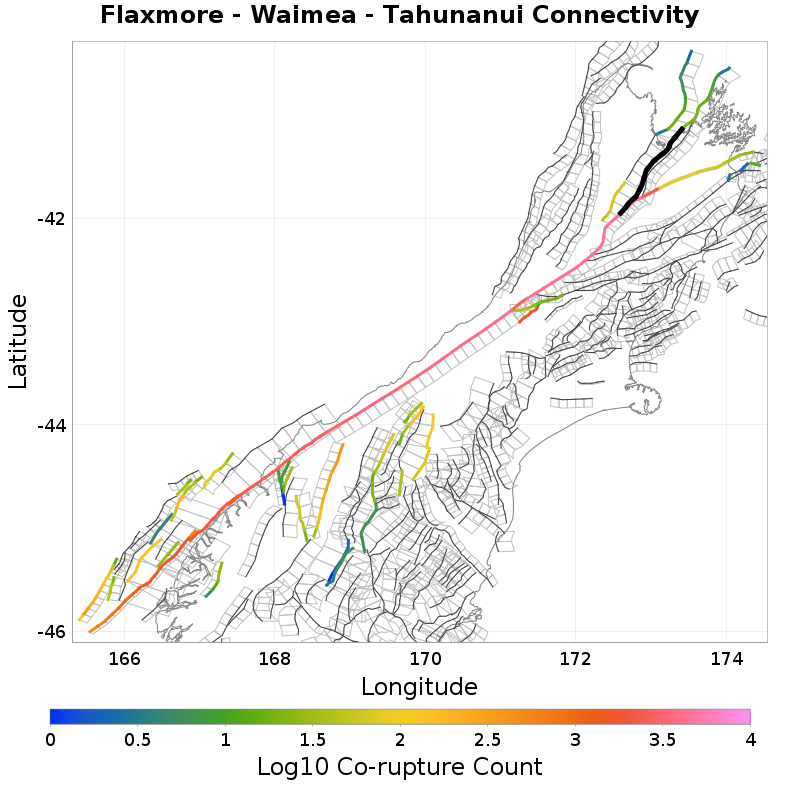

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	2.40737E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	2,456
Co-rupture Rate	3.916257E-5

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	4,389
Co-rupture Rate	6.688726E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tutaki, 2.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	65
Co-rupture Rate	2.6761436E-5

Surville, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	3.0289317E-7

Ruby Bay - Moutere, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 12.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
