Madden Banks Details
| Property | Value |
|---|---|
| Rupture Count | 14,719 |
| Ruptures Above Sect Min Mag | 14,711 |
| Ruptures w/ Nonzero Rates | 81 |
| Magnitude Range | [6.75, 8.57] |
| Length Range | [18, 1,127] km |
| Total Rate | 4.4967953E-4 /yr |
| Multi-Fault Rate | 4.4967953E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 65 |
Table Of Contents

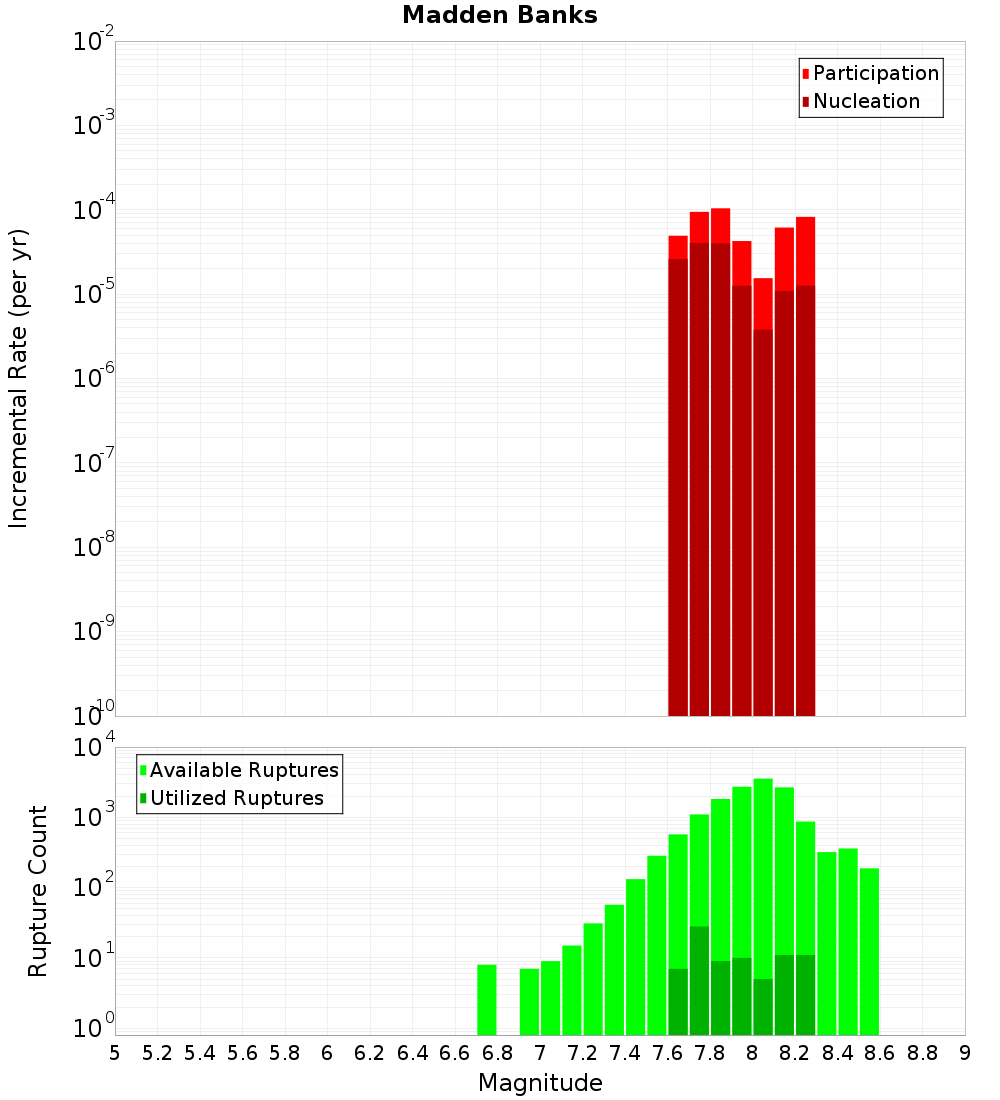

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

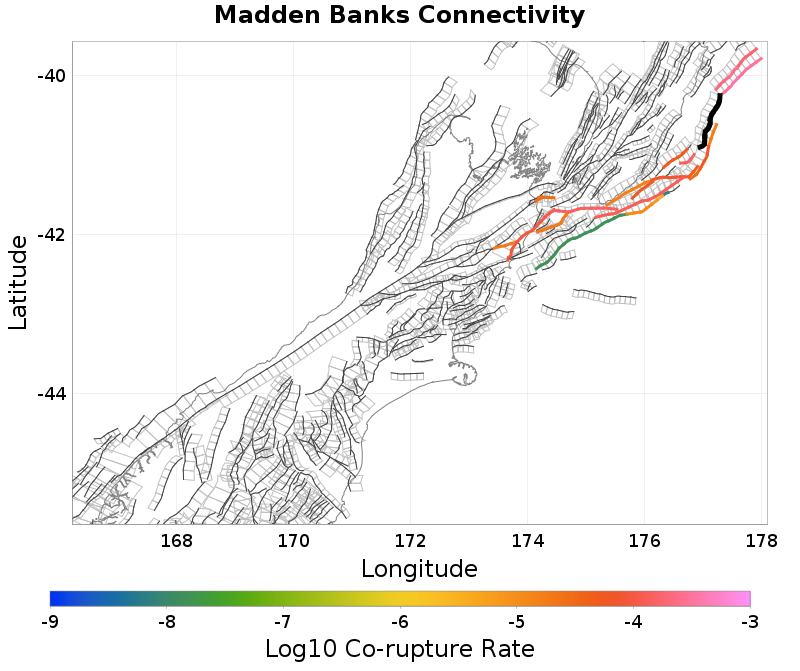

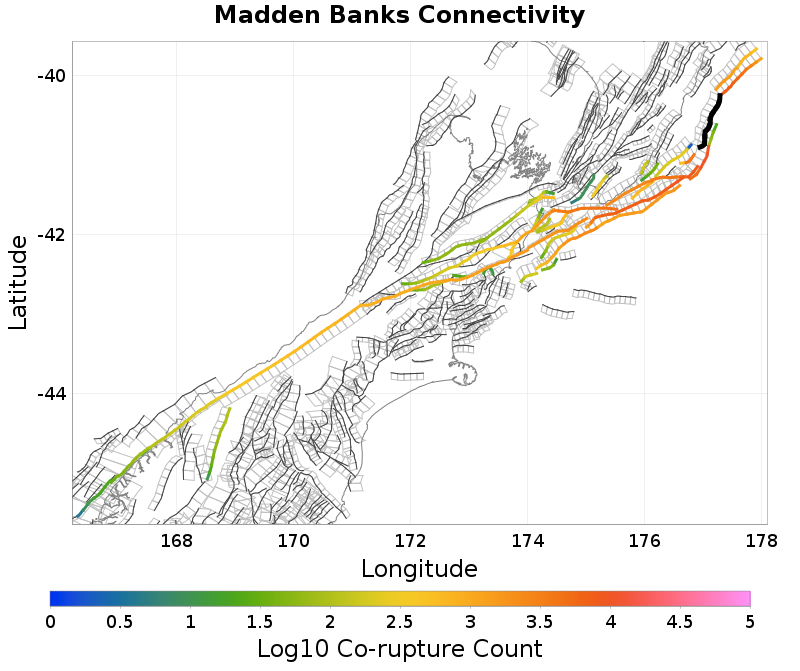

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura East, 0.5 km away |
| Uruti North, 3.58 km away |
| Uruti East - PorWest 1, 4.32 km away |
| Whareama Bank, 7.87 km away |
| Motu o Kura Ridge, 7.97 km away |
Motu o Kura East, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,570 |
| Co-rupture Rate | 3.992957E-4 |
Uruti North, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,851 |
| Co-rupture Rate | 1.51805E-4 |
Uruti East - PorWest 1, 4.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10,330 |
| Co-rupture Rate | 6.7266694E-5 |
Whareama Bank, 7.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 244 |
| Co-rupture Rate | 5.1319646E-5 |
Motu o Kura Ridge, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,674 |
| Co-rupture Rate | 2.5391247E-4 |
