Starvation - Ashley Details

PropertyValue
Rupture Count250
Ruptures Above Sect Min Mag248
Ruptures w/ Nonzero Rates25
Magnitude Range[6.87, 8.11]
Length Range[21, 345] km
Total Rate1.7177309E-4 /yr
Multi-Fault Rate1.7177309E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults18

Table Of Contents

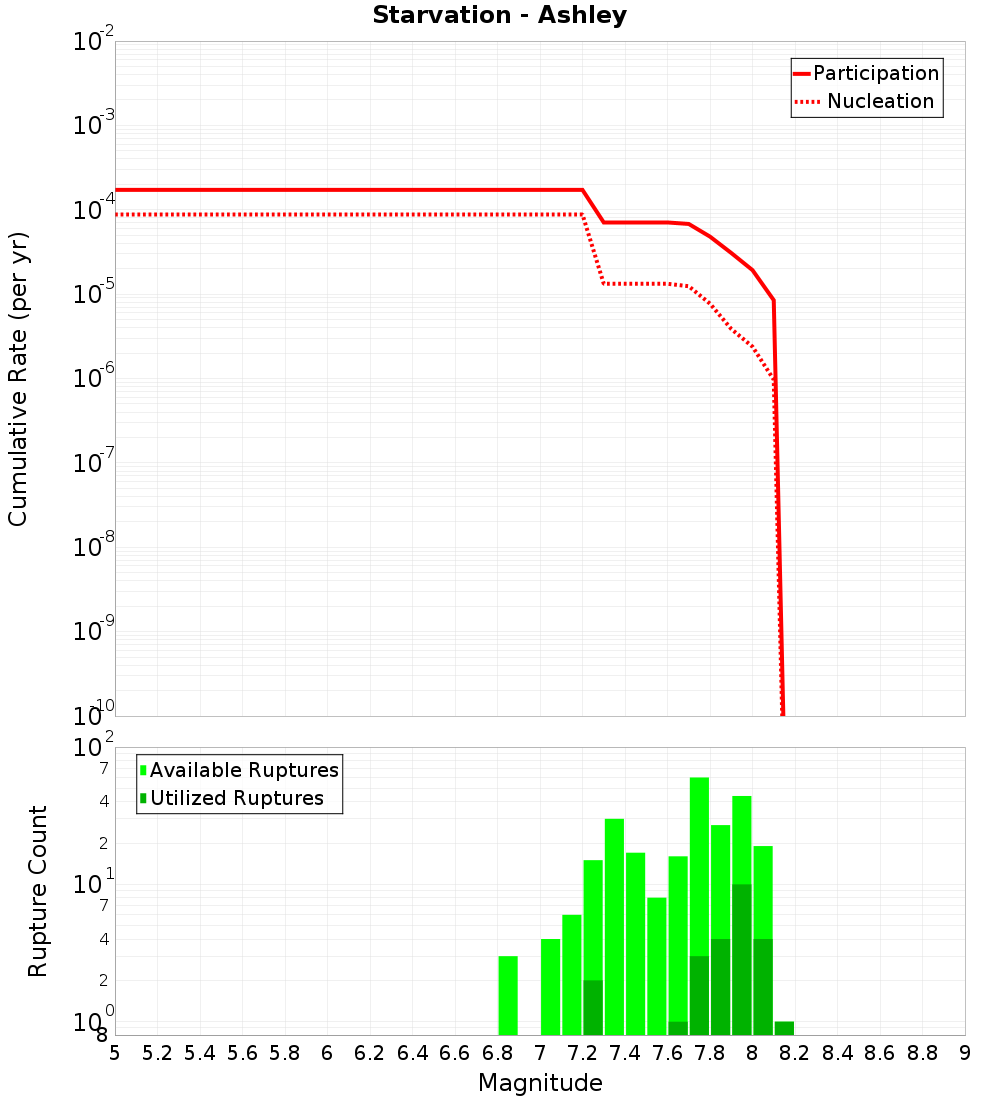

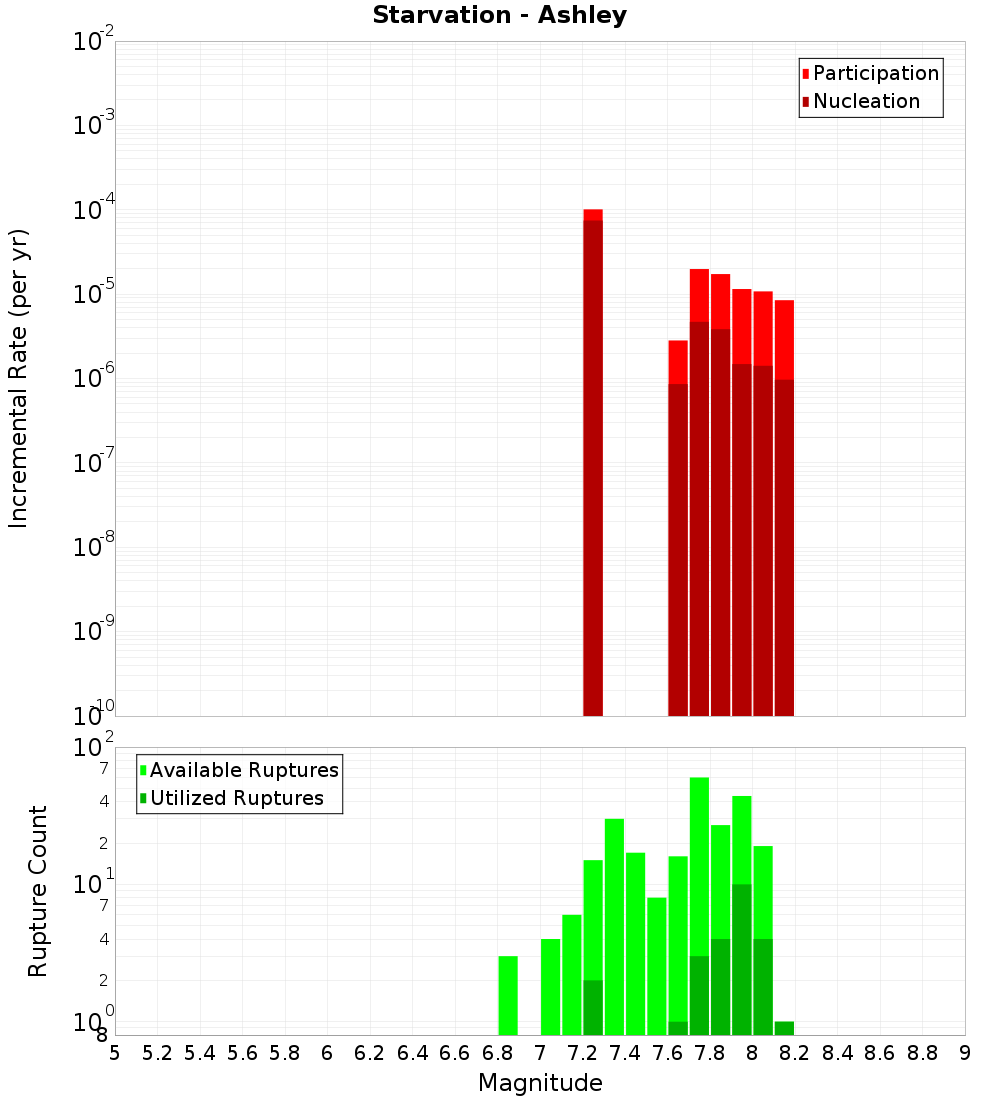

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

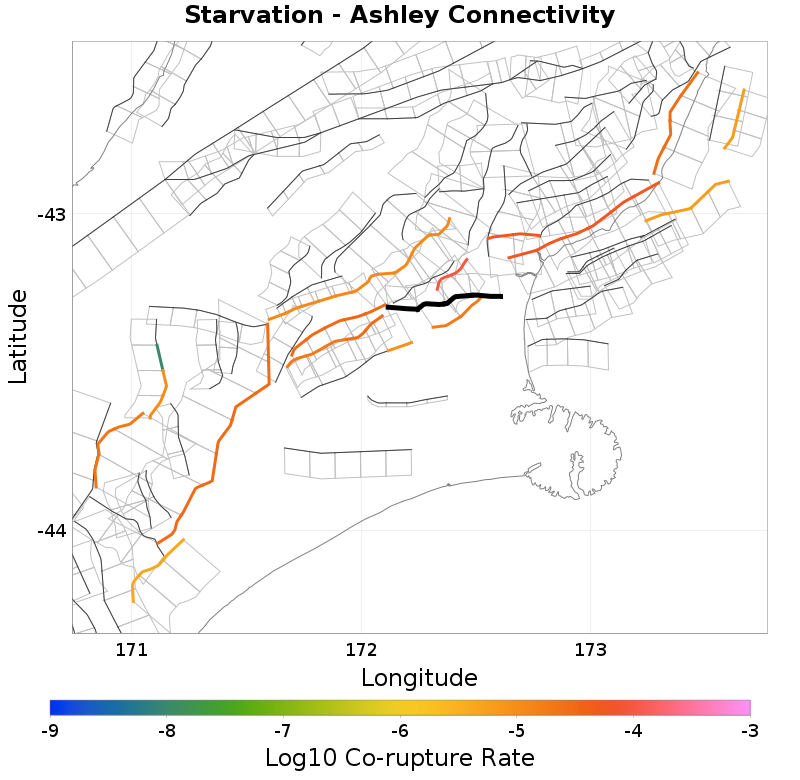

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Springbank, 0.14 km awayHororata, 6.38 km away
Mt Lawry, 0.17 km awayAmberBlyth, 7.86 km away
Lees Valley, 0.3 km awayDoctors, 8.76 km away
Pancake, 0.4 km awayPorters Pass, 10.36 km away
Boby Stream, 0.62 km awayWaikuku, 11.22 km away
Esk South, 0.76 km awayPegasus Bay, 12.18 km away
Kowai - View Hill, 0.87 km awayTorlesse, 12.83 km away
Knowles Top, 1.58 km awayMt Arden, 16.2 km away
High Peak - Sheffield, 3.73 km awayKaiwara South, 16.93 km away

Springbank, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.7473069E-5

Mt Lawry, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate1.0108685E-4

Lees Valley, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate1.1481584E-5

Pancake, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count146
Co-rupture Rate5.9194703E-5

Esk South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate3.395327E-5

Knowles Top, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?true
Co-rupture Count128
Co-rupture Rate2.8026596E-5

Hororata, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate8.766699E-6

AmberBlyth, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate5.9194703E-5

Doctors, 8.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate1.1481584E-5

Waikuku, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pegasus Bay, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Mt Arden, 16.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
