Tin Hut Details
| Property | Value |
|---|---|
| Rupture Count | 1 |
| Ruptures Above Sect Min Mag | 1 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.19, 7.19] |
| Length Range | [31, 31] km |
| Total Rate | 2.094229E-4 /yr |
| Multi-Fault Rate | 0.0 /yr (0.00%) |
| Directly-Connected Faults | 0 |
| All Co-Rupturing Faults | 0 |
Table Of Contents

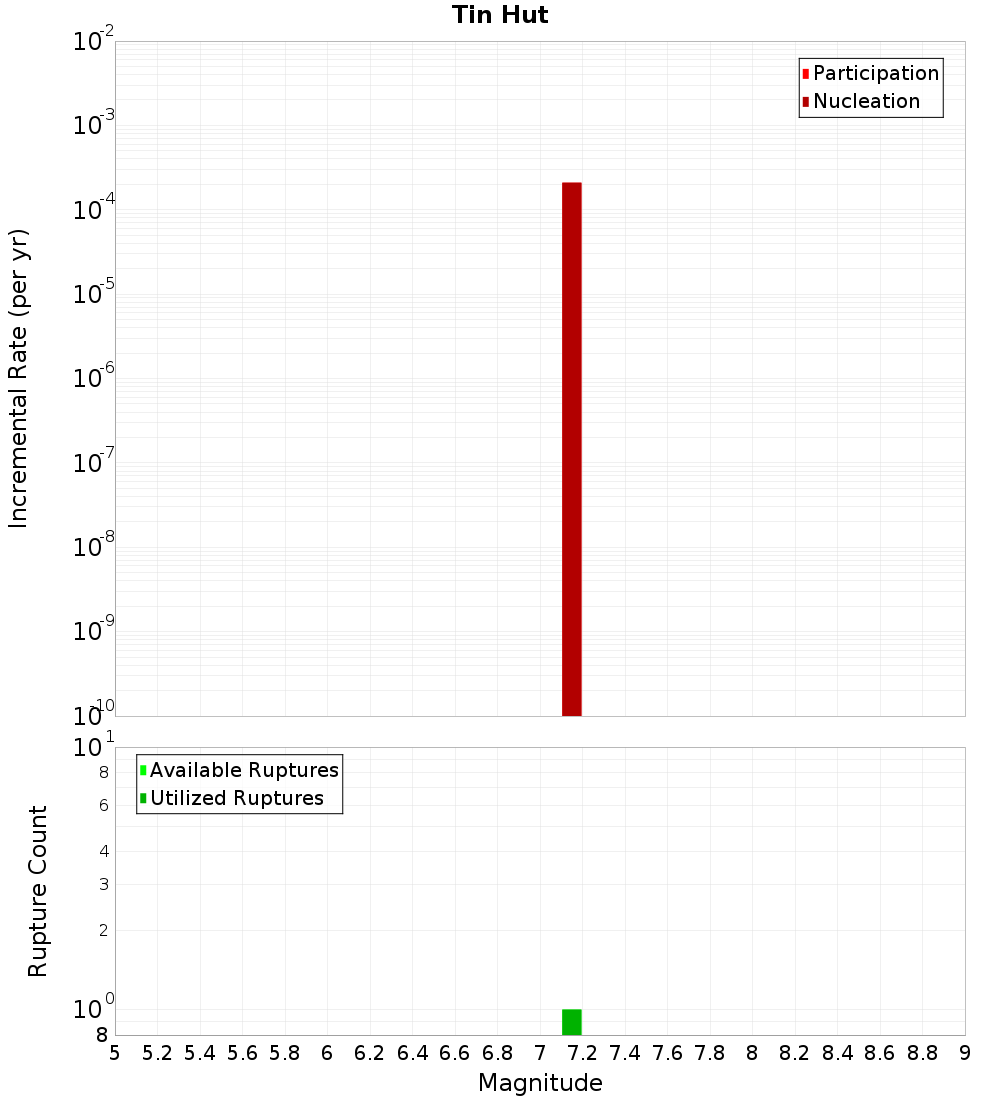

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

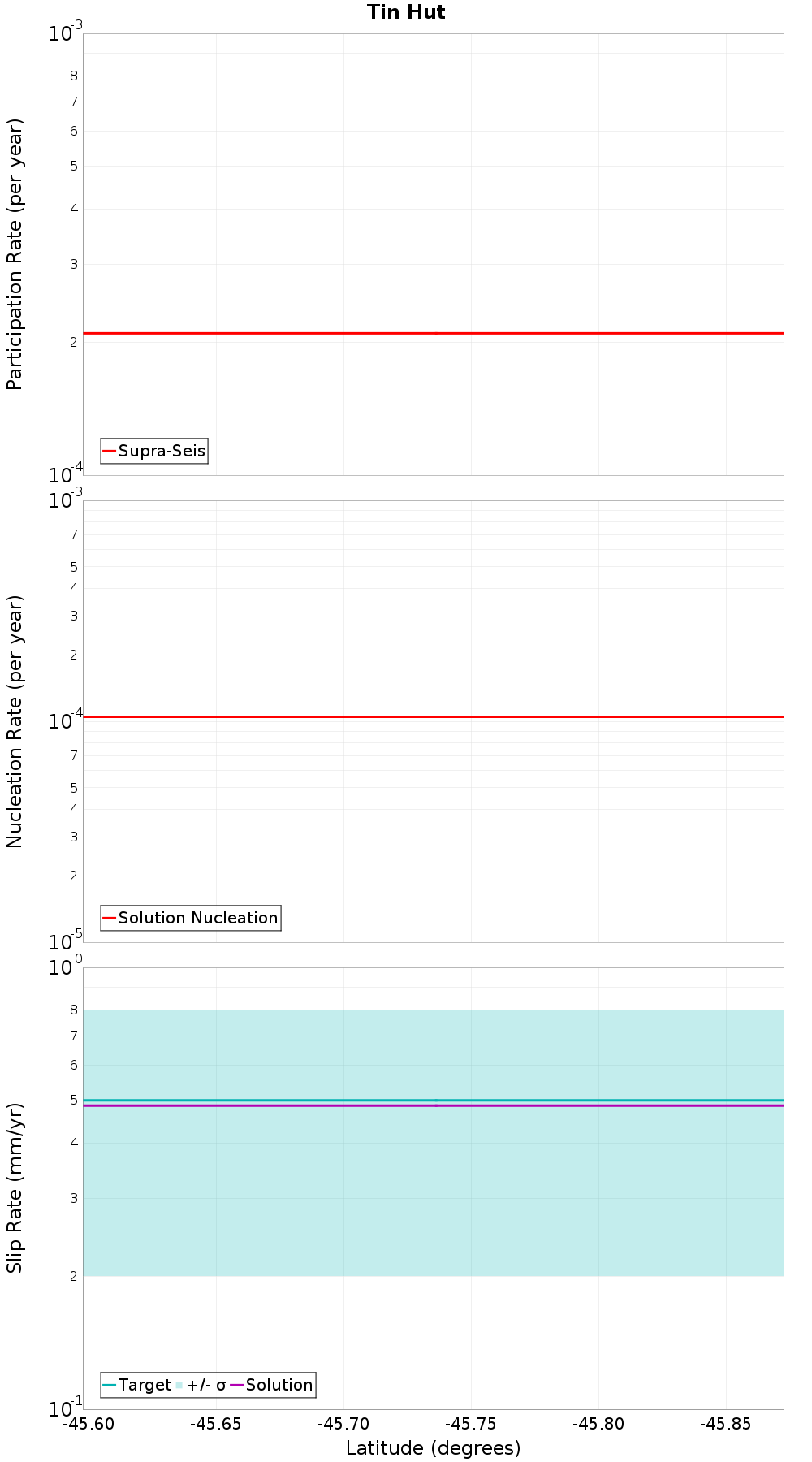

Along-Strike Values

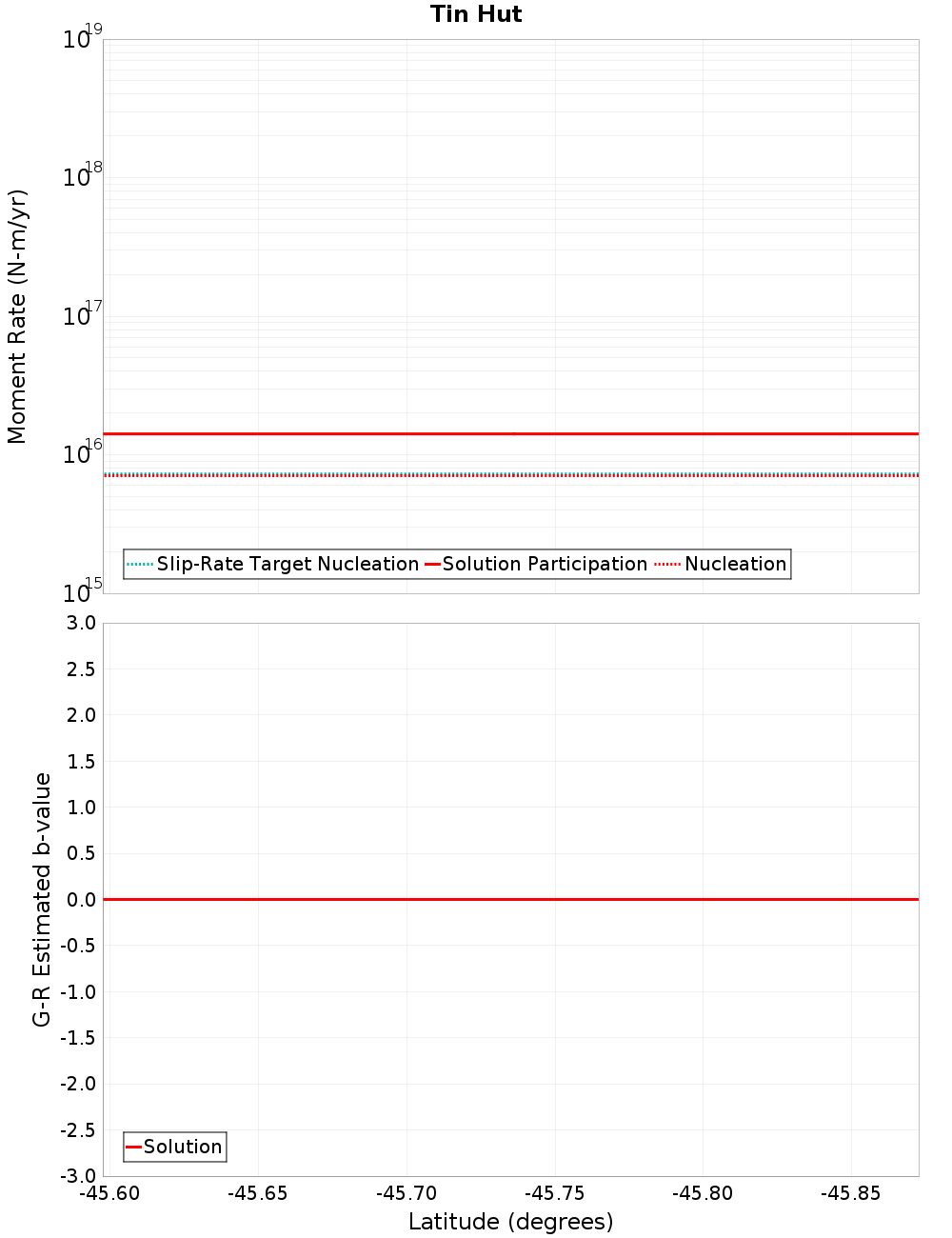

Moment-Rates and b-Values

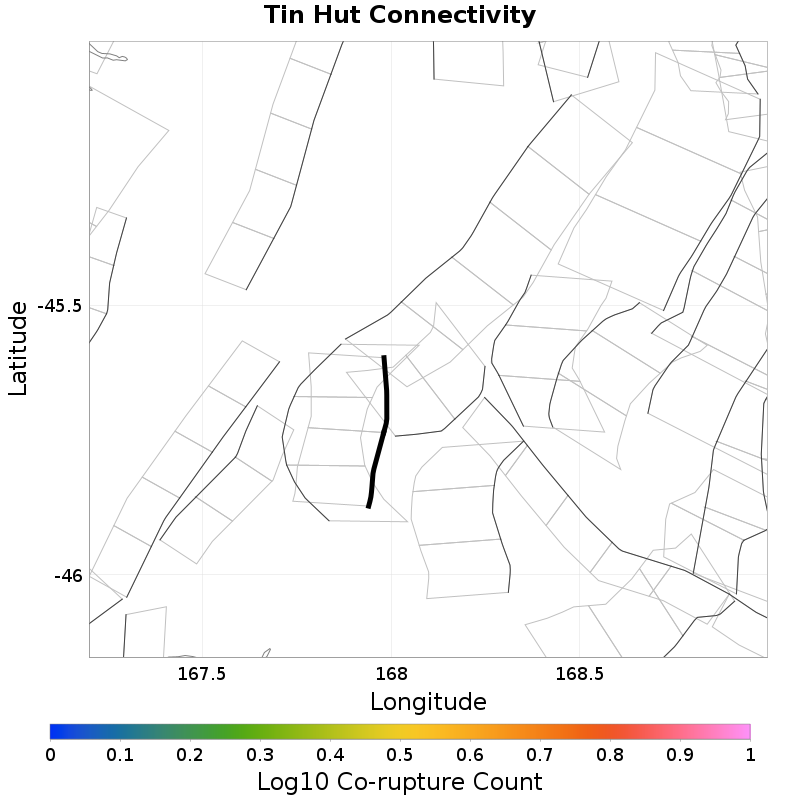

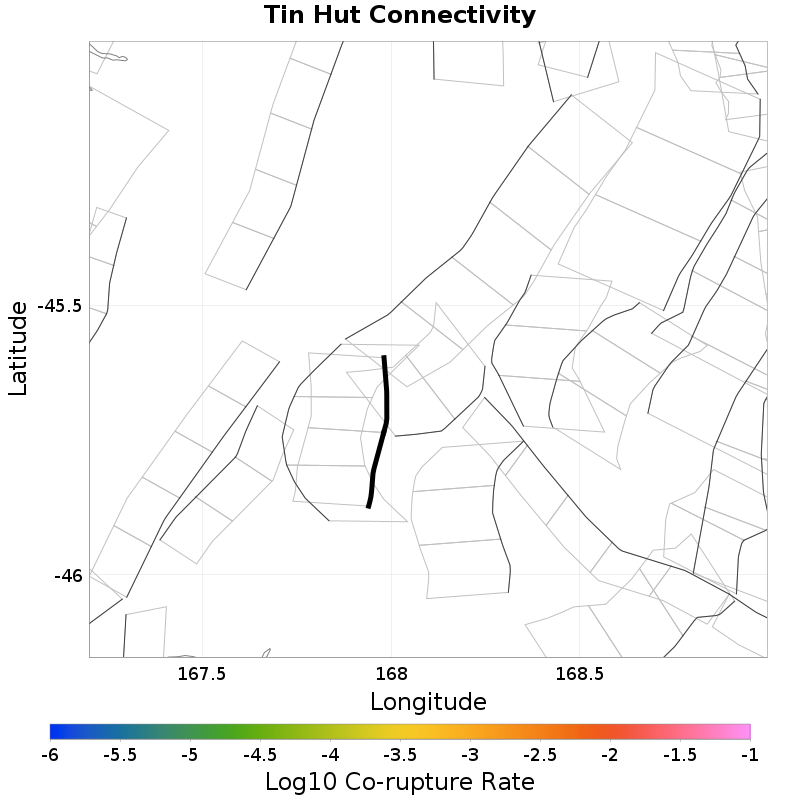

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| McKerchar, 0.06 km away |
| Moonlight South, 0.9 km away |
| Mossburn, 2.3 km away |
| Monowai, 3.53 km away |
| Hauroko: North, 14.05 km away |
| Hokonui, 19.9 km away |
McKerchar, 0.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight South, 0.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mossburn, 2.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Monowai, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hauroko: North, 14.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 19.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjMuMDg3N01t | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
