White Island 1 Details

PropertyValue
Rupture Count24,066
Ruptures Above Sect Min Mag24,065
Ruptures w/ Nonzero Rates255
Magnitude Range[6.83, 8.00]
Length Range[19, 305] km
Total Rate3.5056318E-4 /yr
Multi-Fault Rate3.5056318E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults53

Table Of Contents

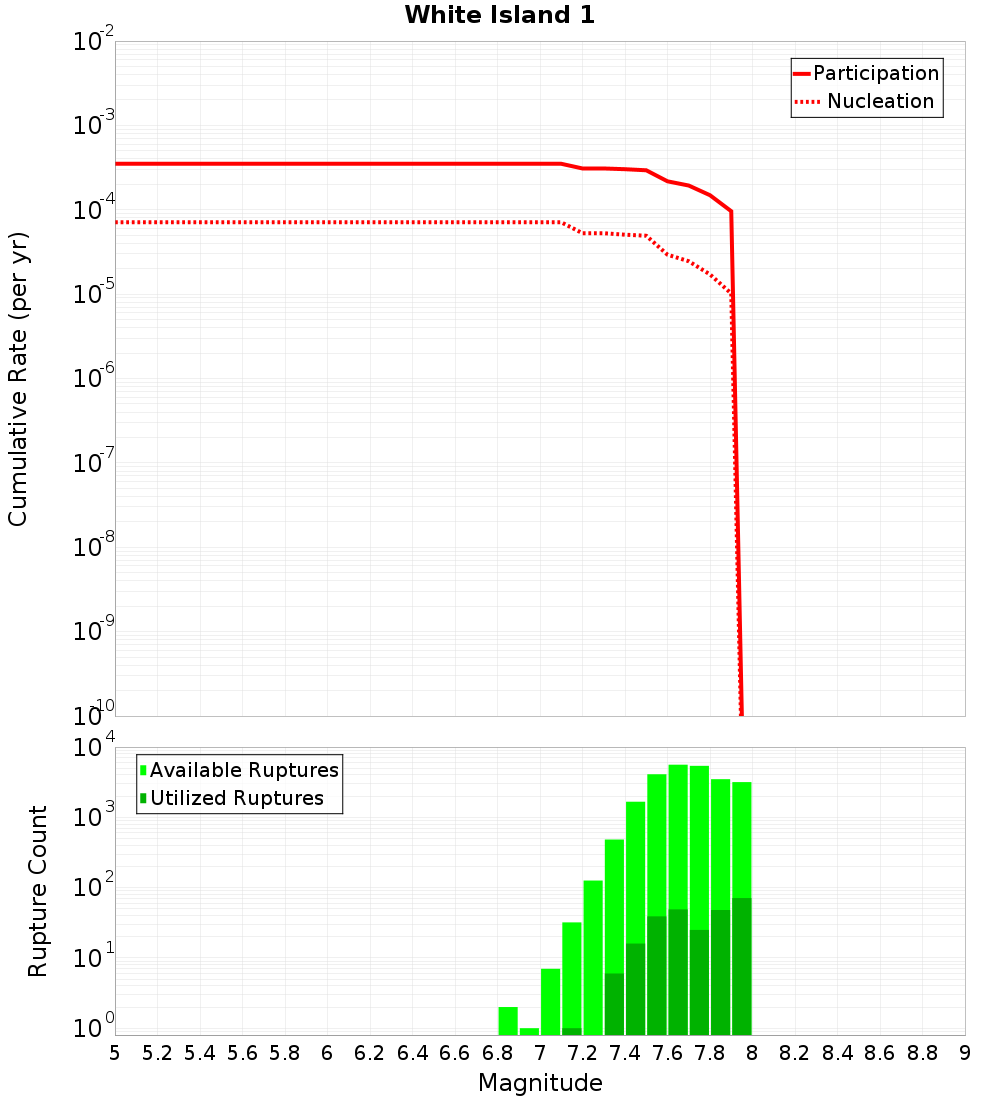

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

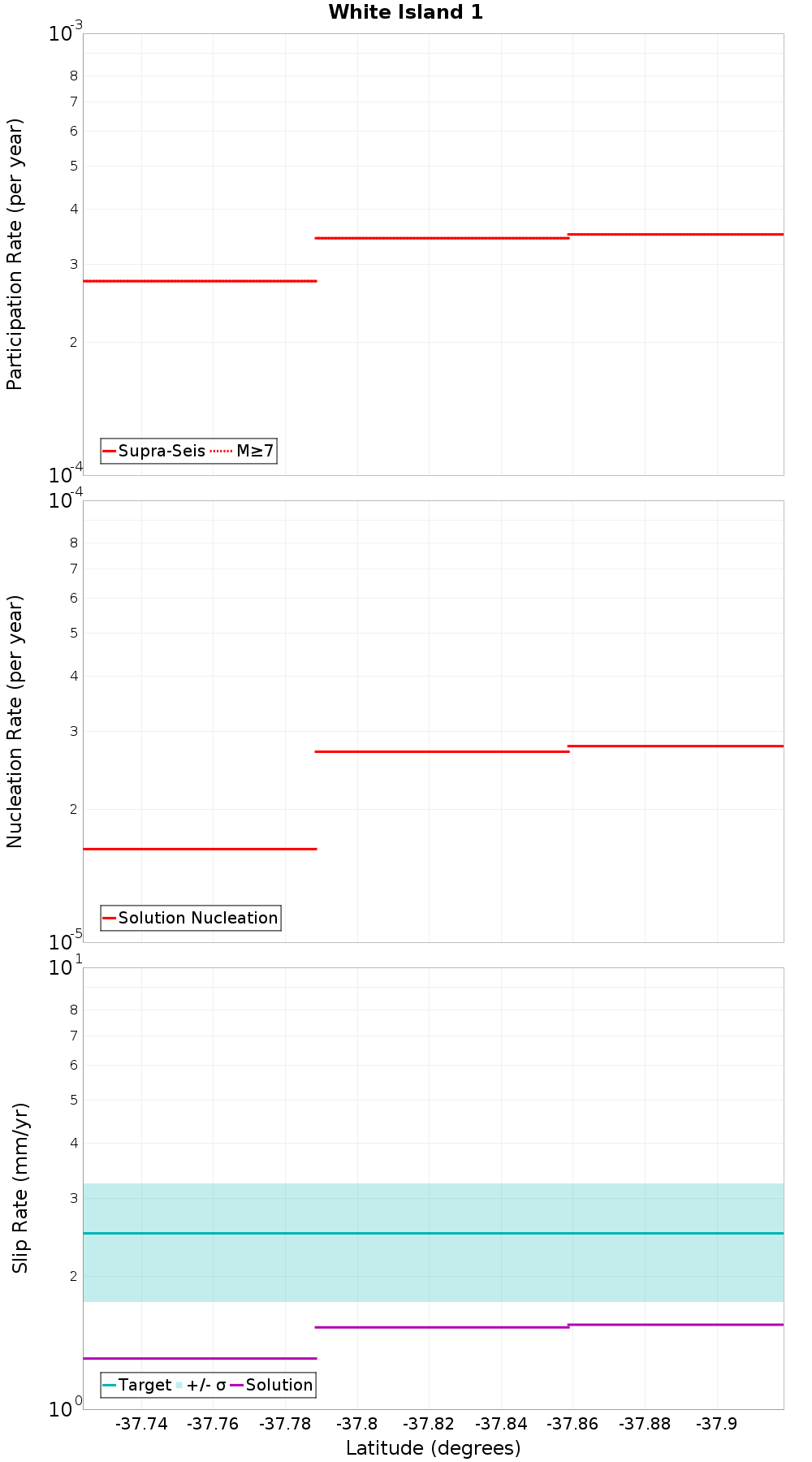

Along-Strike Values

(top)

Along-strike plot

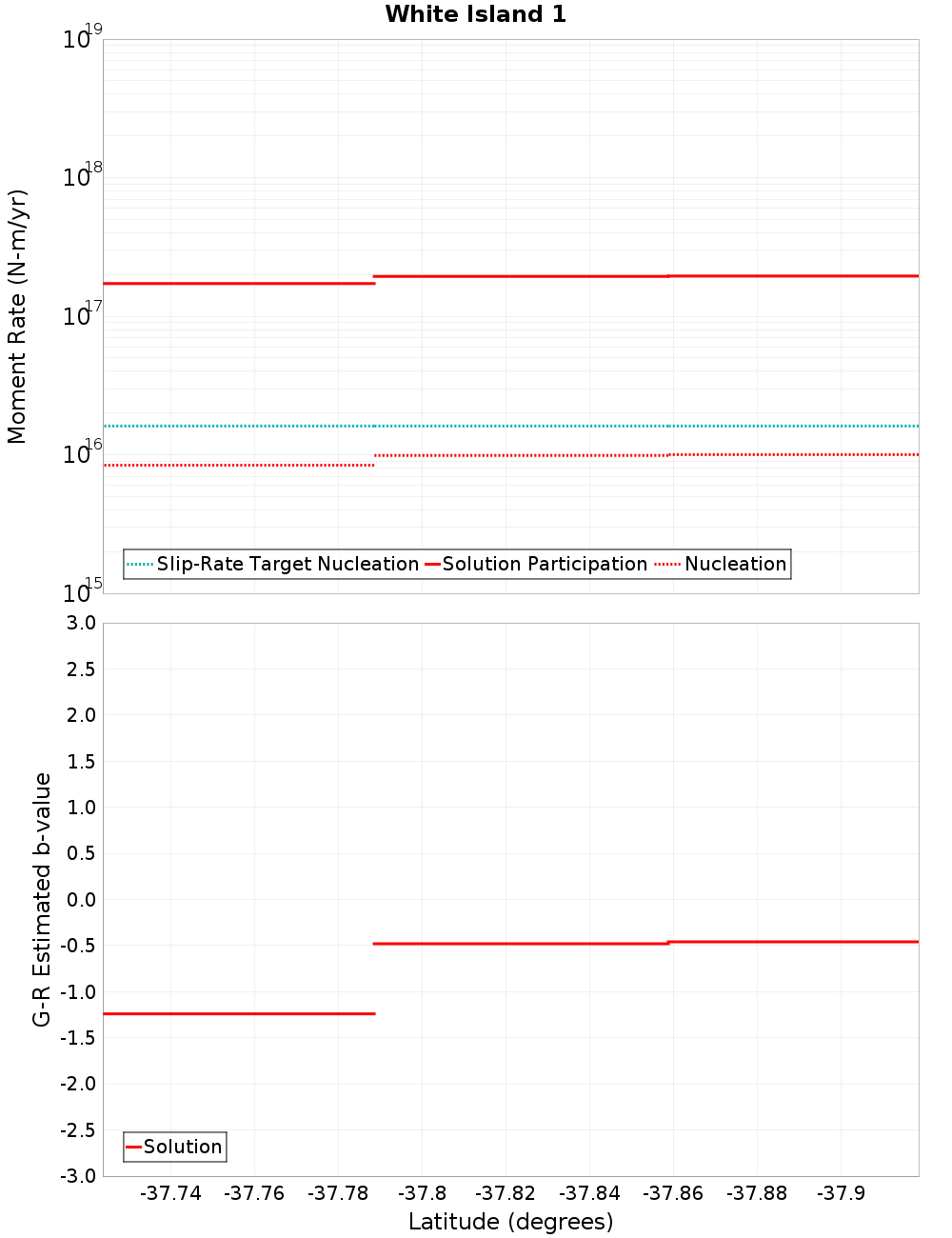

Moment-Rates and b-Values

(top)

Along-strike plot

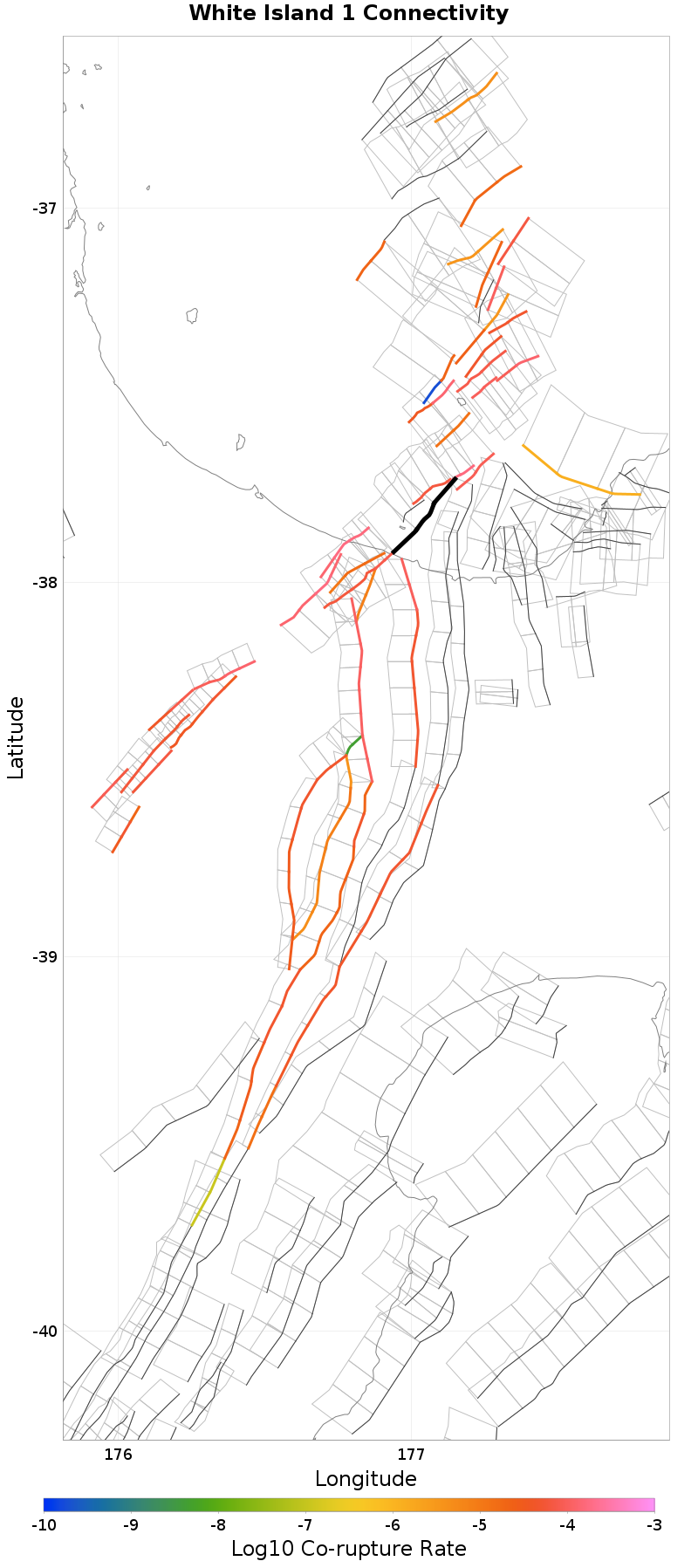

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Edgecumbe Coastal, 0 km awayAwakeri, 7.32 km away
Ohiwa 1, 0.17 km awayCalypso 2, 8.93 km away
Matata, 0.2 km awayWaiotahi: North, 9.79 km away
Rangitaiki 2, 0.77 km awayBraemar, 11.21 km away
Whakaari 4, 1.52 km awayOhae 1, 13.68 km away
White Island 2, 1.95 km awayOpotiki 3, 13.82 km away
Rangitaiki 1, 2 km awayOhae 2, 17.69 km away
Otakiri, 2.46 km awayTe Arawa 1, 18.12 km away
Whakatane: North, 3.09 km awayWaiohau: North, 18.73 km away
Edgecumbe 1987, 4.49 km awayOpape 1, 18.74 km away
Waimanawa - Waikaremoana, 5.15 km awayOpotiki 2, 19.47 km away
Waimana: North, 7.11 km awayVolkner 3, 19.53 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count10,292
Co-rupture Rate7.946744E-5

Ohiwa 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count8,408
Co-rupture Rate1.6635215E-4

Matata, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count8,545
Co-rupture Rate1.7435897E-4

Rangitaiki 2, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count6,815
Co-rupture Rate6.5283435E-5

Whakaari 4, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count14,004
Co-rupture Rate1.3424992E-4

White Island 2, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count6,098
Co-rupture Rate8.9793466E-5

Rangitaiki 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count2,933
Co-rupture Rate1.6311054E-5

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count1,970
Co-rupture Rate9.800291E-5

Edgecumbe 1987, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?true
Co-rupture Count6,509
Co-rupture Rate6.129519E-5

Waimanawa - Waikaremoana, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awakeri, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count4,234
Co-rupture Rate8.311044E-6

Calypso 2, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count1,690
Co-rupture Rate1.3170252E-5

Waiotahi: North, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count7,147
Co-rupture Rate2.2168667E-4

Ohae 1, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count405
Co-rupture Rate0.0

Ohae 2, 17.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count8,059
Co-rupture Rate7.8215744E-5

Waiohau: North, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count14,717
Co-rupture Rate1.0602255E-4

Opape 1, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 19.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Volkner 3, 19.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MjYuMDdMYXhX
Connected?true
Directly Connected?false
Co-rupture Count776
Co-rupture Rate2.1137057E-5
