Waipiata Details

PropertyValue
Rupture Count184
Ruptures Above Sect Min Mag183
Ruptures w/ Nonzero Rates11
Magnitude Range[7.03, 8.02]
Length Range[23, 216] km
Total Rate2.6697036E-5 /yr
Multi-Fault Rate2.6697036E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults20

Table Of Contents

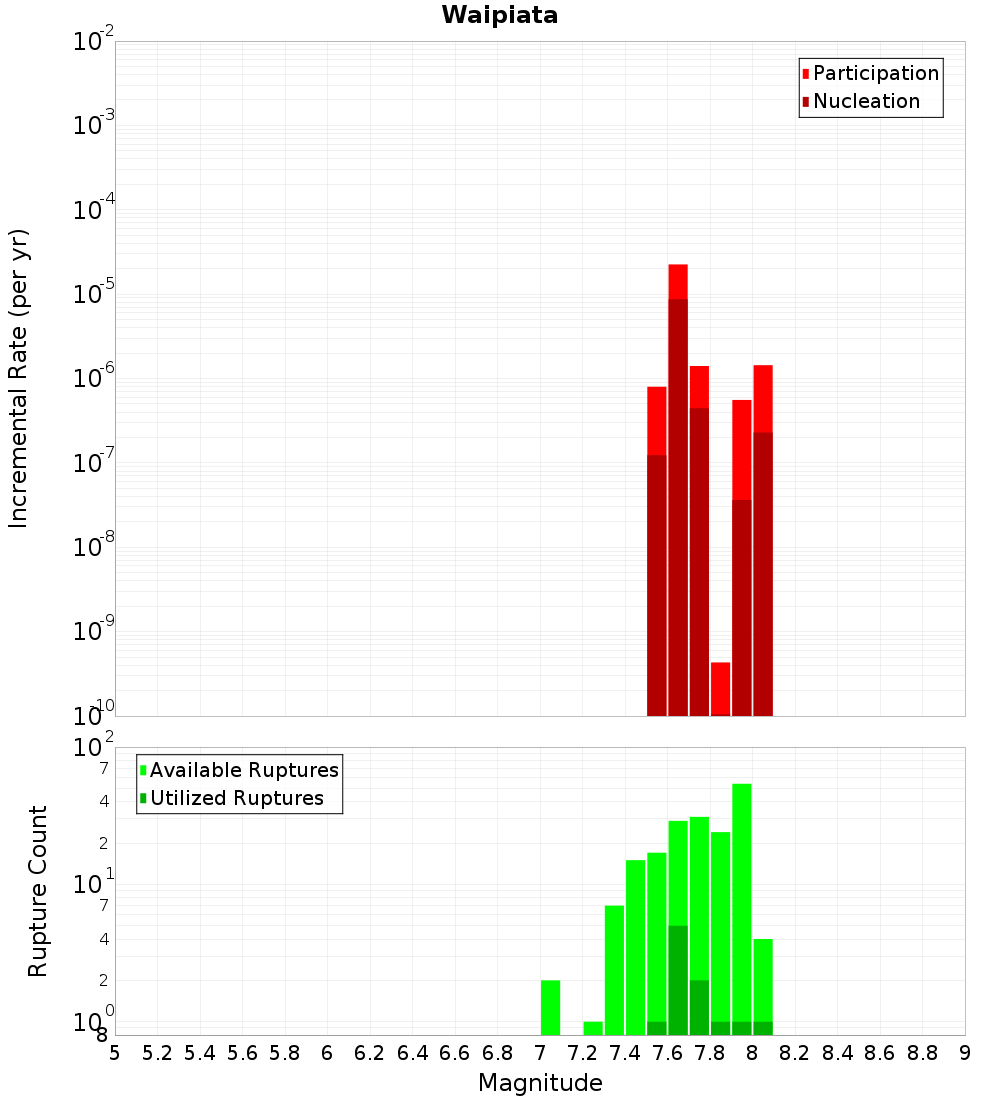

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

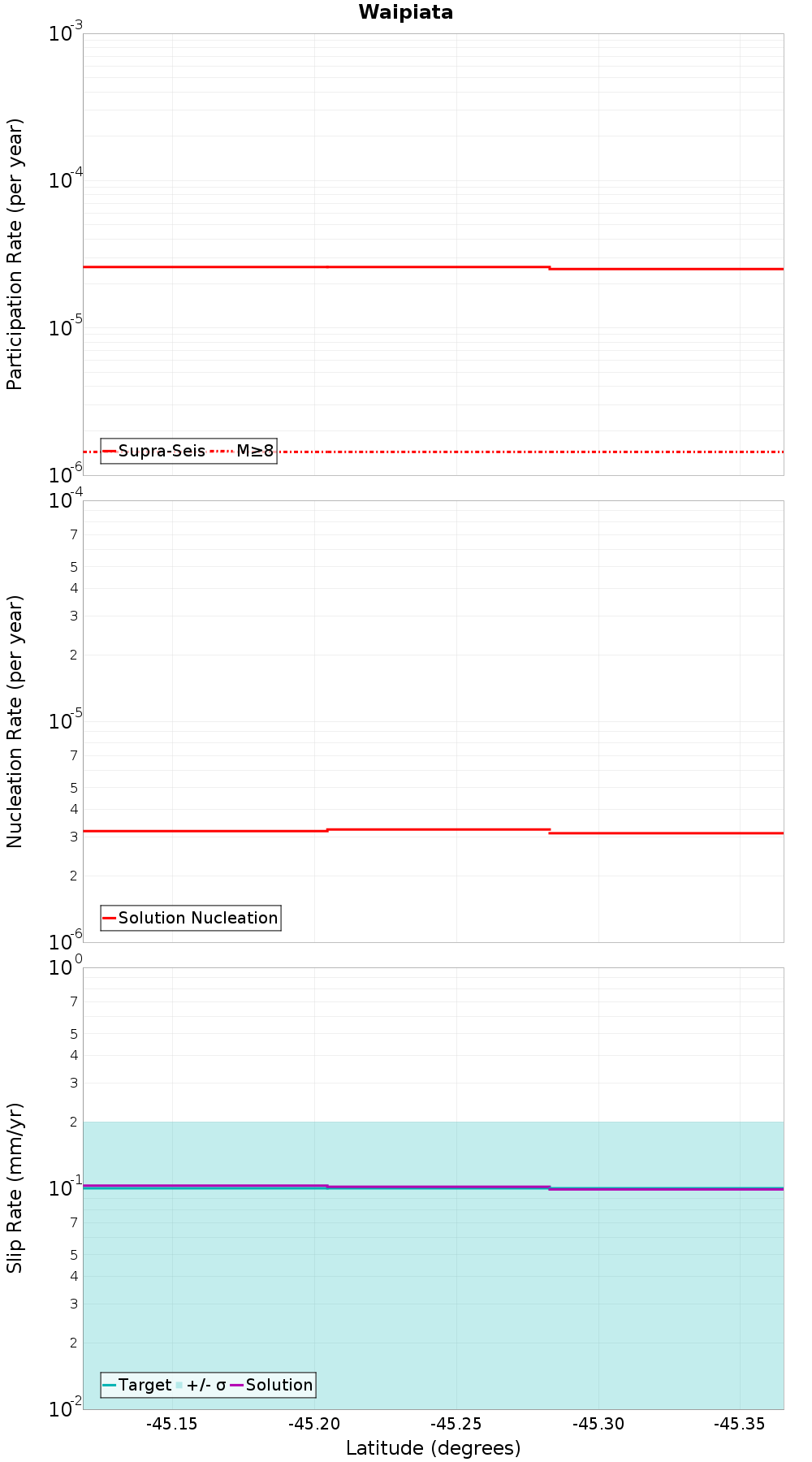

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Billys Ridge, 0.21 km awayGimmerburn, 7.59 km away
Murphys Creek, 0.21 km awayWaihemo, 7.68 km away
Horse Flat, 0.24 km awayNichols Rock, 8.44 km away
Hyde North, 0.42 km awayCross Eden, 10.38 km away
Dunback Hill, 0.51 km awayLong Valley, 12.3 km away
Ranfurly, 2.79 km awaySliver Stream - Merton, 14.54 km away
Pylap, 3.22 km awayHawkdun, 17.13 km away
Flat Stream - Glenpark, 5.65 km awayMaungatua - North Taieri, 19.44 km away
Logan Burn, 6.25 km away

Billys Ridge, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate7.795426E-6

Murphys Creek, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate7.9867203E-7

Horse Flat, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Hyde North, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate8.404001E-6

Dunback Hill, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate1.6670936E-5

Ranfurly, 2.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate9.293897E-6

Pylap, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

Flat Stream - Glenpark, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate1.4064223E-6

Logan Burn, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Gimmerburn, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate1.0758336E-5

Cross Eden, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Sliver Stream - Merton, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 17.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0MzQuMEdEZDVS
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate4.3145712E-10
