Green Island Details

PropertyValue
Rupture Count41
Ruptures Above Sect Min Mag41
Ruptures w/ Nonzero Rates6
Magnitude Range[6.97, 7.88]
Length Range[18, 154] km
Total Rate5.552539E-4 /yr
Multi-Fault Rate9.6943615E-5 /yr (17.46%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

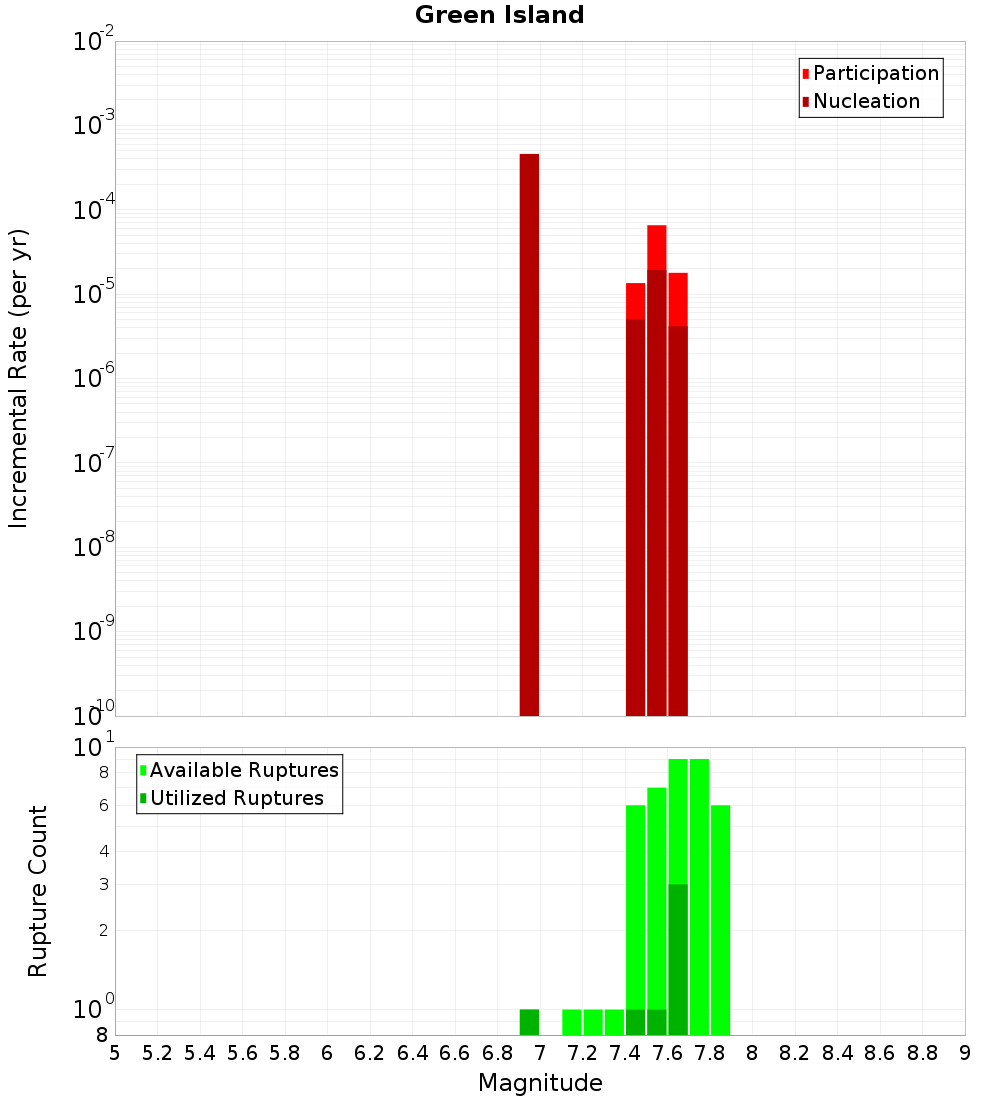

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

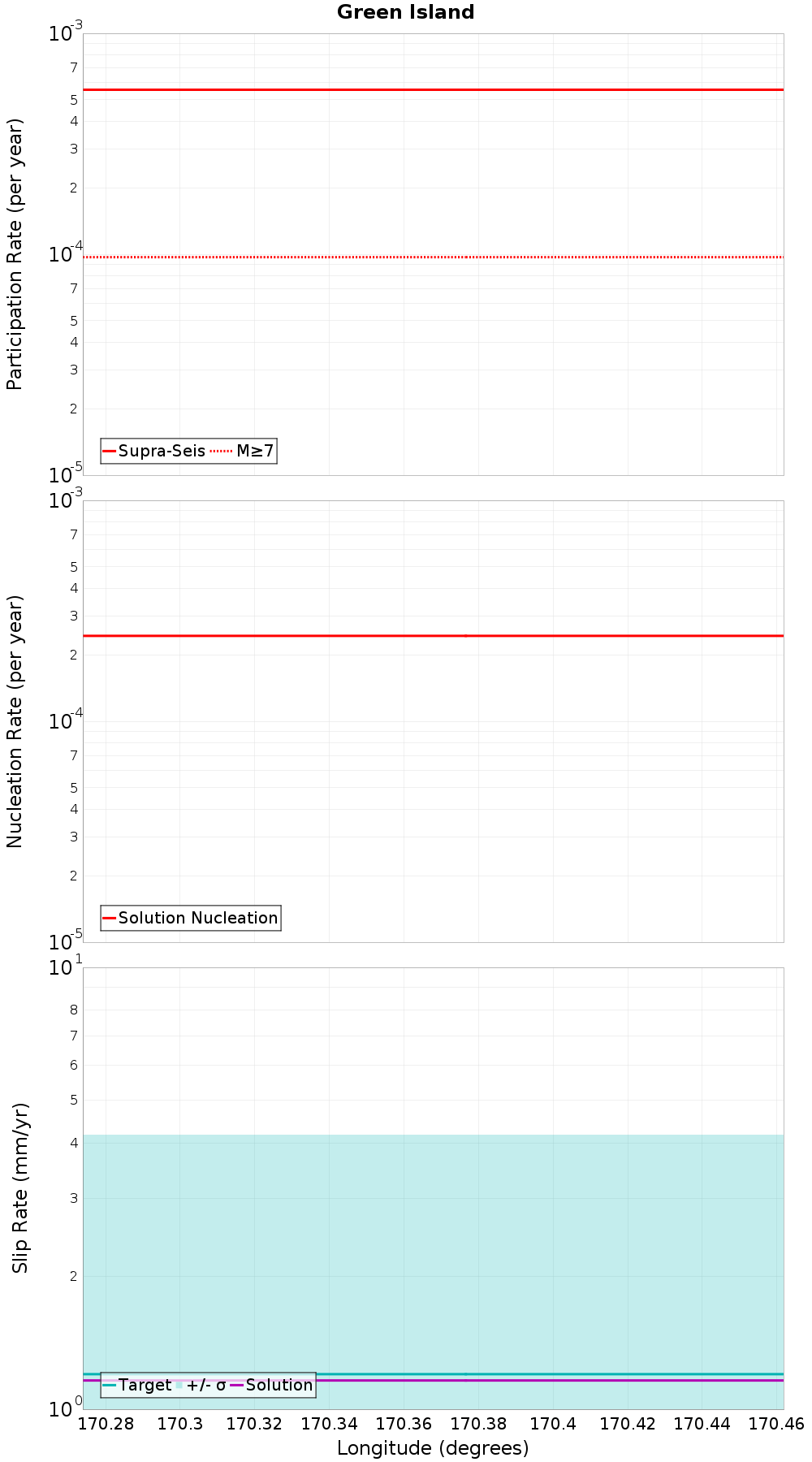

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Akatore, 0.19 km away
Kaikorai, 0.54 km away
Titri Central, 5.11 km away
Titri North, 5.36 km away
Takapu, 10.64 km away
Titri South, 10.73 km away
Sliver Stream - Merton, 12.64 km away
Maungatua - North Taieri, 13.31 km away
Waitahuna 2, 15.74 km away
Waitahuna 1, 17.12 km away

Akatore, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate8.2568185E-5

Kaikorai, 0.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate1.39482745E-5

Titri Central, 5.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate8.561766E-7

Titri North, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.3519254E-5

Takapu, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate3.0772924E-6

Titri South, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate8.561766E-7

Sliver Stream - Merton, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Maungatua - North Taieri, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 15.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 17.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMGF1NFRi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
