Hump Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 100 |
| Ruptures Above Sect Min Mag | 95 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.93, 7.82] |
| Length Range | [22, 165] km |
| Total Rate | 1.864307E-4 /yr |
| Multi-Fault Rate | 1.5141249E-4 /yr (81.22%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

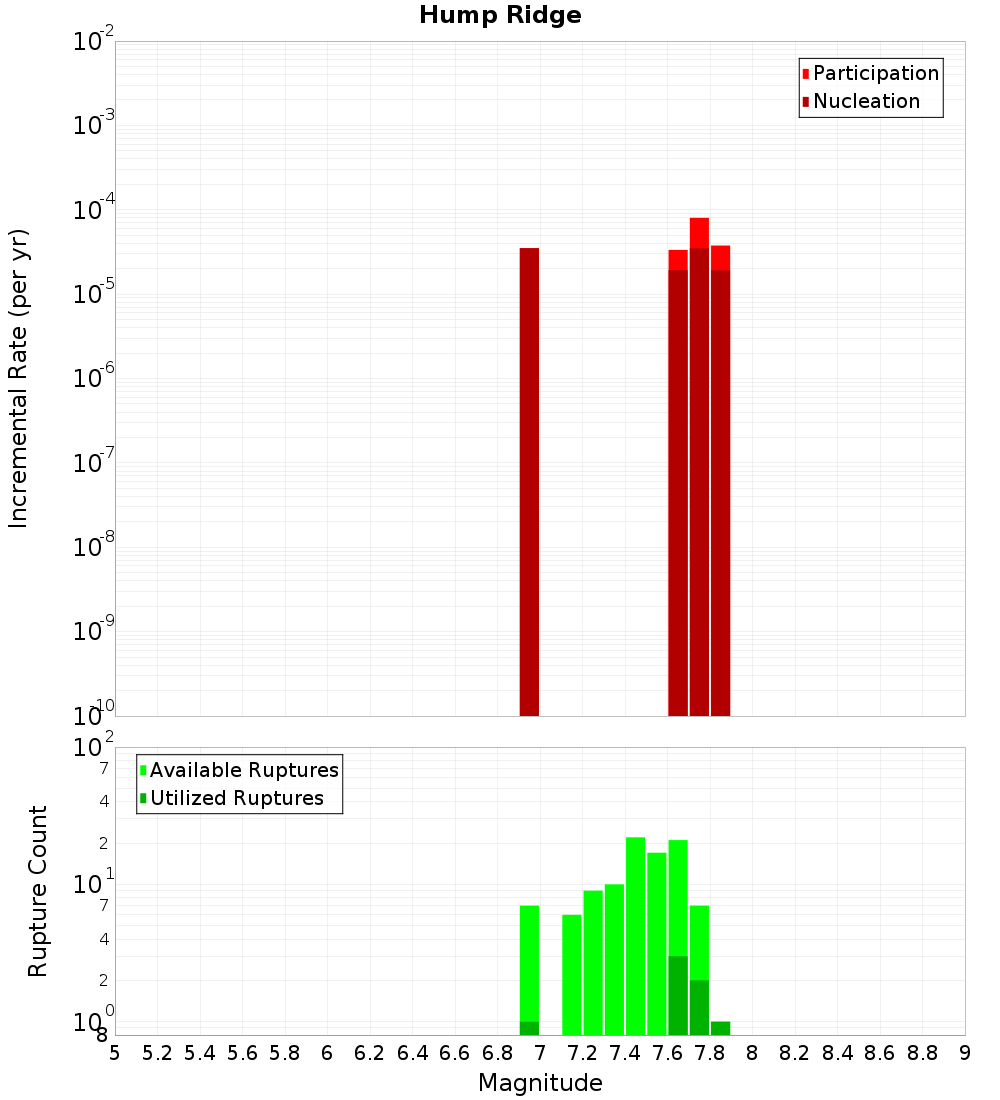

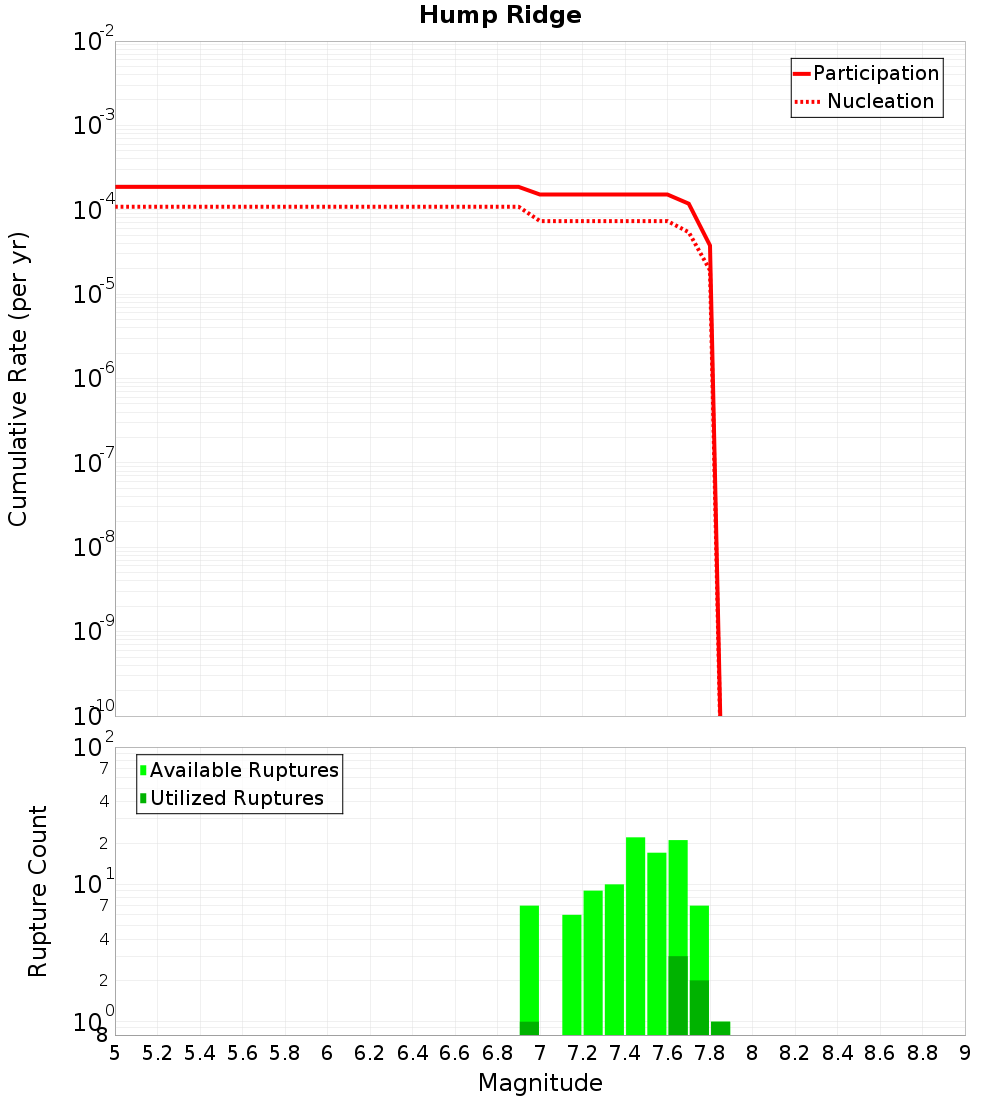

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

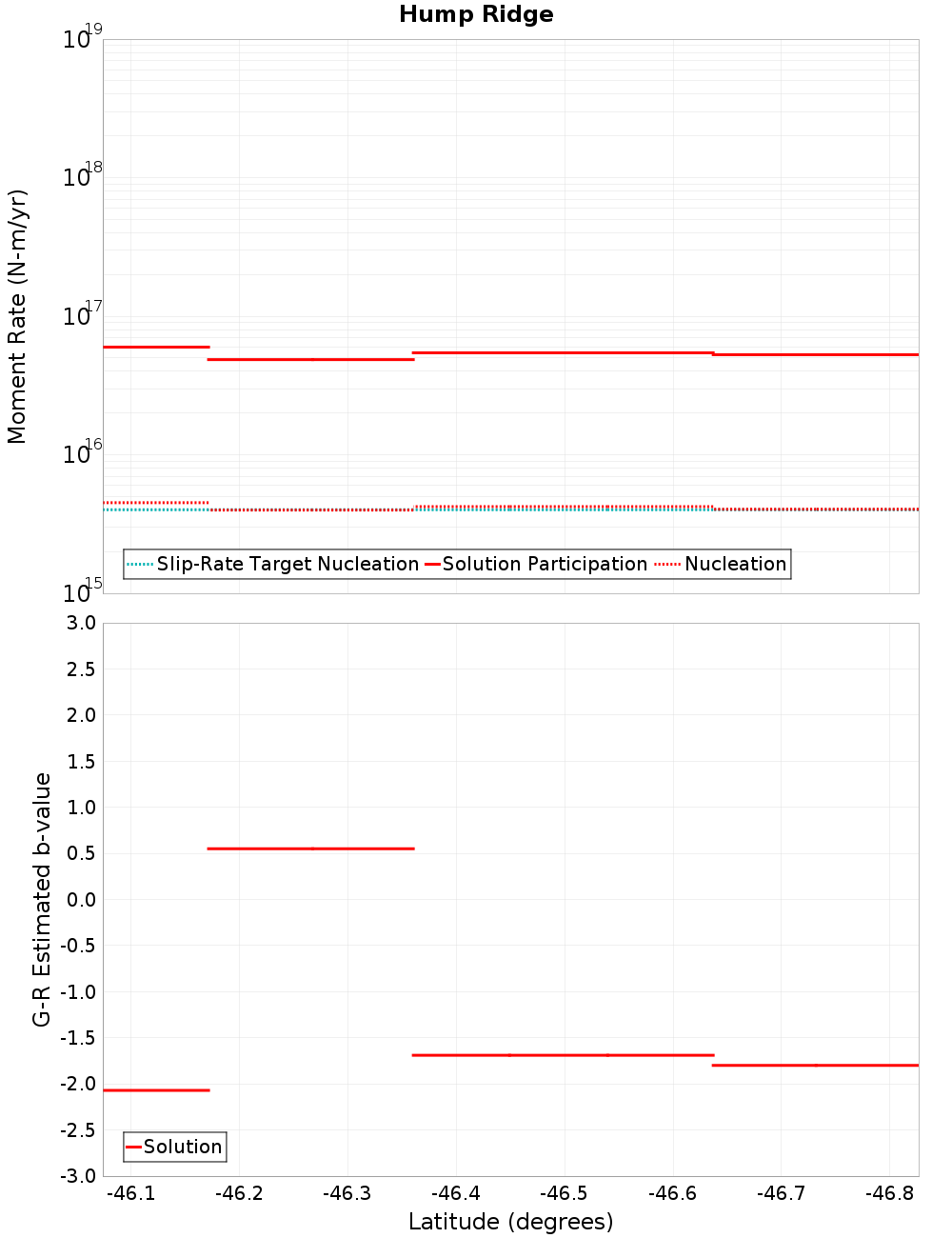

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: South, 3.03 km away |
| Hauroko: North, 3.59 km away |
| Solander, 5.29 km away |
| Monowai, 10.79 km away |
Hauroko: South, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMHlFSnZn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 6.722496E-5 |
Hauroko: North, 3.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMHlFSnZn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 5.4252498E-5 |
Solander, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMHlFSnZn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 2.3938877E-5 |
Monowai, 10.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NDEuMHlFSnZn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 3.5545276E-5 |
