Otakiri Details

Property	Value
Rupture Count	2,979
Ruptures Above Sect Min Mag	2,978
Ruptures w/ Nonzero Rates	86
Magnitude Range	[6.60, 7.80]
Length Range	[13, 202] km
Total Rate	4.77848E-4 /yr
Multi-Fault Rate	4.2177367E-4 /yr (88.27%)
Directly-Connected Faults	8
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

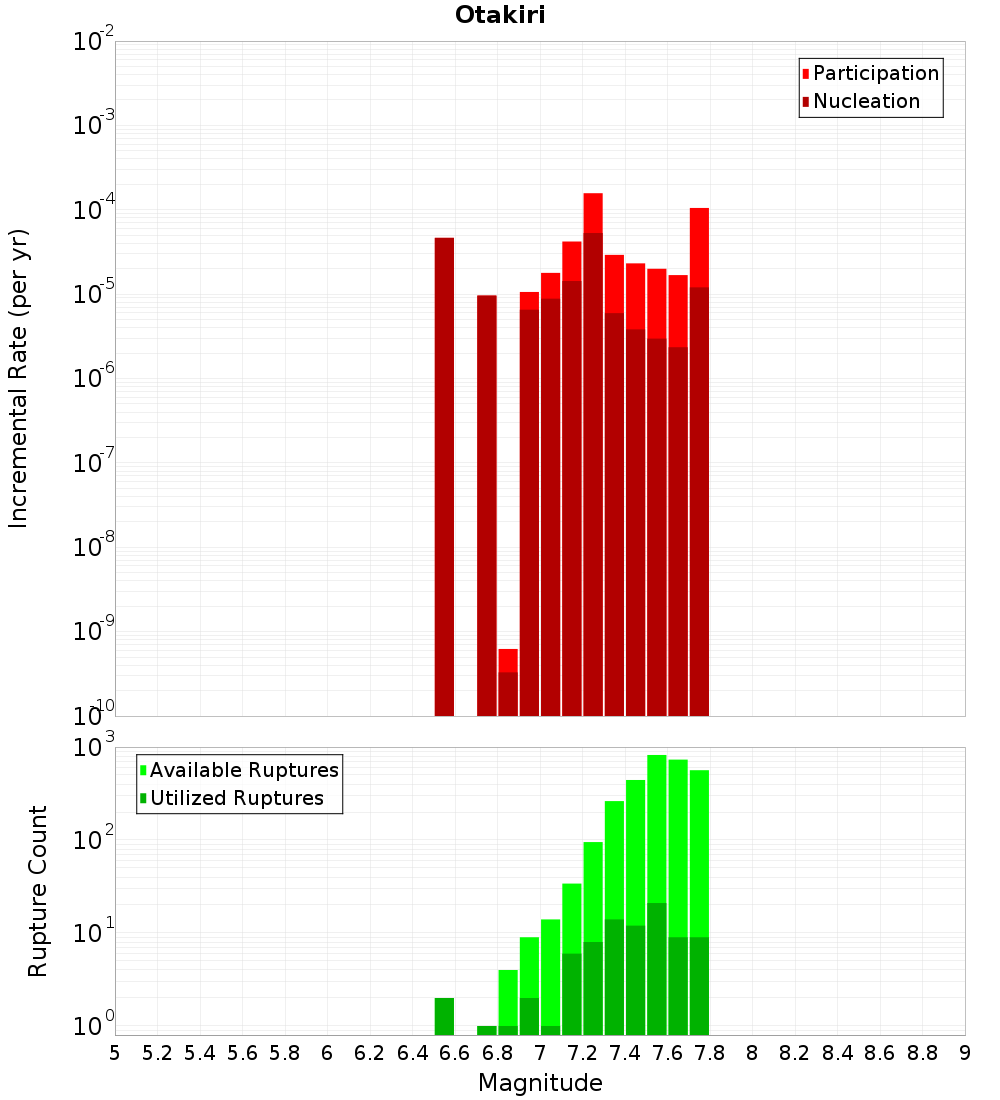

Magnitude-Frequency Distribution

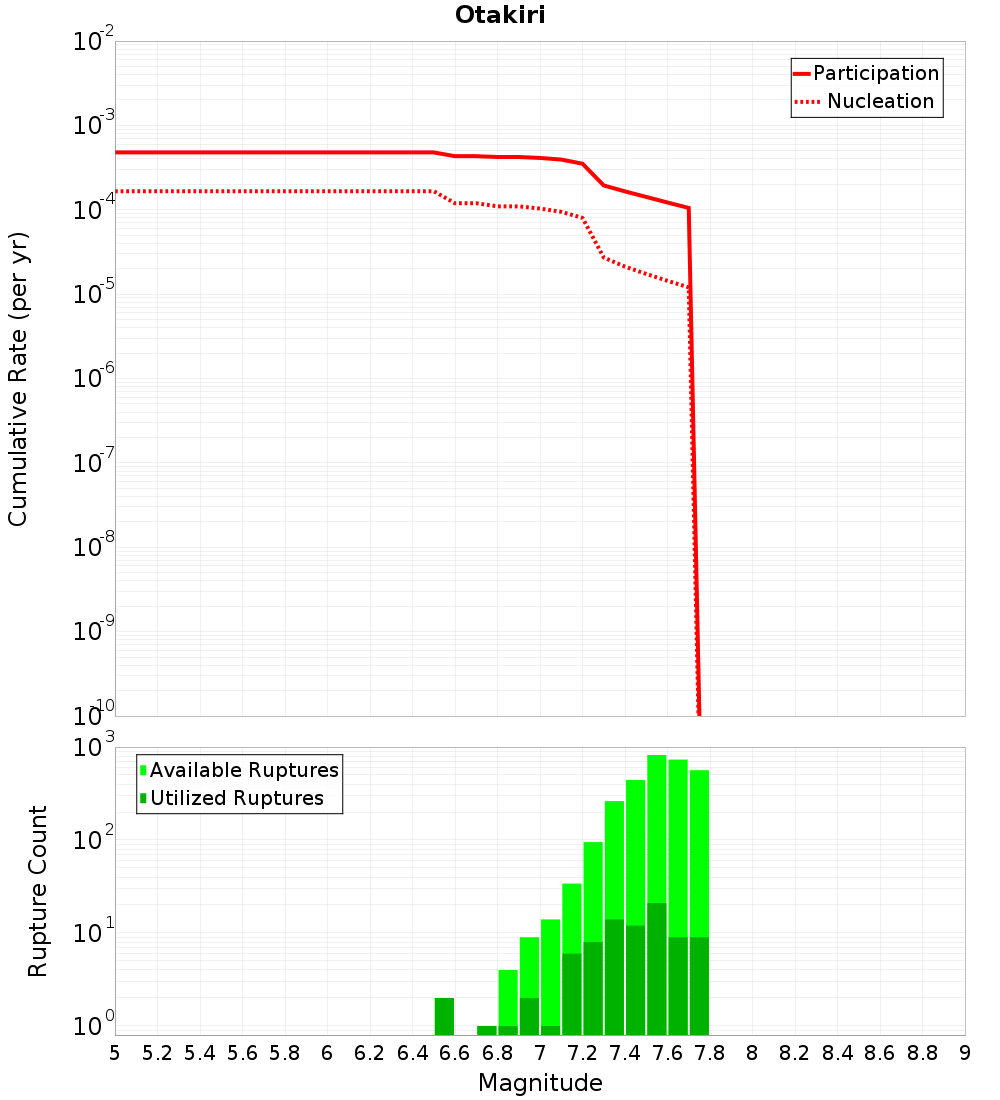

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

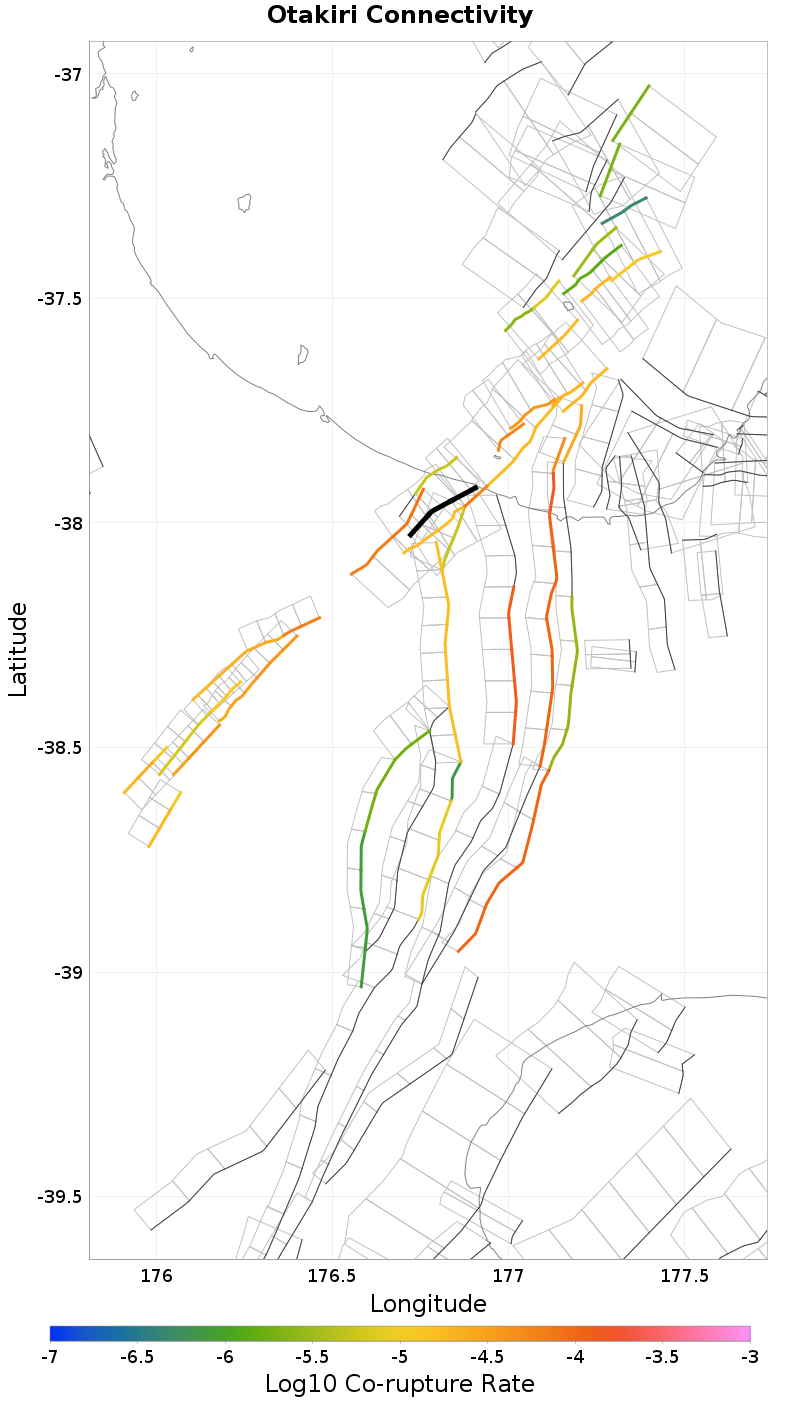

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	7.05361E-5

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	5.315903E-6

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	1.2876462E-4

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	1.6514126E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	9.7502314E-5

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,356
Co-rupture Rate	1.5596674E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,314
Co-rupture Rate	1.7233893E-5

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	5.4643015E-6

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	1.6058897E-4

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	5.4021977E-5

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	2.6263103E-6

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	false
Co-rupture Count	571
Co-rupture Rate	3.7159934E-5

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTIuMHRtOFg5
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
