Otakiri Details

Property	Value
Rupture Count	2,979
Ruptures Above Sect Min Mag	2,978
Ruptures w/ Nonzero Rates	66
Magnitude Range	[6.60, 7.80]
Length Range	[13, 202] km
Total Rate	4.1277506E-4 /yr
Multi-Fault Rate	4.1277506E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

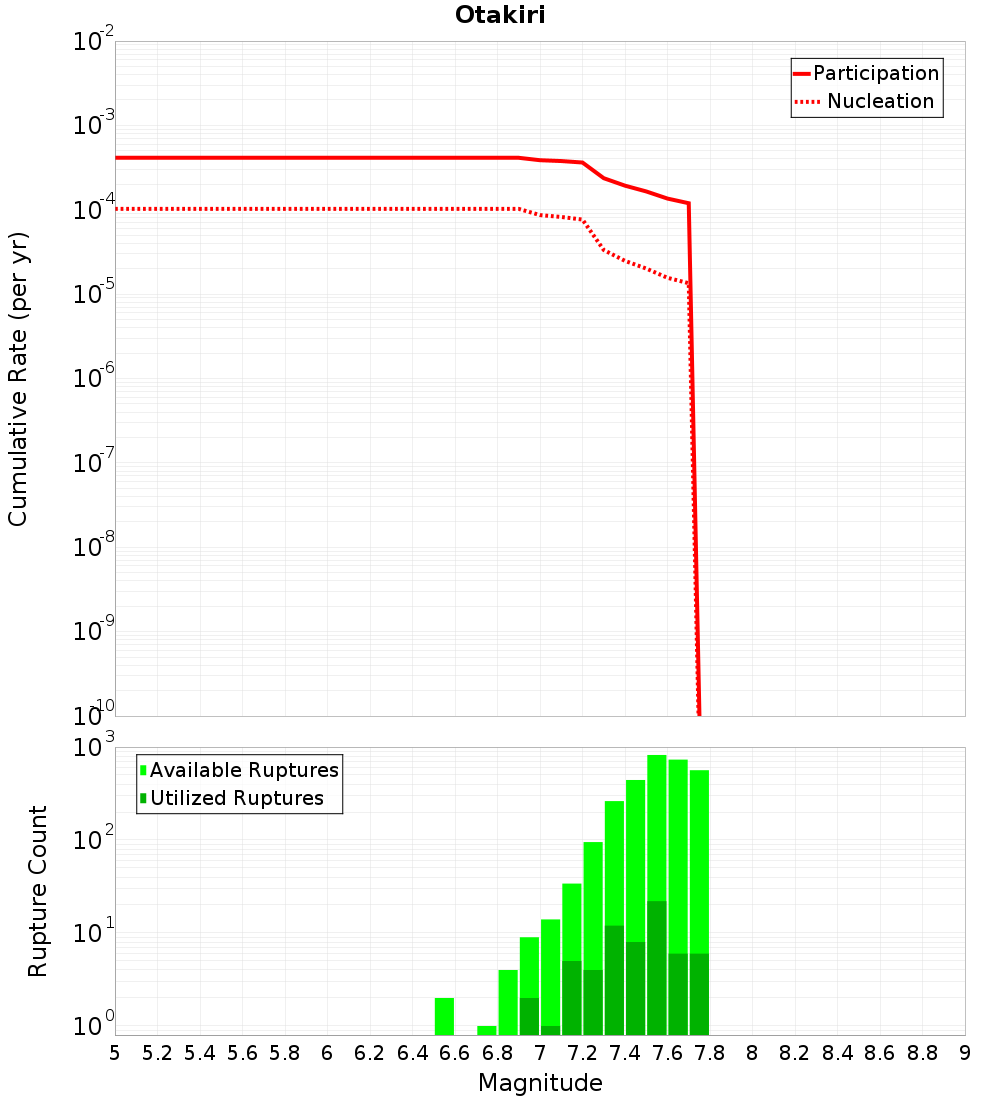

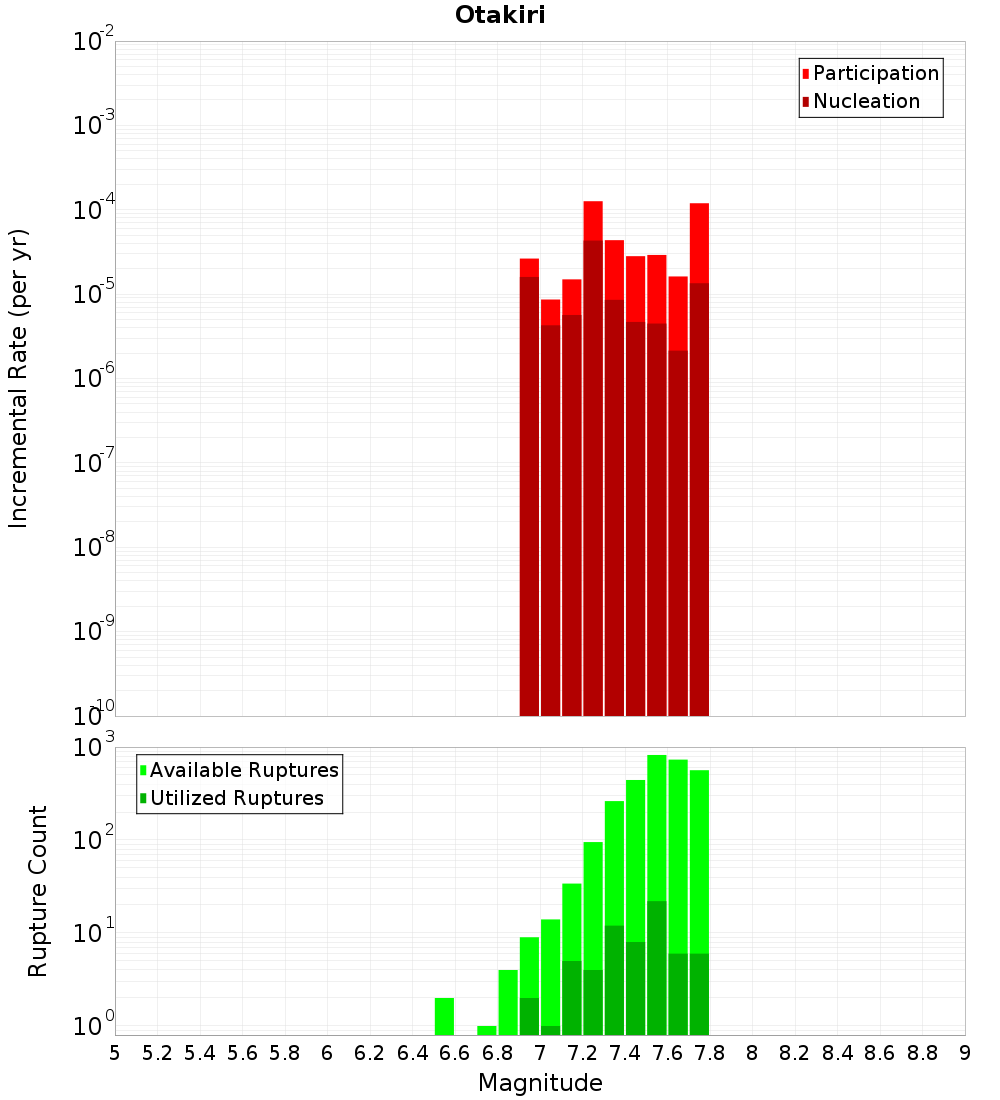

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

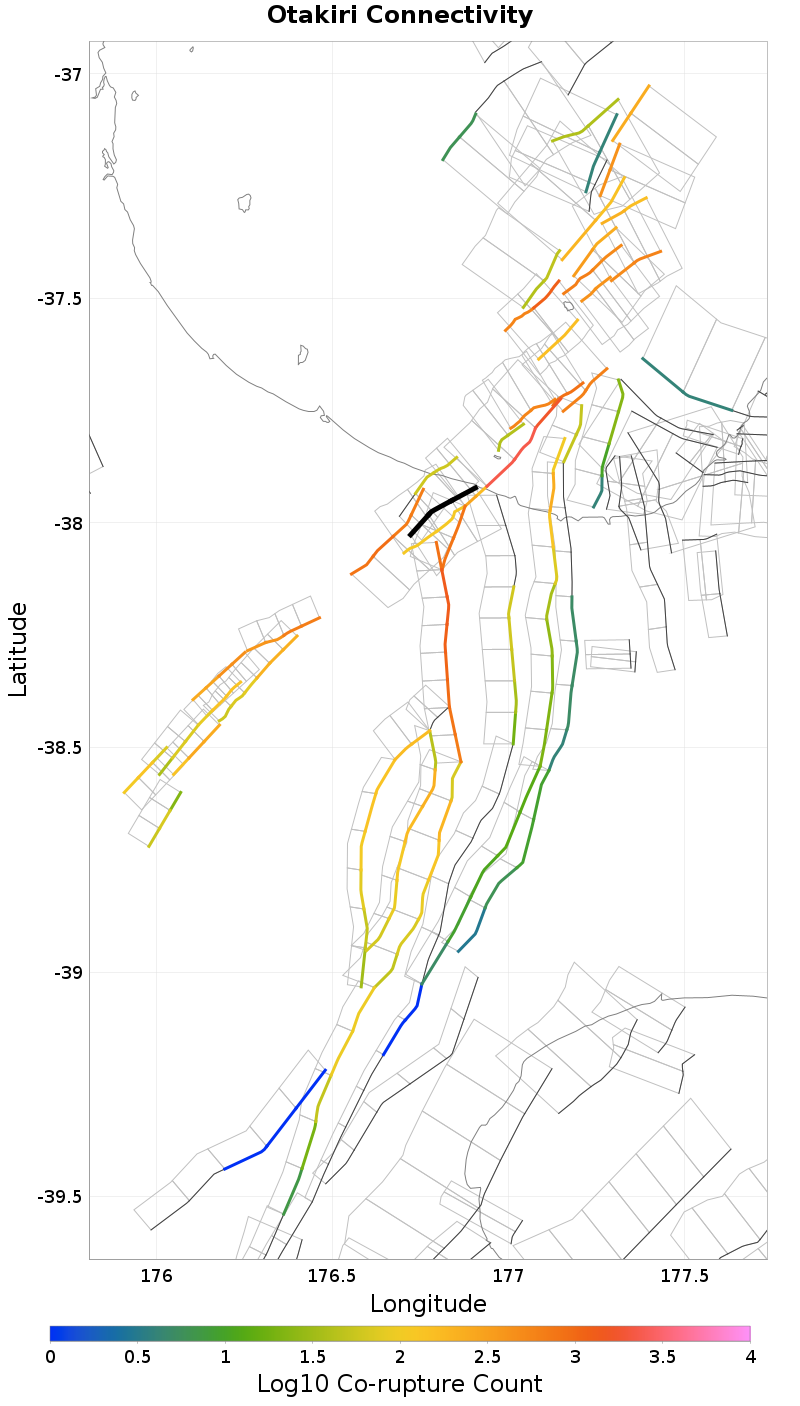

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	5.8174344E-5

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	9.7308875E-6

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	1.08695735E-4

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	1.2004919E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	1.14884475E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,356
Co-rupture Rate	2.8705097E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,314
Co-rupture Rate	3.3633914E-5

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	3.7173402E-6

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	1.4612799E-4

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	4.6169425E-5

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	5.8423625E-6

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	571
Co-rupture Rate	4.3238935E-5

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
