Waitaki Details

Property	Value
Rupture Count	163
Ruptures Above Sect Min Mag	160
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.75, 7.91]
Length Range	[18, 199] km
Total Rate	2.5610601E-5 /yr
Multi-Fault Rate	2.5610601E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	15

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

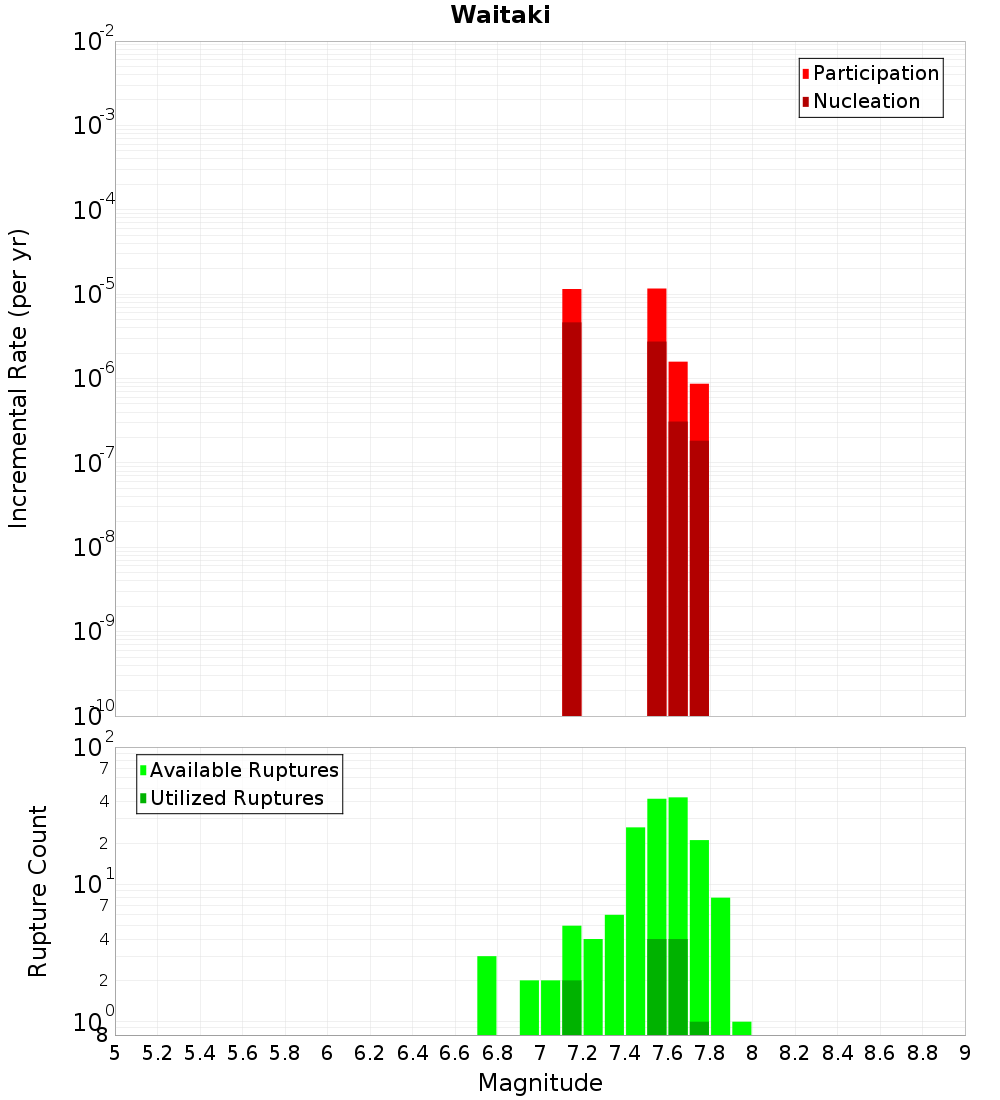

Magnitude-Frequency Distribution

Incremental	Cumulative

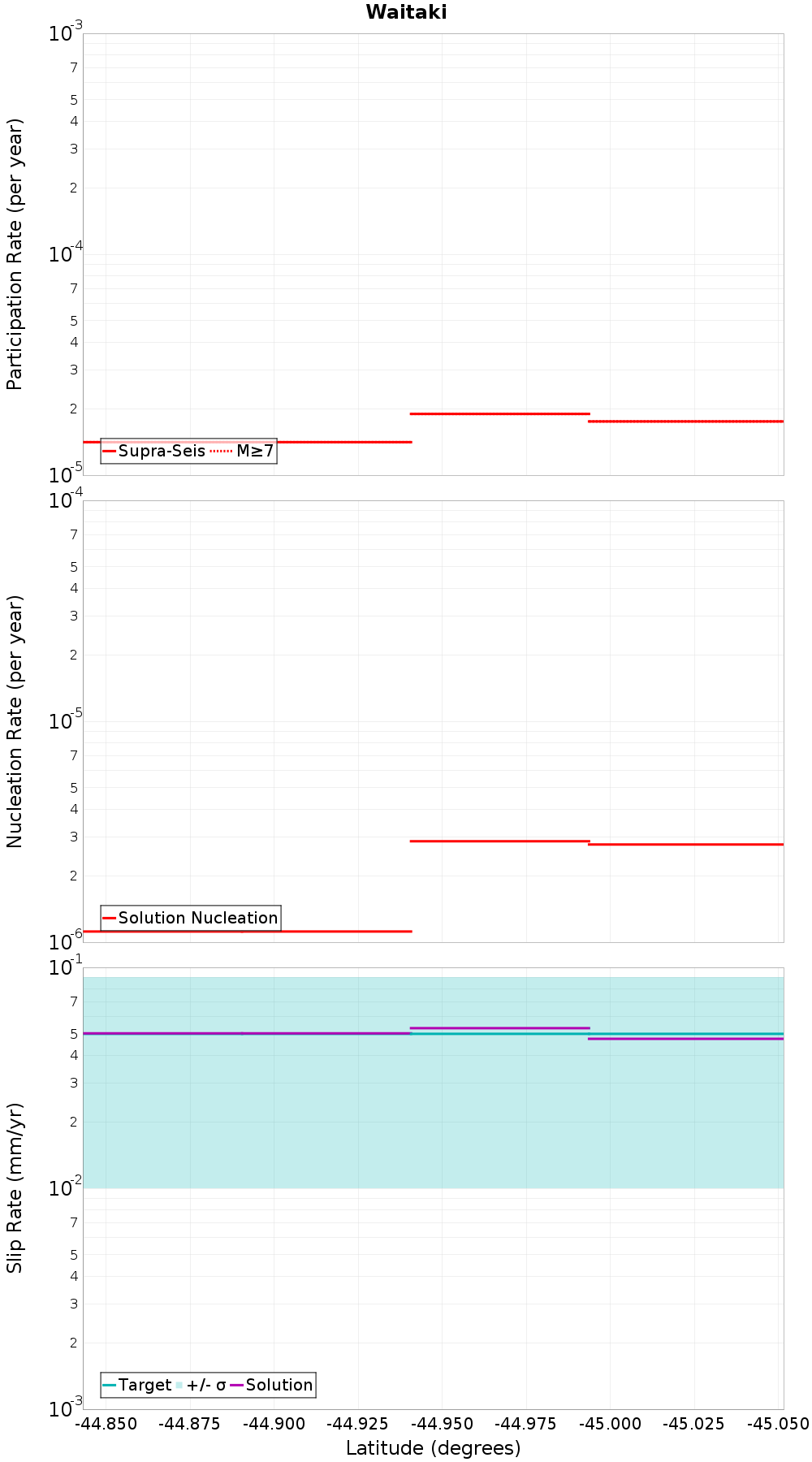

Along-Strike Values

Moment-Rates and b-Values

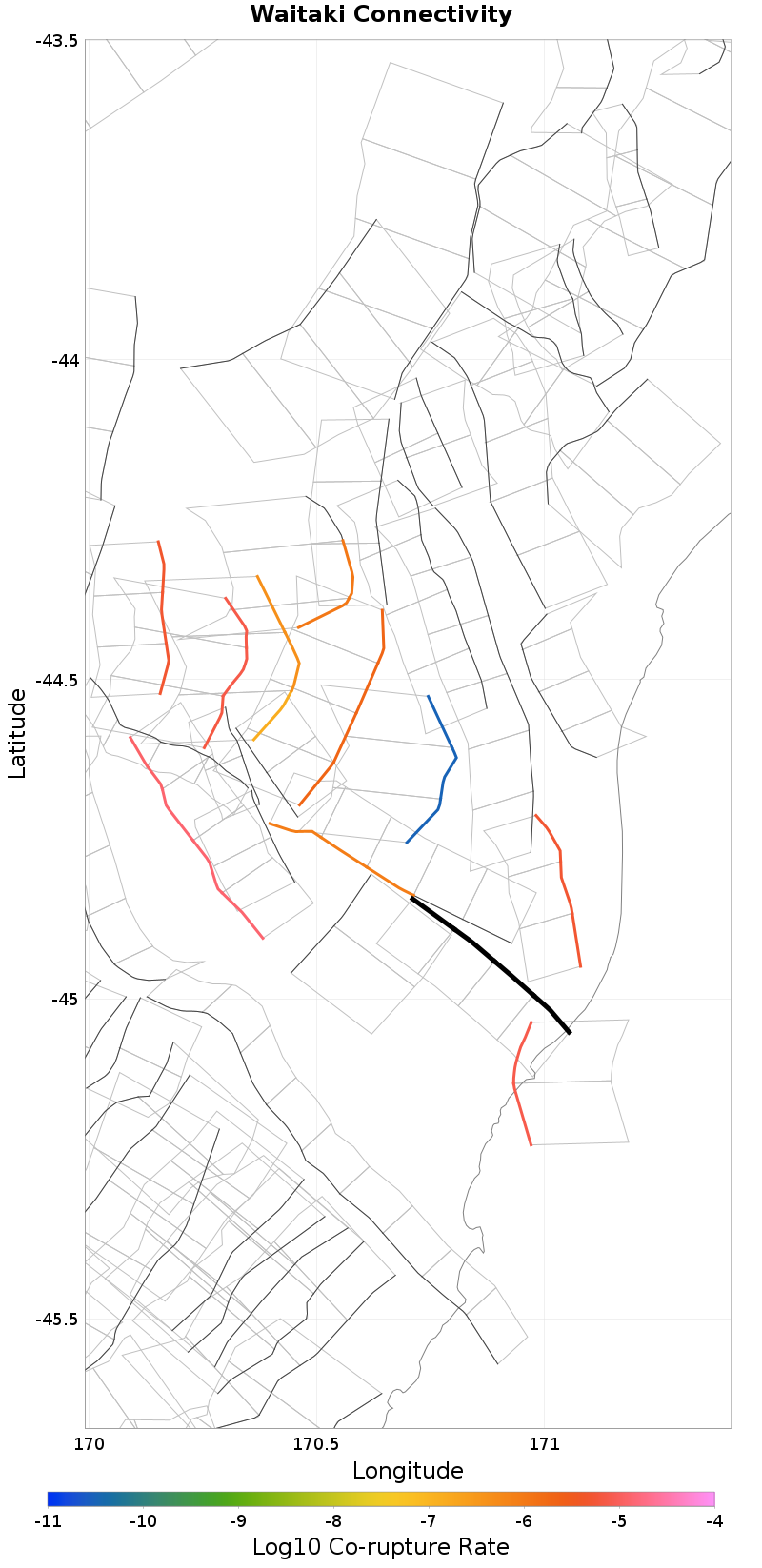

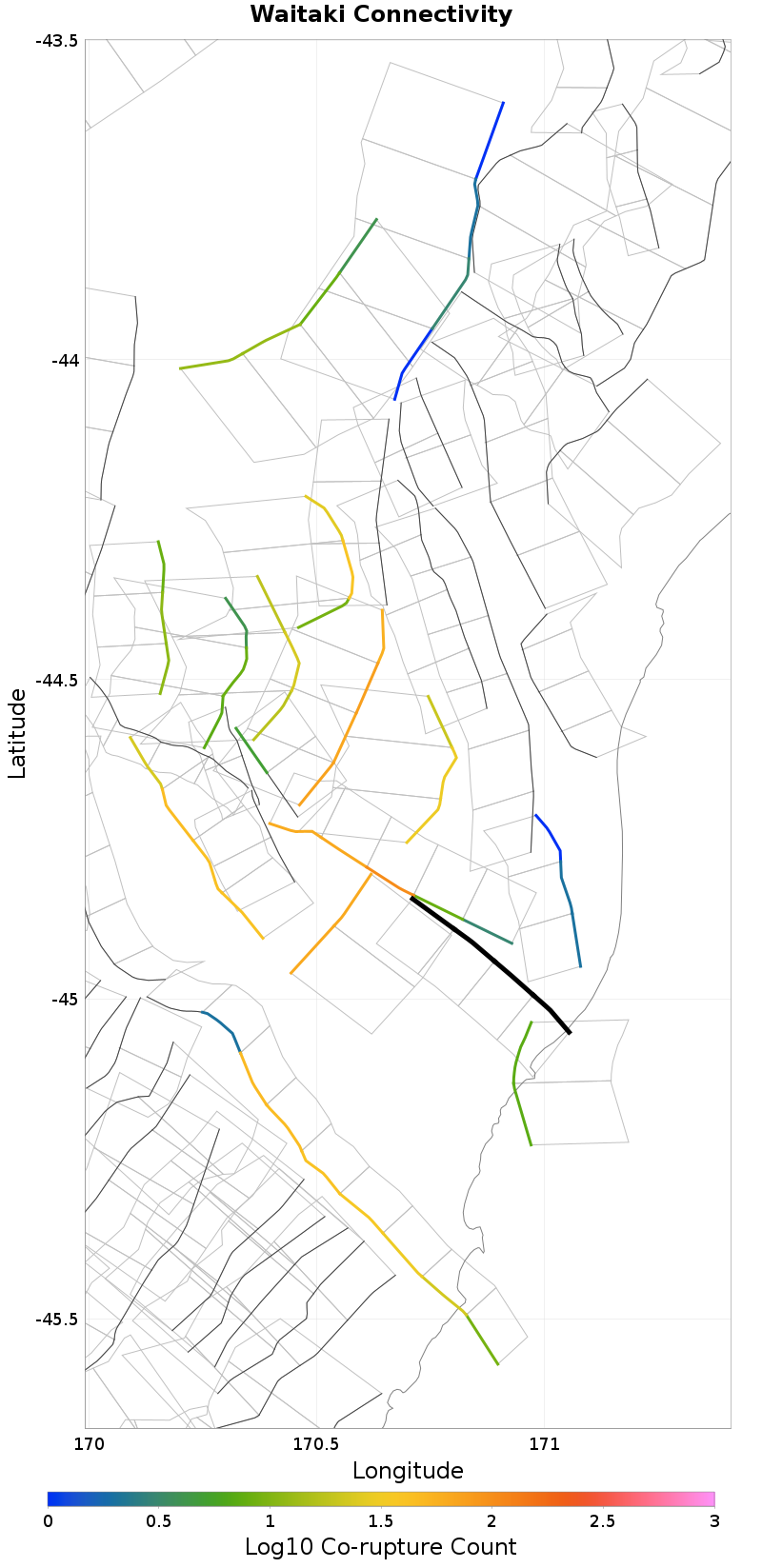

Connectivity

Nearby Sections

Fault Section
Black Hill, 0.12 km away
Awamoa, 0.28 km away
Stonewall, 0.64 km away
Waimate, 8.23 km away
Campbell Hills, 9.85 km away
Middle Range, 13.01 km away
Hunters, 16.88 km away
Awahokomo, 19.95 km away

Black Hill, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	0.0

Awamoa, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	7.912188E-6

Stonewall, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	8.6750384E-7

Waimate, 8.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	5.033351E-6

Campbell Hills, 9.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	3.1361826E-11

Middle Range, 13.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	true
Directly Connected?	true
Co-rupture Count	46
Co-rupture Rate	1.3240982E-5

Hunters, 16.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awahokomo, 19.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NTguMFF4bnN5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
