Hillfoot Details

Property	Value
Rupture Count	272
Ruptures Above Sect Min Mag	269
Ruptures w/ Nonzero Rates	17
Magnitude Range	[7.10, 8.25]
Length Range	[27, 351] km
Total Rate	1.5675367E-5 /yr
Multi-Fault Rate	1.5675367E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	35

Table Of Contents

Magnitude-Frequency Distribution

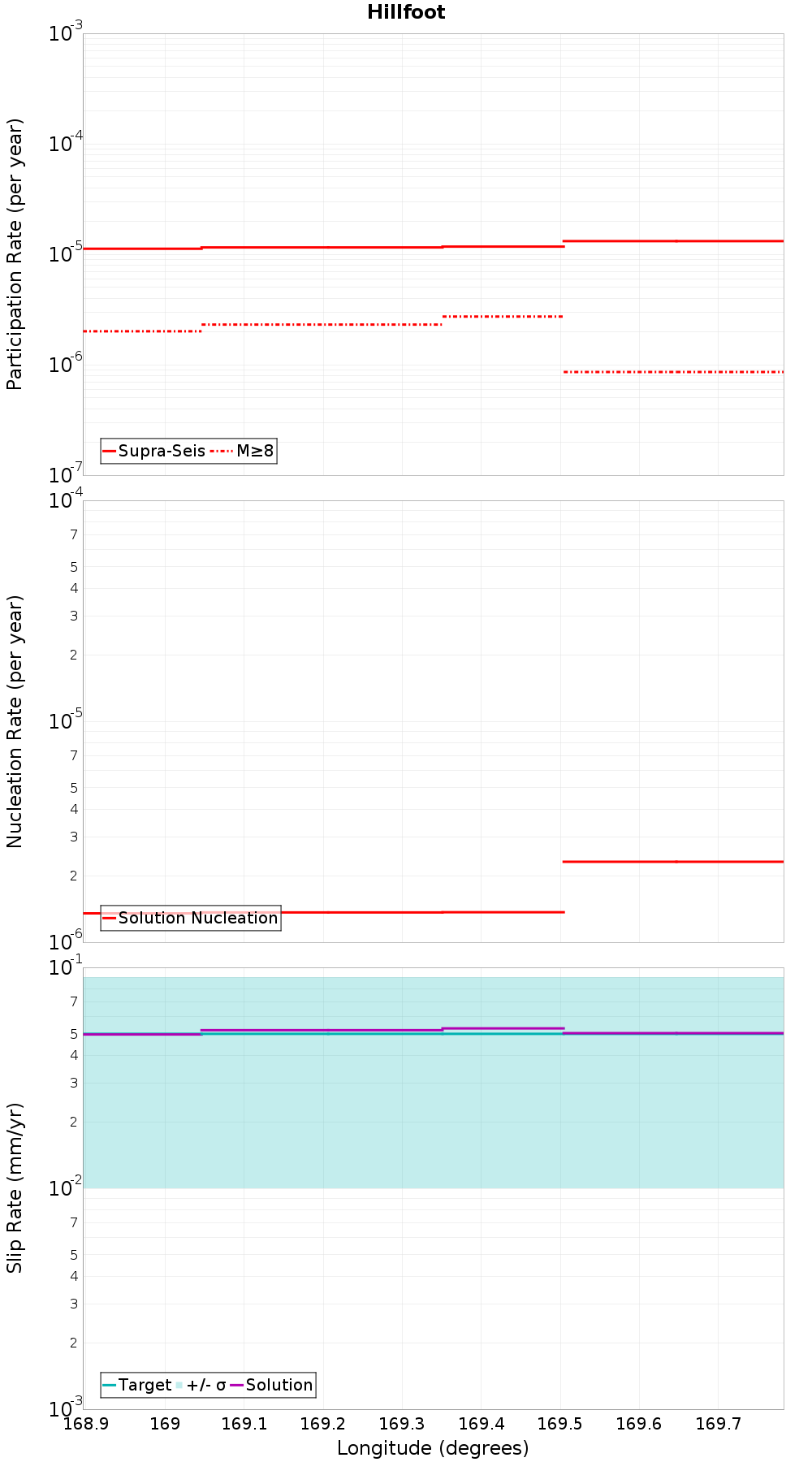

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

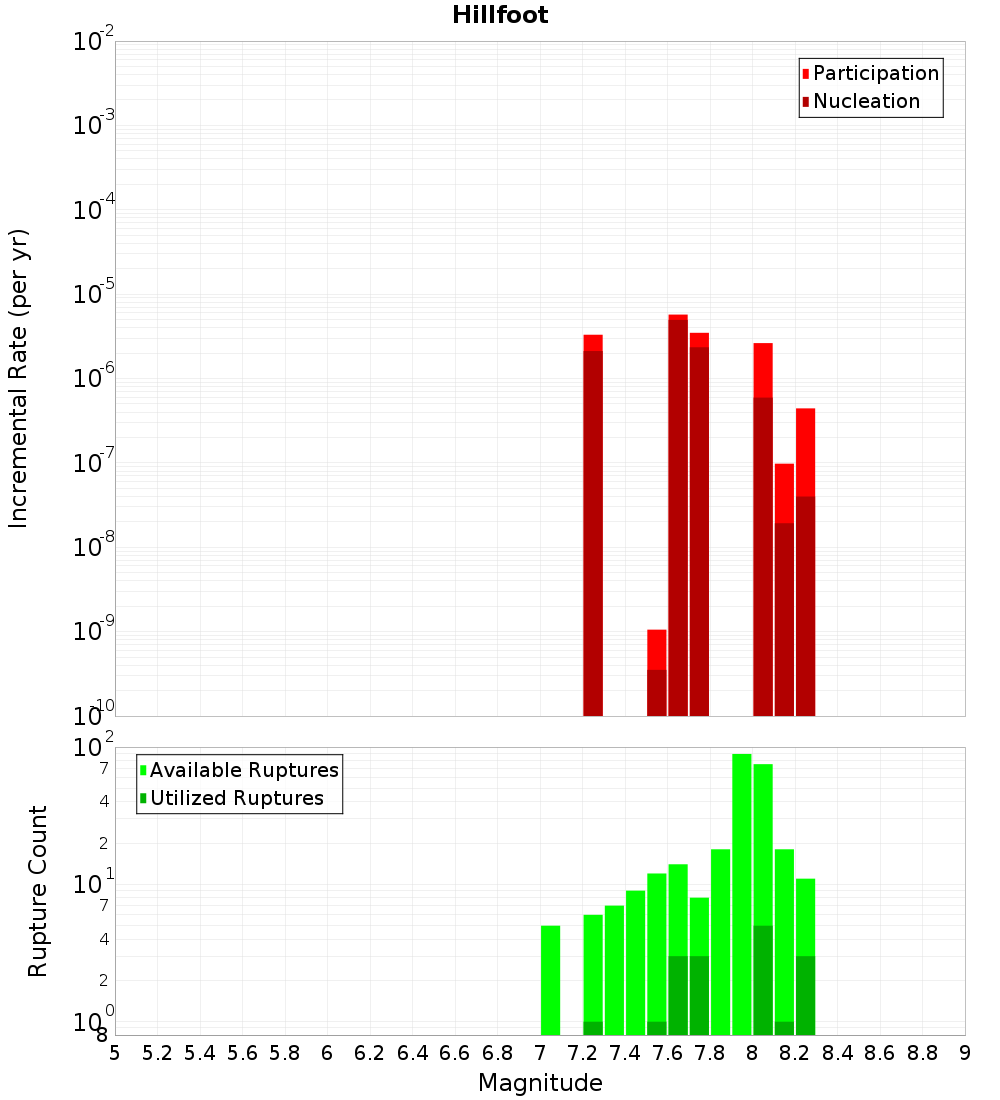

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

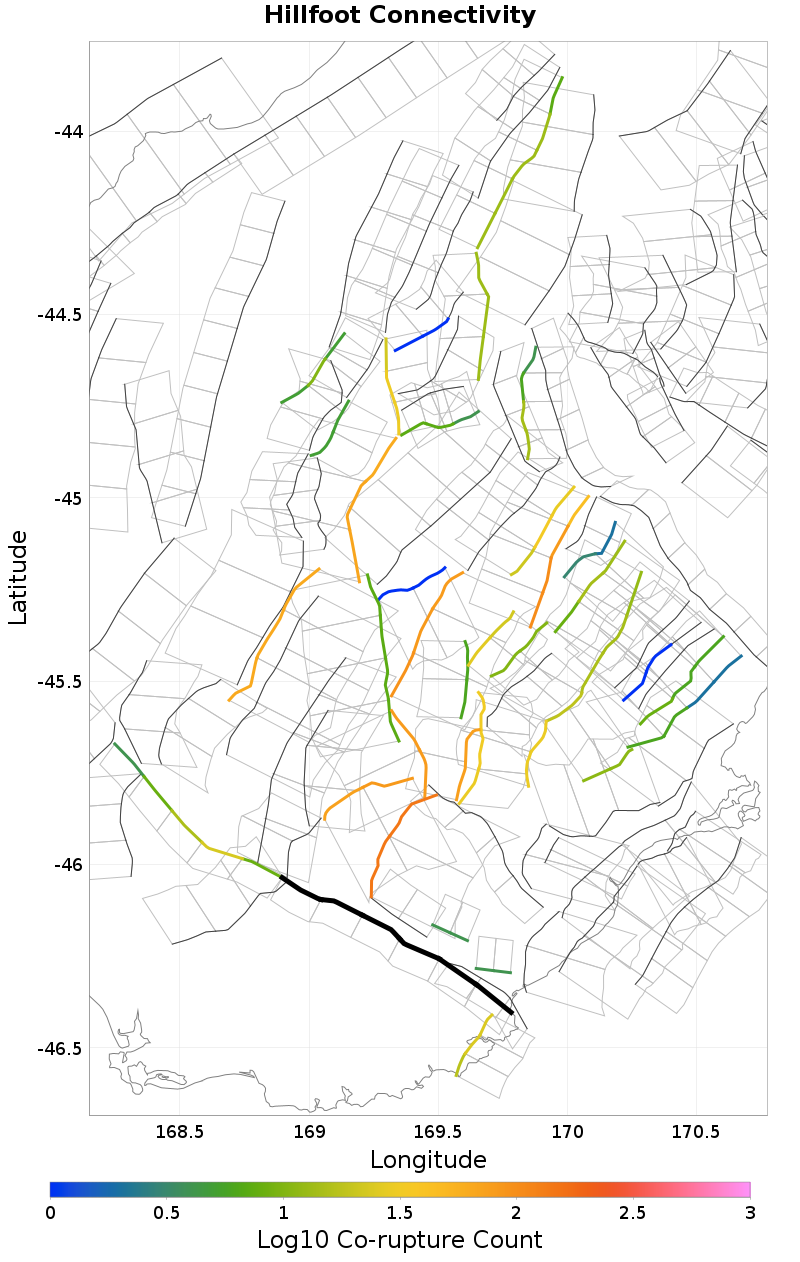

Connectivity

Nearby Sections

Fault Section
Hokonui, 0 km away
Hedgehope, 0.31 km away
Little Hillfoot, 0.55 km away
Waikaka, 0.9 km away
Settlement, 2.07 km away
Otanomomo, 3.97 km away
Beacon Hill, 4.04 km away
Waikaia, 4.54 km away
Blue Mountain, 6.17 km away
Titri South, 7.63 km away
Clifton, 8.54 km away
Spylaw, 11.54 km away
Wendon Valley, 17.68 km away
Akatore, 18.87 km away

Hokonui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	3.6985252E-6

Hedgehope, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Little Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaka, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Settlement, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	4.9074224E-6

Otanomomo, 3.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	2.5208708E-6

Beacon Hill, 4.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaia, 4.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Mountain, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	2.7257906E-6

Titri South, 7.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clifton, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	5.719636E-6

Spylaw, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	true
Directly Connected?	true
Co-rupture Count	83
Co-rupture Rate	4.4260105E-7

Wendon Valley, 17.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akatore, 18.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
