White Island 1 Details

PropertyValue
Rupture Count41,894
Ruptures Above Sect Min Mag41,893
Ruptures w/ Nonzero Rates406
Magnitude Range[6.83, 8.34]
Length Range[19, 608] km
Total Rate3.4194128E-4 /yr
Multi-Fault Rate3.4194128E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults90

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

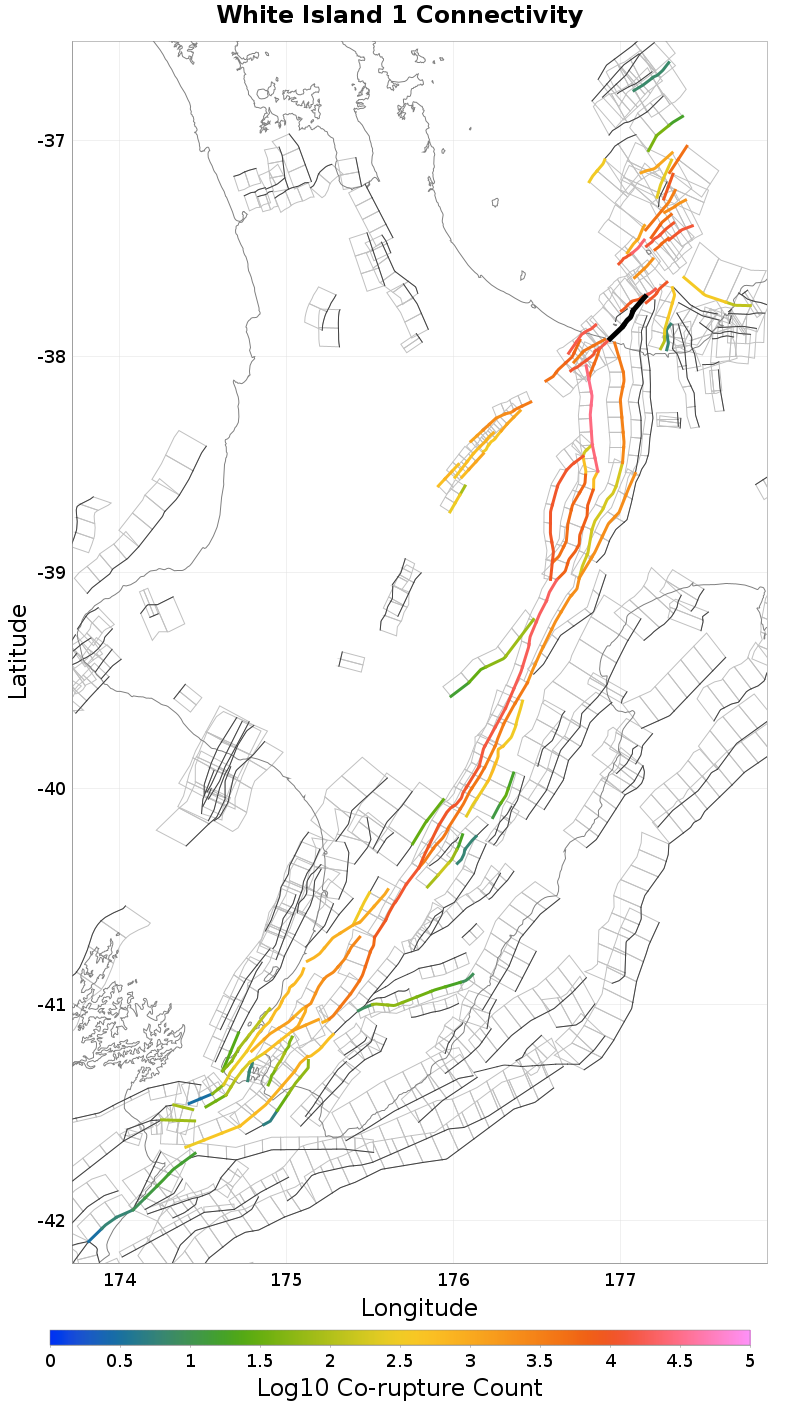

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Edgecumbe Coastal, 0 km awayAwakeri, 7.32 km away
Ohiwa 1, 0.17 km awayCalypso 2, 8.93 km away
Matata, 0.2 km awayWaiotahi: North, 9.79 km away
Rangitaiki 2, 0.77 km awayBraemar, 11.21 km away
Whakaari 4, 1.52 km awayOhae 1, 13.68 km away
White Island 2, 1.95 km awayOpotiki 3, 13.82 km away
Rangitaiki 1, 2 km awayOhae 2, 17.69 km away
Otakiri, 2.46 km awayTe Arawa 1, 18.12 km away
Whakatane: North, 3.09 km awayWaiohau: North, 18.73 km away
Edgecumbe 1987, 4.49 km awayOpape 1, 18.74 km away
Waimanawa - Waikaremoana, 5.15 km awayOpotiki 2, 19.47 km away
Waimana: North, 7.11 km awayVolkner 3, 19.53 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count16,283
Co-rupture Rate1.4267916E-4

Ohiwa 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count16,015
Co-rupture Rate1.6045549E-4

Matata, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count16,605
Co-rupture Rate1.6479516E-4

Rangitaiki 2, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count8,702
Co-rupture Rate7.919683E-5

Whakaari 4, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count23,047
Co-rupture Rate1.10044755E-4

White Island 2, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count10,355
Co-rupture Rate1.3134646E-4

Rangitaiki 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count4,482
Co-rupture Rate2.4690253E-5

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count3,768
Co-rupture Rate1.6636643E-5

Edgecumbe 1987, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?true
Co-rupture Count11,570
Co-rupture Rate1.17182404E-4

Waimanawa - Waikaremoana, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awakeri, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count5,563
Co-rupture Rate2.0761925E-5

Calypso 2, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count1,969
Co-rupture Rate2.8268794E-5

Waiotahi: North, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count9,904
Co-rupture Rate2.629541E-4

Ohae 1, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count405
Co-rupture Rate1.0421574E-5

Ohae 2, 17.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count12,531
Co-rupture Rate1.1470427E-4

Waiohau: North, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count30,768
Co-rupture Rate1.1297326E-4

Opape 1, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 19.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Volkner 3, 19.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMDh5ZTlL
Connected?true
Directly Connected?false
Co-rupture Count1,144
Co-rupture Rate3.2669889E-6
