Paparoa West Details

PropertyValue
Rupture Count171
Ruptures Above Sect Min Mag166
Ruptures w/ Nonzero Rates24
Magnitude Range[6.76, 7.90]
Length Range[18, 218] km
Total Rate6.2176405E-4 /yr
Multi-Fault Rate5.7576125E-4 /yr (92.60%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

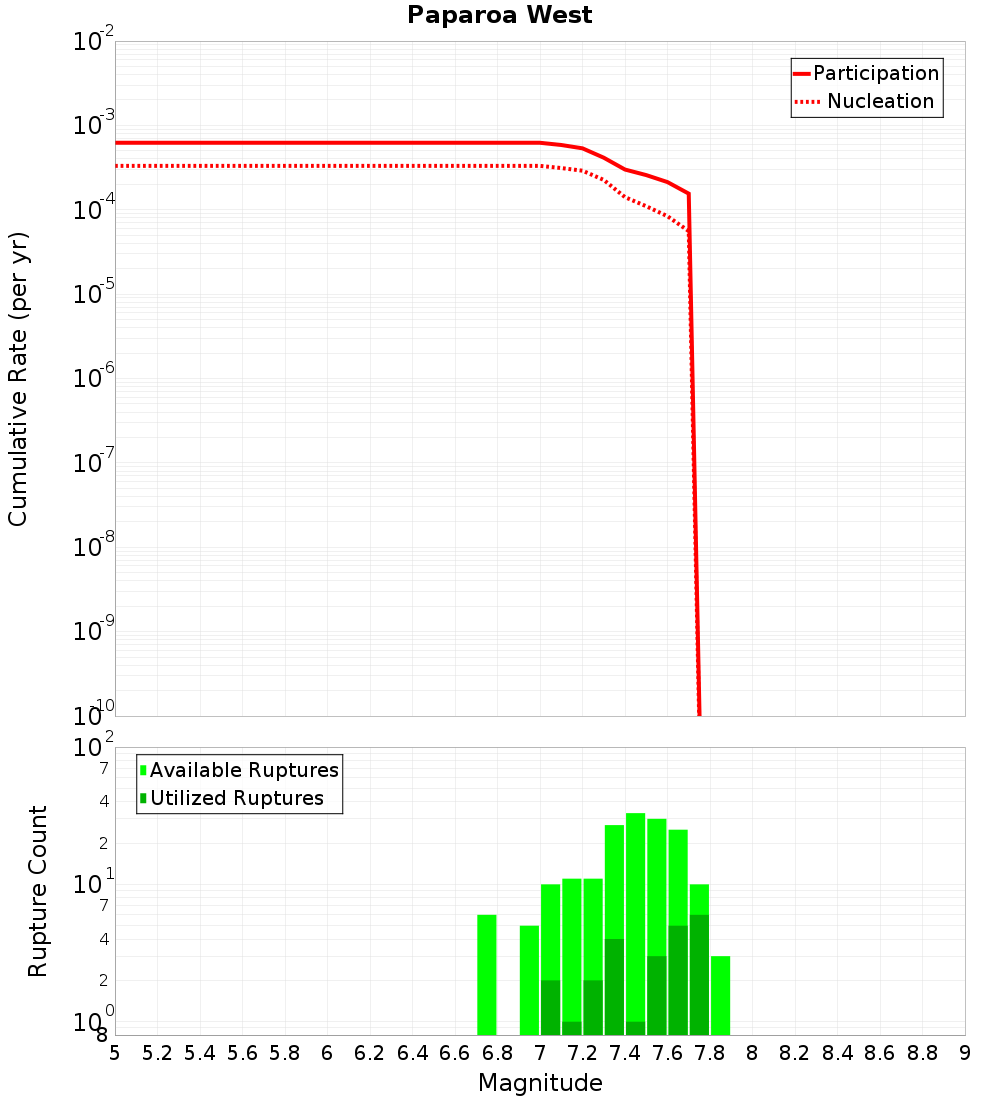

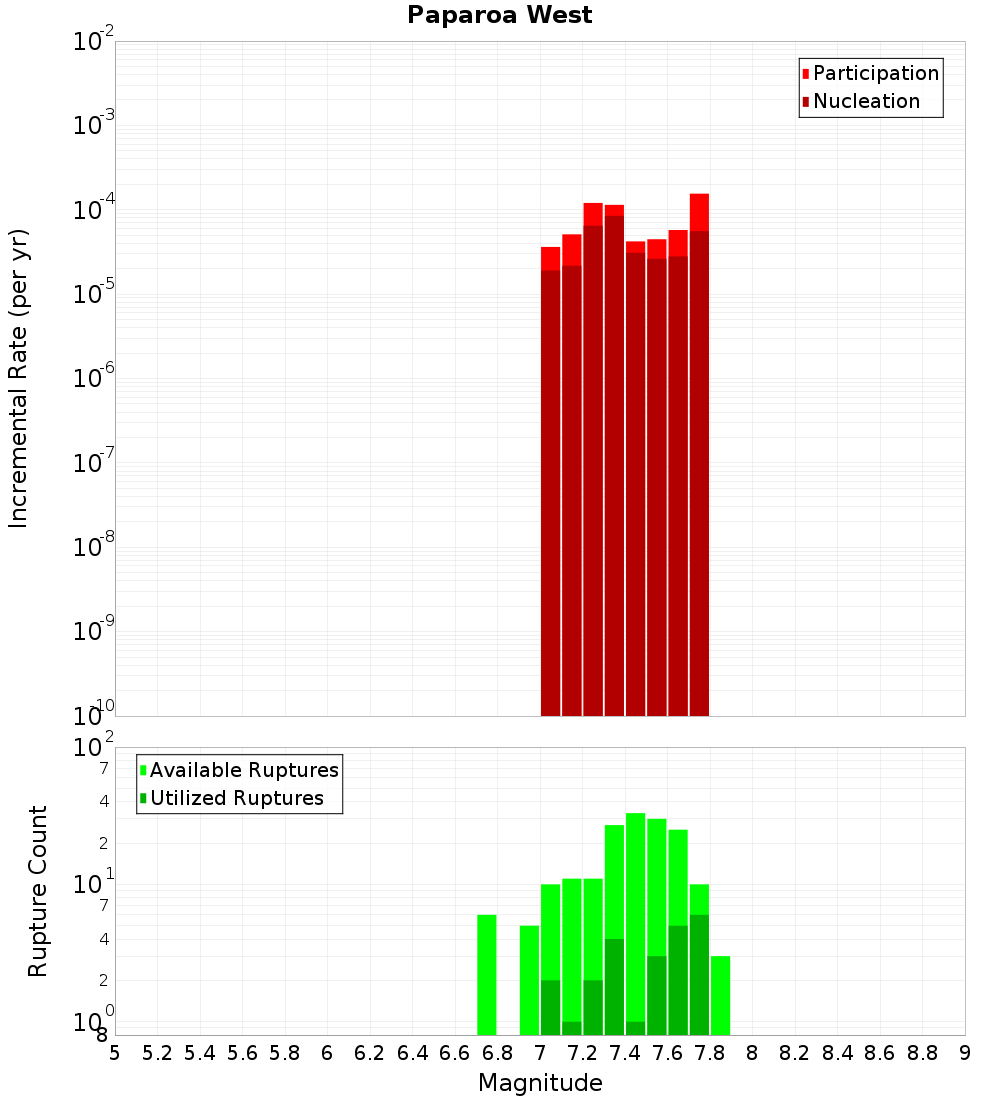

Incremental PlotCumulative Plot

Along-Strike Values

(top)

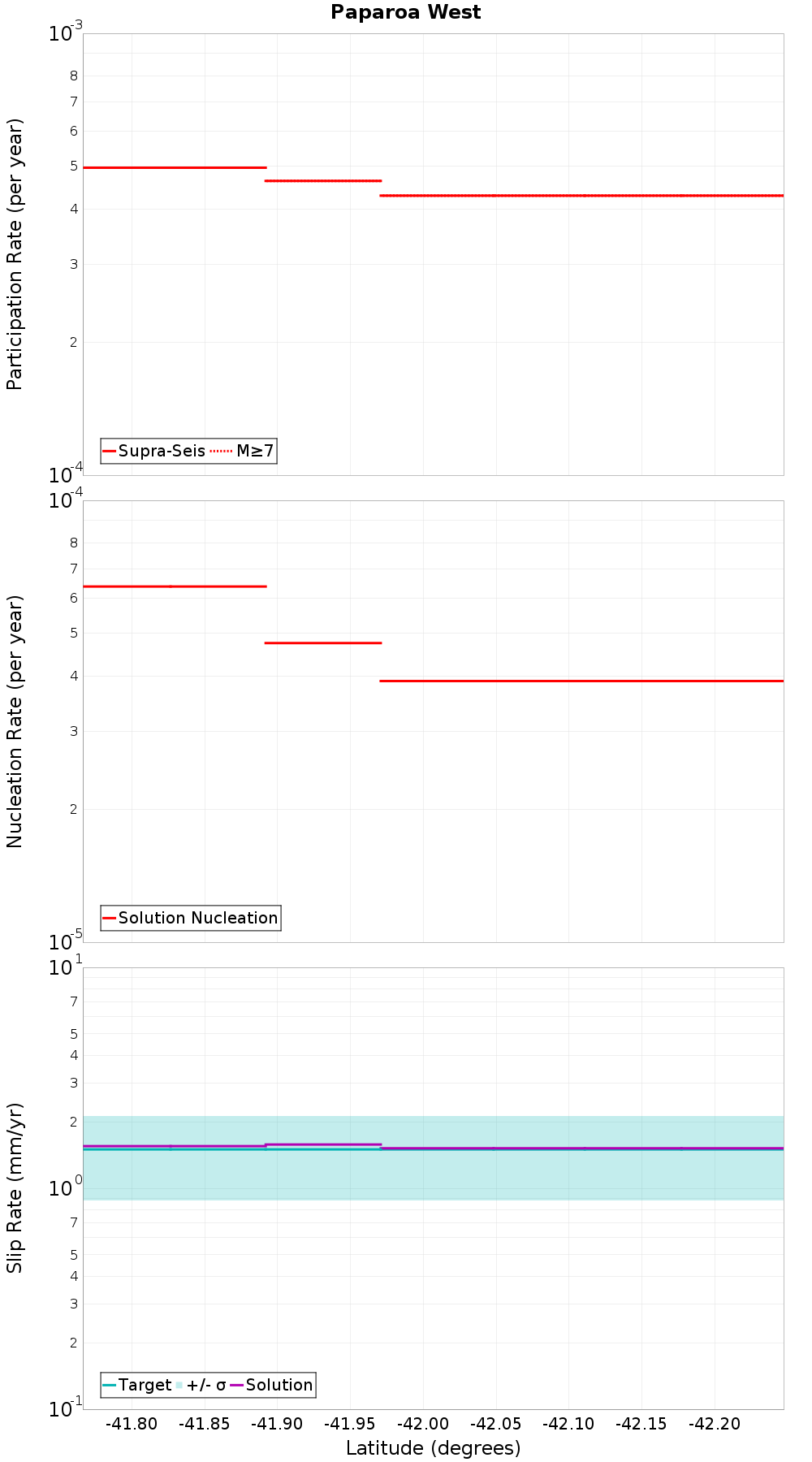

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

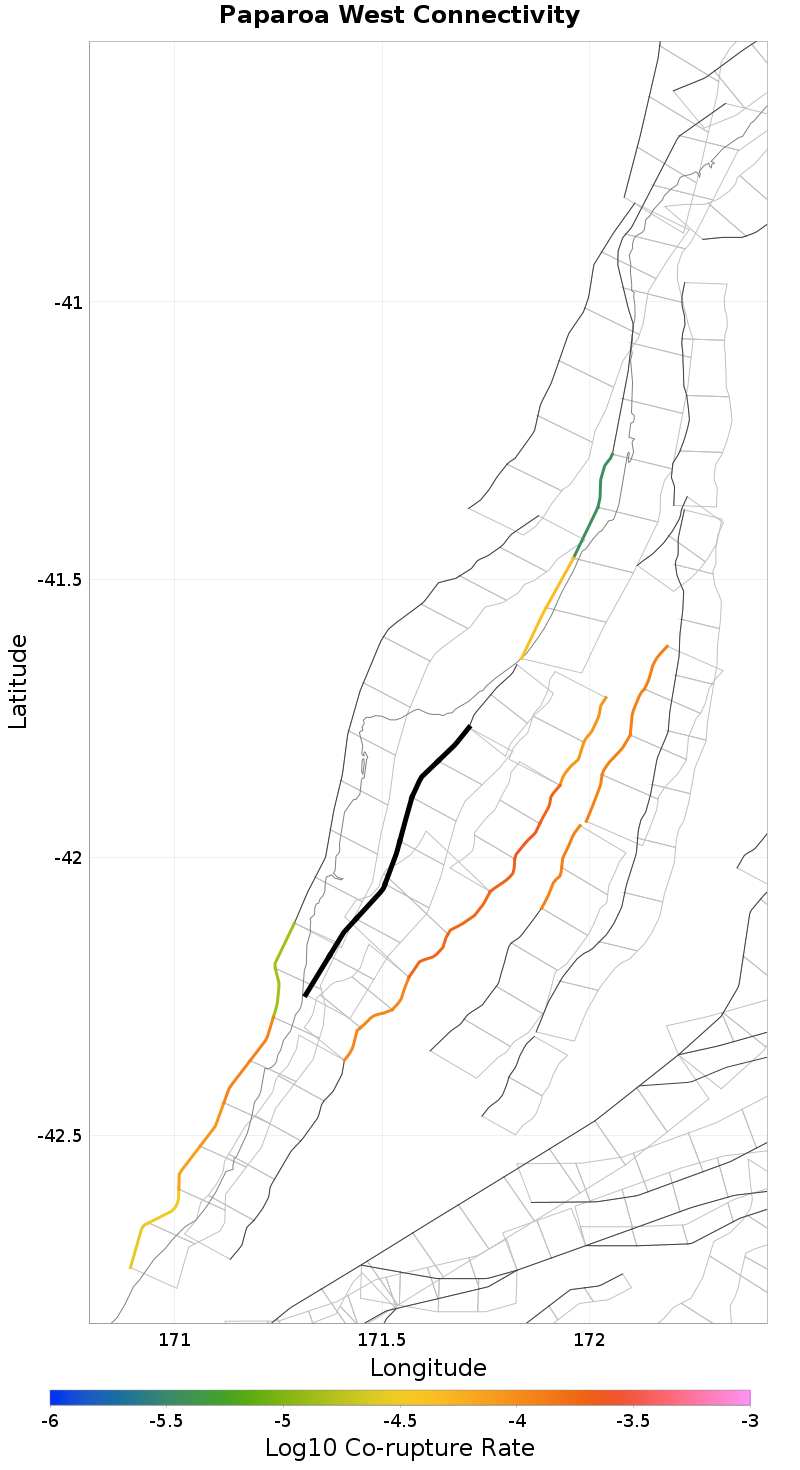

MapMap

Nearby Sections

(top)

Fault Section
Paparoa West: North, 0 km away
Maimai, 0.14 km away
Maimai: South, 0.22 km away
Inangahua, 1.12 km away
Maimai: North, 1.82 km away
Cape Foulwind 1, 4.61 km away
Maimai: Brunner Anticline, 7.81 km away
Cape Foulwind 2, 8.12 km away
Kongahau, 17.34 km away

Paparoa West: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate1.8151931E-4

Maimai: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate1.12345806E-4

Inangahua, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate8.960299E-5

Maimai: North, 1.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate2.3209912E-4

Cape Foulwind 1, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate1.3160692E-4

Maimai: Brunner Anticline, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cape Foulwind 2, 8.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kongahau, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjAuMFIycG5y
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate4.53367E-5
