Dreyers Rock Details

PropertyValue
Rupture Count5,799
Ruptures Above Sect Min Mag5,798
Ruptures w/ Nonzero Rates22
Magnitude Range[6.31, 8.60]
Length Range[7, 1,112] km
Total Rate0.0017239565 /yr
Multi-Fault Rate0.0017239565 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults74

Table Of Contents

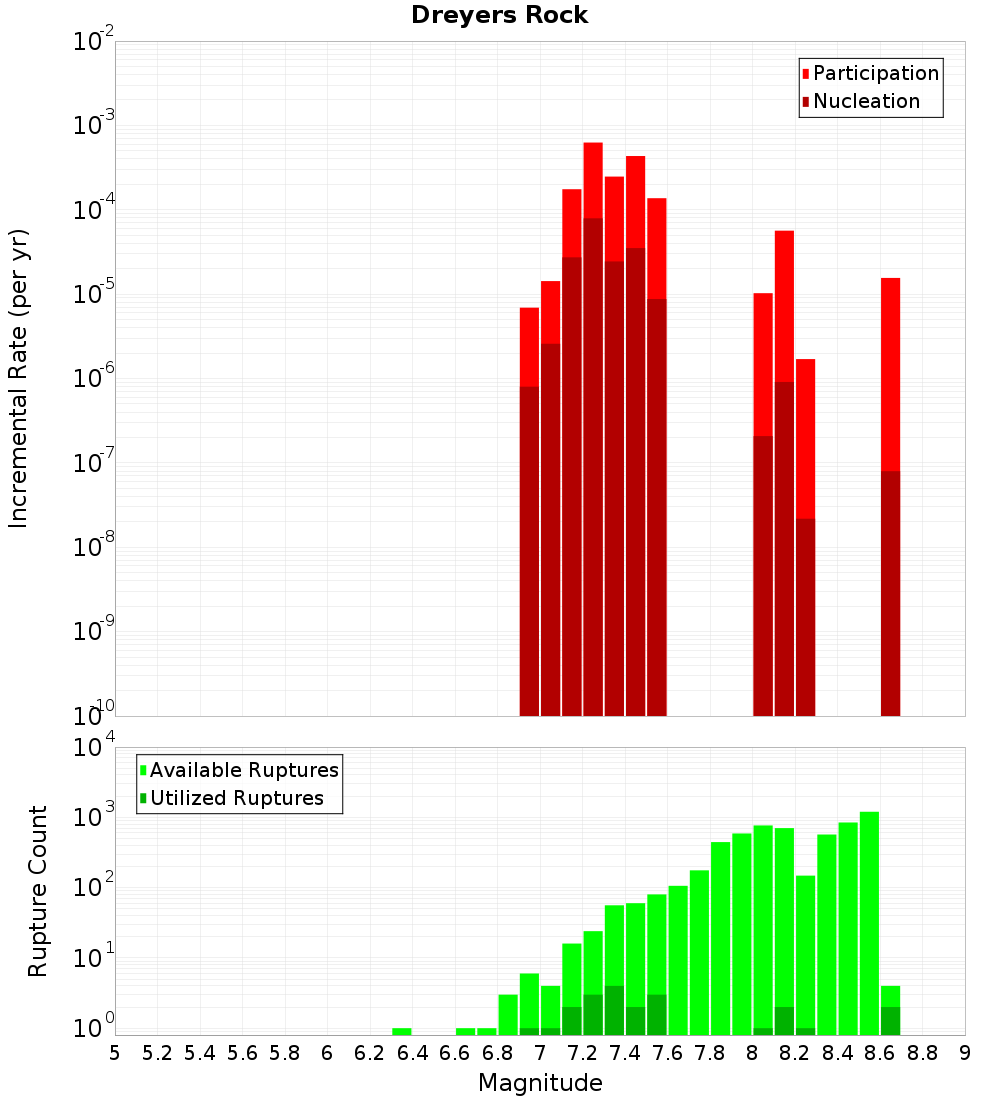

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

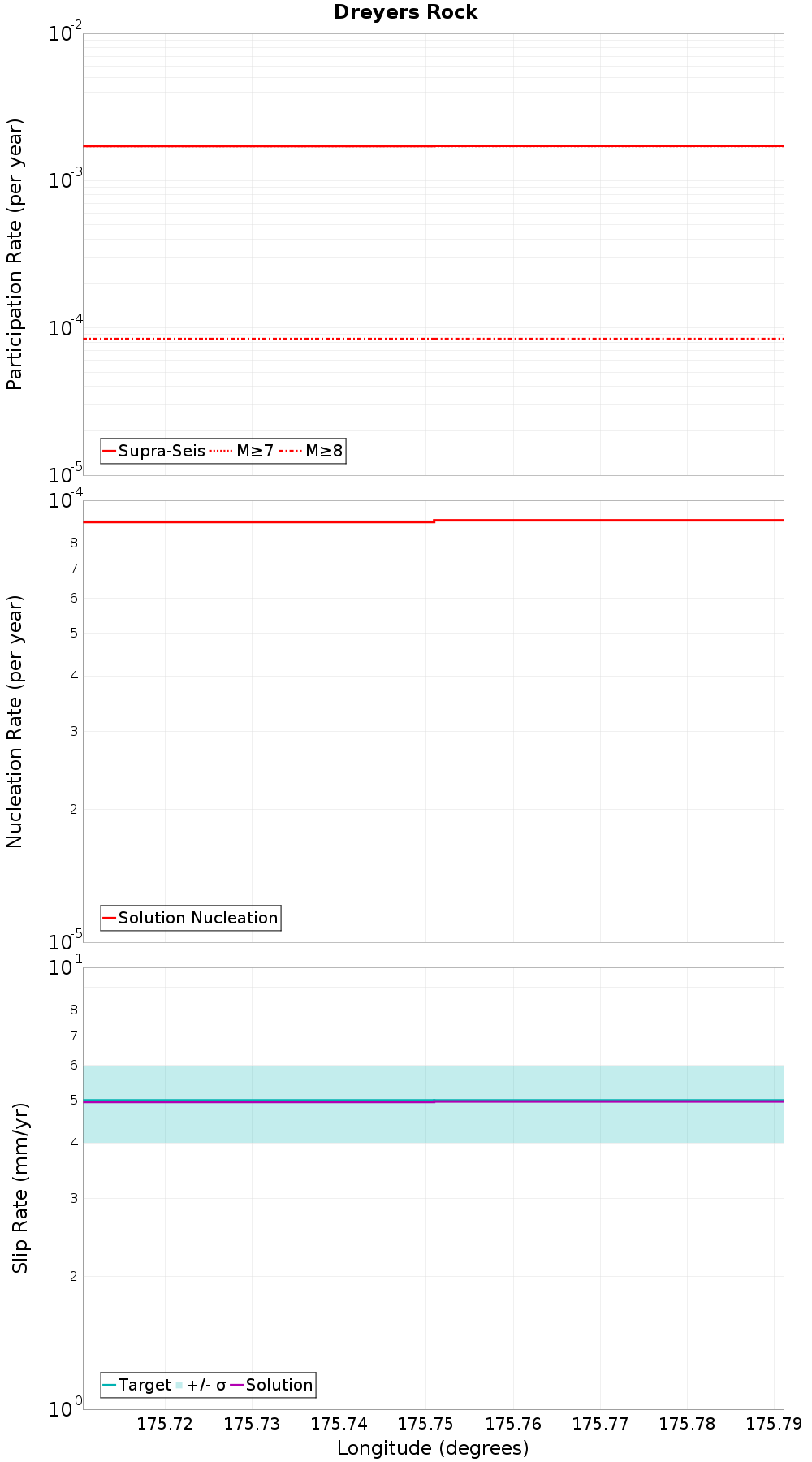

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

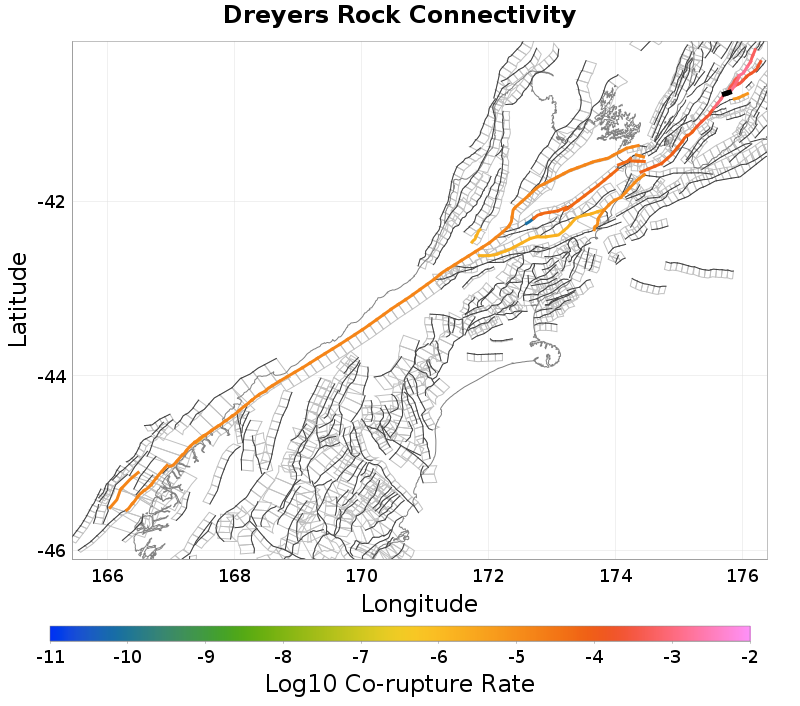

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alfredton South, 0 km away
Pa Valley, 0.08 km away
Wairarapa: 3, 0.46 km away
Alfredton North, 5.12 km away
Saunders Road, 7.87 km away
Mokonui Northeast, 9.25 km away
Mokonui Southwest, 9.25 km away
Tokomaru, 14.1 km away
Wellington: Pahiatua, 15.65 km away
Wellington: Tararua 3, 16.17 km away
Masterton, 18.15 km away

Alfredton South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count2,230
Co-rupture Rate0.0012883712

Pa Valley, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count2,084
Co-rupture Rate3.8819498E-4

Wairarapa: 3, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count5,771
Co-rupture Rate9.0169144E-4

Alfredton North, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count1,562
Co-rupture Rate9.961468E-4

Saunders Road, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count1,712
Co-rupture Rate3.1714086E-4

Mokonui Northeast, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate6.912409E-6

Mokonui Southwest, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate0.0

Tokomaru, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 15.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Masterton, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
