Orakeikorako Details

Property	Value
Rupture Count	1,439
Ruptures Above Sect Min Mag	1,436
Ruptures w/ Nonzero Rates	151
Magnitude Range	[6.29, 7.50]
Length Range	[11, 143] km
Total Rate	7.376273E-4 /yr
Multi-Fault Rate	7.376273E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	17

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

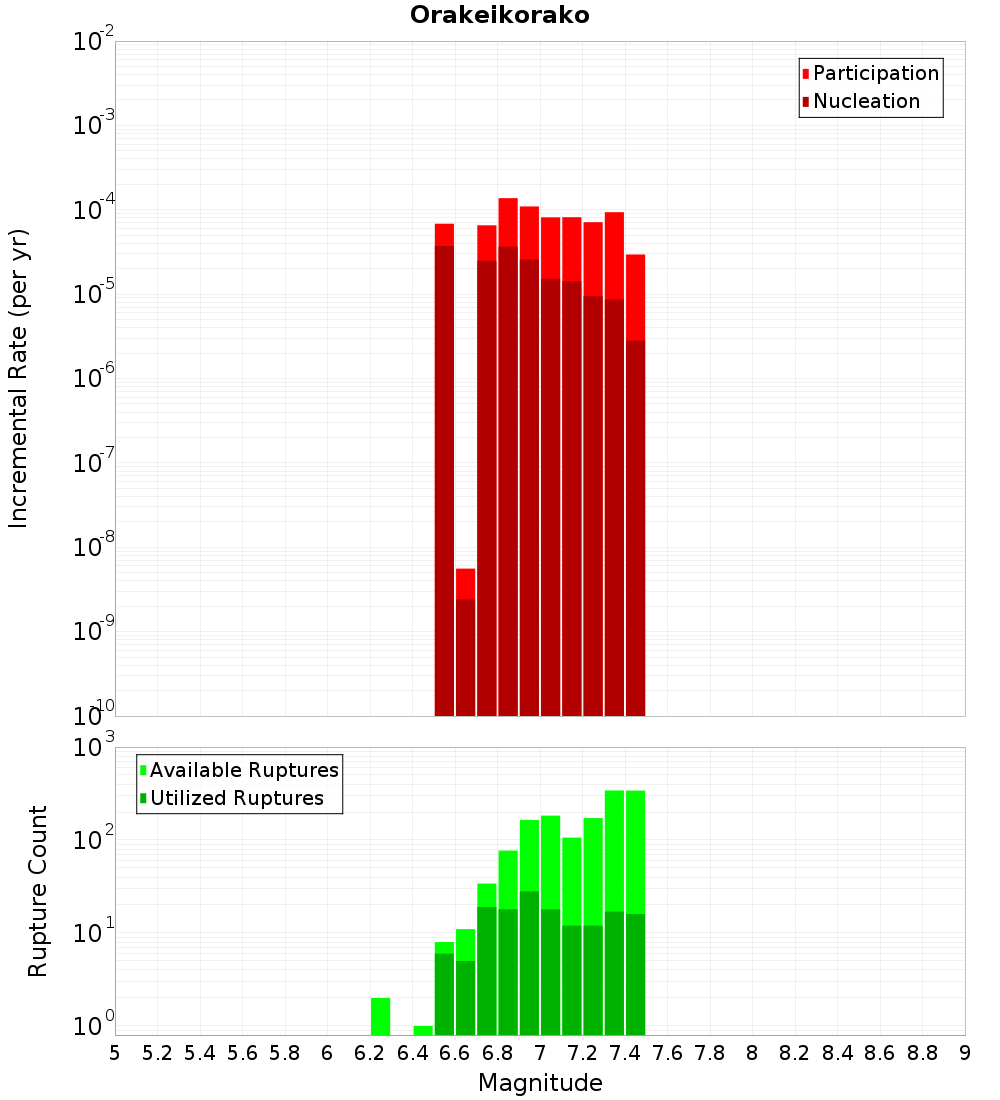

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

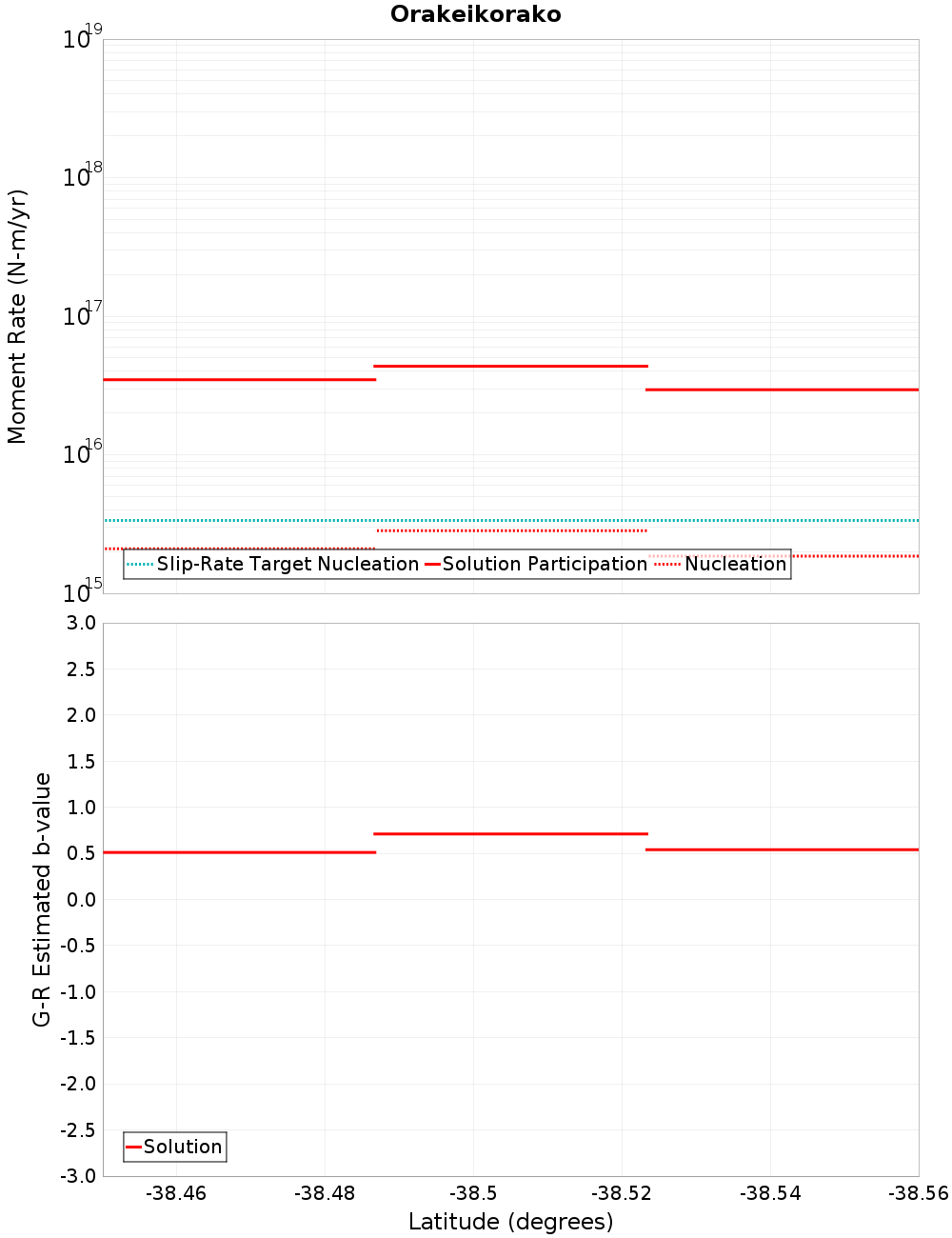

Moment-Rates and b-Values

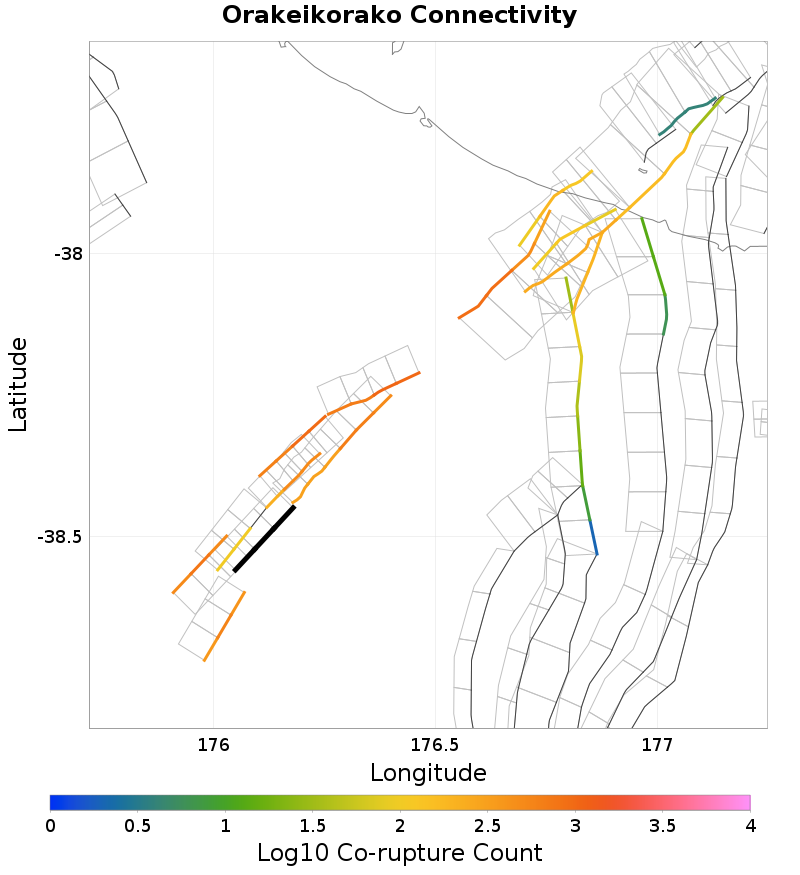

Connectivity

Nearby Sections

Fault Section
Whangamata West, 0.23 km away
Maleme, 0.41 km away
Paeroa, 0.93 km away
Puketerata, 2.41 km away
Puketerata North, 3.3 km away
Kaiapo, 4.37 km away
EarthquakeFlat - Tumunui, 19.27 km away

Whangamata West, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	770
Co-rupture Rate	3.958697E-4

Maleme, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	976
Co-rupture Rate	3.6399494E-4

Paeroa, 0.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	699
Co-rupture Rate	3.647909E-4

Puketerata, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	1.6797061E-5

Puketerata North, 3.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	508
Co-rupture Rate	2.4532562E-4

Kaiapo, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	592
Co-rupture Rate	3.4273512E-4

EarthquakeFlat - Tumunui, 19.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	false
Co-rupture Count	1,088
Co-rupture Rate	4.3796058E-4
