Waimanawa - Waikaremoana Details

Property	Value
Rupture Count	43
Ruptures Above Sect Min Mag	43
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.65, 7.49]
Length Range	[15, 112] km
Total Rate	3.899859E-4 /yr
Multi-Fault Rate	3.899679E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

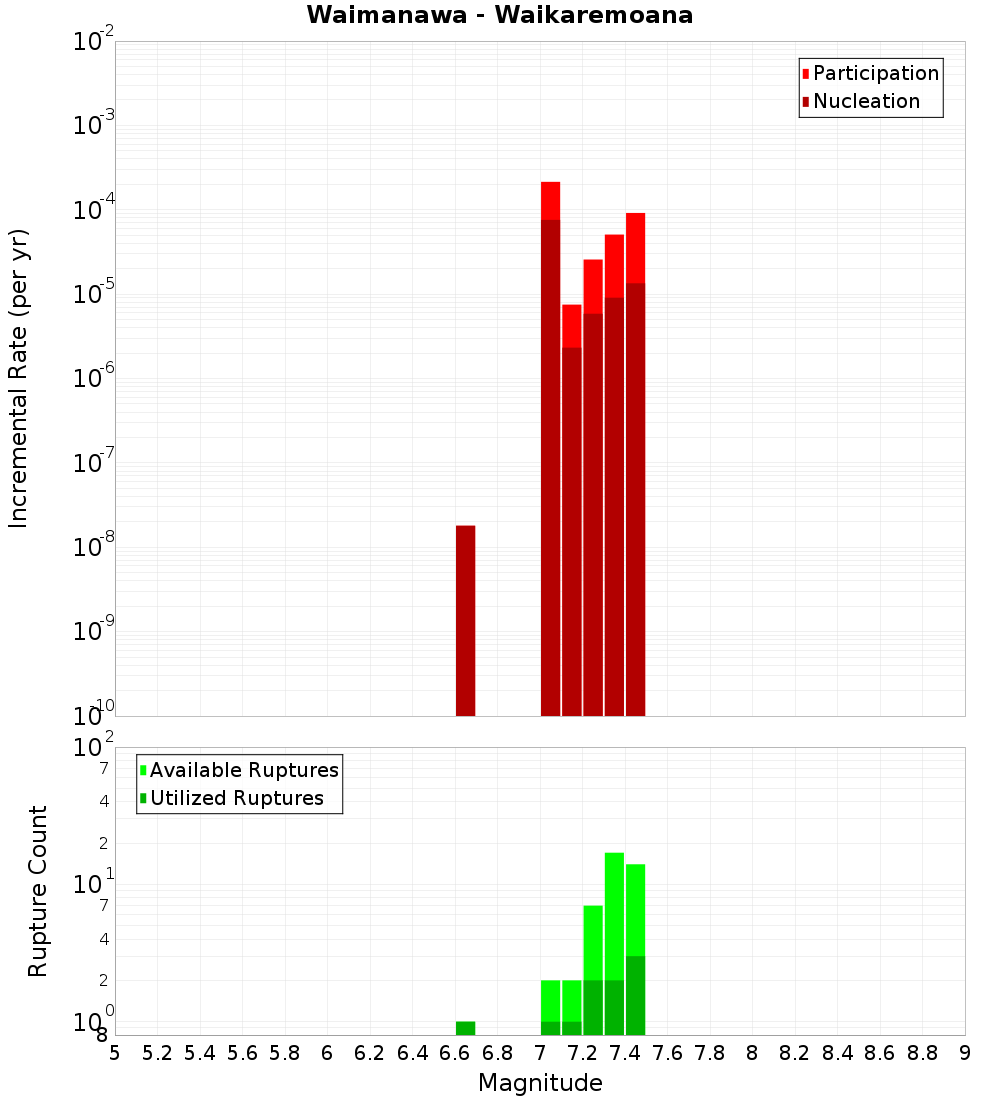

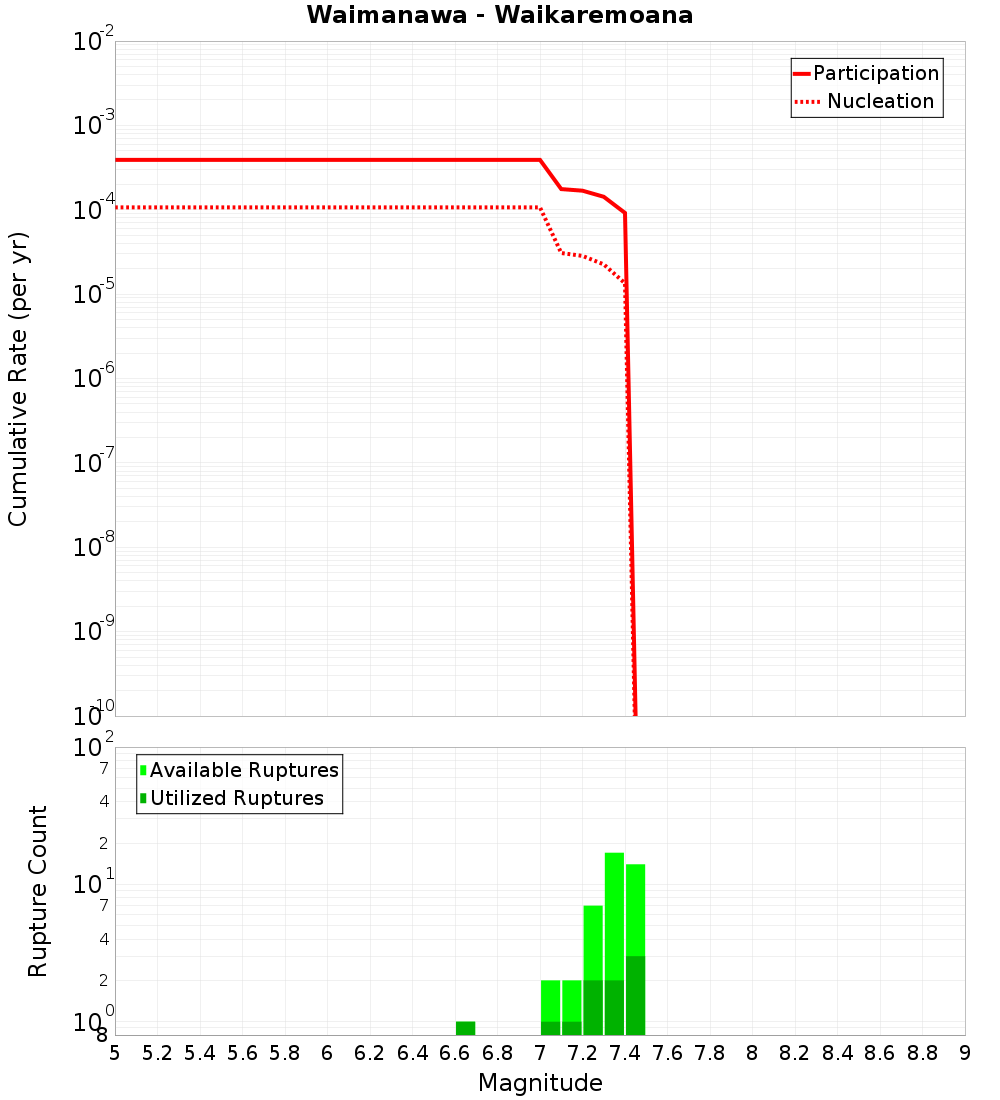

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

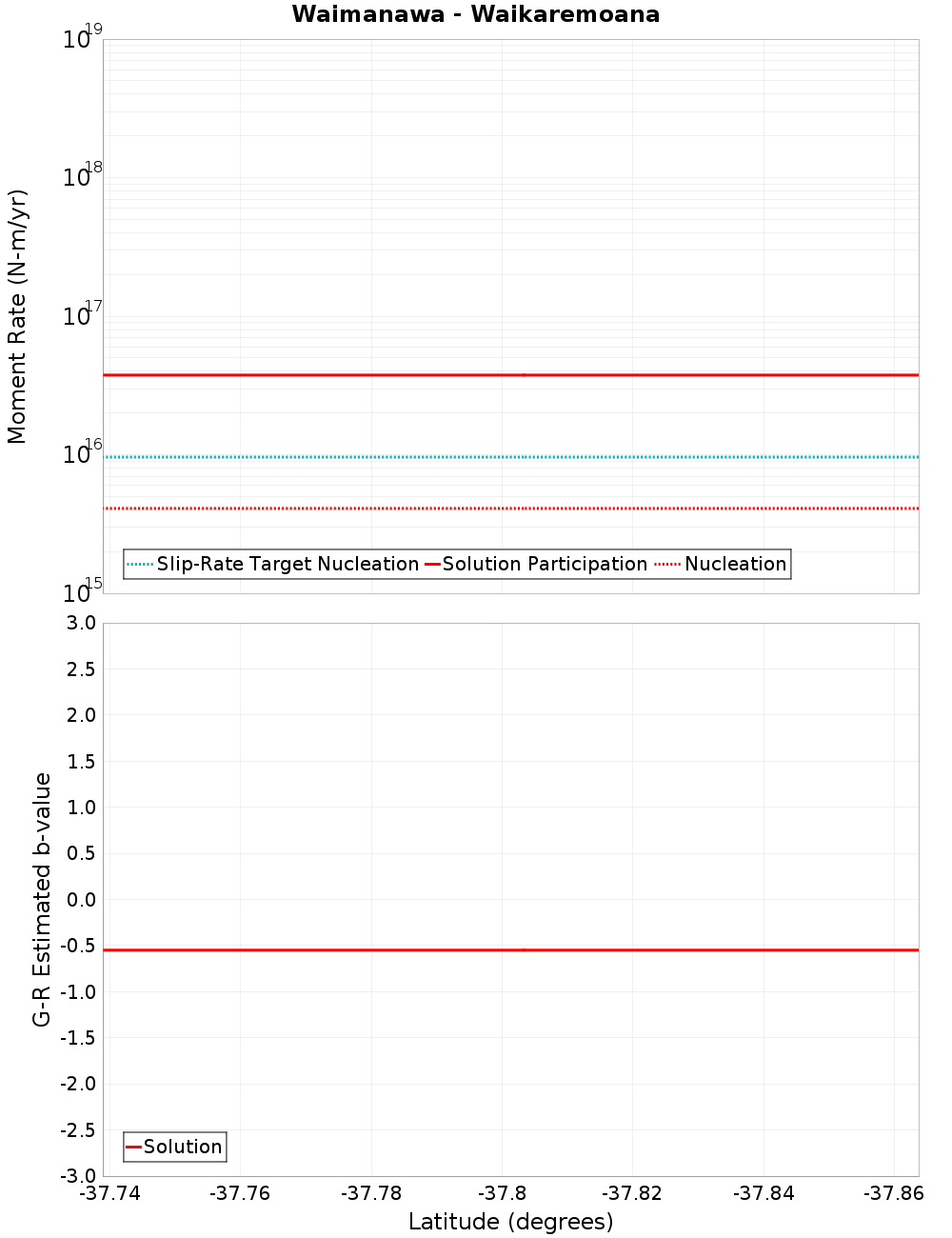

Moment-Rates and b-Values

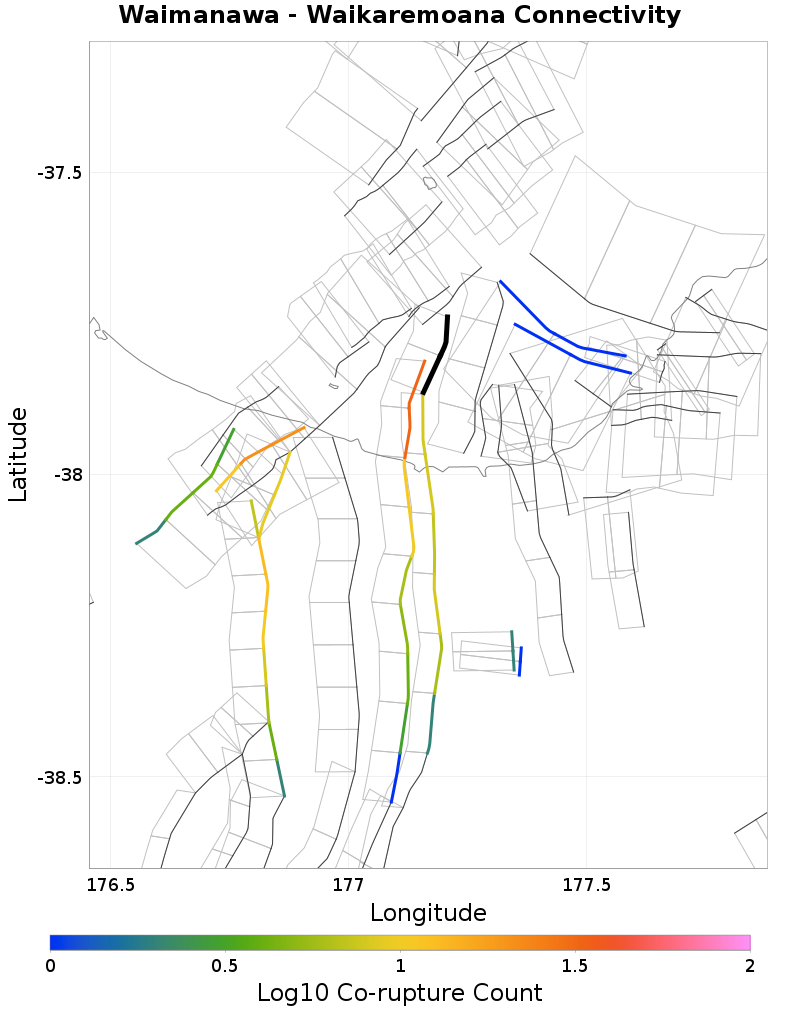

Connectivity

Nearby Sections

Fault Section	Fault Section
Waimana: North, 0.33 km away	Opape 1, 11.99 km away
Waiotahi: North, 0.38 km away	Tirohanga, 12.06 km away
White Island 2, 1.87 km away	Rangitaiki 1, 12.26 km away
Ohiwa 1, 4.14 km away	Kotare - Moutuhora, 14.48 km away
White Island 1, 5.15 km away	Calypso 2, 14.96 km away
Rangitaiki 2, 6.46 km away	Te Arawa 1, 16.98 km away
Whakaari 4, 7.01 km away	Matata, 17.19 km away
Opotiki 3, 7.68 km away	Whakatane: North, 18.17 km away
Ohae 1, 7.92 km away	Tuatoru 1, 18.66 km away
Opotiki 2, 10.21 km away	Hariki, 19.19 km away
Ohae 2, 11.96 km away	Edgecumbe Coastal, 19.37 km away

Waimana: North, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	33
Co-rupture Rate	1.7573262E-4

Waiotahi: North, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	2.1423526E-4

White Island 2, 1.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 4.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Opotiki 2, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 11.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Opape 1, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tirohanga, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 1, 16.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Matata, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 18.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 1, 18.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 19.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
