Wellington: Tararua 3 Details

PropertyValue
Rupture Count41,849
Ruptures Above Sect Min Mag41,848
Ruptures w/ Nonzero Rates38
Magnitude Range[6.77, 8.60]
Length Range[16, 1,119] km
Total Rate0.0013957928 /yr
Multi-Fault Rate0.0013957928 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults108

Table Of Contents

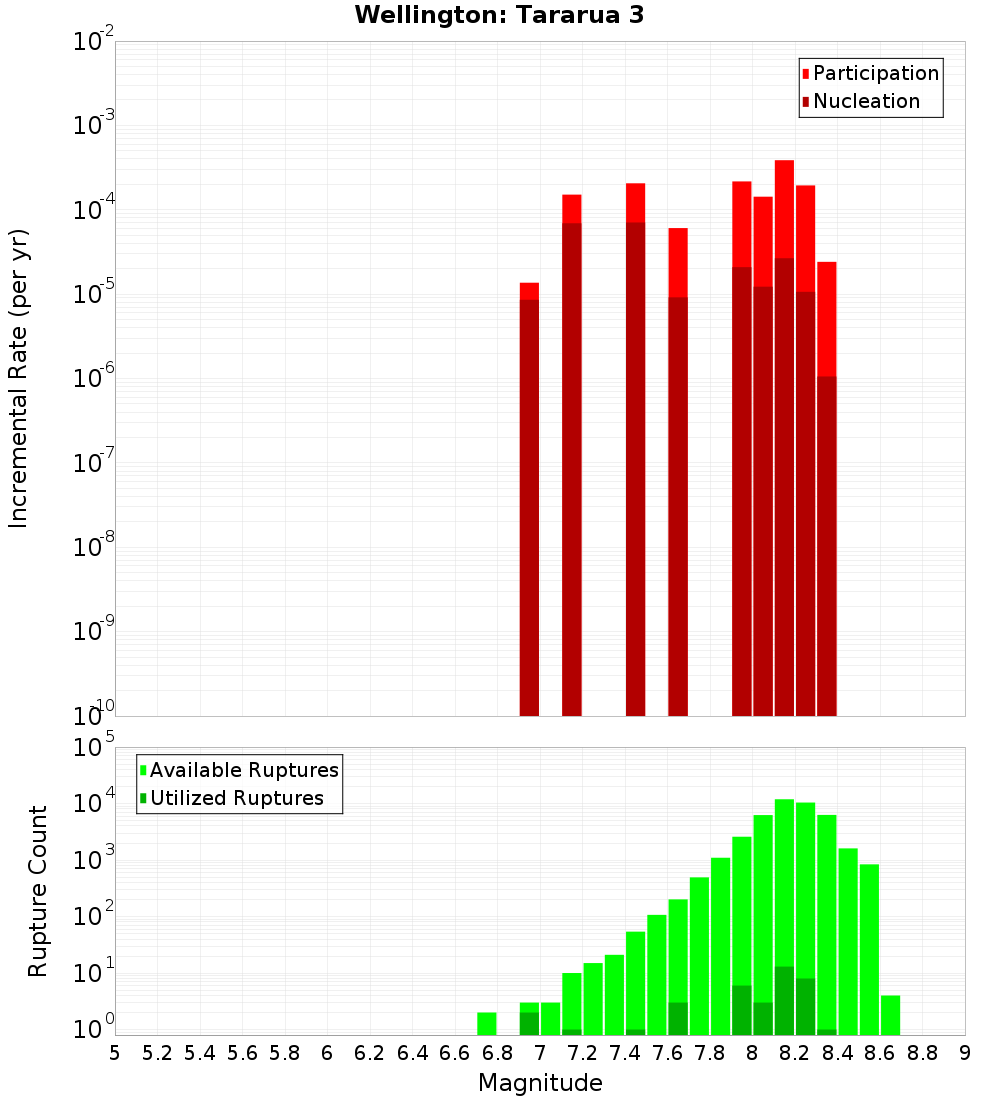

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away
Dreyers Rock, 16.17 km away
Ohariu, 17.34 km away
Wellington: Tararua 1, 18.44 km away
Levin Anticline, 18.68 km away

Wellington: Tararua 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count39,691
Co-rupture Rate0.0011977004

Wellington: Pahiatua, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count40,840
Co-rupture Rate0.0011703273

Otaki Forks: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate5.7628918E-6

Tokomaru, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate0.0

Northern Ohariu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count1,536
Co-rupture Rate6.129644E-5

Wairarapa: 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate0.0

Mokonui Southwest, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?true
Co-rupture Count590
Co-rupture Rate1.9218873E-4

Otaki Forks: 1, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate5.7628918E-6

Masterton, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count1,757
Co-rupture Rate3.945396E-4

Wairarapa: 2, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count16,206
Co-rupture Rate3.6235305E-4

Dreyers Rock, 16.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count1,342
Co-rupture Rate3.975725E-5

Wellington: Tararua 1, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count733
Co-rupture Rate3.674502E-4

Levin Anticline, 18.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjQuMHBRdVJt
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
