Mohaka: South Details

PropertyValue
Rupture Count49,494
Ruptures Above Sect Min Mag49,488
Ruptures w/ Nonzero Rates34
Magnitude Range[6.98, 8.60]
Length Range[25, 1,119] km
Total Rate9.908065E-4 /yr
Multi-Fault Rate9.908065E-4 /yr (100.00%)
Directly-Connected Faults12
All Co-Rupturing Faults129

Table Of Contents

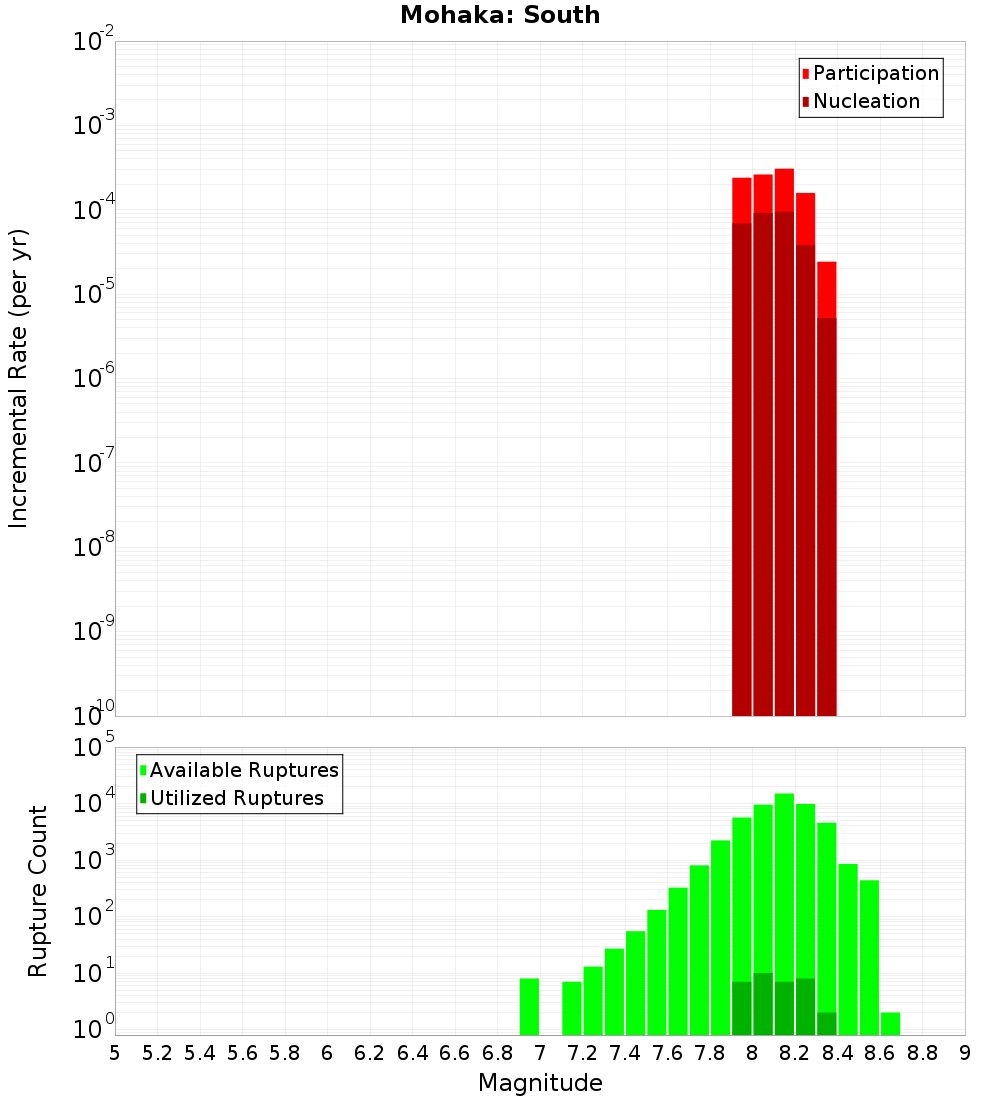

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

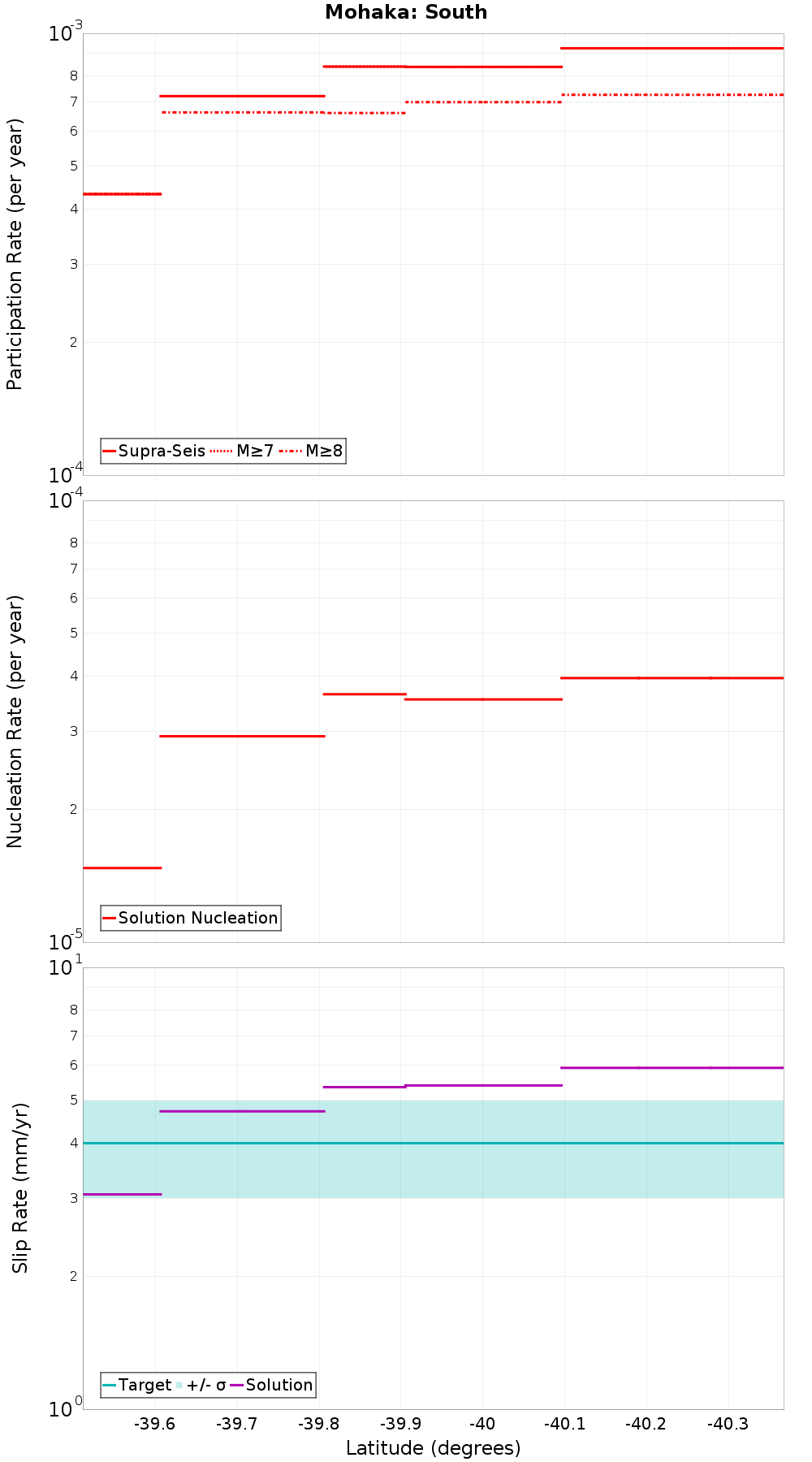

Along-Strike Values

(top)

Along-strike plot

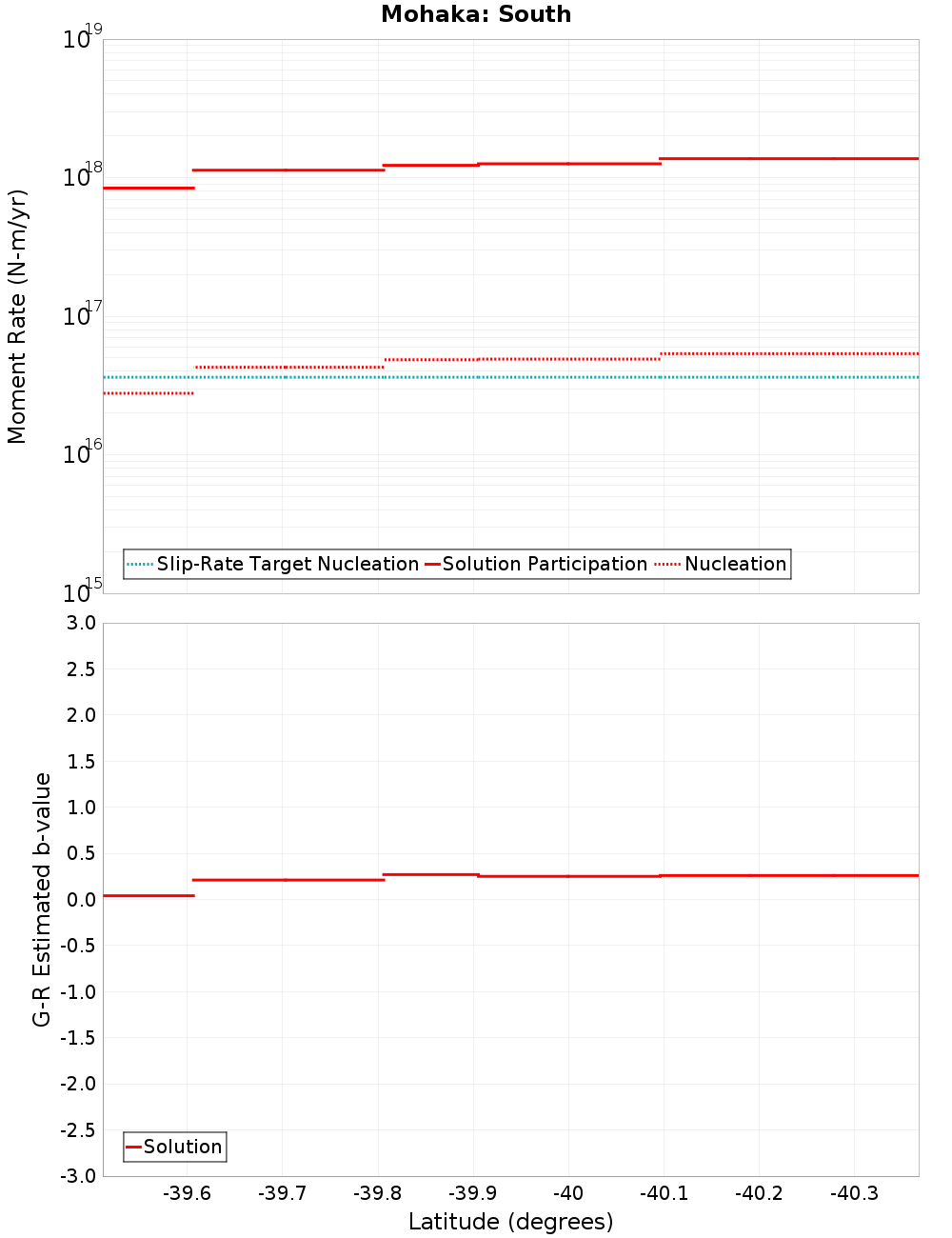

Moment-Rates and b-Values

(top)

Along-strike plot

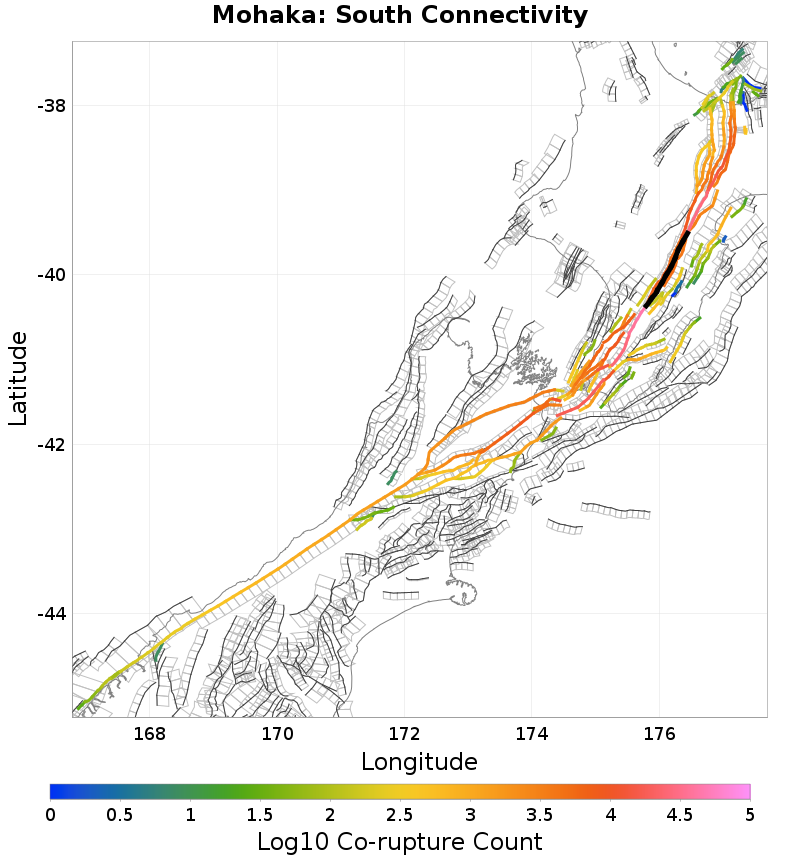

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0 km awayRuataniwha, 6.61 km away
Mohaka: North, 0 km awayMaunga, 9.06 km away
Ruahine: South, 0 km awayPohangina, 9.44 km away
Wakarara, 0.13 km awayAwanui, 12.7 km away
Rangefront, 0.2 km awayTokomaru, 14.28 km away
Woodville, 0.4 km awayTe Heka, 14.94 km away
Ruahine: Central, 2.68 km awayKaweka, 17.19 km away
Pahiatua, 4.26 km awayWaewaepa, 17.23 km away
Ruahine: North, 4.35 km awayNorthern Ohariu, 18.2 km away
Patoka - Rangiora, 5.52 km awayOruawharo - Mangatoro, 18.37 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count44,781
Co-rupture Rate9.908065E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count30,234
Co-rupture Rate2.4618162E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count7,897
Co-rupture Rate6.597279E-5

Wakarara, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count4,171
Co-rupture Rate2.5010795E-5

Rangefront, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count5,244
Co-rupture Rate8.546218E-5

Woodville, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count137
Co-rupture Rate0.0

Ruahine: Central, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count5,406
Co-rupture Rate6.369421E-5

Pahiatua, 4.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count562
Co-rupture Rate0.0

Ruahine: North, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count10,423
Co-rupture Rate6.369421E-5

Patoka - Rangiora, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count4,098
Co-rupture Rate3.9520583E-4

Ruataniwha, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count374
Co-rupture Rate9.085222E-7

Maunga, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count228
Co-rupture Rate0.0

Pohangina, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count206
Co-rupture Rate0.0

Awanui, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count836
Co-rupture Rate1.4650842E-4

Tokomaru, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count2,840
Co-rupture Rate1.59886E-6

Te Heka, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate0.0

Kaweka, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 17.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count7,056
Co-rupture Rate2.1019361E-4

Oruawharo - Mangatoro, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
