Waiotahi: South Details

PropertyValue
Rupture Count7,211
Ruptures Above Sect Min Mag7,209
Ruptures w/ Nonzero Rates22
Magnitude Range[7.04, 8.43]
Length Range[26, 719] km
Total Rate5.195074E-4 /yr
Multi-Fault Rate5.195074E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults79

Table Of Contents

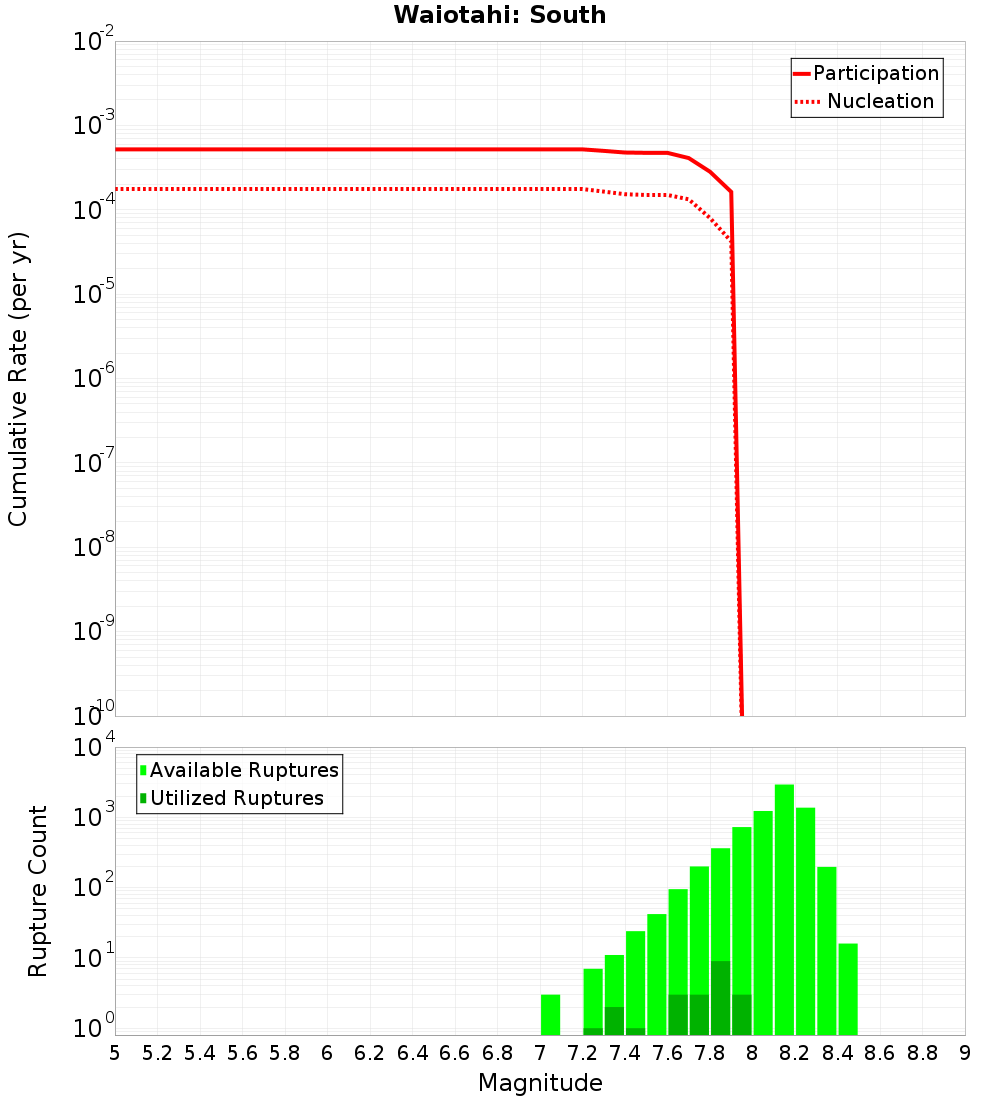

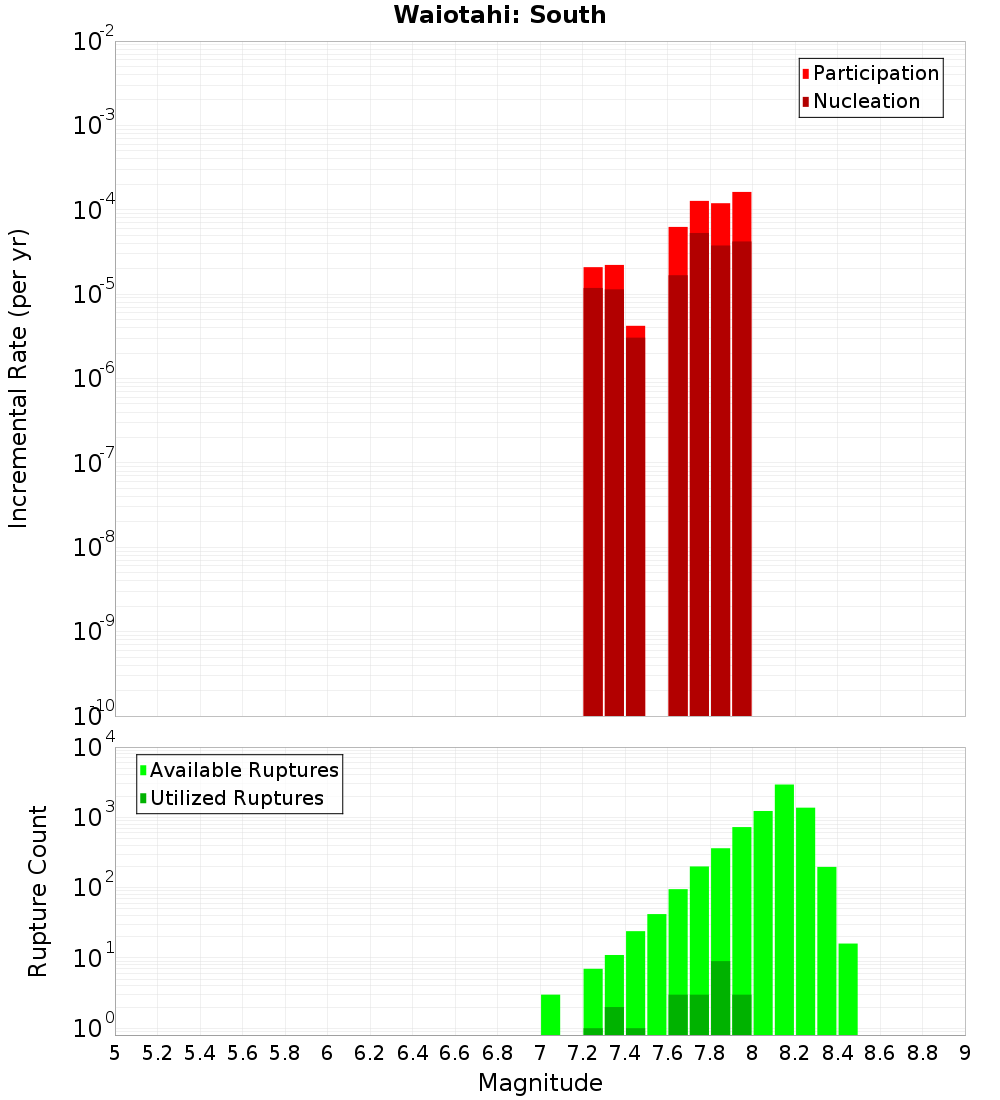

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

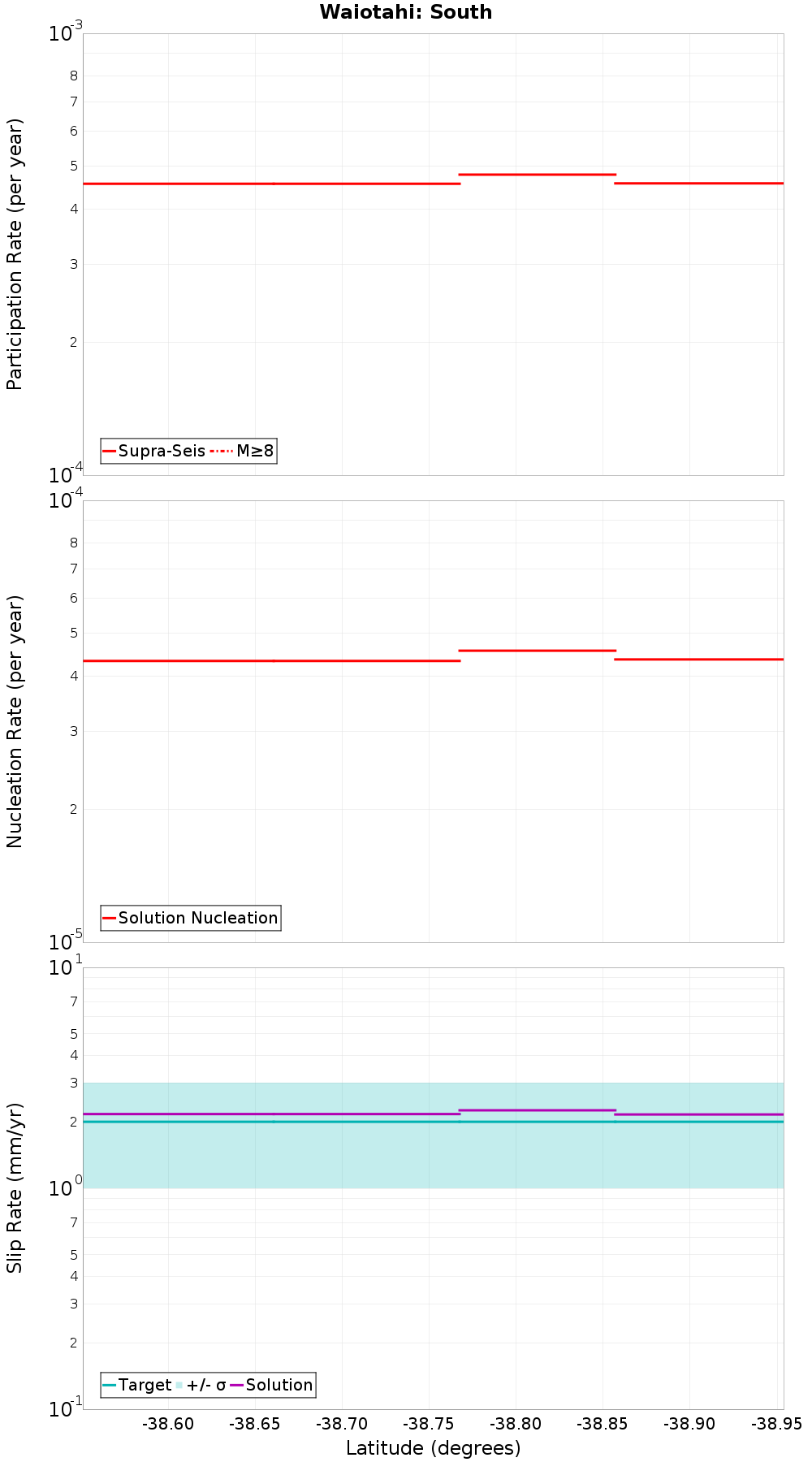

Along-Strike Values

(top)

Along-strike plot

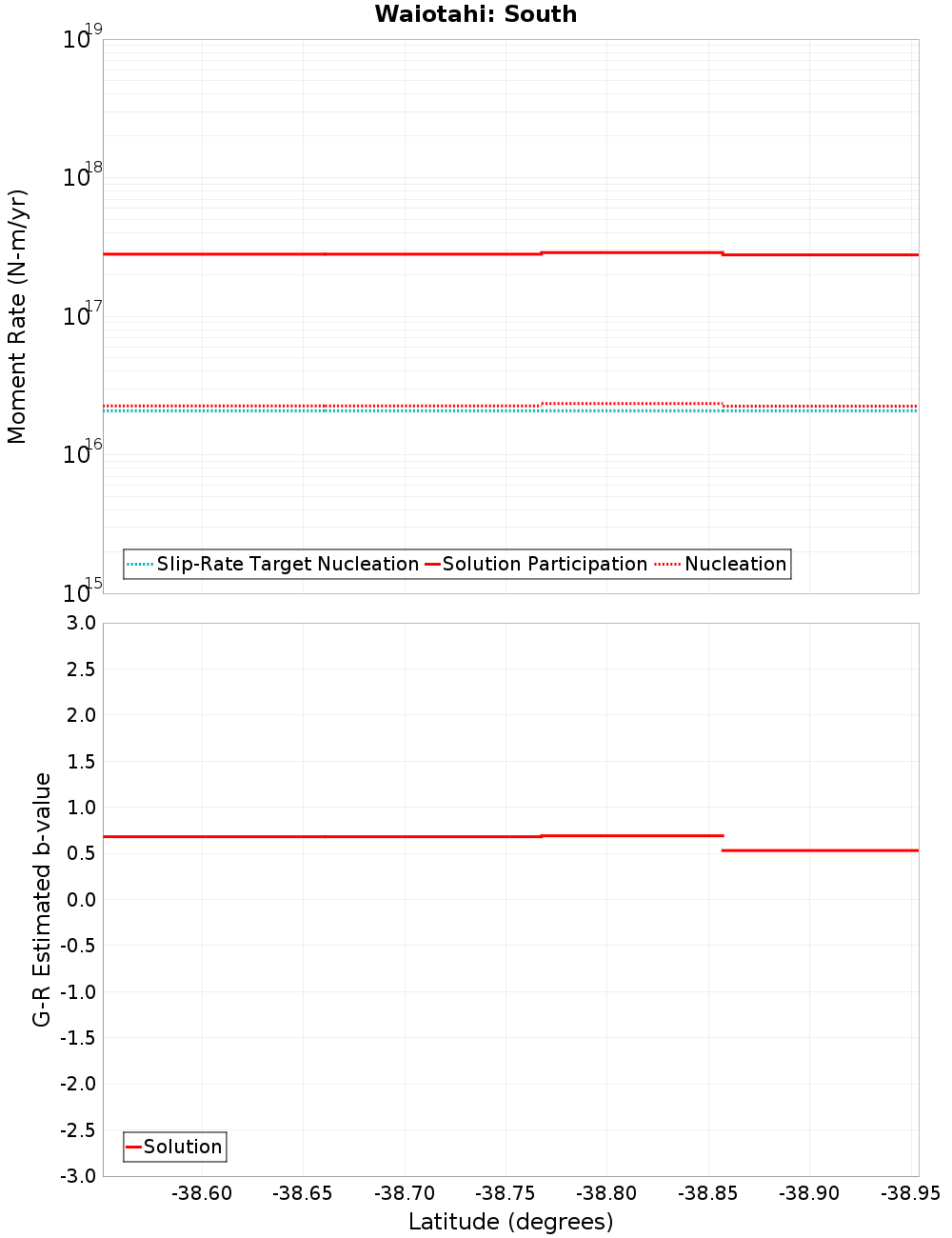

Moment-Rates and b-Values

(top)

Along-strike plot

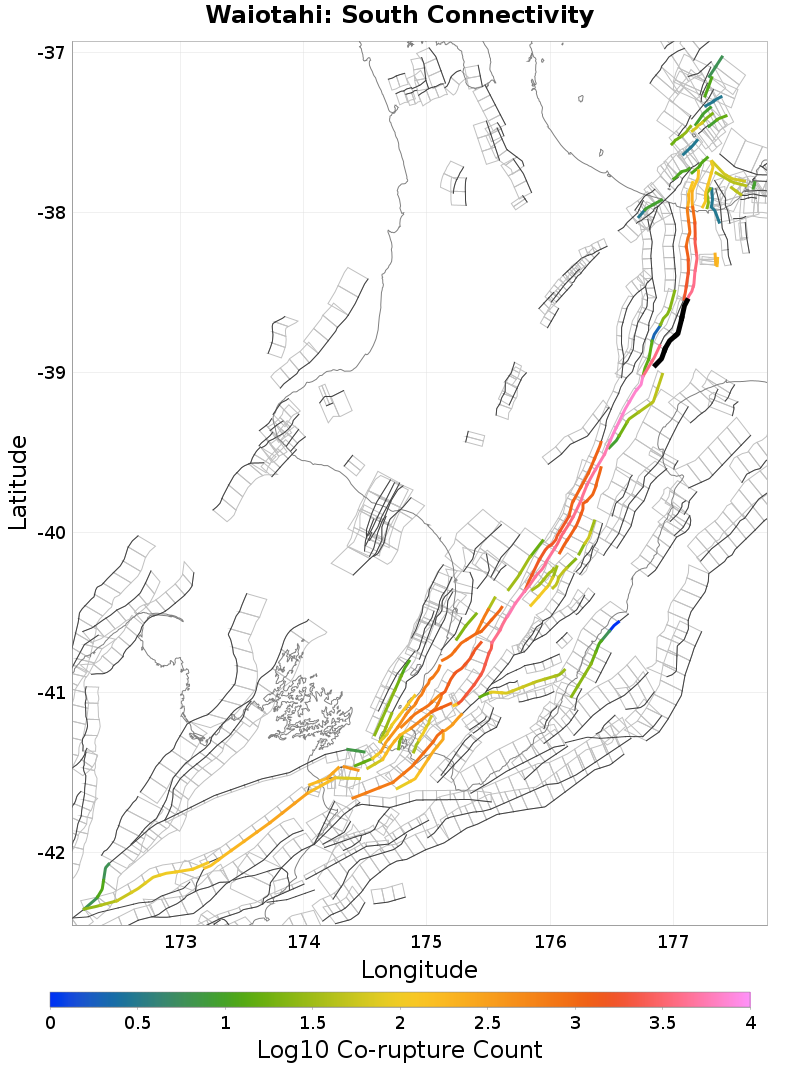

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiotahi: North, 0 km away
Waimana: South, 2.15 km away
Waimana: North, 2.4 km away
Whakatane: South, 5.93 km away
Patoka - Rangiora, 7.72 km away
Whakatane: North, 10.84 km away
Mohaka: North, 11.48 km away
Waiohau: South, 12.21 km away
Te Whaiti South, 18.53 km away
Awanui, 19.44 km away

Waiotahi: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count4,015
Co-rupture Rate2.0715807E-4

Waimana: South, 2.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count3,755
Co-rupture Rate2.3729886E-5

Waimana: North, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count1,952
Co-rupture Rate2.5260652E-4

Whakatane: South, 5.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate1.1027736E-4

Patoka - Rangiora, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate1.5897062E-4

Whakatane: North, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: North, 11.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?true
Directly Connected?true
Co-rupture Count7,005
Co-rupture Rate2.6924798E-4

Waiohau: South, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti South, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NjYuME1GSHVL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
