Edgecumbe 1987 Details

Property	Value
Rupture Count	14,314
Ruptures Above Sect Min Mag	14,314
Ruptures w/ Nonzero Rates	193
Magnitude Range	[6.79, 8.34]
Length Range	[20, 608] km
Total Rate	2.976129E-4 /yr
Multi-Fault Rate	2.976129E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

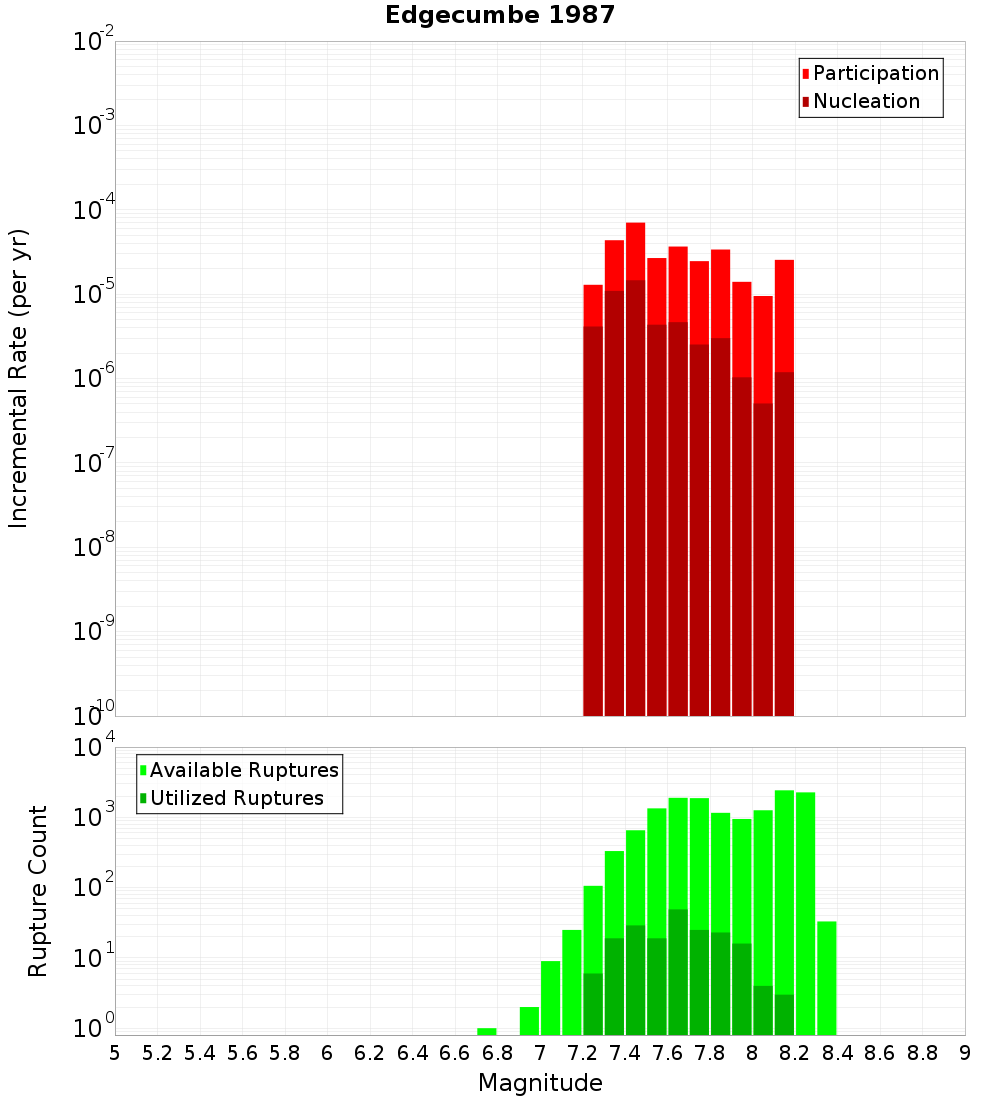

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

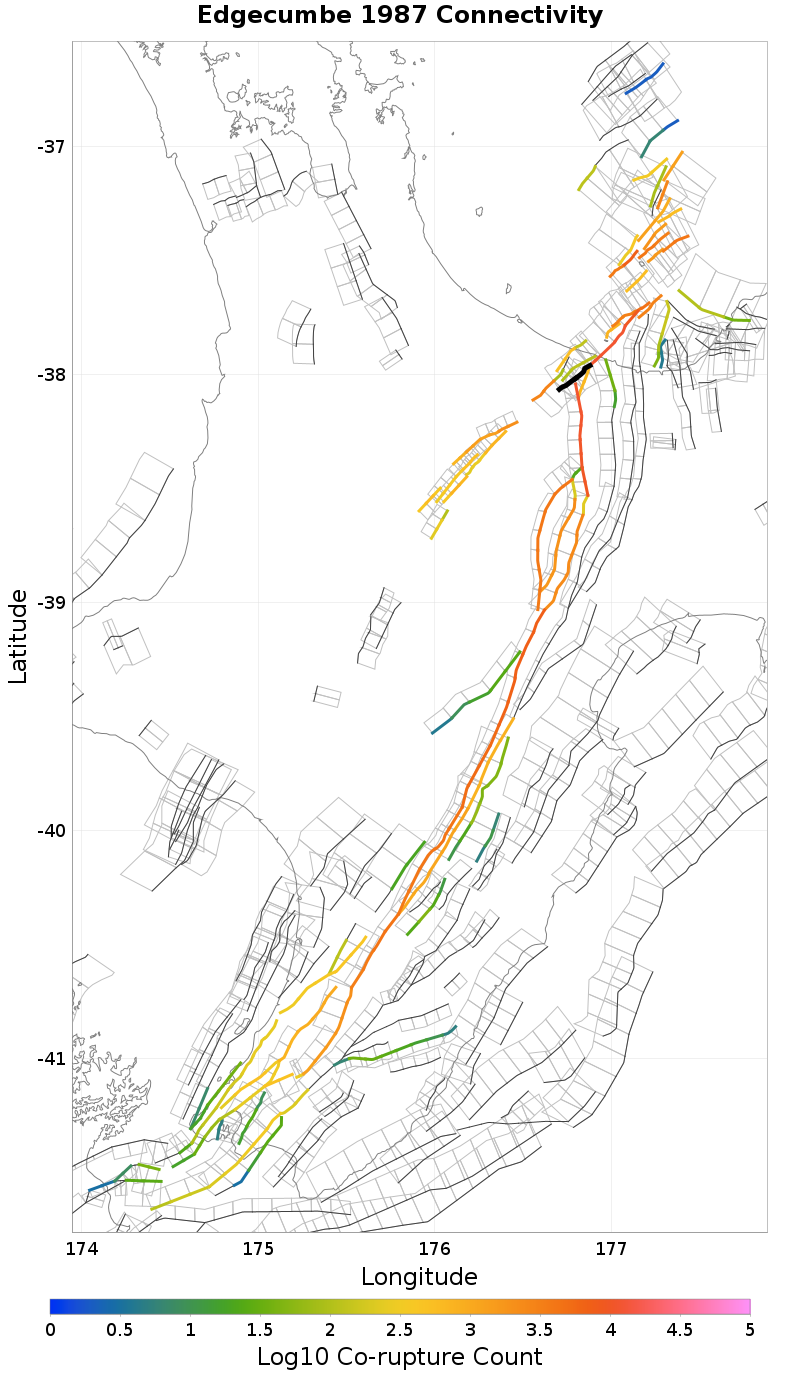

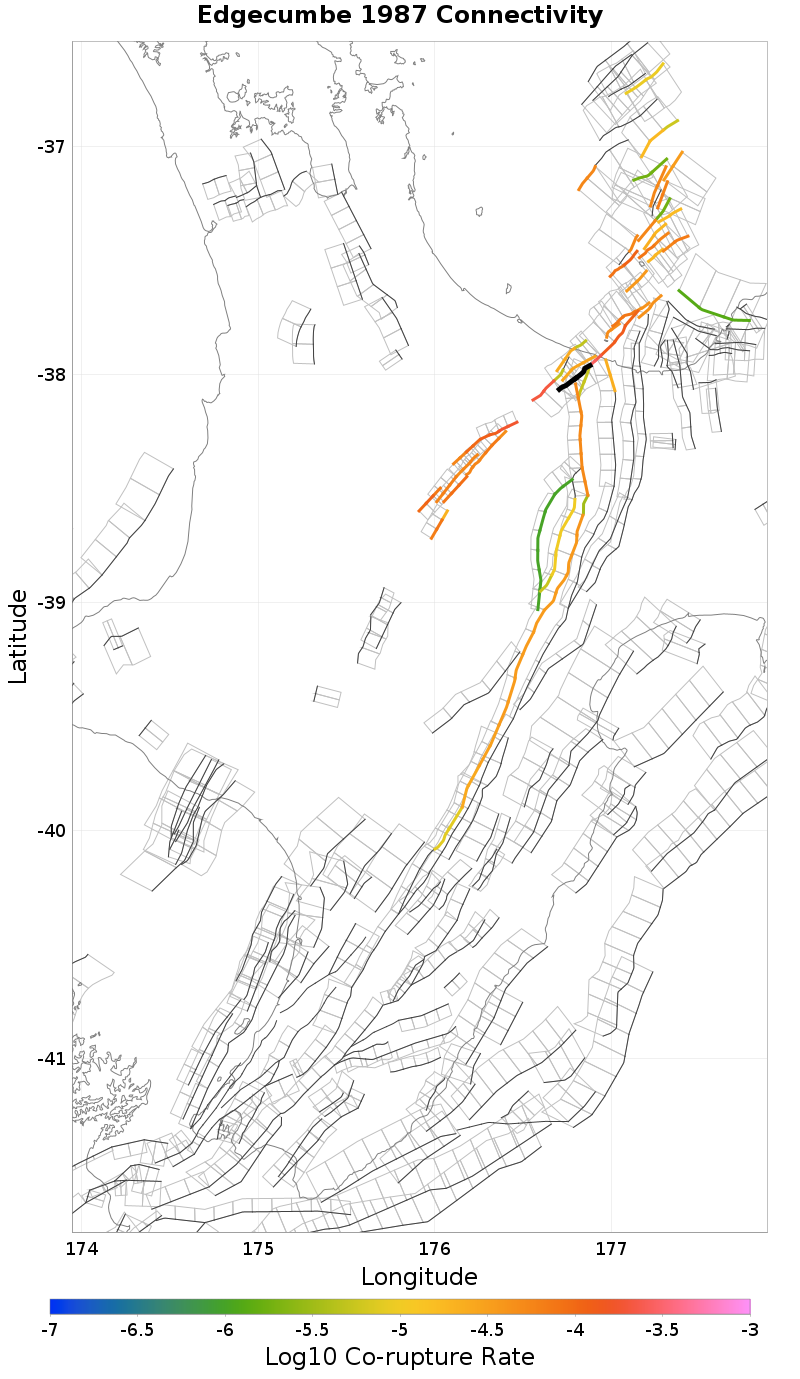

Connectivity

Nearby Sections

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	false
Co-rupture Count	658
Co-rupture Rate	5.279467E-6

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	true
Co-rupture Count	11,626
Co-rupture Rate	2.7444263E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	2.779644E-5

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	false
Co-rupture Count	558
Co-rupture Rate	2.4713081E-5

Braemar, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,874
Co-rupture Rate	2.1018046E-4

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	true
Co-rupture Count	11,698
Co-rupture Rate	5.2896878E-5

White Island 1, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	true
Co-rupture Count	11,570
Co-rupture Rate	1.353318E-4

Whakatane: North, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	2.2706656E-5

Rangitaiki 1, 15.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?	true
Directly Connected?	false
Co-rupture Count	762
Co-rupture Rate	4.799269E-5
