NW Cardrona North Details
| Property | Value |
|---|---|
| Rupture Count | 4 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.95, 7.33] |
| Length Range | [21, 50] km |
| Total Rate | 1.755556E-4 /yr |
| Multi-Fault Rate | 6.0393295E-6 /yr (3.44%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

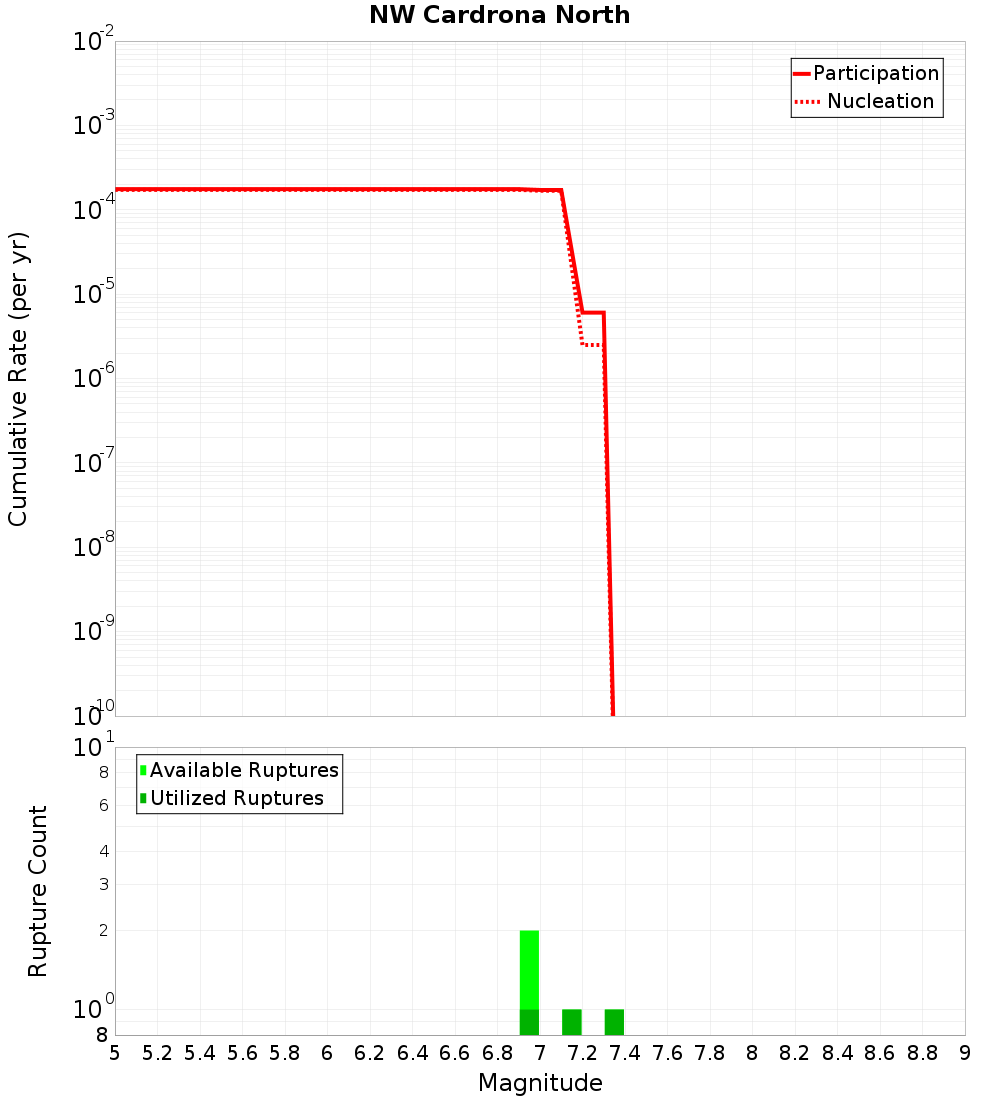

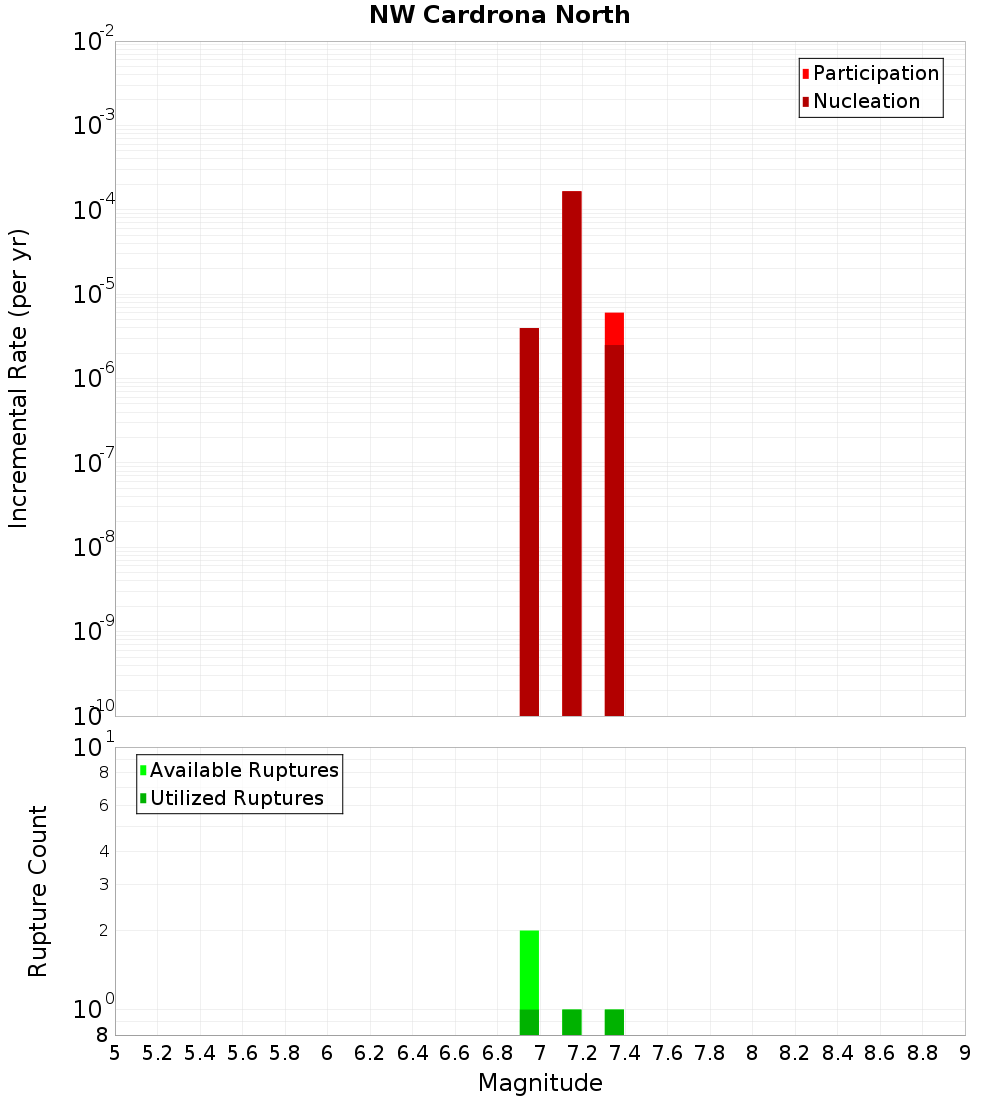

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

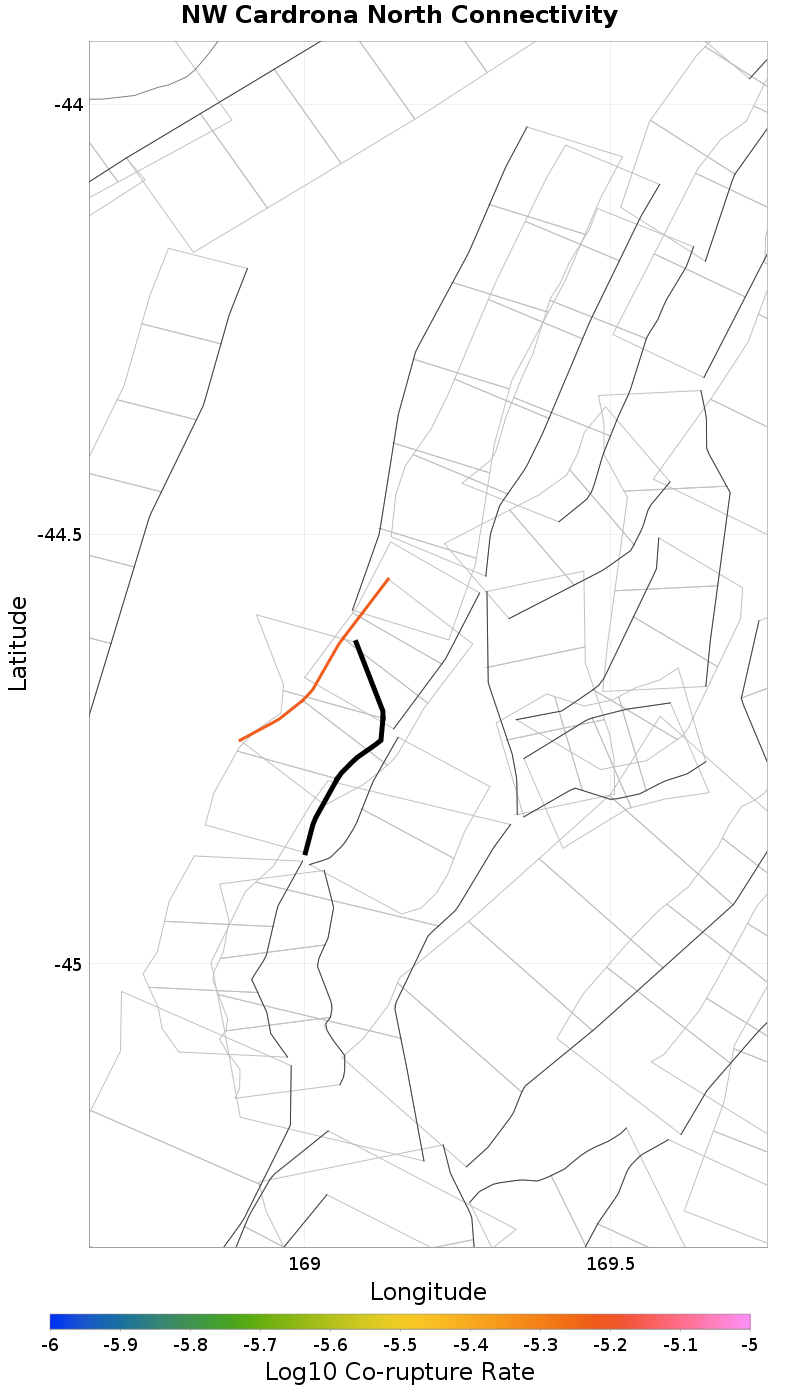

Connectivity
 |  |
|---|
Nearby Sections
Motatapu, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.0393295E-6 |
NW Cardrona South, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cardrona - Hawea, 1.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paddys Ridge, 1.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Roaring Meg, 3.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wanaka, 3.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pisa, 9.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Grandview, 14.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lindis River, 17.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunter Valley, 17.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Goodger, 18.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Timaru Creek, 19.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cluden, 19.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
