Uruti Basin Details

PropertyValue
Rupture Count11,801
Ruptures Above Sect Min Mag11,775
Ruptures w/ Nonzero Rates72
Magnitude Range[6.37, 8.33]
Length Range[12, 674] km
Total Rate7.412926E-4 /yr
Multi-Fault Rate7.412926E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults57

Table Of Contents

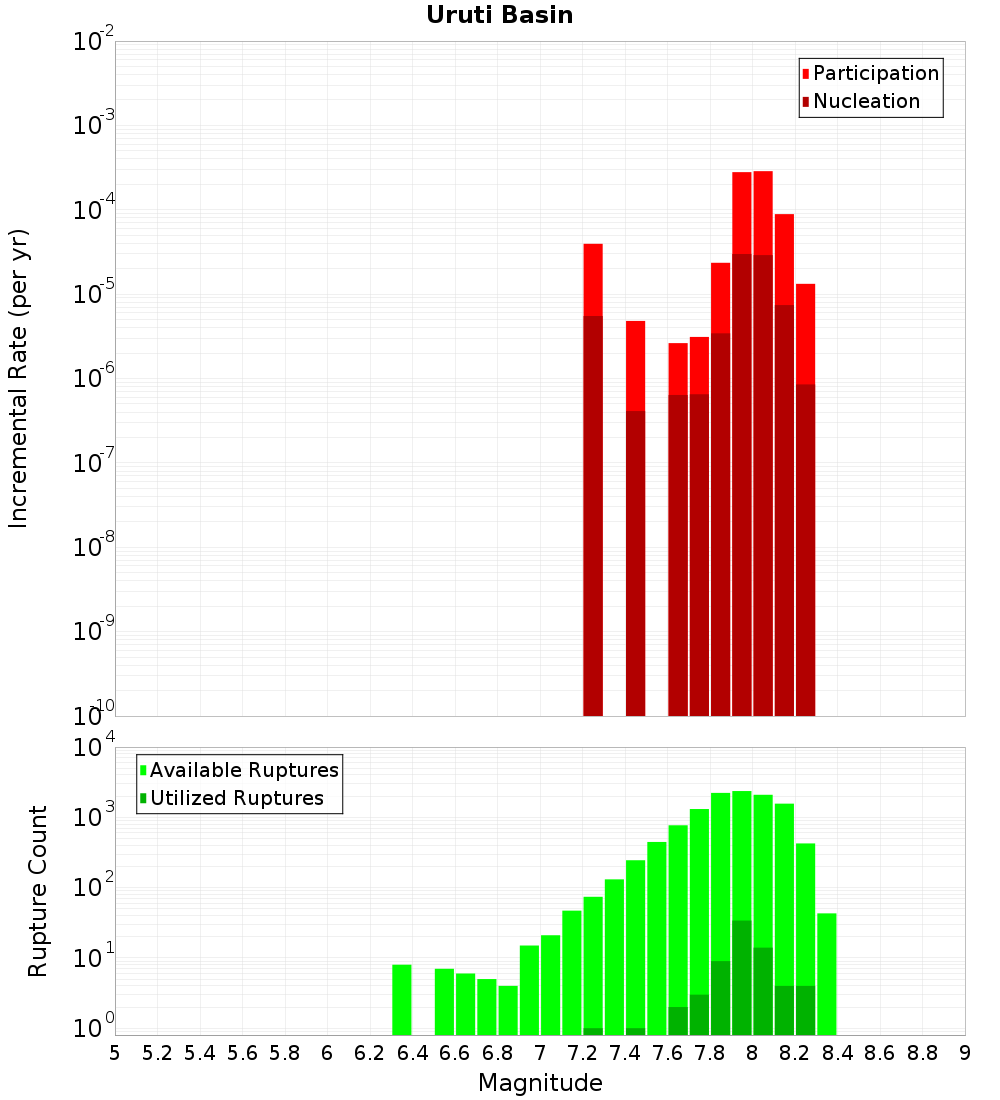

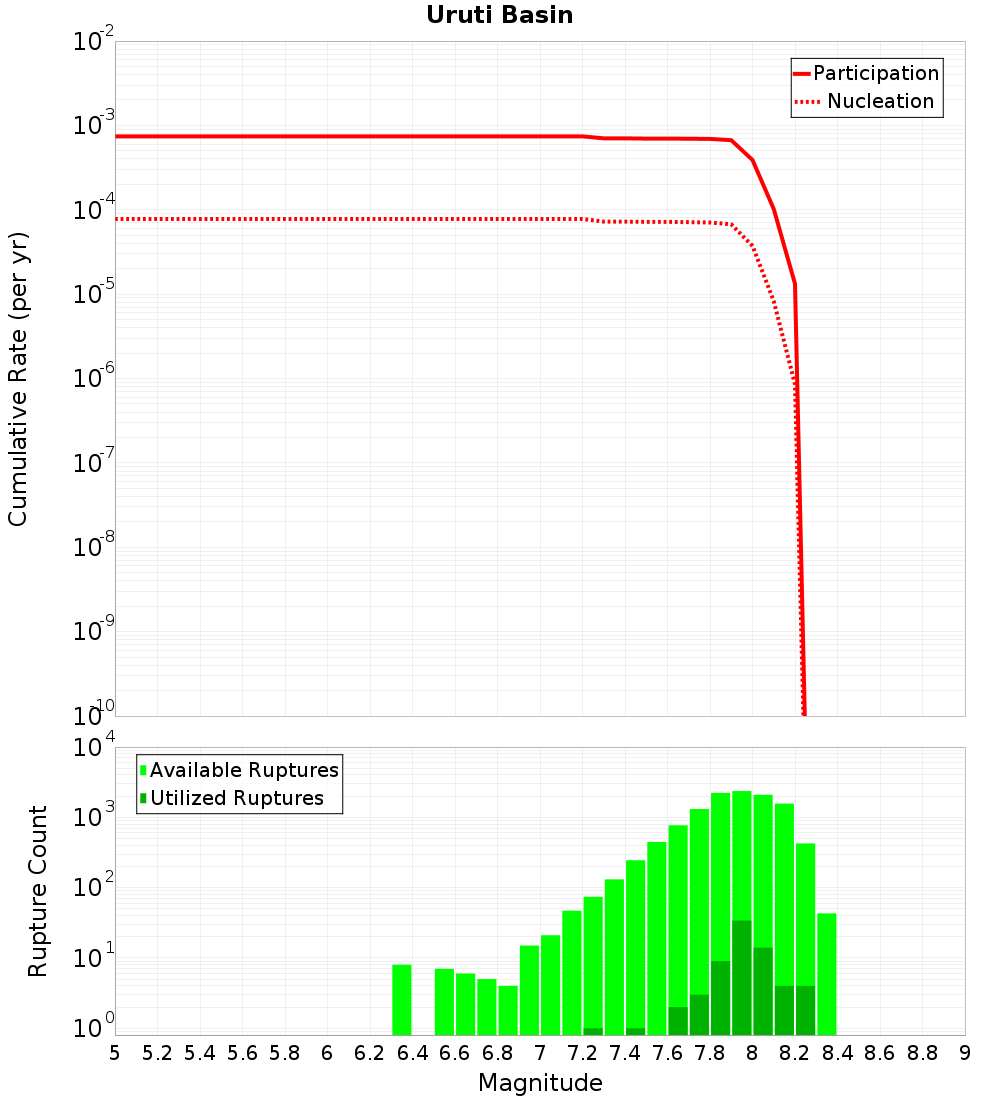

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

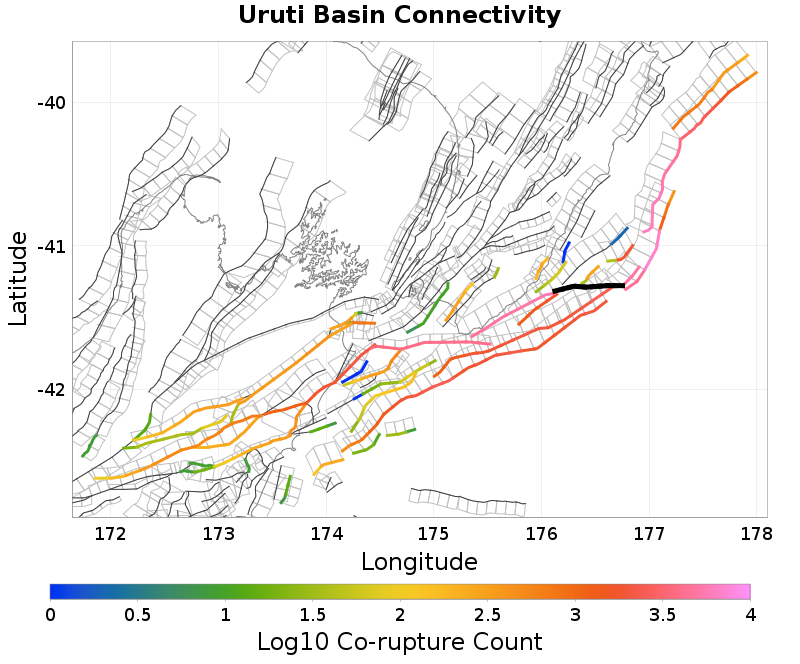

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Ridge 2, 0 km away
Uruti Basin 2, 0.15 km away
Opouawe - Uruti, 0.16 km away
Pahaua, 0.28 km away
Uruti East - PorWest 1, 0.29 km away
Honeycomb, 0.57 km away
Palliser - Kaiwhata, 1.36 km away
Whareama Bank, 3.49 km away
Riversdale, 8.5 km away
Uruti Point, 17.49 km away
Uruti North, 18.95 km away

Uruti Ridge 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count4,928
Co-rupture Rate3.174754E-4

Uruti Basin 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count294
Co-rupture Rate4.167027E-6

Opouawe - Uruti, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count3,046
Co-rupture Rate3.6773195E-5

Pahaua, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count3,026
Co-rupture Rate2.7375174E-4

Uruti East - PorWest 1, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count7,159
Co-rupture Rate2.3521934E-4

Honeycomb, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count1,746
Co-rupture Rate1.5314016E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count5,324
Co-rupture Rate4.2671125E-4

Whareama Bank, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Riversdale, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate4.4297158E-5

Uruti Point, 17.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate5.5214496E-6

Uruti North, 18.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0NzkuMGc5cnRW
Connected?true
Directly Connected?false
Co-rupture Count1,787
Co-rupture Rate2.4147932E-5
