Moonlight North Details

Property	Value
Rupture Count	11,407
Ruptures Above Sect Min Mag	11,400
Ruptures w/ Nonzero Rates	60
Magnitude Range	[6.84, 8.53]
Length Range	[21, 1,045] km
Total Rate	1.165514E-5 /yr
Multi-Fault Rate	1.0354002E-5 /yr (88.84%)
Directly-Connected Faults	4
All Co-Rupturing Faults	115

Table Of Contents

Magnitude-Frequency Distribution

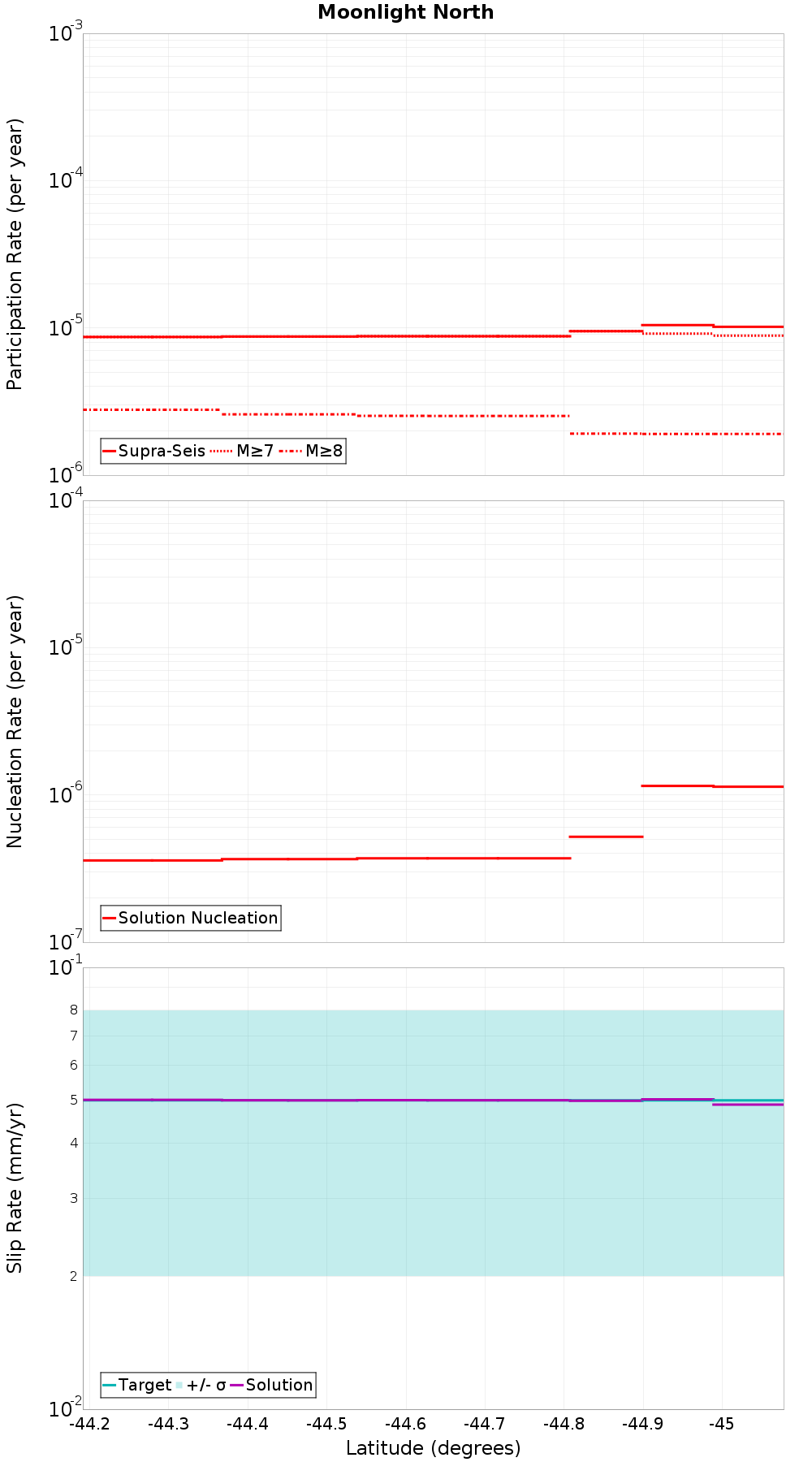

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
West Wakatipu, 0.14 km away
Alpine: Jacksons to Kaniere, 1.51 km away
Moonlight South, 4.72 km away
Alpine: George to Jacksons, 9.46 km away
Livingstone, 9.69 km away
Barn, 10.72 km away
Motatapu, 19.58 km away

West Wakatipu, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,975
Co-rupture Rate	3.5267593E-7

Alpine: Jacksons to Kaniere, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	11,308
Co-rupture Rate	2.7794358E-6

Moonlight South, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George to Jacksons, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	false
Co-rupture Count	480
Co-rupture Rate	8.658567E-7

Livingstone, 9.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	1.3319643E-6

Barn, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	5.897899E-6

Motatapu, 19.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
