Otara East 2 Details

Property	Value
Rupture Count	3,443
Ruptures Above Sect Min Mag	3,443
Ruptures w/ Nonzero Rates	115
Magnitude Range	[6.93, 8.00]
Length Range	[16, 291] km
Total Rate	8.491382E-5 /yr
Multi-Fault Rate	8.491382E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

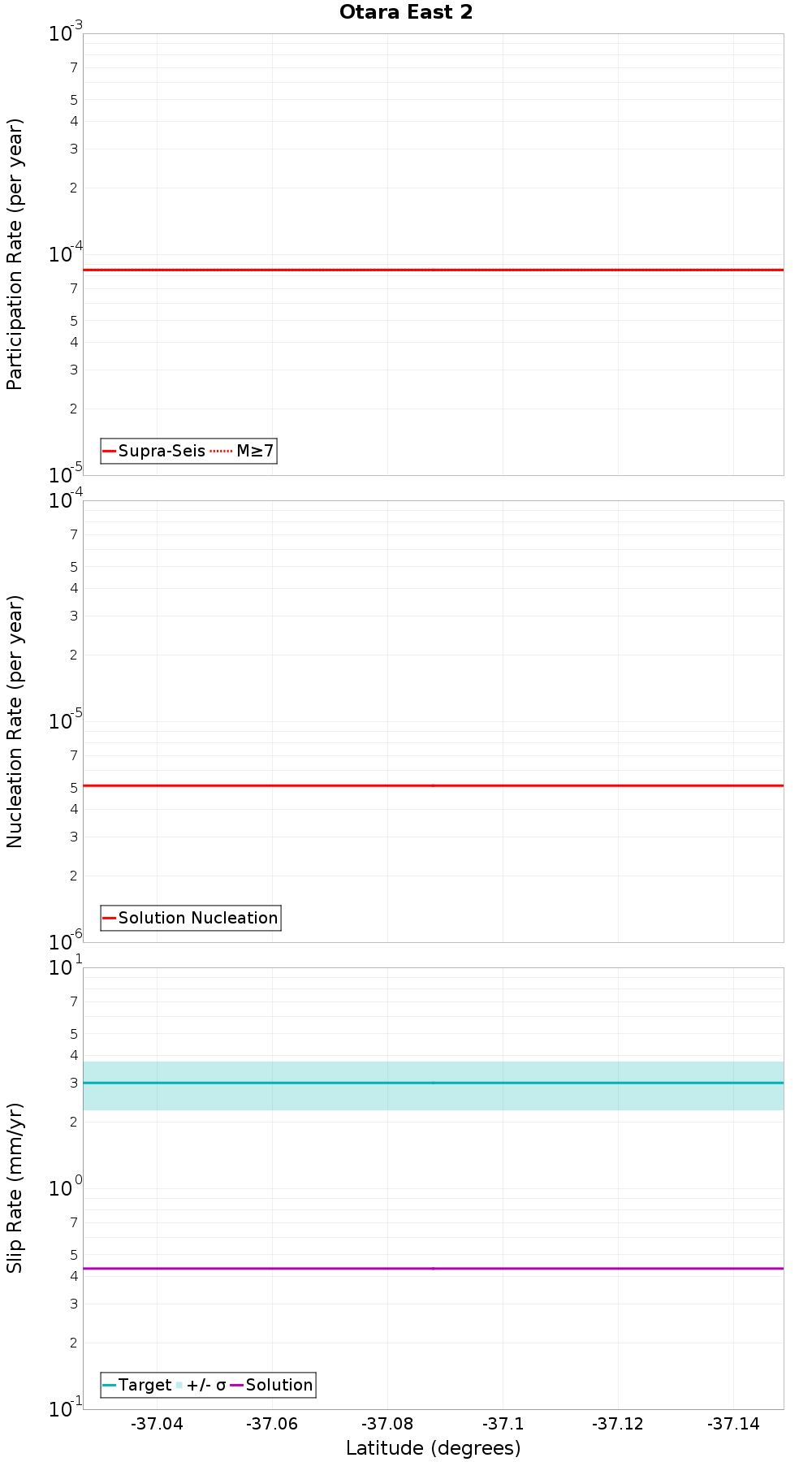

Along-Strike Values

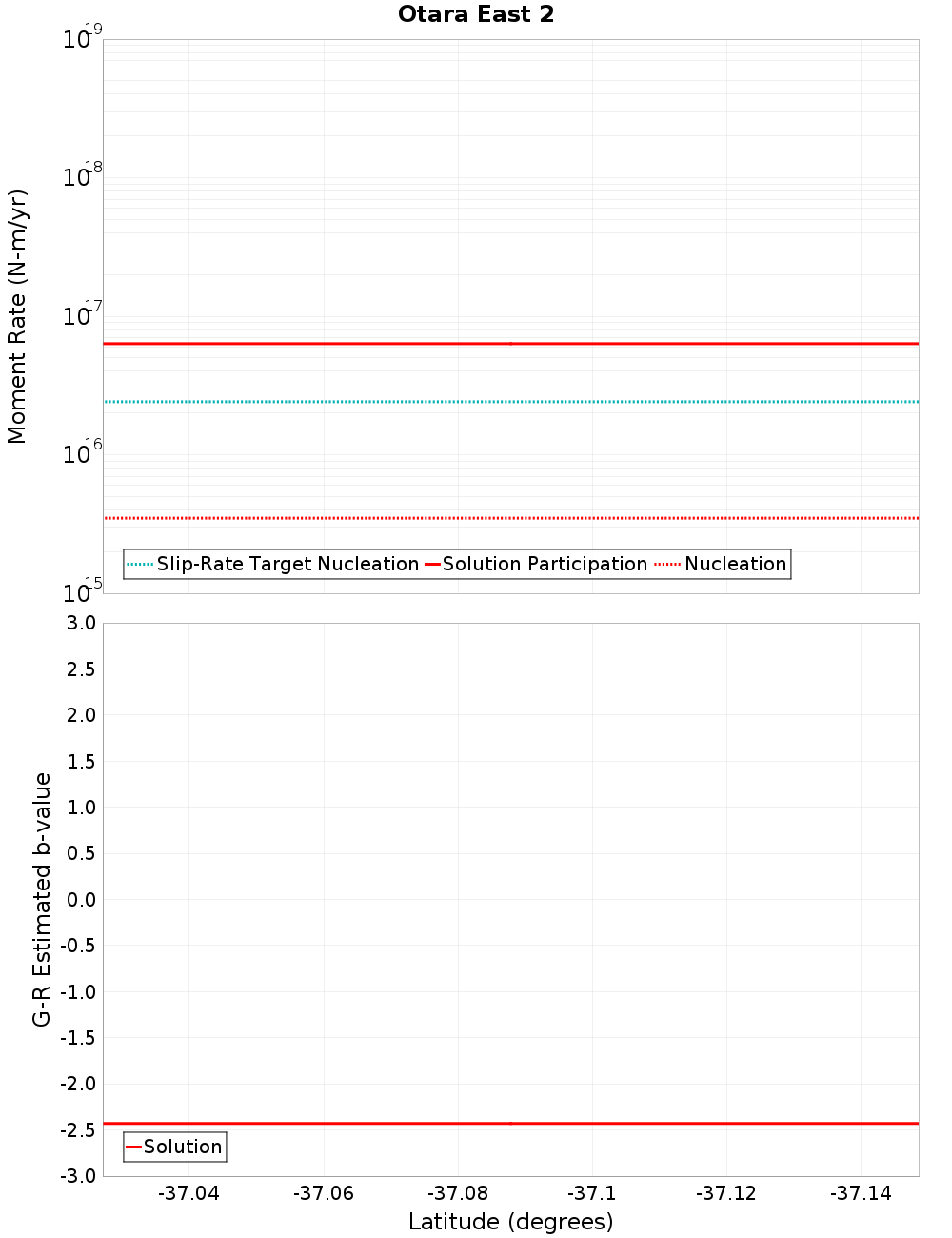

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Otara East 1, 1.27 km away
Otara West 2, 1.77 km away
Otara West 3, 3.67 km away
Otara West 1, 4.9 km away
Volkner 4, 5.35 km away
Tuatoru 2, 8.63 km away
Te Arawa 3, 13.29 km away
Tauranga Trough East 2, 14.3 km away
Te Arawa 2, 19.77 km away

Otara East 1, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	2,874
Co-rupture Rate	8.284472E-5

Otara West 2, 1.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 3, 3.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	281
Co-rupture Rate	2.0133093E-6

Otara West 1, 4.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	5.5789975E-8

Volkner 4, 5.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	2.0133093E-6

Tuatoru 2, 8.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	false
Co-rupture Count	2,419
Co-rupture Rate	8.284463E-5

Te Arawa 3, 13.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	false
Co-rupture Count	227
Co-rupture Rate	9.365993E-11

Tauranga Trough East 2, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 19.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq
Connected?	true
Directly Connected?	false
Co-rupture Count	769
Co-rupture Rate	3.0501387E-5
