Otara West 3 Details
| Property | Value |
|---|---|
| Rupture Count | 744 |
| Ruptures Above Sect Min Mag | 744 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.01, 8.00] |
| Length Range | [20, 292] km |
| Total Rate | 2.0135742E-6 /yr |
| Multi-Fault Rate | 2.0135742E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

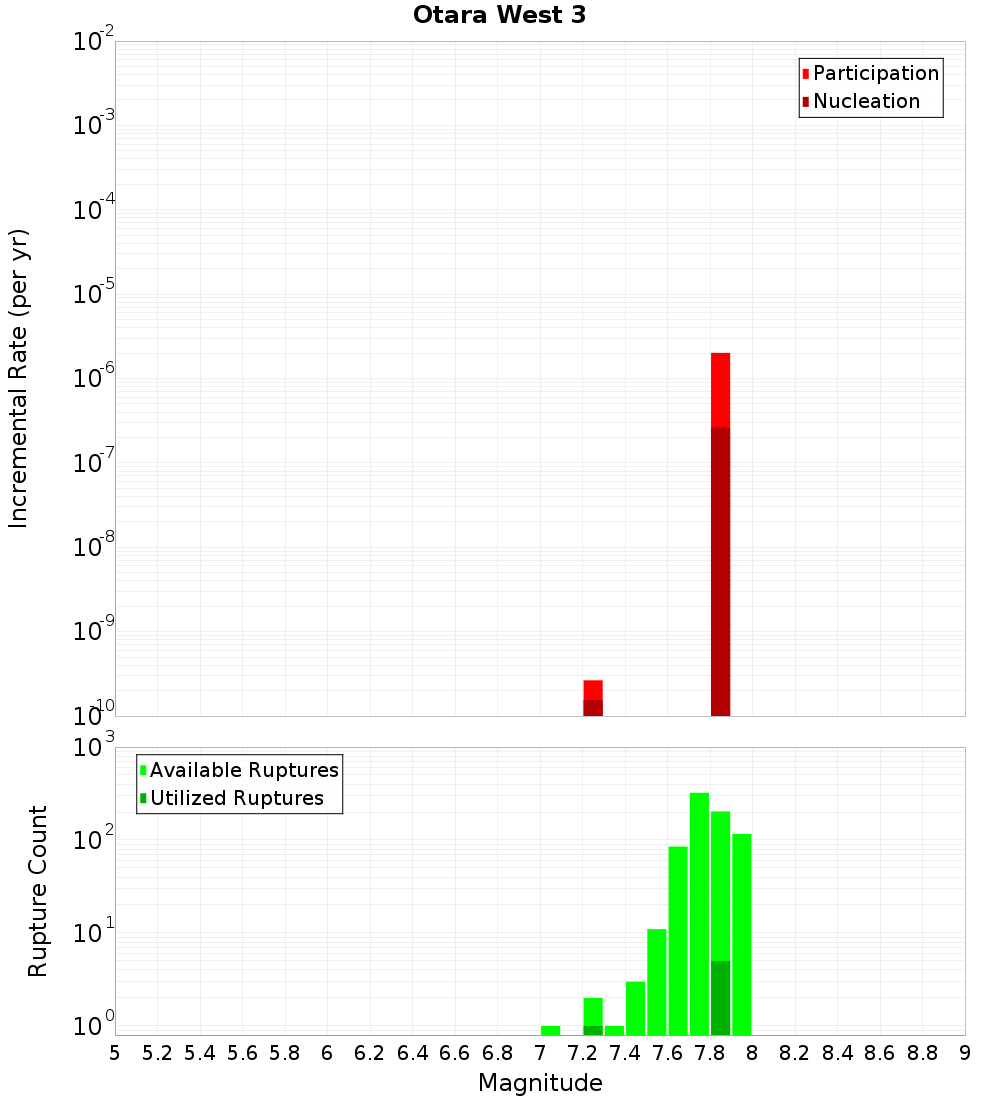

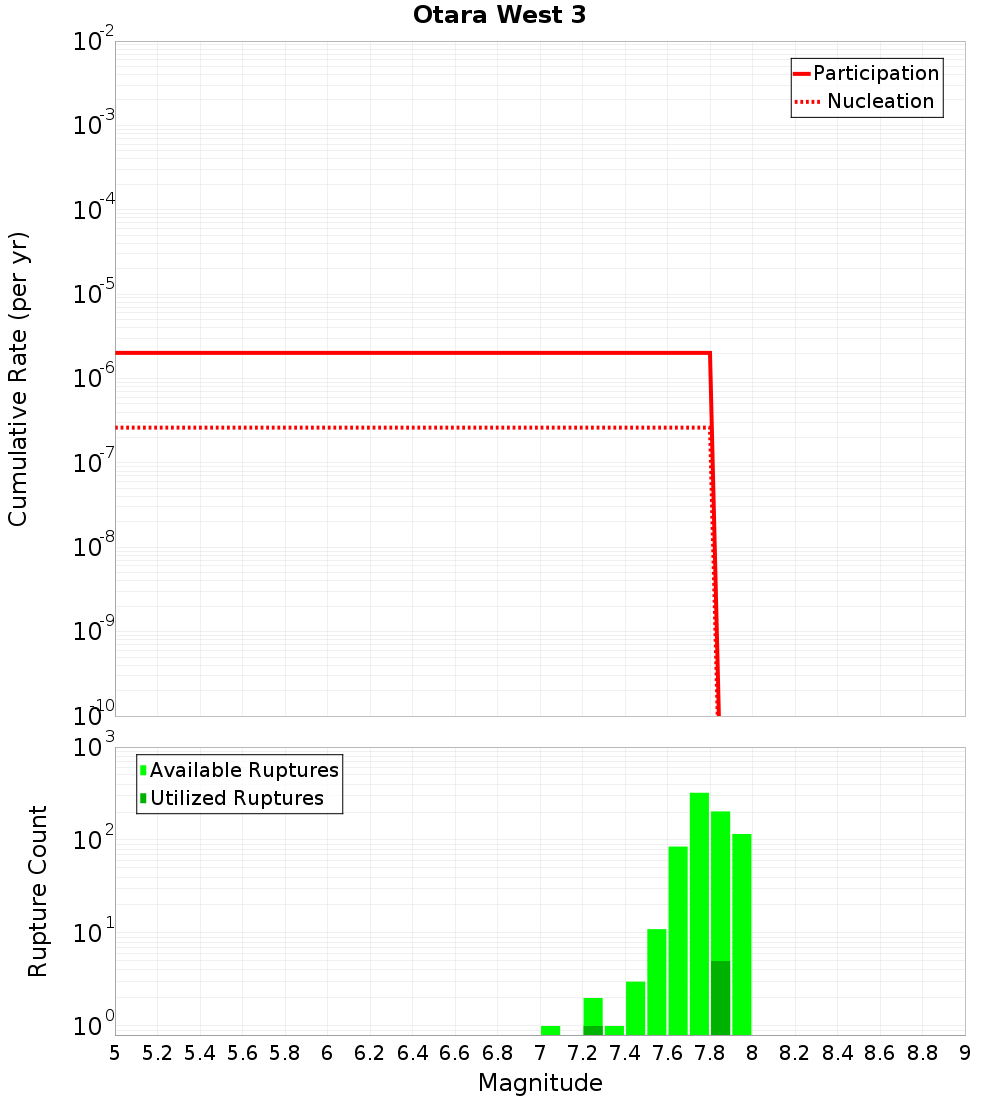

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

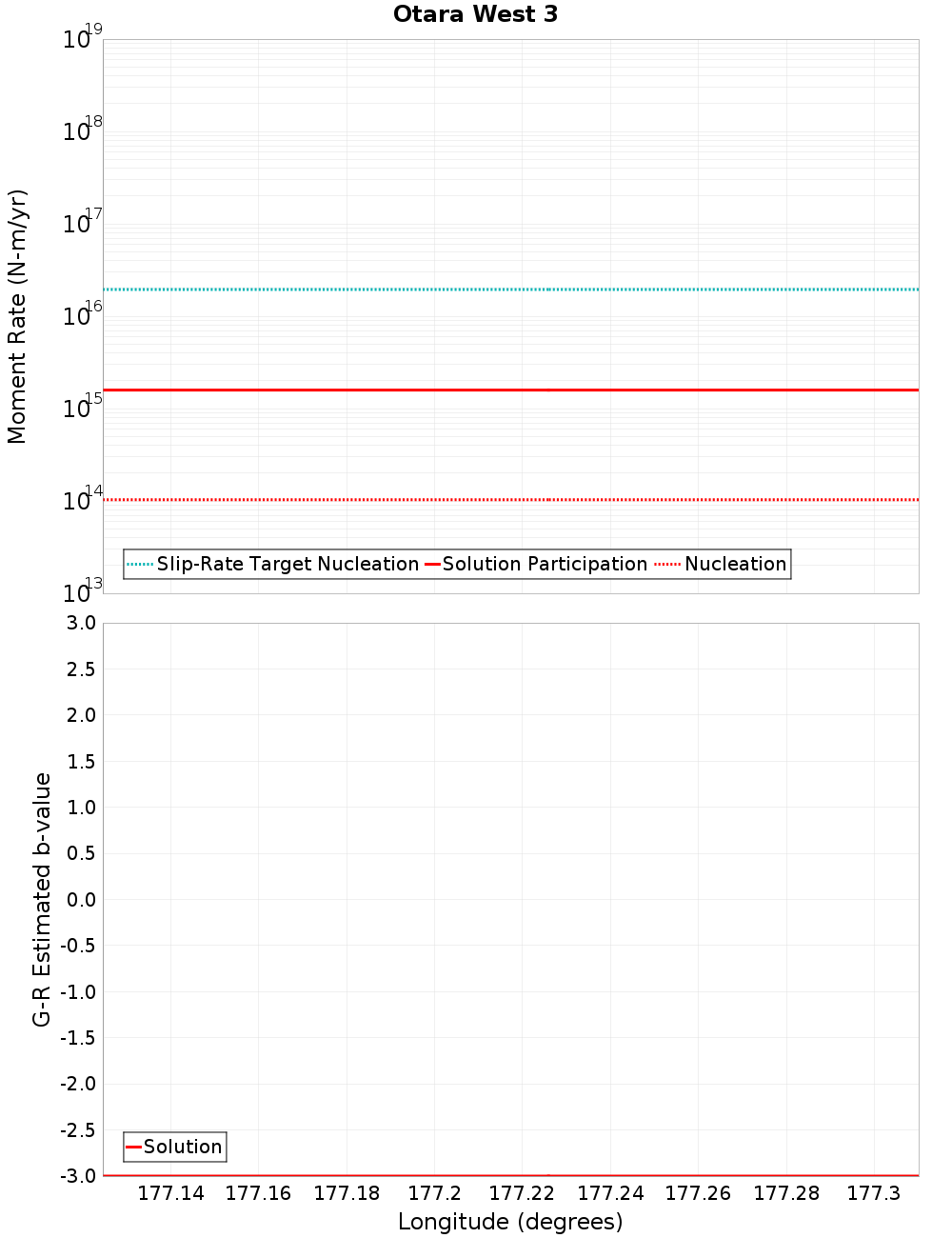

Moment-Rates and b-Values

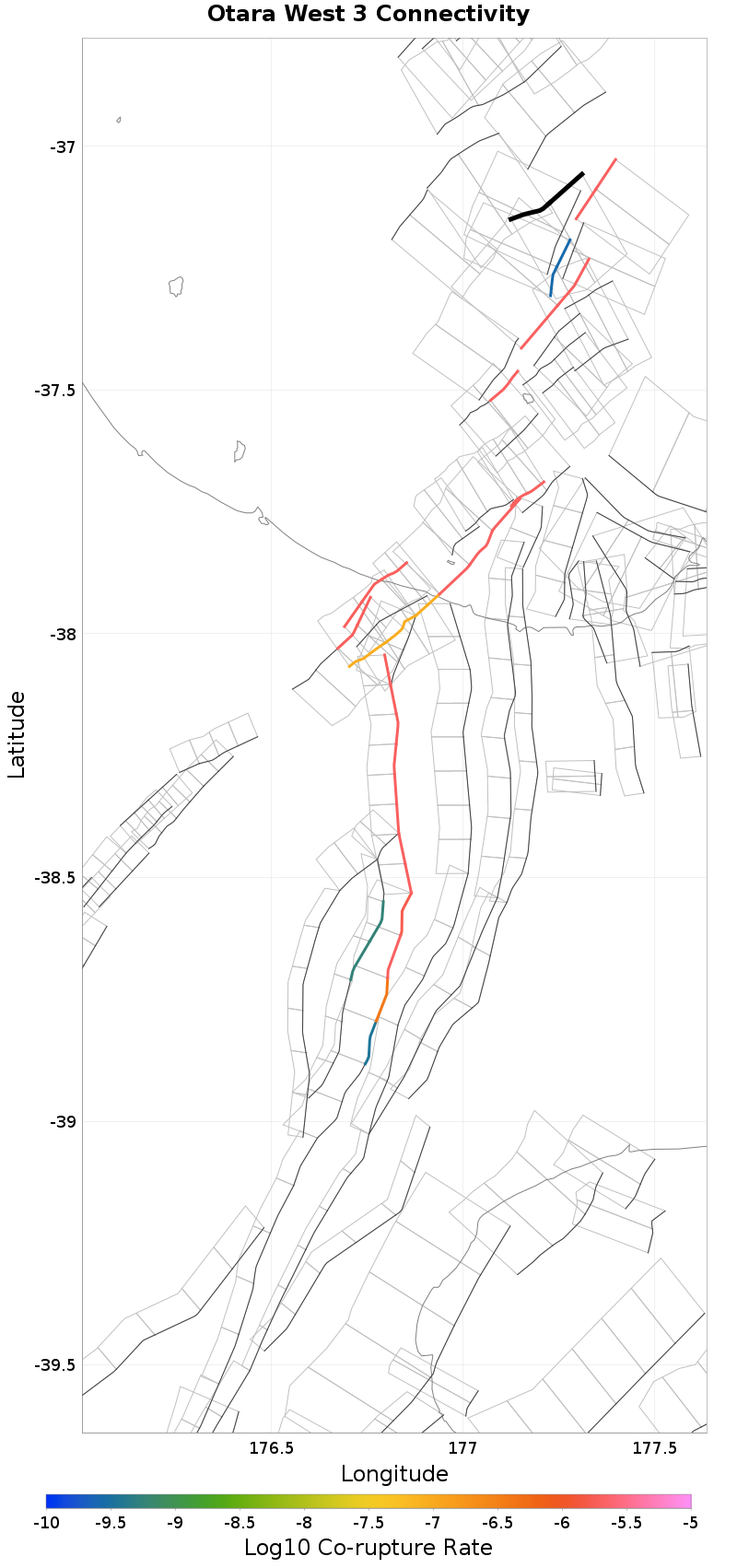

Connectivity
 |  |
|---|
Nearby Sections
Tuatoru 2, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 1, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.6478686E-10 |
Volkner 4, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 741 |
| Co-rupture Rate | 2.0133093E-6 |
Otara East 2, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 281 |
| Co-rupture Rate | 2.0133093E-6 |
Otara East 1, 6.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough East 2, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 6, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 14.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Volkner 3, 16.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Te Arawa 3, 16.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 18.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODIuMEFyaFJq | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
