Cape Foulwind 1 Details

PropertyValue
Rupture Count117
Ruptures Above Sect Min Mag113
Ruptures w/ Nonzero Rates16
Magnitude Range[6.80, 7.77]
Length Range[20, 171] km
Total Rate4.3123742E-4 /yr
Multi-Fault Rate3.0635708E-4 /yr (71.04%)
Directly-Connected Faults4
All Co-Rupturing Faults6

Table Of Contents

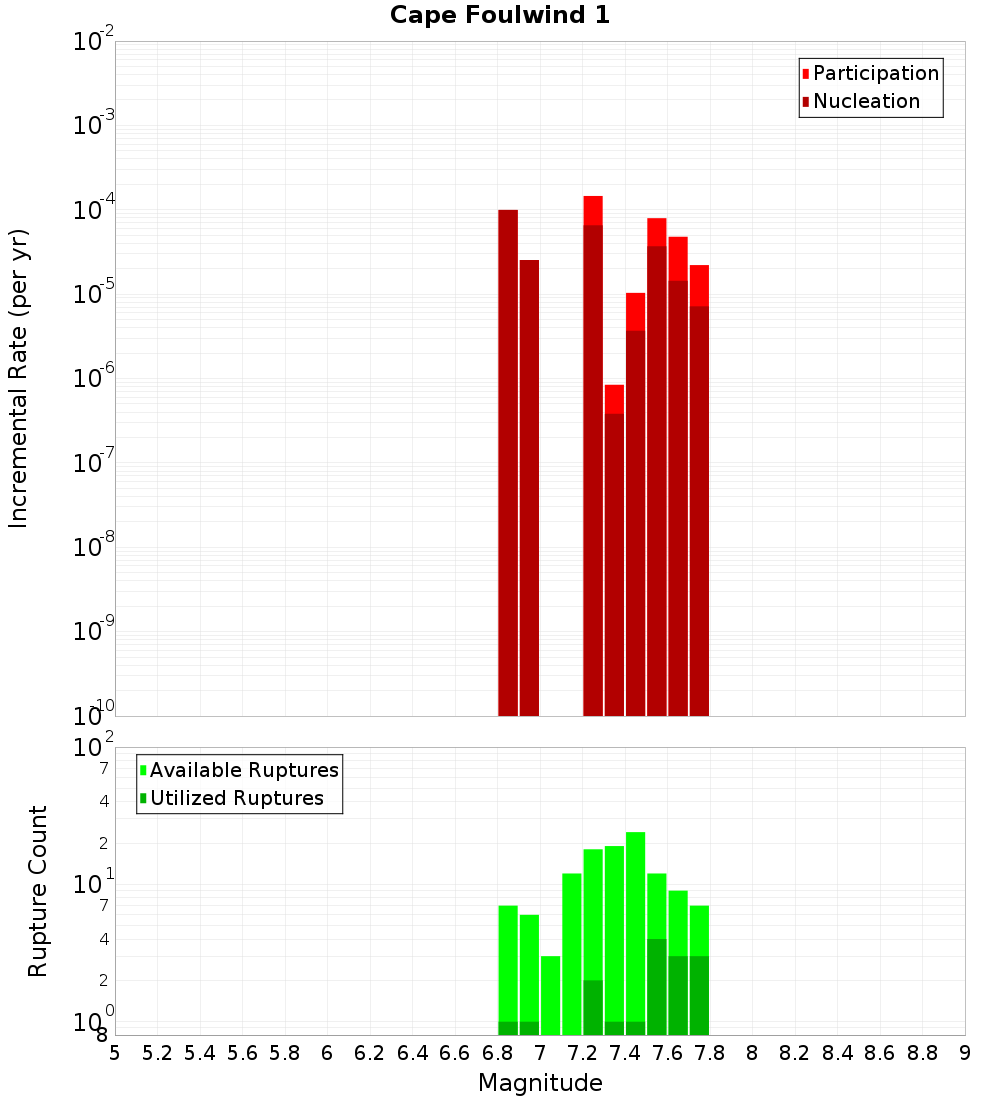

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

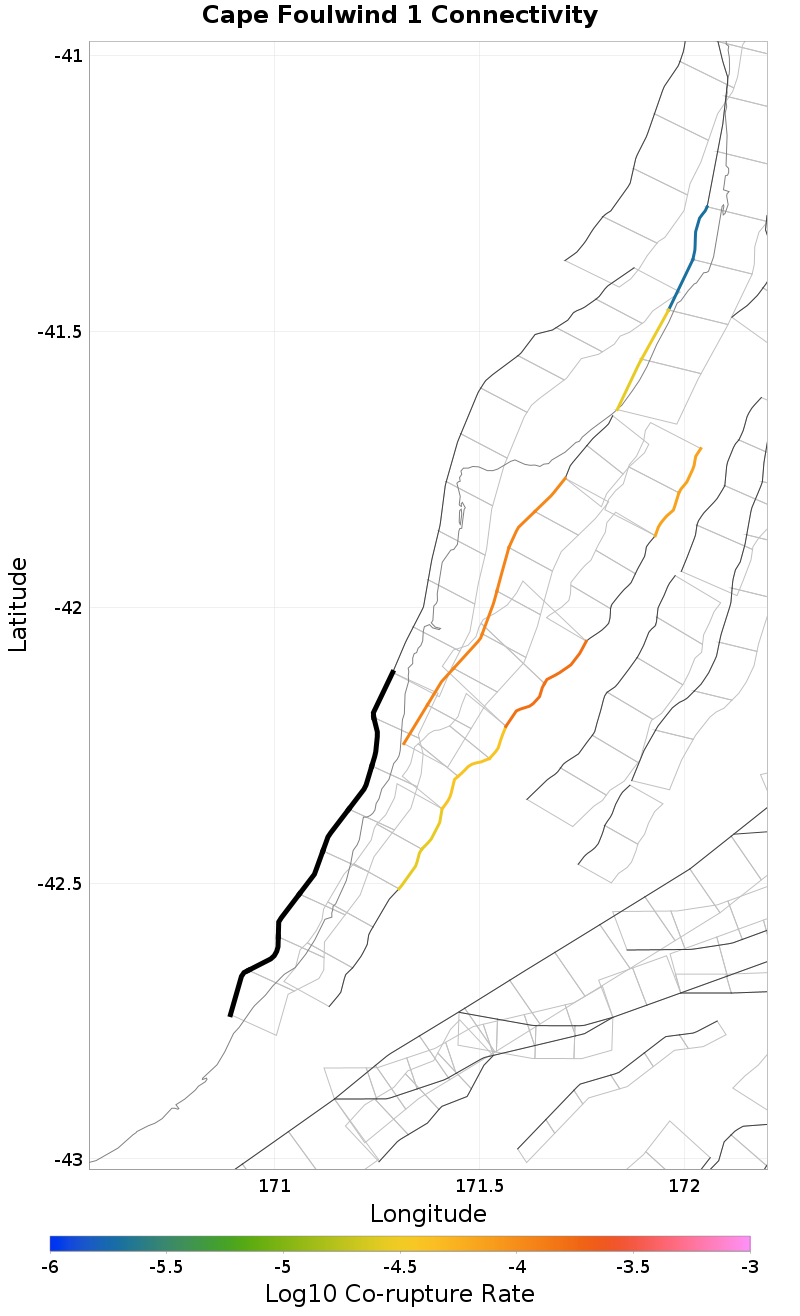

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Foulwind 2, 0 km away
Maimai: South, 0.4 km away
Maimai: Brunner Anticline, 0.41 km away
Paparoa West, 4.61 km away
Maimai, 4.83 km away
Kelly, 11.56 km away

Cape Foulwind 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate3.841271E-5

Maimai: Brunner Anticline, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.7789614E-5

Paparoa West, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate1.1959076E-4

Maimai, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.589767E-4

Kelly, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0ODMuMEhvYVdL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
