Dromedary Details

PropertyValue
Rupture Count1,182
Ruptures Above Sect Min Mag1,181
Ruptures w/ Nonzero Rates42
Magnitude Range[7.04, 8.47]
Length Range[26, 724] km
Total Rate1.8961598E-4 /yr
Multi-Fault Rate4.8511396E-5 /yr (25.58%)
Directly-Connected Faults5
All Co-Rupturing Faults65

Table Of Contents

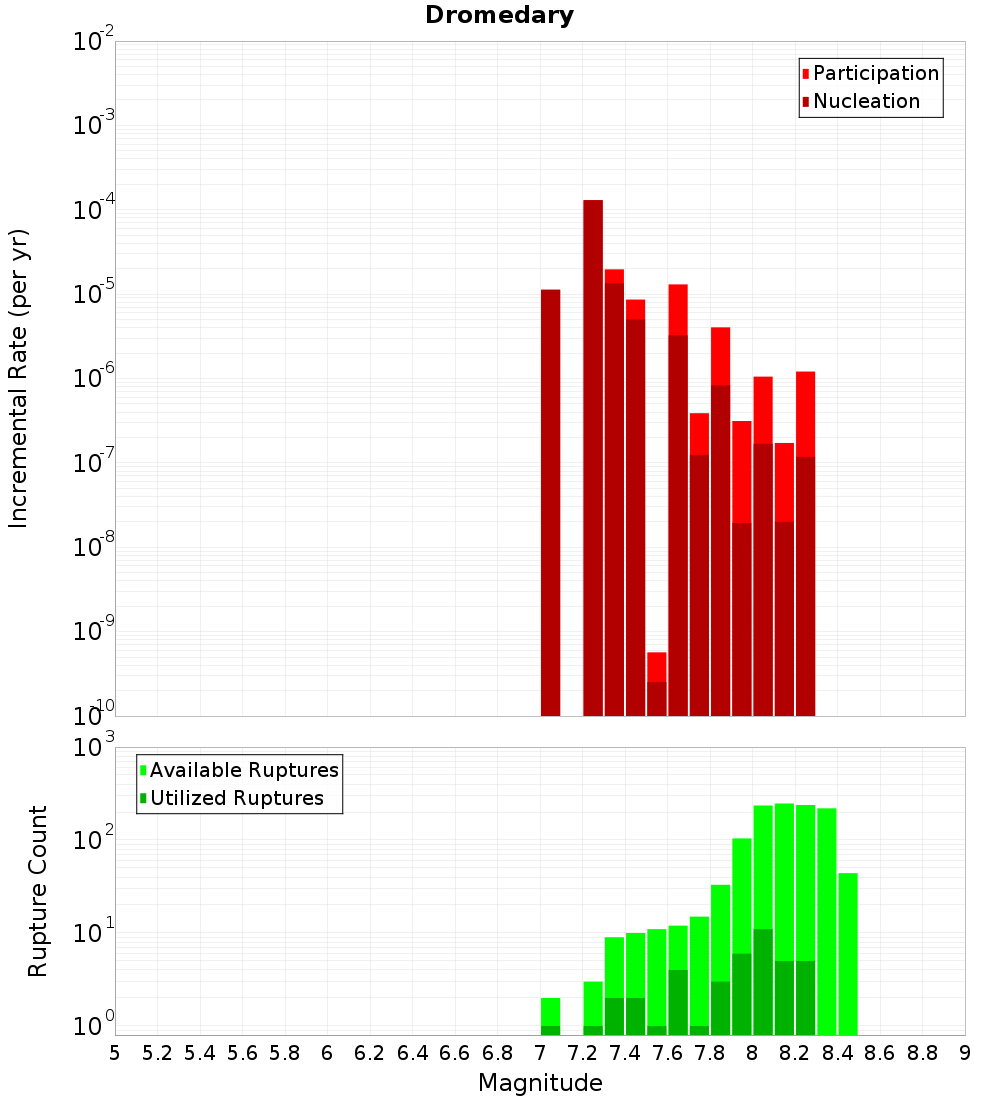

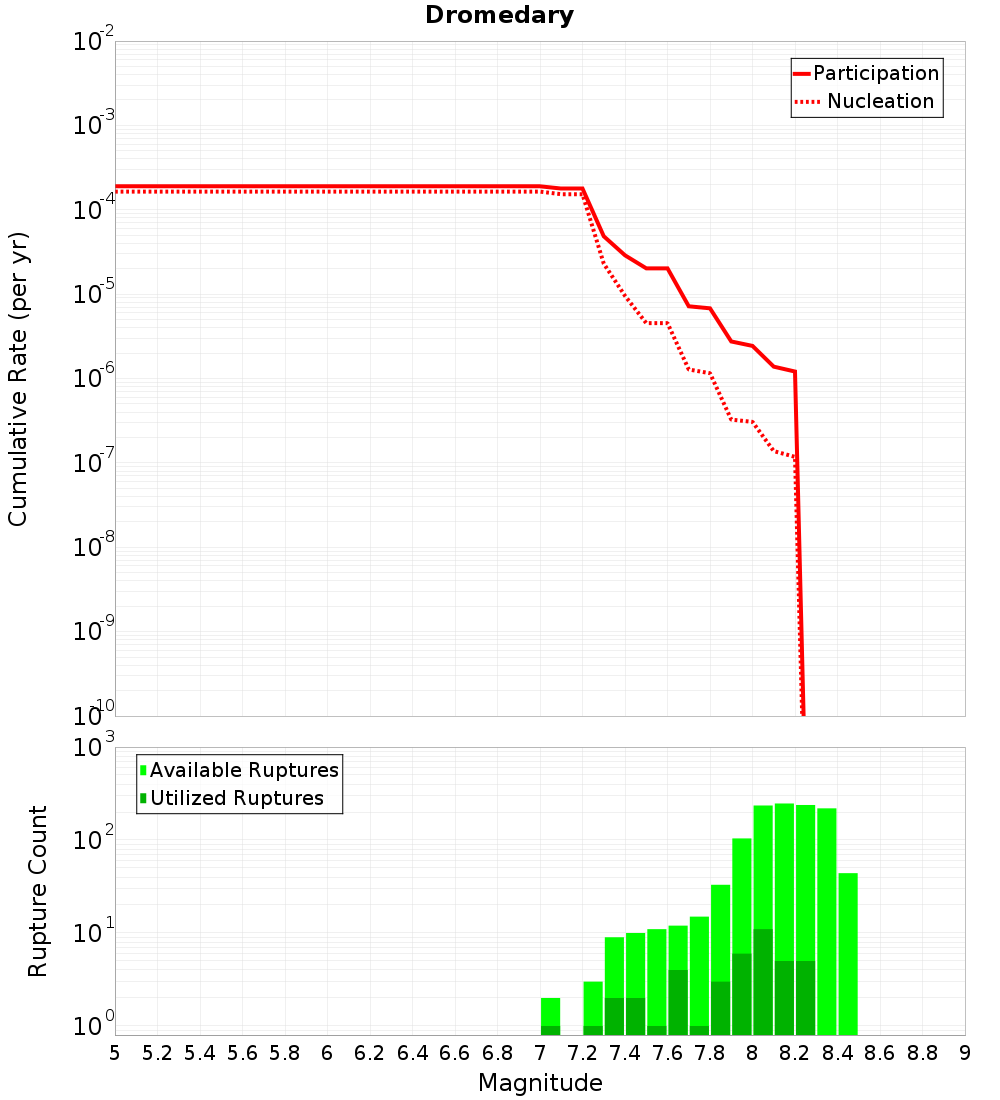

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

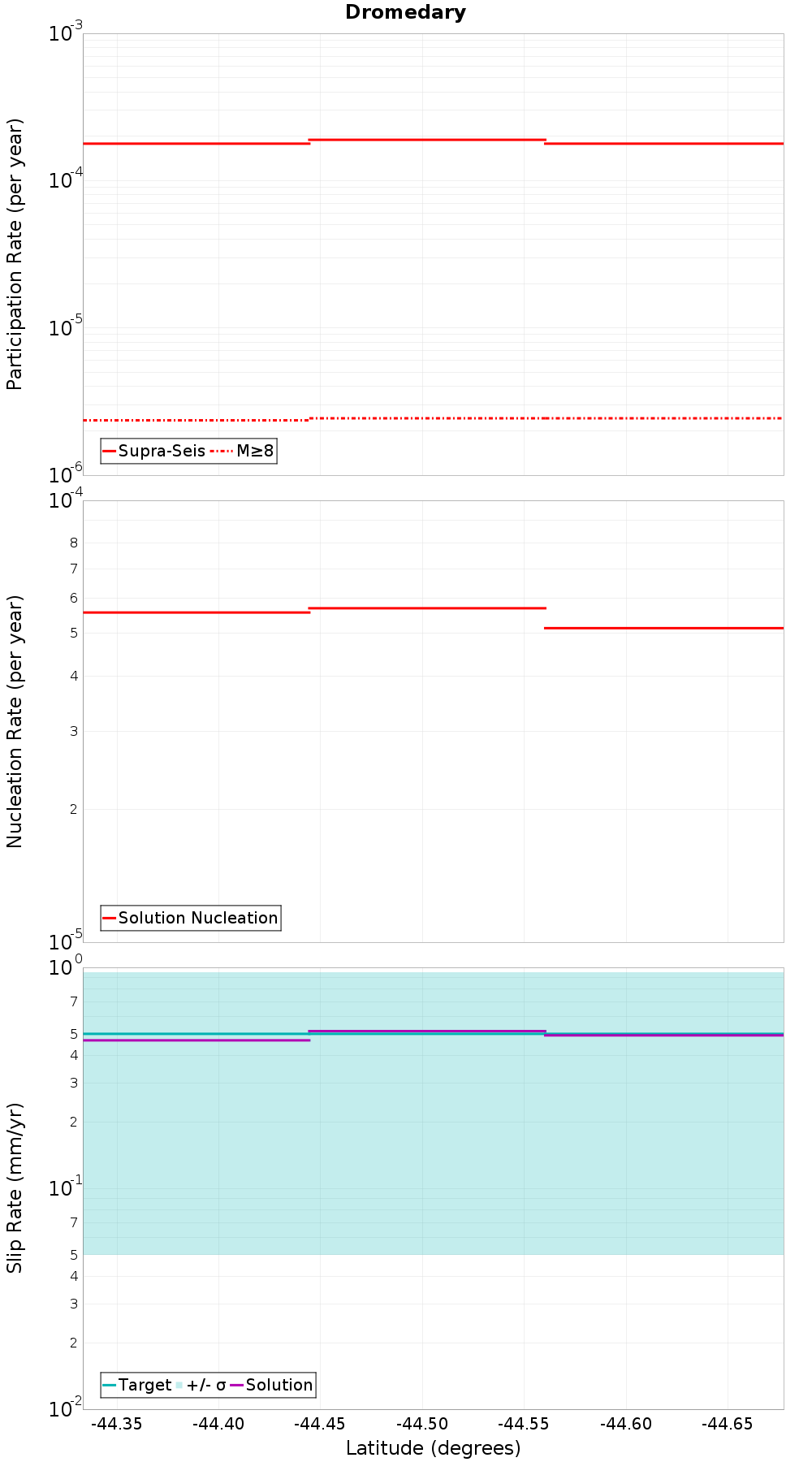

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

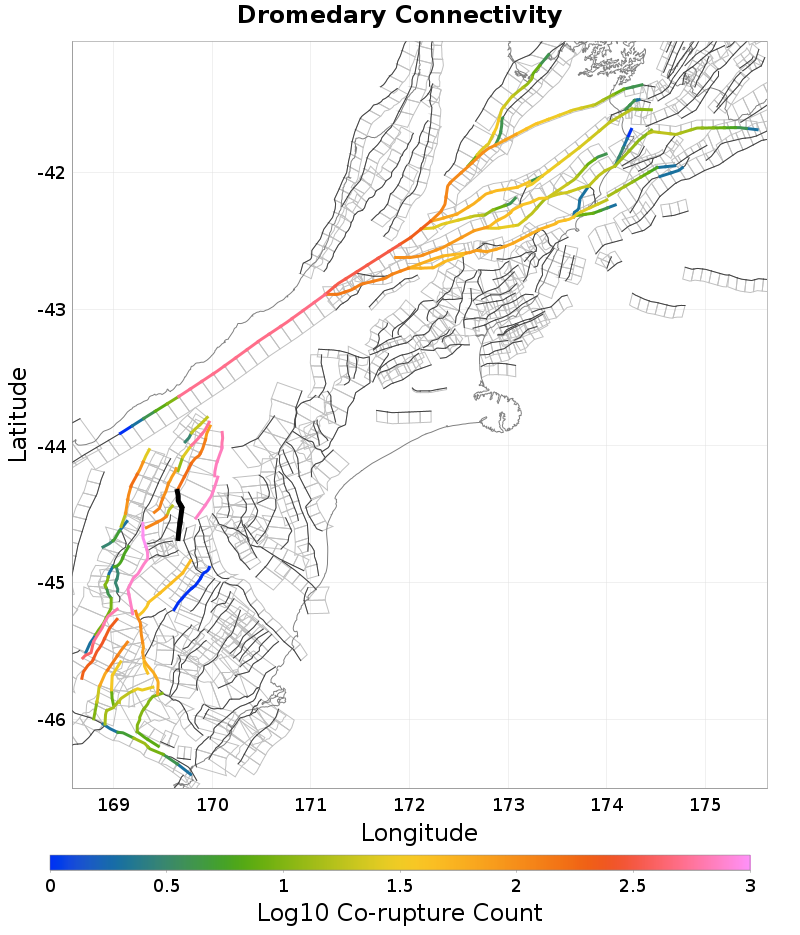

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Timaru Creek, 0.12 km awayDingle, 7.73 km away
Lindis River, 0.15 km awayWanaka, 10.85 km away
Cluden, 1.29 km awayOmarama Saddle, 13.1 km away
Grandview, 1.36 km awayHawkdun, 14.4 km away
Barrier Range, 1.72 km awayHunter Valley, 14.89 km away
Ostler South, 3.83 km awayHopkins, 16.74 km away
Goodger, 4.03 km awayMotatapu, 17.34 km away
Blue Lake, 4.84 km awayPaddys Ridge, 19.07 km away
Dunstan, 6.46 km away

Timaru Creek, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate2.0056397E-5

Lindis River, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cluden, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grandview, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count948
Co-rupture Rate7.576084E-6

Barrier Range, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate5.6638173E-6

Ostler South, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count734
Co-rupture Rate1.159751E-5

Goodger, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate3.7543239E-6

Dingle, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count133
Co-rupture Rate5.9875003E-7

Wanaka, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate1.20302275E-5

Omarama Saddle, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hopkins, 16.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate0.0

Motatapu, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate6.611346E-10

Paddys Ridge, 19.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.84526E-7
