Ruahine: South Details

PropertyValue
Rupture Count27,198
Ruptures Above Sect Min Mag27,195
Ruptures w/ Nonzero Rates52
Magnitude Range[6.99, 8.60]
Length Range[24, 1,113] km
Total Rate2.2541896E-4 /yr
Multi-Fault Rate2.2541896E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults111

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

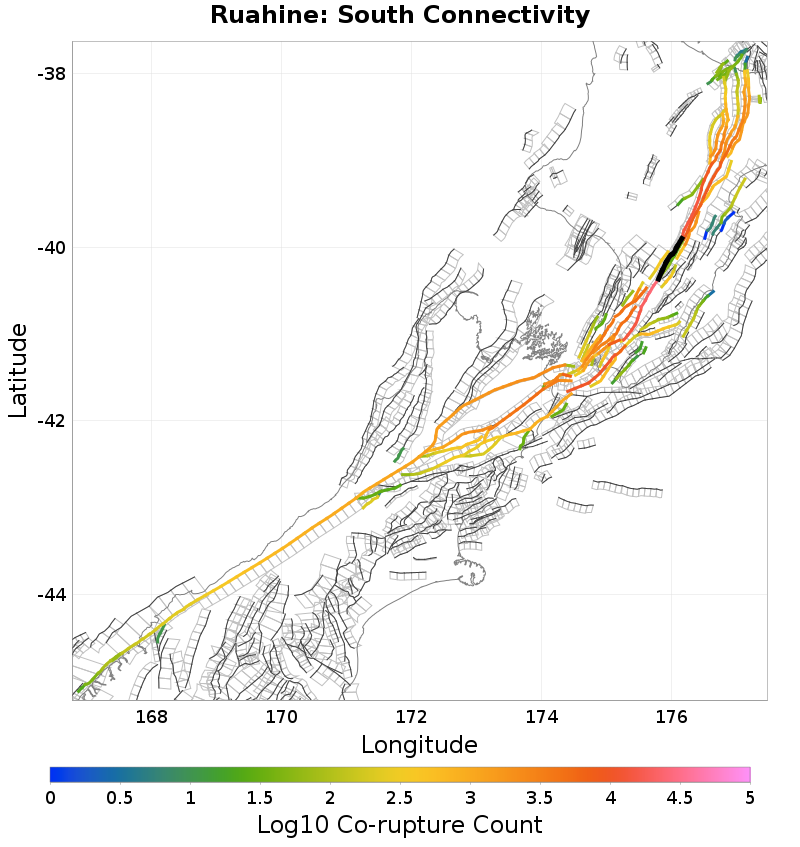

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.16 km away
Rangefront, 0.19 km away
Woodville, 1.31 km away
Pohangina, 5.25 km away
Pahiatua, 5.97 km away
Ruataniwha, 9.87 km away
Maunga, 13.33 km away
Wakarara, 14.13 km away
Tokomaru, 14.38 km away
Northern Ohariu, 18.29 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count25,317
Co-rupture Rate2.1799462E-4

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count7,897
Co-rupture Rate6.5728156E-5

Ruahine: Central, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count14,544
Co-rupture Rate1.17218005E-4

Rangefront, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count2,355
Co-rupture Rate2.1076283E-5

Woodville, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count348
Co-rupture Rate1.2197219E-5

Pahiatua, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count502
Co-rupture Rate1.6623719E-5

Ruataniwha, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 14.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count1,768
Co-rupture Rate1.3651374E-5

Tokomaru, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count2,106
Co-rupture Rate1.85368E-6

Northern Ohariu, 18.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count4,817
Co-rupture Rate7.642816E-5

Taonui, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
