Turi: South Details
| Property | Value |
|---|---|
| Rupture Count | 430 |
| Ruptures Above Sect Min Mag | 428 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.77, 7.93] |
| Length Range | [18, 208] km |
| Total Rate | 1.926498E-4 /yr |
| Multi-Fault Rate | 1.0396321E-4 /yr (53.96%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

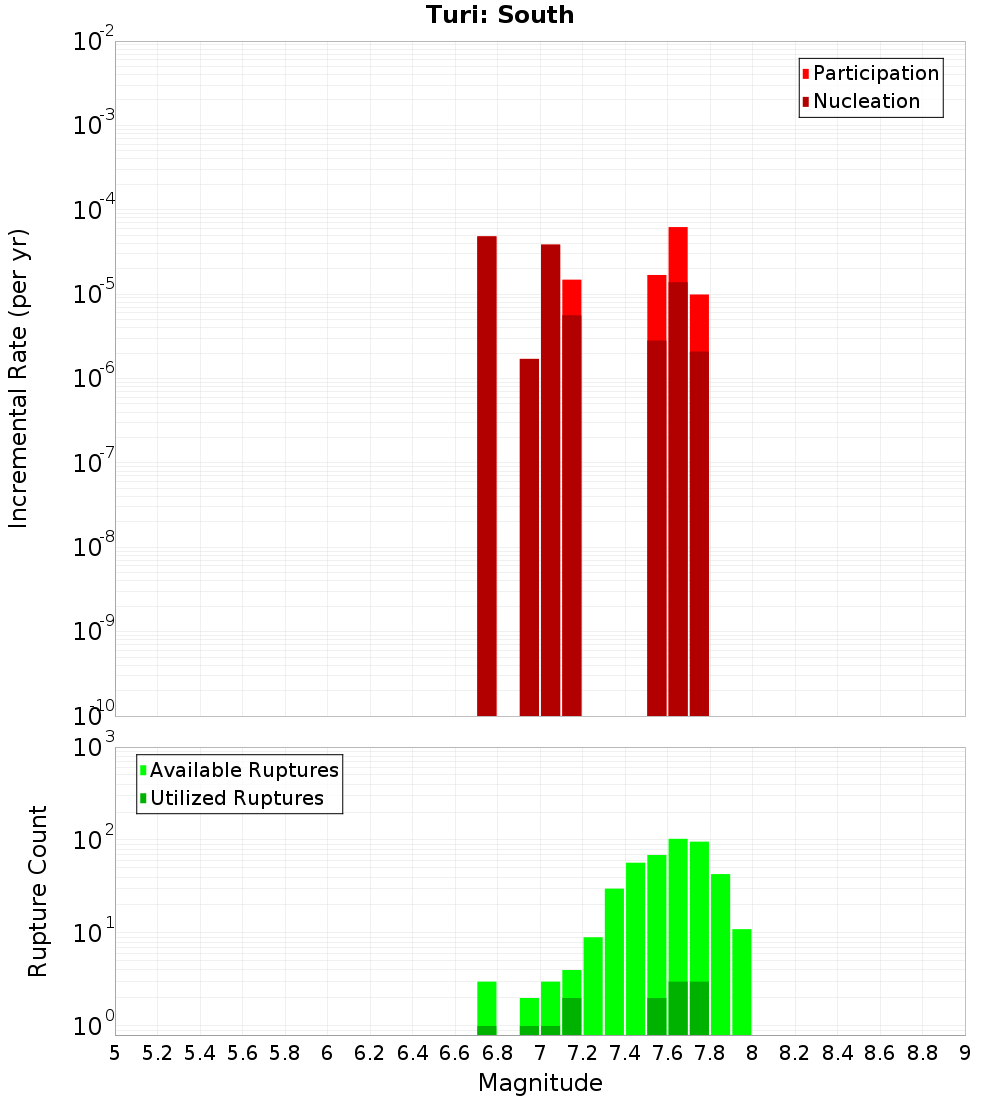

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

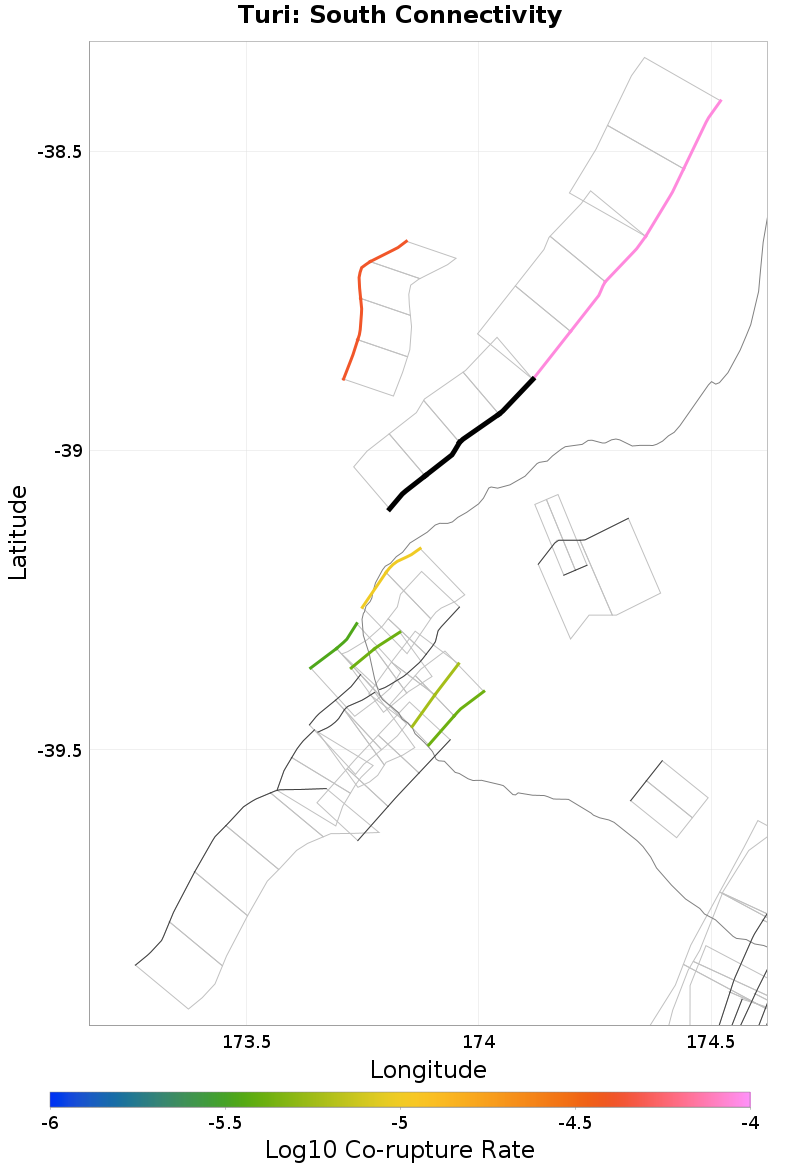

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Turi: Central, 0 km away |
| Parihaka, 5.14 km away |
| Warea, 9.28 km away |
Turi: Central, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 183 |
| Co-rupture Rate | 8.911703E-5 |
Parihaka, 5.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 77 |
| Co-rupture Rate | 4.0582923E-5 |
Warea, 9.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 409 |
| Co-rupture Rate | 9.935338E-6 |
