Waimana: North Details

PropertyValue
Rupture Count9,607
Ruptures Above Sect Min Mag9,601
Ruptures w/ Nonzero Rates34
Magnitude Range[6.77, 8.58]
Length Range[18, 1,056] km
Total Rate5.8173074E-4 /yr
Multi-Fault Rate5.573399E-4 /yr (95.81%)
Directly-Connected Faults10
All Co-Rupturing Faults98

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

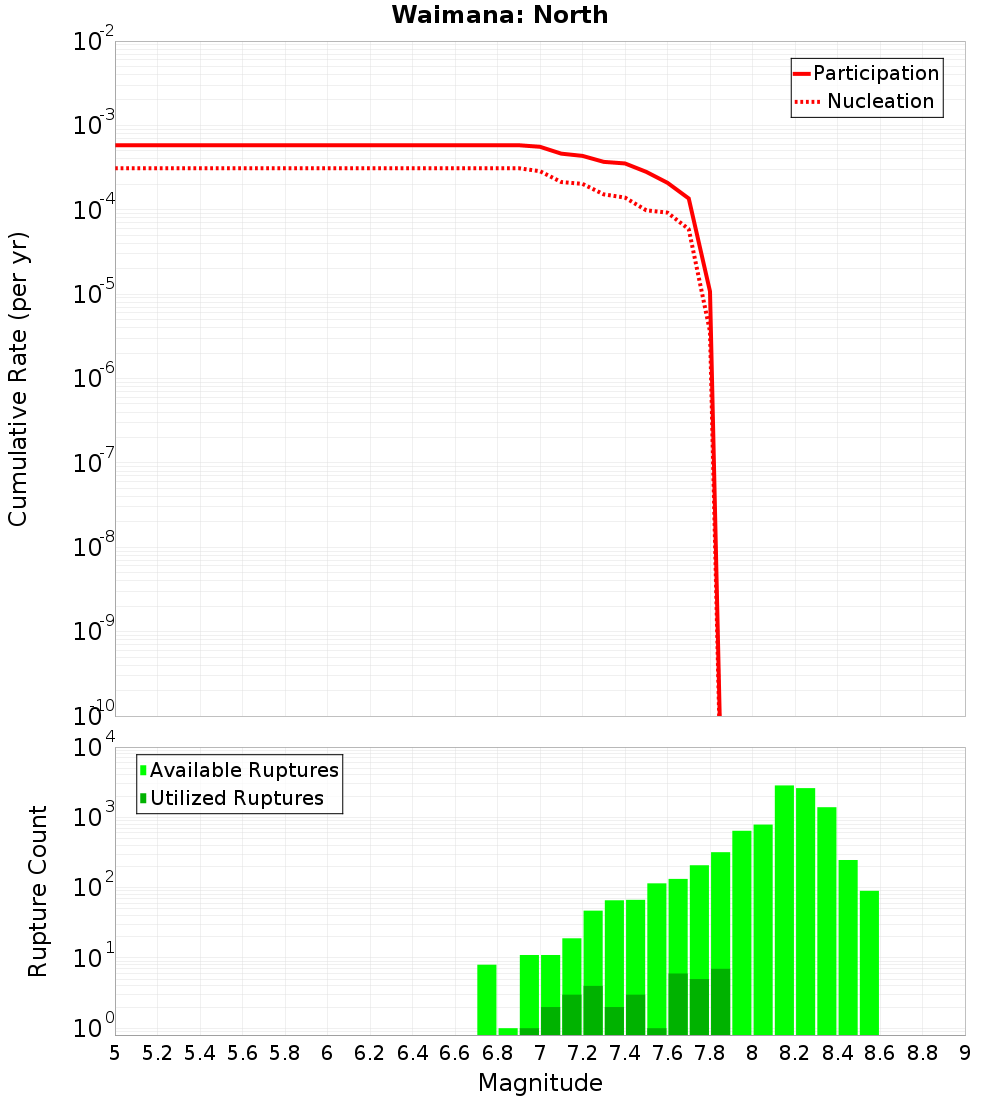

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waimana: South, 0 km awayOpotiki 2, 12.2 km away
Waimanawa - Waikaremoana, 0.33 km awayWairata, 12.84 km away
Waiotahi: North, 1.8 km awayRaukumara 9, 14.07 km away
Waiotahi: South, 2.4 km awayTirohanga, 14.35 km away
Whakatane: South, 5.63 km awayMatata, 14.4 km away
White Island 2, 6.76 km awayOhae 2, 15.17 km away
White Island 1, 7.11 km awayWhakaari 4, 15.48 km away
Whakatane: North, 7.34 km awayOpape 1, 15.8 km away
Otakiri, 8.24 km awayEdgecumbe Coastal, 15.94 km away
Opotiki 3, 8.43 km awayKotare - Moutuhora, 16.9 km away
Ohiwa 1, 8.65 km awayBraemar, 18.49 km away
Rangitaiki 2, 9.4 km awayWaiohau: South, 18.89 km away
Ohae 1, 9.51 km awayWaiohau: North, 18.89 km away
Rangitaiki 1, 10.53 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count7,951
Co-rupture Rate3.3832675E-5

Waimanawa - Waikaremoana, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count279
Co-rupture Rate2.0210352E-4

Waiotahi: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count634
Co-rupture Rate1.2597596E-5

Waiotahi: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count1,952
Co-rupture Rate2.1829832E-4

Whakatane: South, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate1.3095012E-4

White Island 2, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate5.395899E-5

Otakiri, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count378
Co-rupture Rate1.3815945E-4

Opotiki 3, 8.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count76
Co-rupture Rate8.311189E-6

Rangitaiki 1, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count314
Co-rupture Rate1.6561606E-4

Raukumara 9, 14.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count95
Co-rupture Rate0.0

Tirohanga, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate3.3461074E-5

Matata, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 15.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 15.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 15.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 15.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kotare - Moutuhora, 16.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 18.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate2.2628978E-5

Waiohau: South, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count101
Co-rupture Rate0.0

Waiohau: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count309
Co-rupture Rate9.809767E-11
