Wellington: Tararua 2 Details

PropertyValue
Rupture Count40,920
Ruptures Above Sect Min Mag40,919
Ruptures w/ Nonzero Rates74
Magnitude Range[6.70, 8.60]
Length Range[17, 1,119] km
Total Rate0.001806675 /yr
Multi-Fault Rate0.001806675 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults104

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

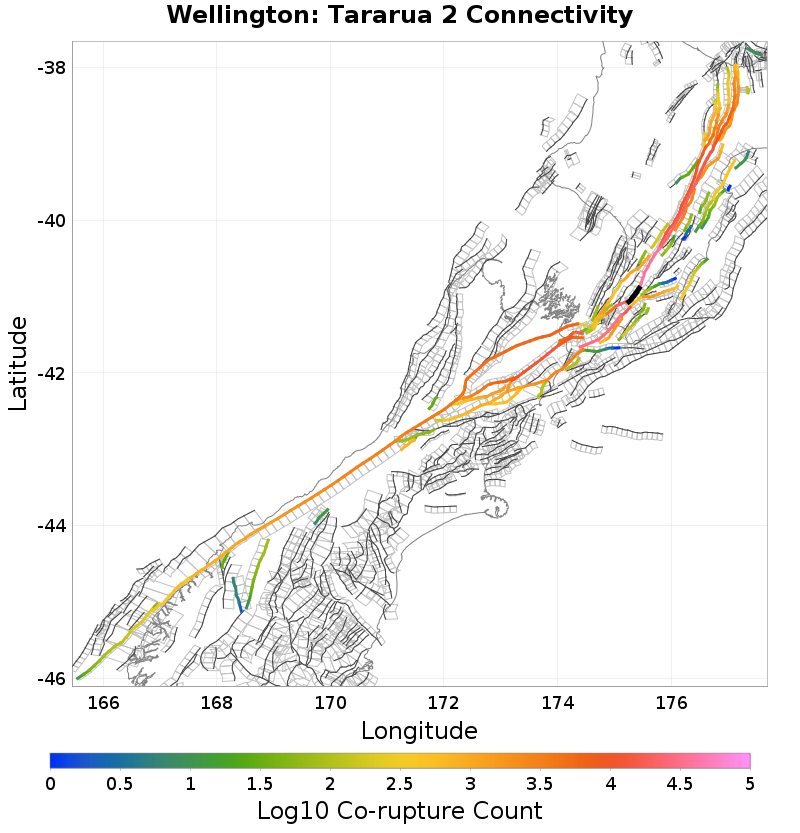

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Tararua 3, 0 km awayMokonui Southwest, 9.75 km away
Wellington: Tararua 1, 0.11 km awayOtaki Forks: 1, 10.09 km away
Wellington Hutt Valley: 5, 4.56 km awayAkatarawa, 10.96 km away
Wairarapa: 2, 6.35 km awayBidwill, 15.22 km away
Otaki Forks: 2, 6.42 km awayWellington Hutt Valley: 4, 17.35 km away
Moonshine, 6.9 km awayMartinborough, 17.58 km away
Wairarapa: 3, 7.95 km awayNorthern Ohariu, 17.89 km away
Carterton, 8.44 km awayOhariu, 18.28 km away
Masterton, 9.41 km away

Wellington: Tararua 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count39,691
Co-rupture Rate0.001273276

Wellington: Tararua 1, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count976
Co-rupture Rate0.0012889652

Wellington Hutt Valley: 5, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count21,361
Co-rupture Rate0.0010485608

Wairarapa: 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count16,643
Co-rupture Rate1.8867308E-4

Otaki Forks: 2, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Wairarapa: 3, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0

Carterton, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?true
Co-rupture Count1,773
Co-rupture Rate1.0678697E-4

Masterton, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 9.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate0.0

Otaki Forks: 1, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatarawa, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bidwill, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 17.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count3,901
Co-rupture Rate3.6496427E-4

Martinborough, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate2.0968666E-7

Northern Ohariu, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count1,071
Co-rupture Rate1.5428678E-4

Ohariu, 18.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTEuMFJLMlZS
Connected?true
Directly Connected?false
Co-rupture Count1,380
Co-rupture Rate0.0
