Kahurangi Details

Property	Value
Rupture Count	250
Ruptures Above Sect Min Mag	243
Ruptures w/ Nonzero Rates	26
Magnitude Range	[6.86, 7.96]
Length Range	[21, 246] km
Total Rate	1.2494423E-4 /yr
Multi-Fault Rate	8.486227E-5 /yr (67.92%)
Directly-Connected Faults	4
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

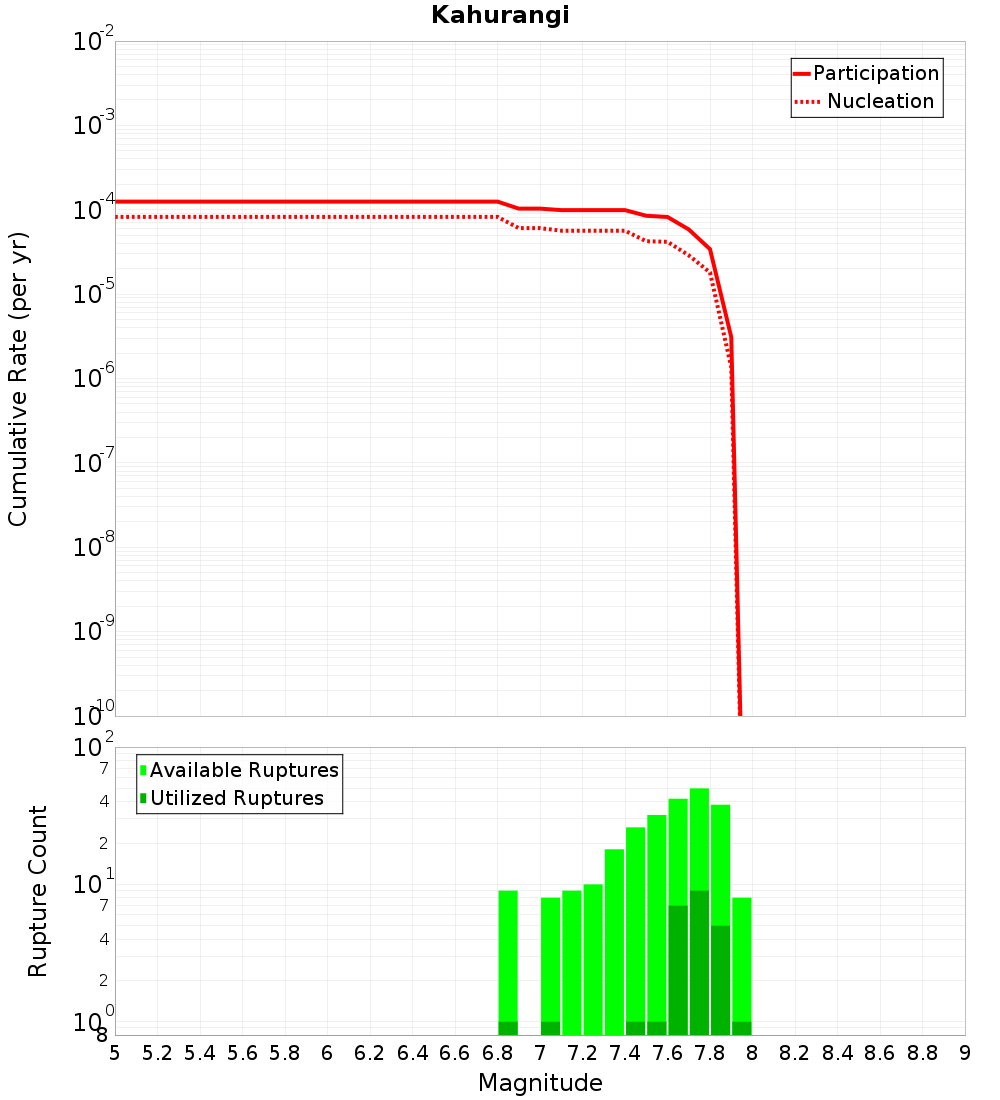

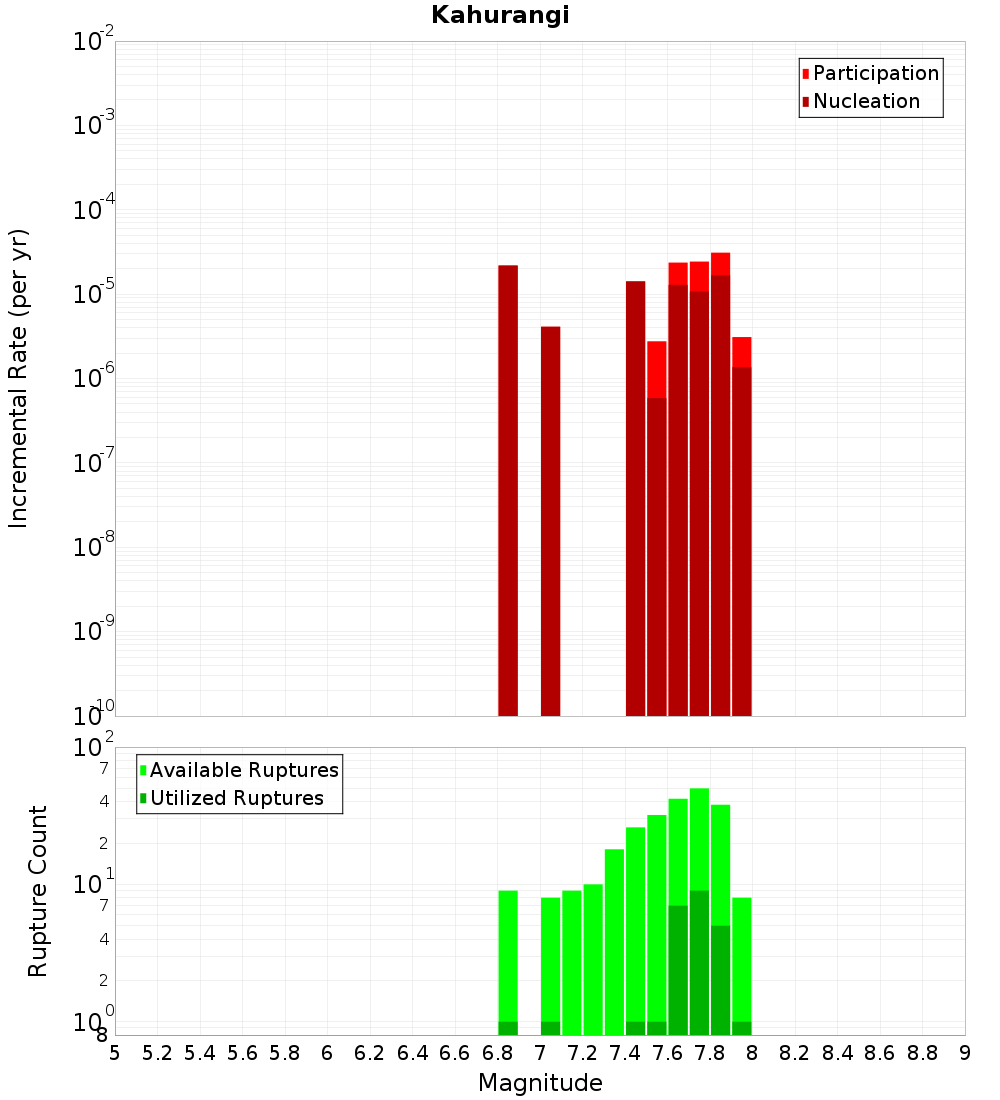

Magnitude-Frequency Distribution

Incremental	Cumulative

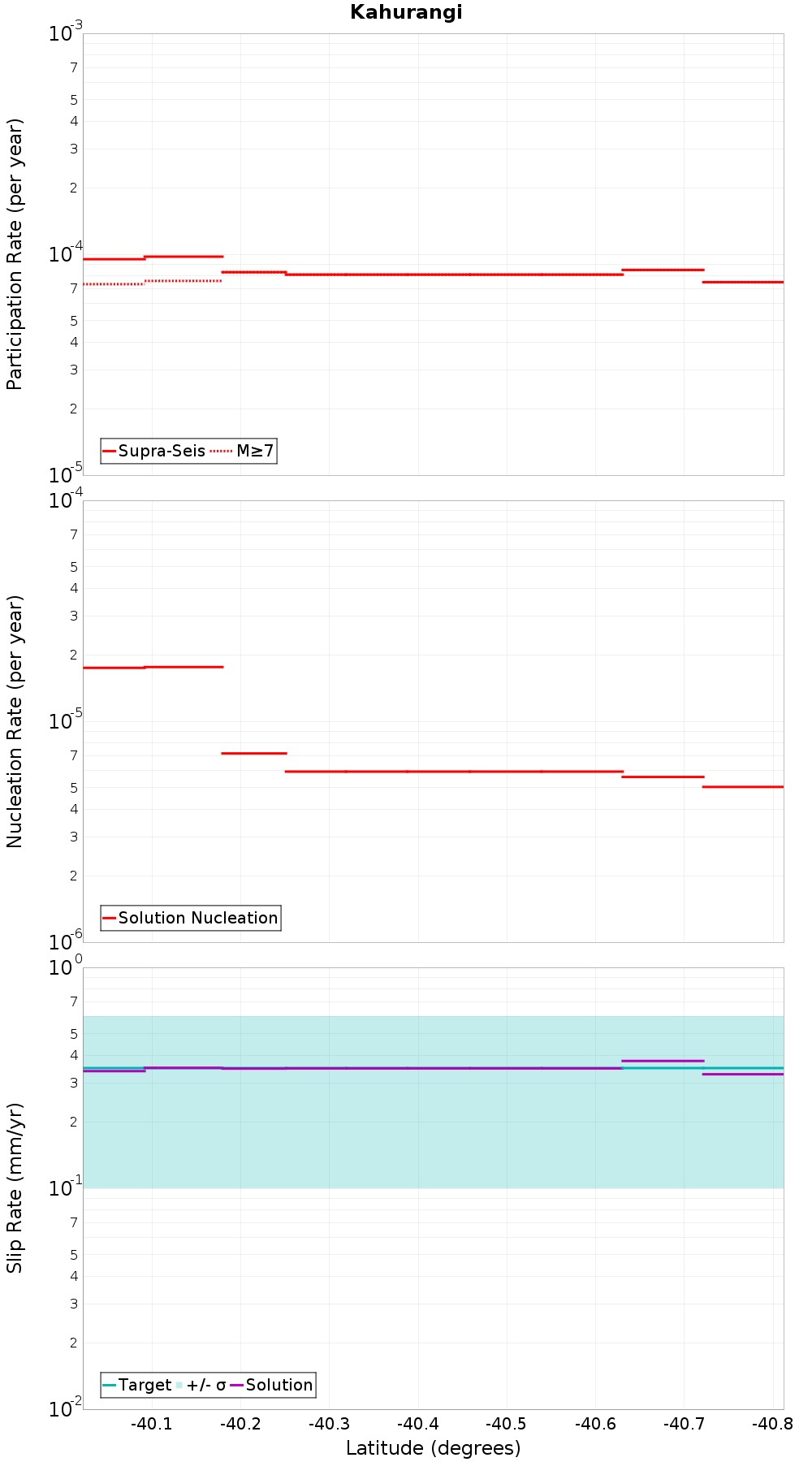

Along-Strike Values

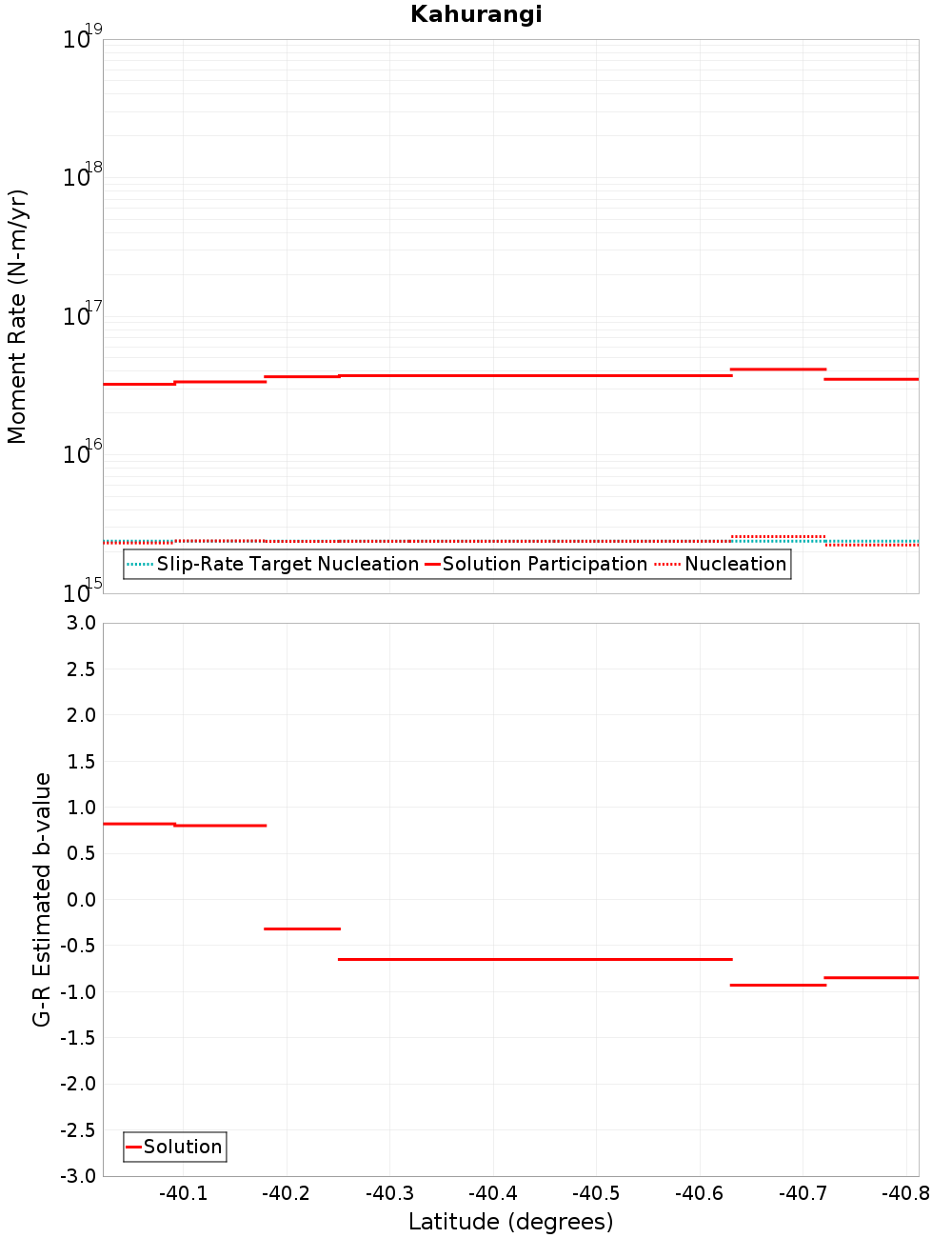

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wakamarama, 0.07 km away
Farewell, 0.25 km away
Kongahau, 0.31 km away
Cape Foulwind 4, 0.46 km away
Kohaihai, 11.7 km away
Wakamarama Offshore, 15.74 km away

Wakamarama, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	59
Co-rupture Rate	1.2152418E-5

Farewell, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	6.868092E-6

Kongahau, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	115
Co-rupture Rate	2.8465345E-5

Cape Foulwind 4, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	5.5596433E-5

Kohaihai, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakamarama Offshore, 15.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0
