Livingstone Details
| Property | Value |
|---|---|
| Rupture Count | 15 |
| Ruptures Above Sect Min Mag | 12 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.08, 7.68] |
| Length Range | [26, 110] km |
| Total Rate | 2.5160896E-4 /yr |
| Multi-Fault Rate | 7.489029E-5 /yr (29.76%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

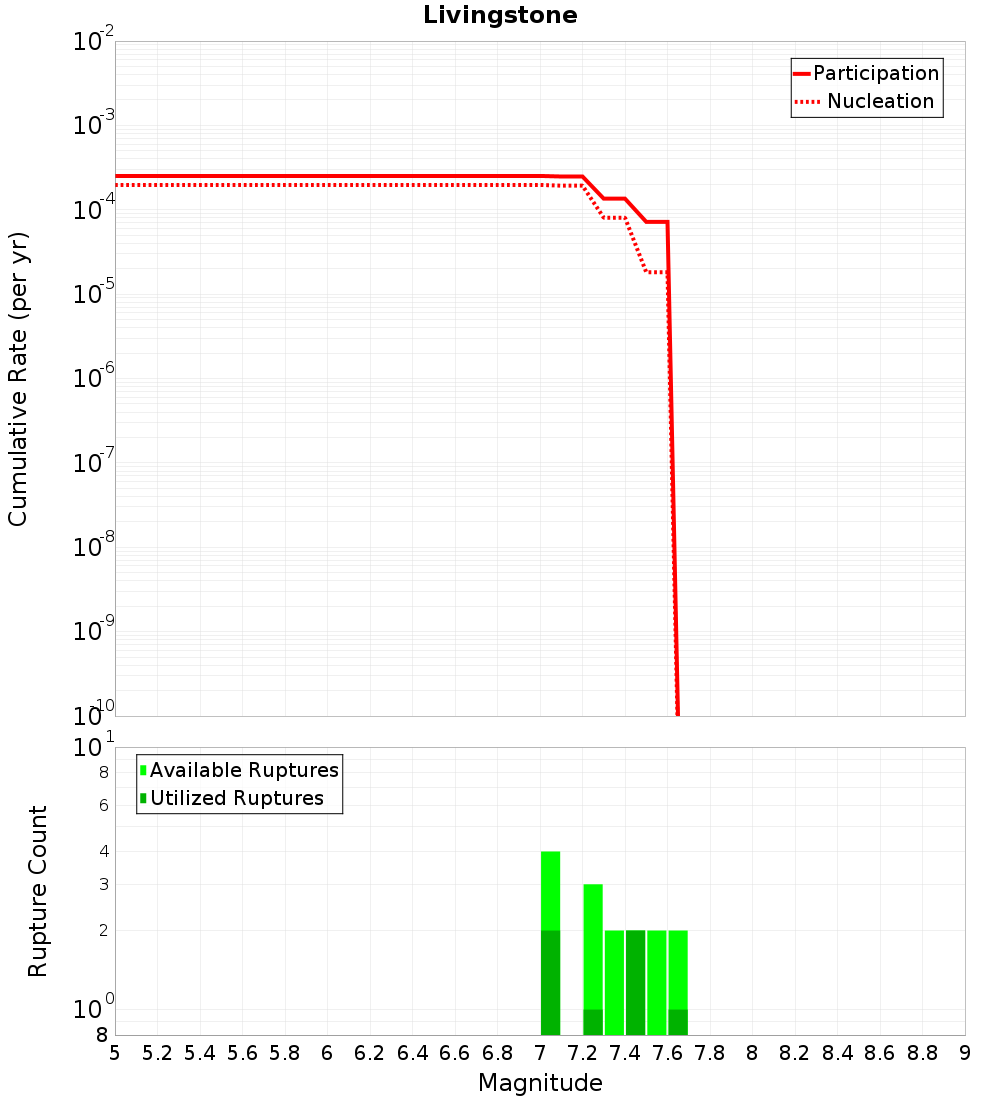

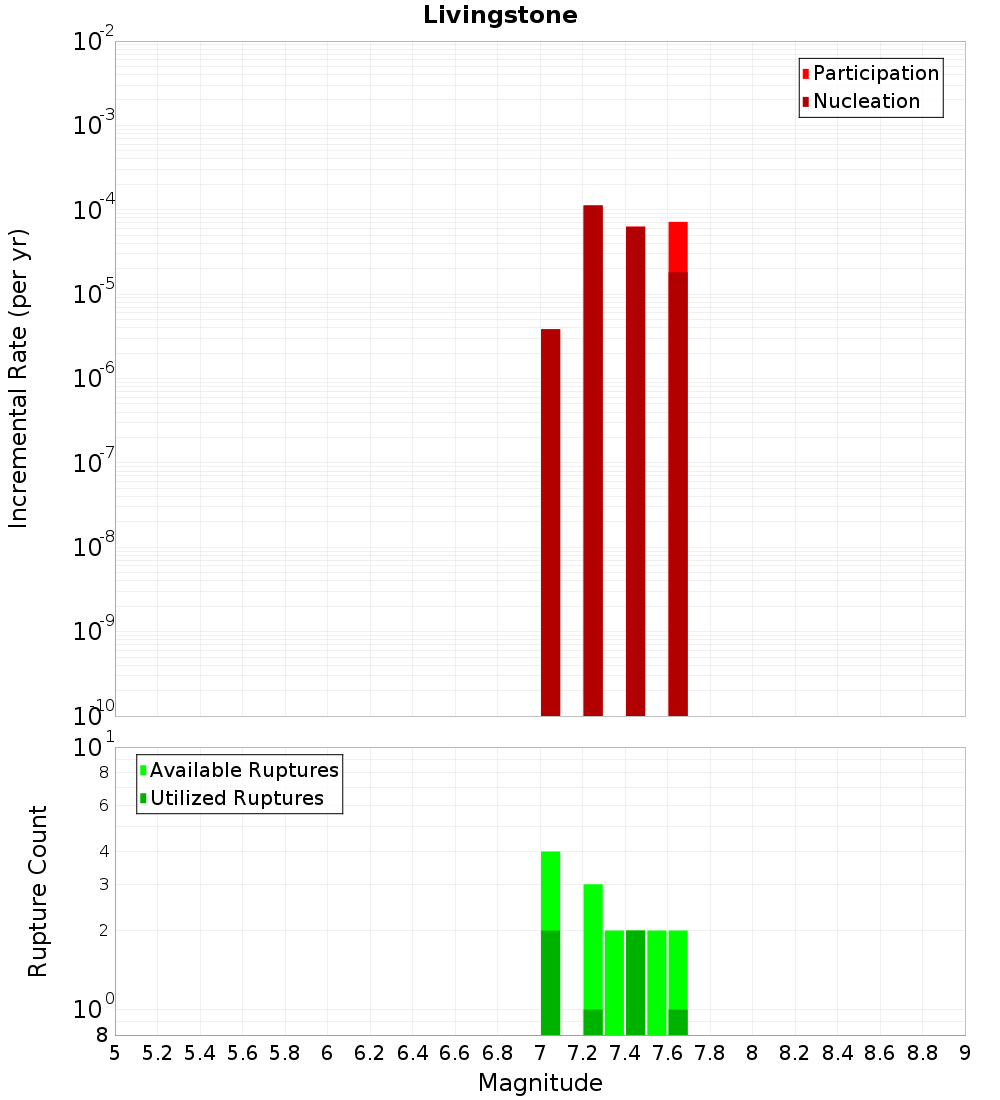

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

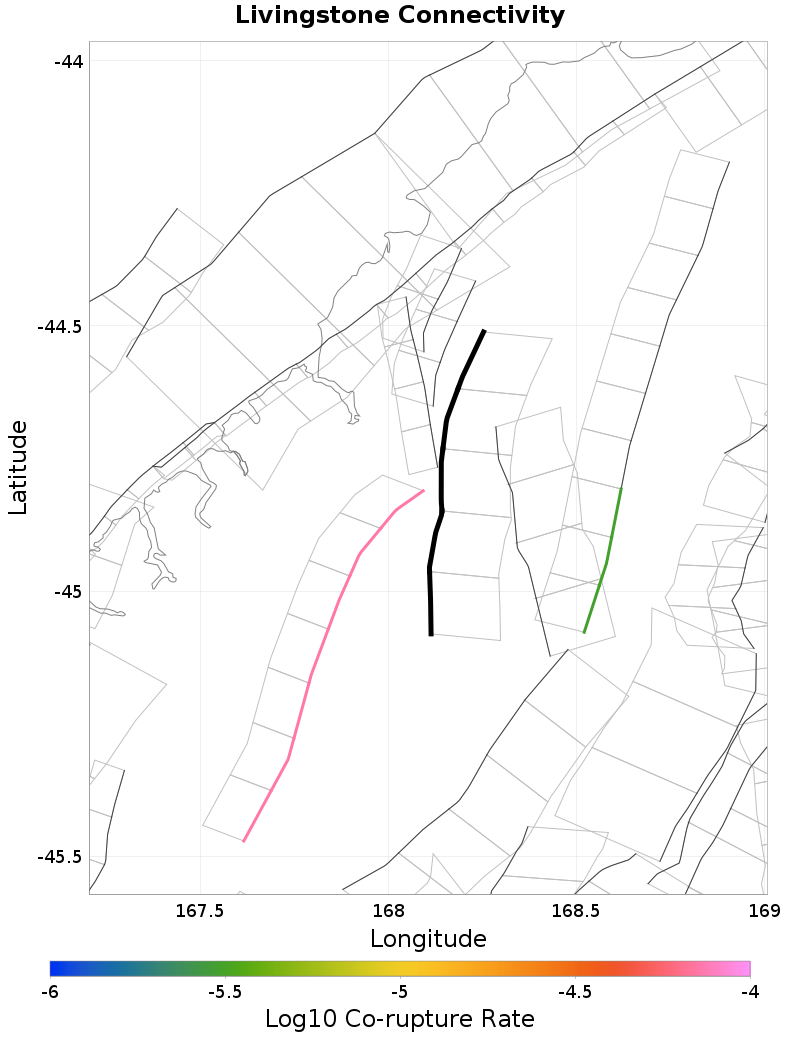

Connectivity
 |  |
|---|
Nearby Sections
Darran, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 3.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Anau, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 7.185445E-5 |
West Wakatipu, 7.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Skippers, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight North, 9.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.0358374E-6 |
Madagascar, 15.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: George to Jacksons, 18.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
