Marlborough Slope 3 Details
| Property | Value |
|---|---|
| Rupture Count | 219 |
| Ruptures Above Sect Min Mag | 216 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.59, 8.08] |
| Length Range | [14, 386] km |
| Total Rate | 8.1568964E-5 /yr |
| Multi-Fault Rate | 8.1568964E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 17 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

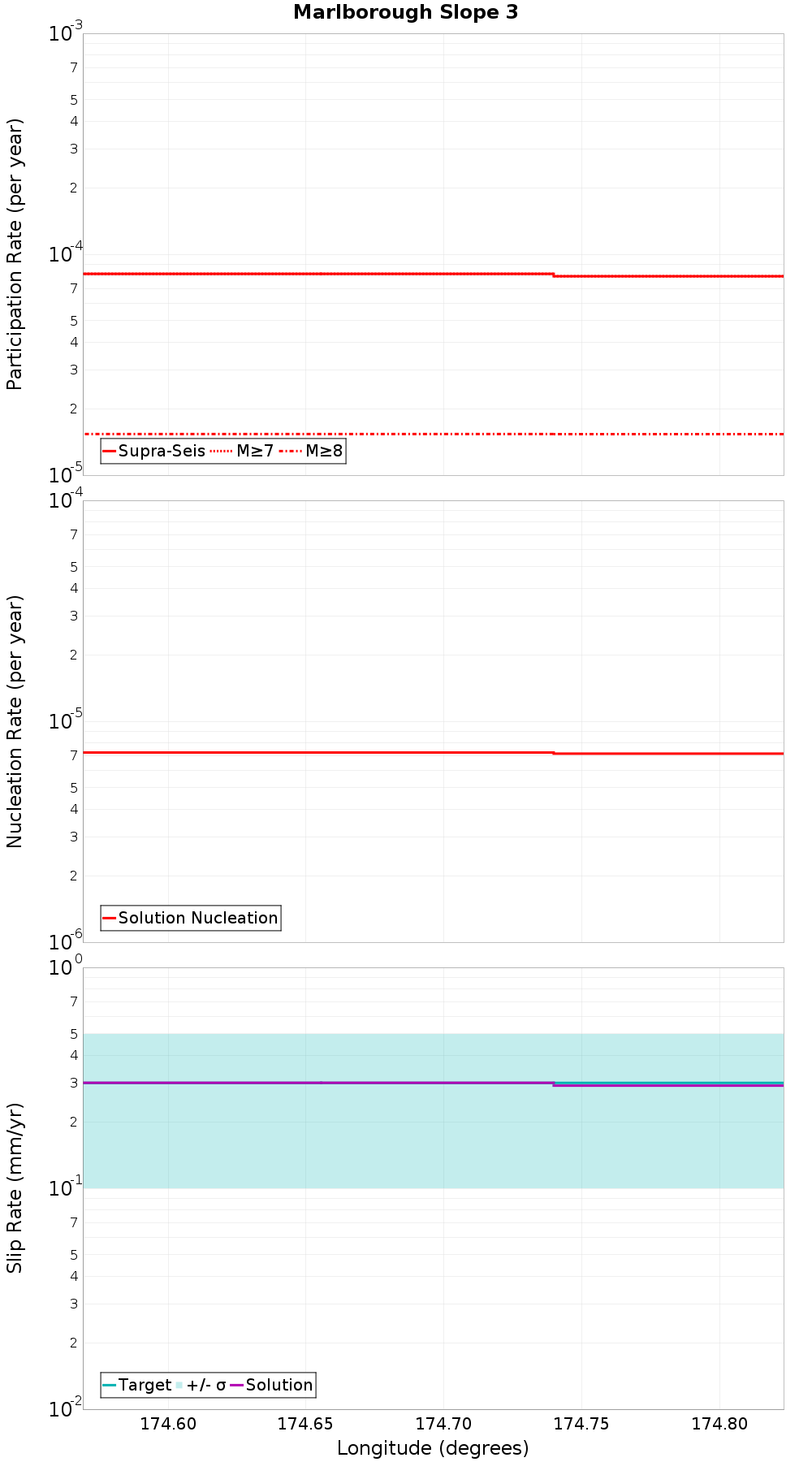

Along-Strike Values
Moment-Rates and b-Values

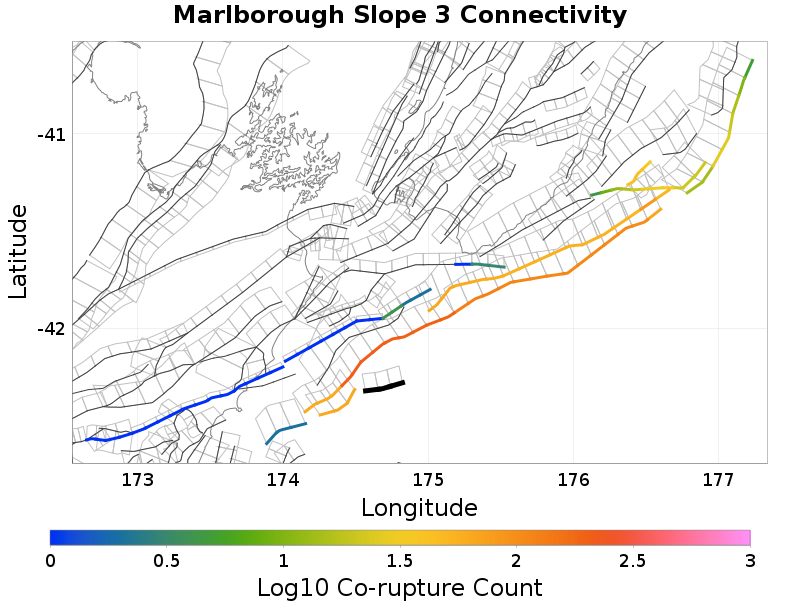

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 4, 6.08 km away |
| Kekerengu Bank, 10.31 km away |
Marlborough Slope 4, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 64 |
| Co-rupture Rate | 4.682556E-5 |
Kekerengu Bank, 10.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 212 |
| Co-rupture Rate | 3.6821493E-5 |
