Wairau 2 Details

PropertyValue
Rupture Count19,282
Ruptures Above Sect Min Mag19,281
Ruptures w/ Nonzero Rates35
Magnitude Range[6.78, 8.63]
Length Range[16, 1,119] km
Total Rate5.579926E-4 /yr
Multi-Fault Rate5.579926E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults103

Table Of Contents

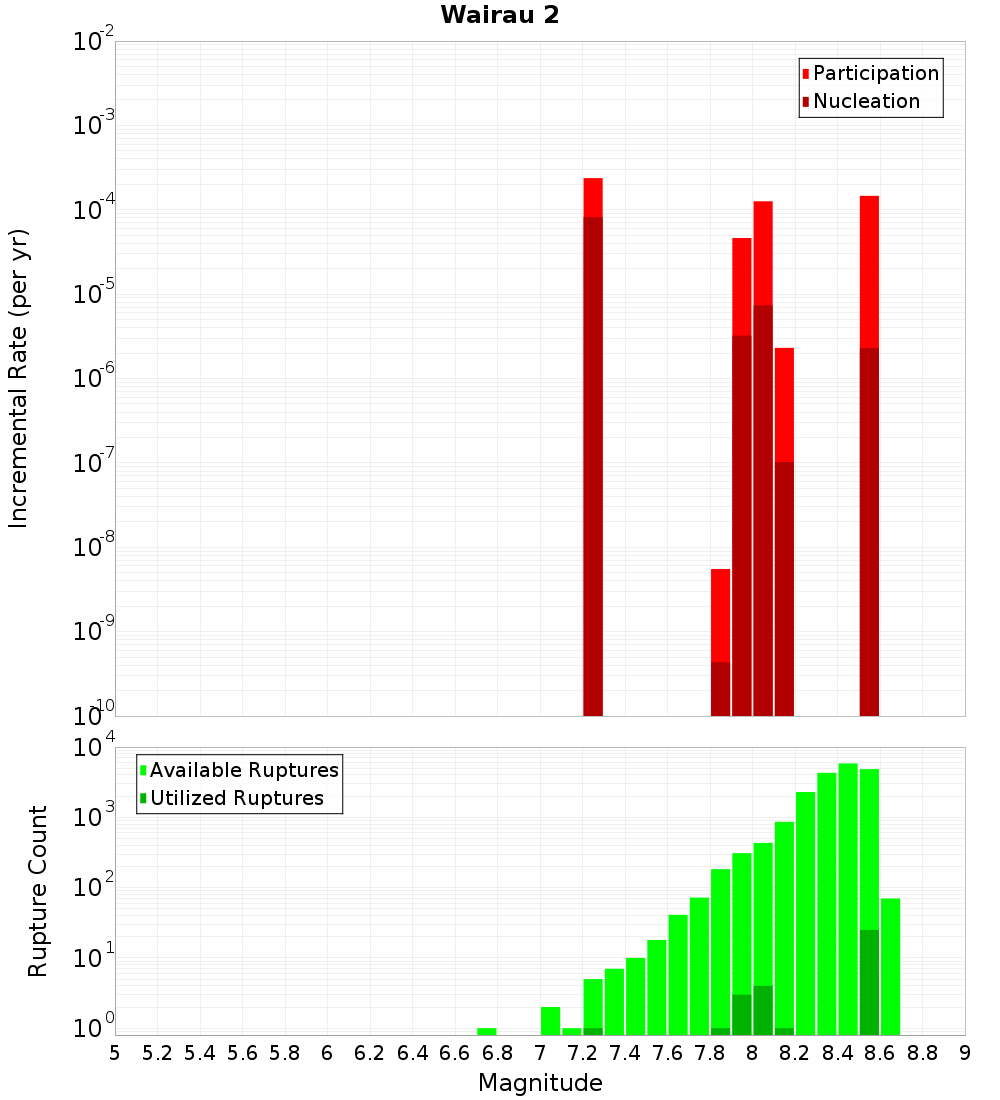

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

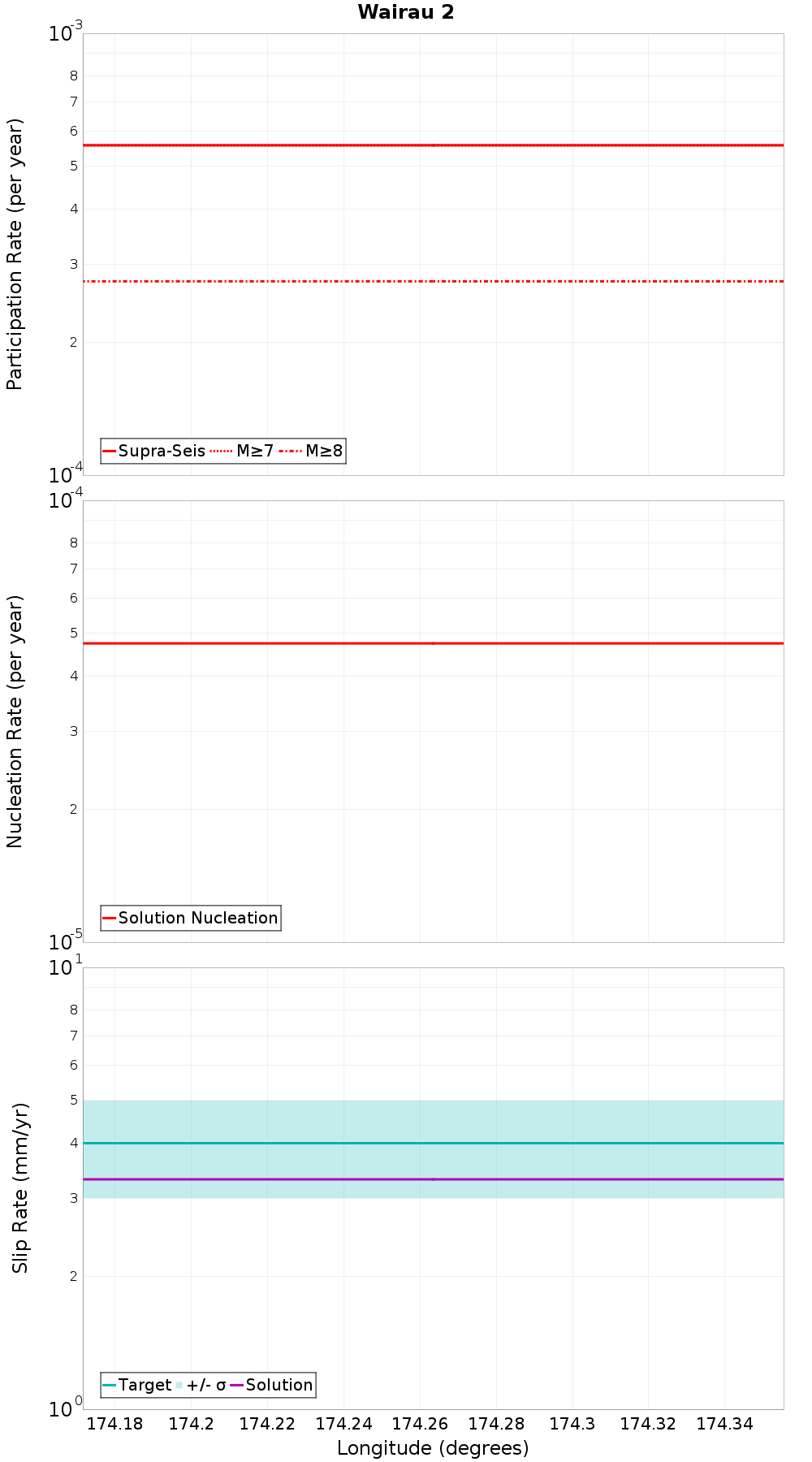

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairau 3, 0 km away
Wairau, 0 km away
Ohariu South 1, 1.32 km away
Awatere: Northeast 2, 7.45 km away
Cloudy 1, 8.19 km away
Wellington Hutt Valley: 1, 8.4 km away
Cloudy 2, 10.61 km away
Cloudy 3, 10.8 km away
Ohariu South 2, 12.02 km away
Vernon 2, 14.3 km away
Vernon 3, 16.11 km away
Vernon 4, 16.75 km away
Vernon 1, 18.77 km away
Wairarapa: Needles, 18.8 km away
Wellington Hutt Valley: 2, 19.12 km away

Wairau 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?true
Co-rupture Count18,998
Co-rupture Rate5.579926E-4

Ohariu South 1, 1.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 2, 7.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count839
Co-rupture Rate0.0

Cloudy 1, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count110
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 8.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 2, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?true
Co-rupture Count18,804
Co-rupture Rate1.4618438E-4

Ohariu South 2, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Vernon 3, 16.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 18.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.3723183E-4

Wairarapa: Needles, 18.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count17,512
Co-rupture Rate1.4618438E-4

Wellington Hutt Valley: 2, 19.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
