Wairoa North Details

PropertyValue
Rupture Count11
Ruptures Above Sect Min Mag9
Ruptures w/ Nonzero Rates5
Magnitude Range[6.76, 7.16]
Length Range[18, 47] km
Total Rate4.9108345E-5 /yr
Multi-Fault Rate9.307857E-6 /yr (18.95%)
Directly-Connected Faults2
All Co-Rupturing Faults4

Table Of Contents

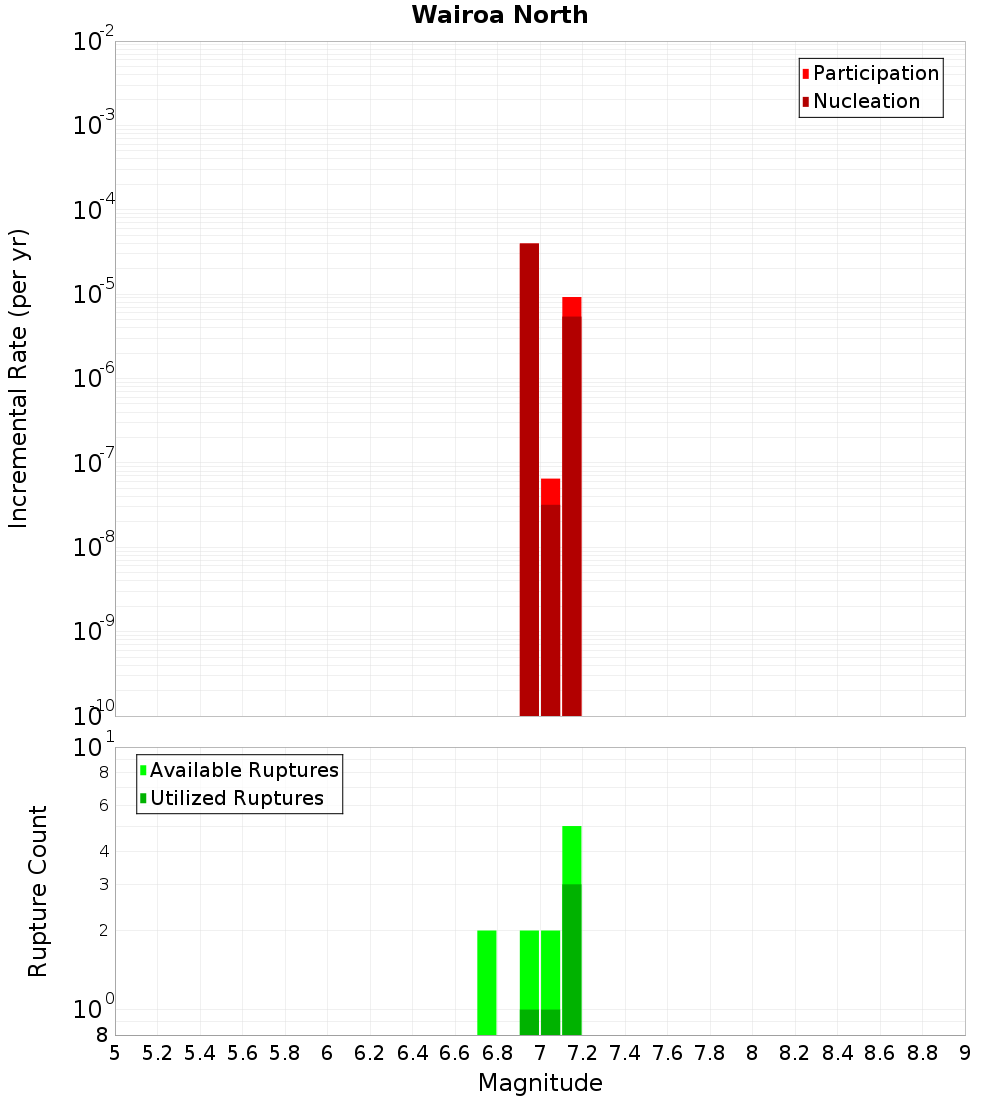

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

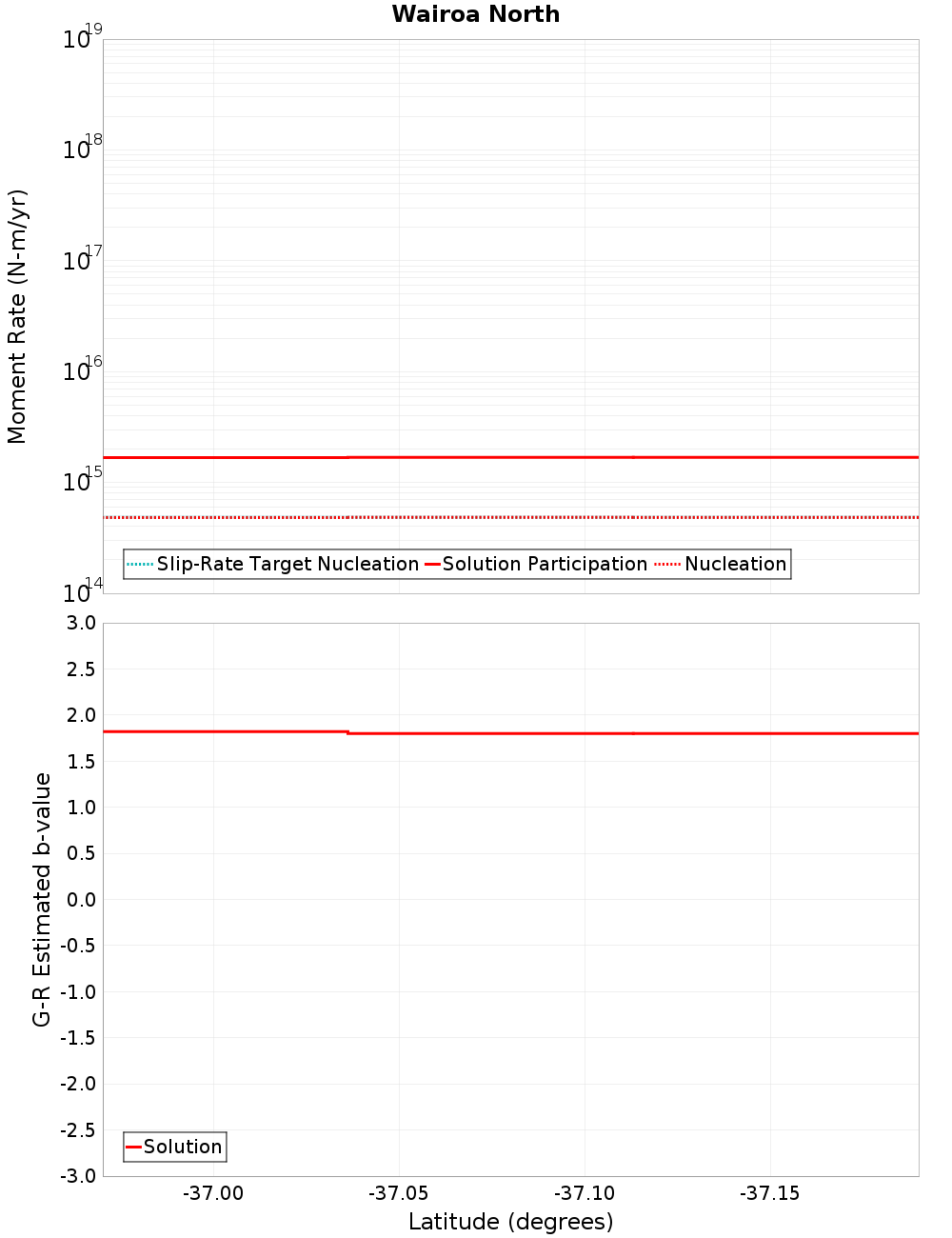

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pokeno, 1.09 km away
Mangatangi, 2.07 km away
St Stephens, 3.82 km away
Drury, 5.5 km away
Aka Aka, 12.25 km away
Pukekohe, 14.42 km away
Glenbrook, 15.61 km away

Pokeno, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mangatangi, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

St Stephens, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.8748021E-7

Drury, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate9.1203765E-6

Aka Aka, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukekohe, 14.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.8628488E-7

Glenbrook, 15.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate9.1215725E-6
