Whakaari 4 Details

Property	Value
Rupture Count	24,856
Ruptures Above Sect Min Mag	24,856
Ruptures w/ Nonzero Rates	387
Magnitude Range	[6.80, 8.34]
Length Range	[18, 608] km
Total Rate	3.4053388E-4 /yr
Multi-Fault Rate	3.4053388E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	88

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

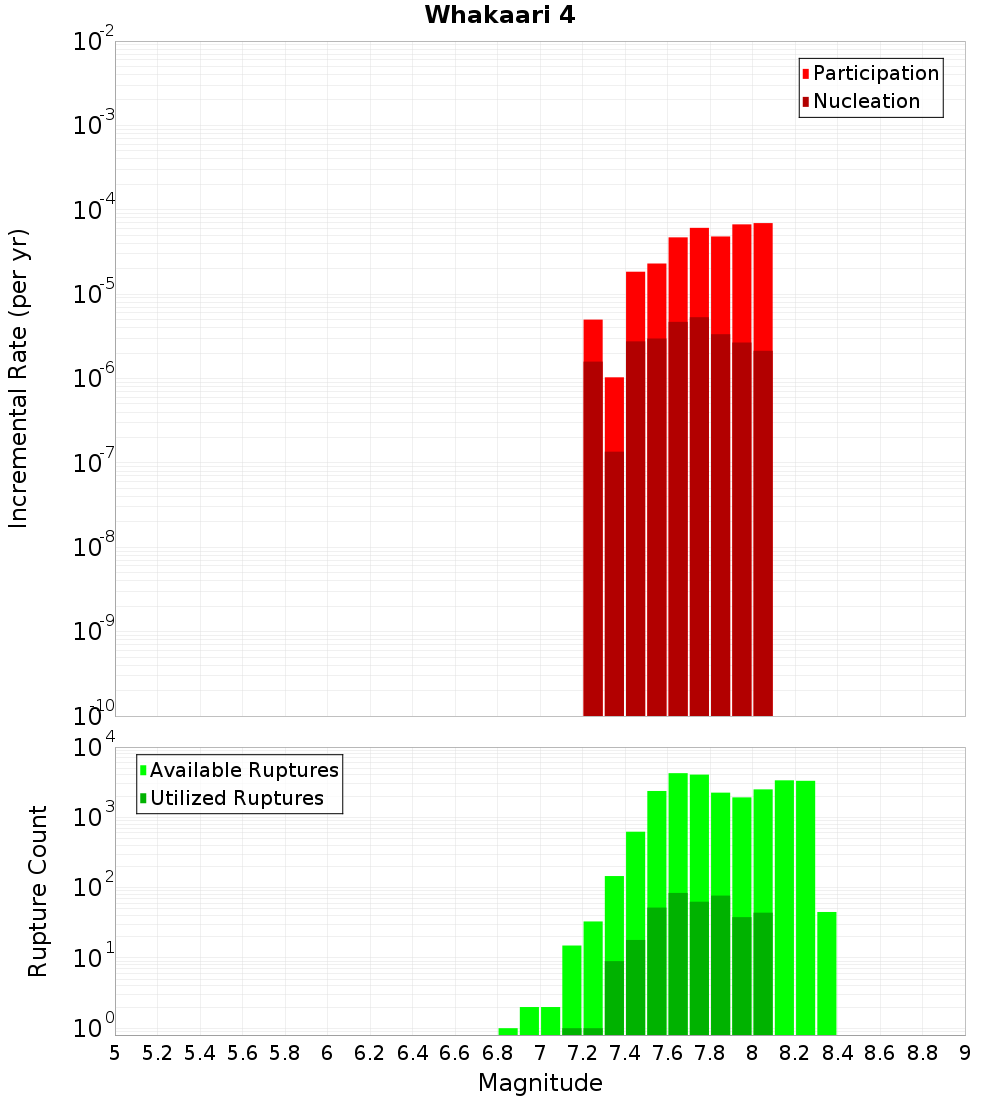

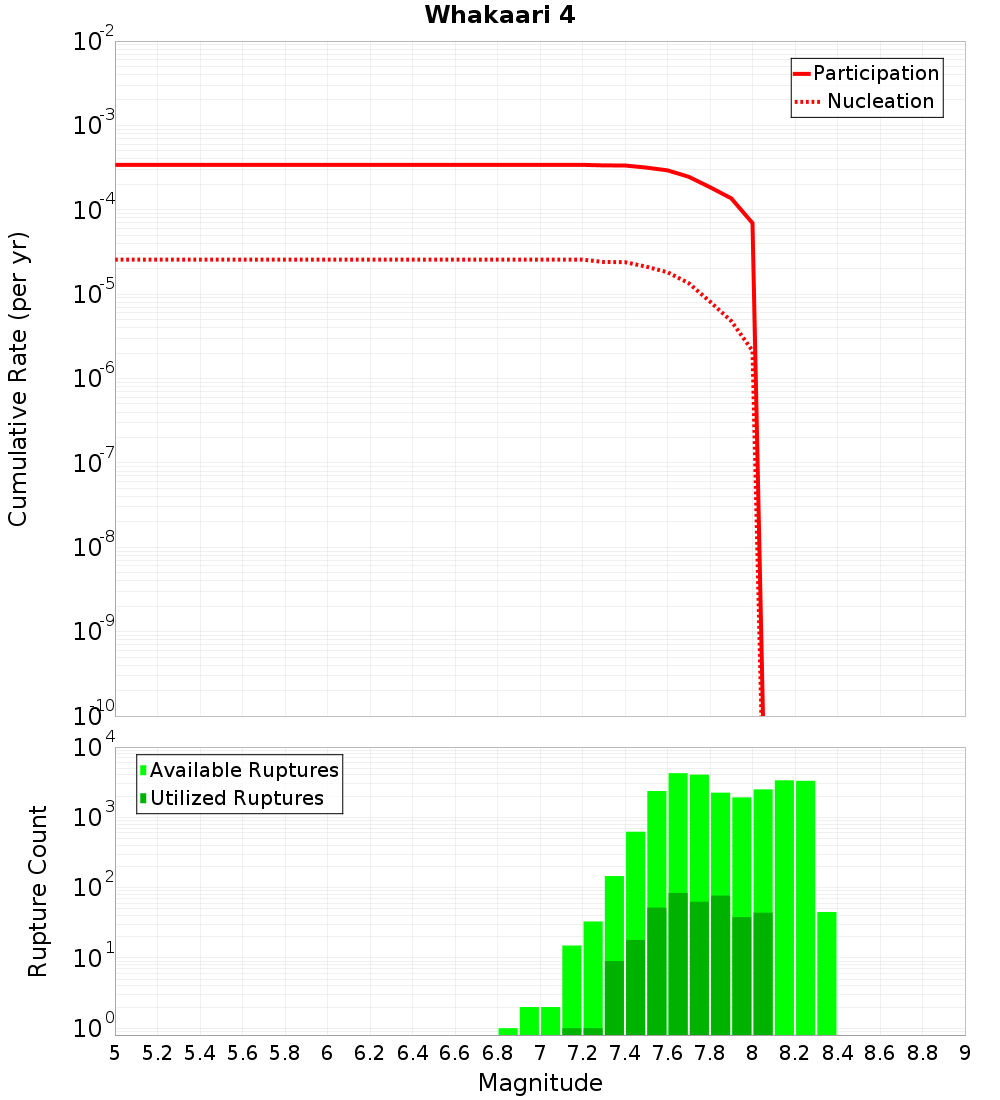

Magnitude-Frequency Distribution

Incremental	Cumulative

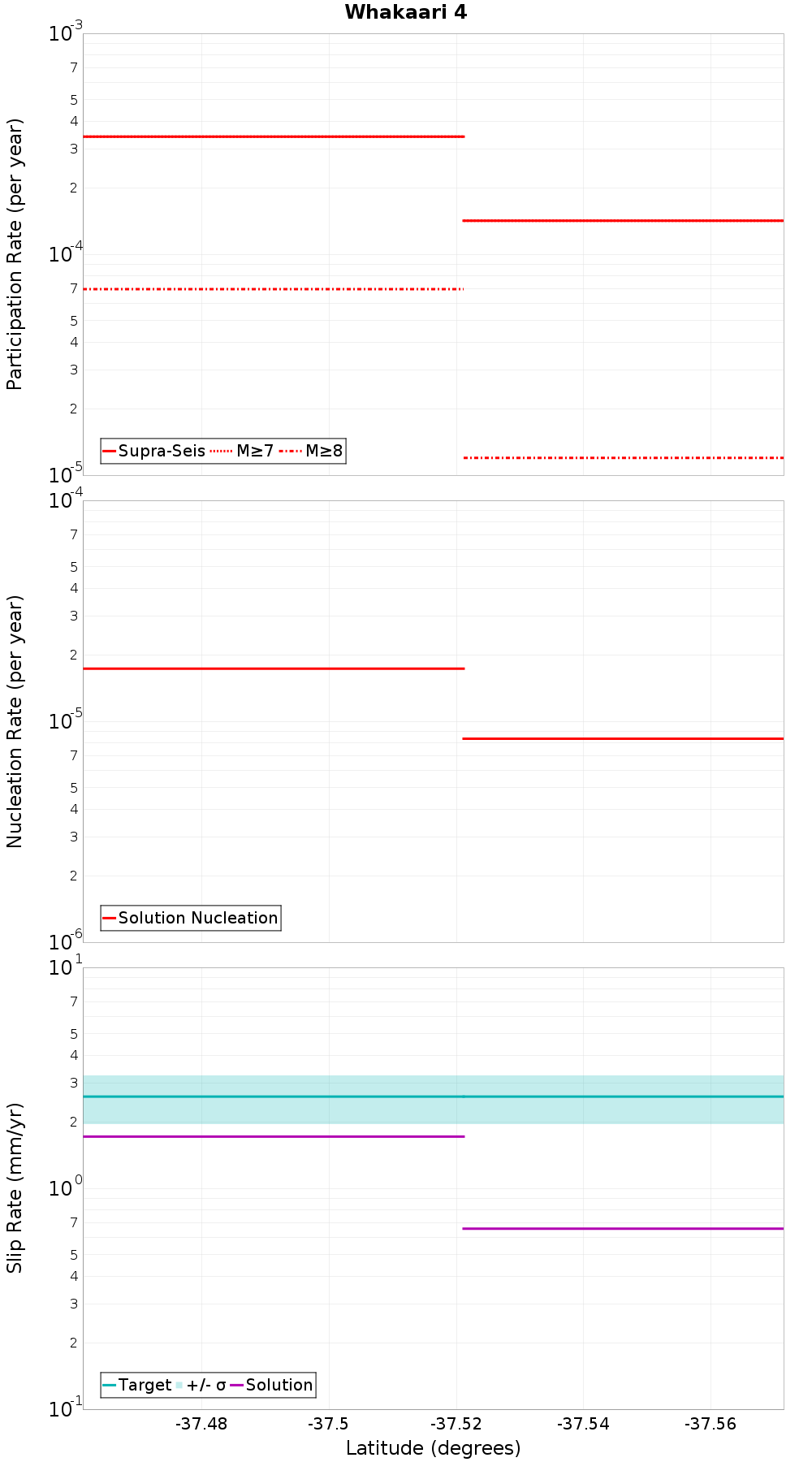

Along-Strike Values

Moment-Rates and b-Values

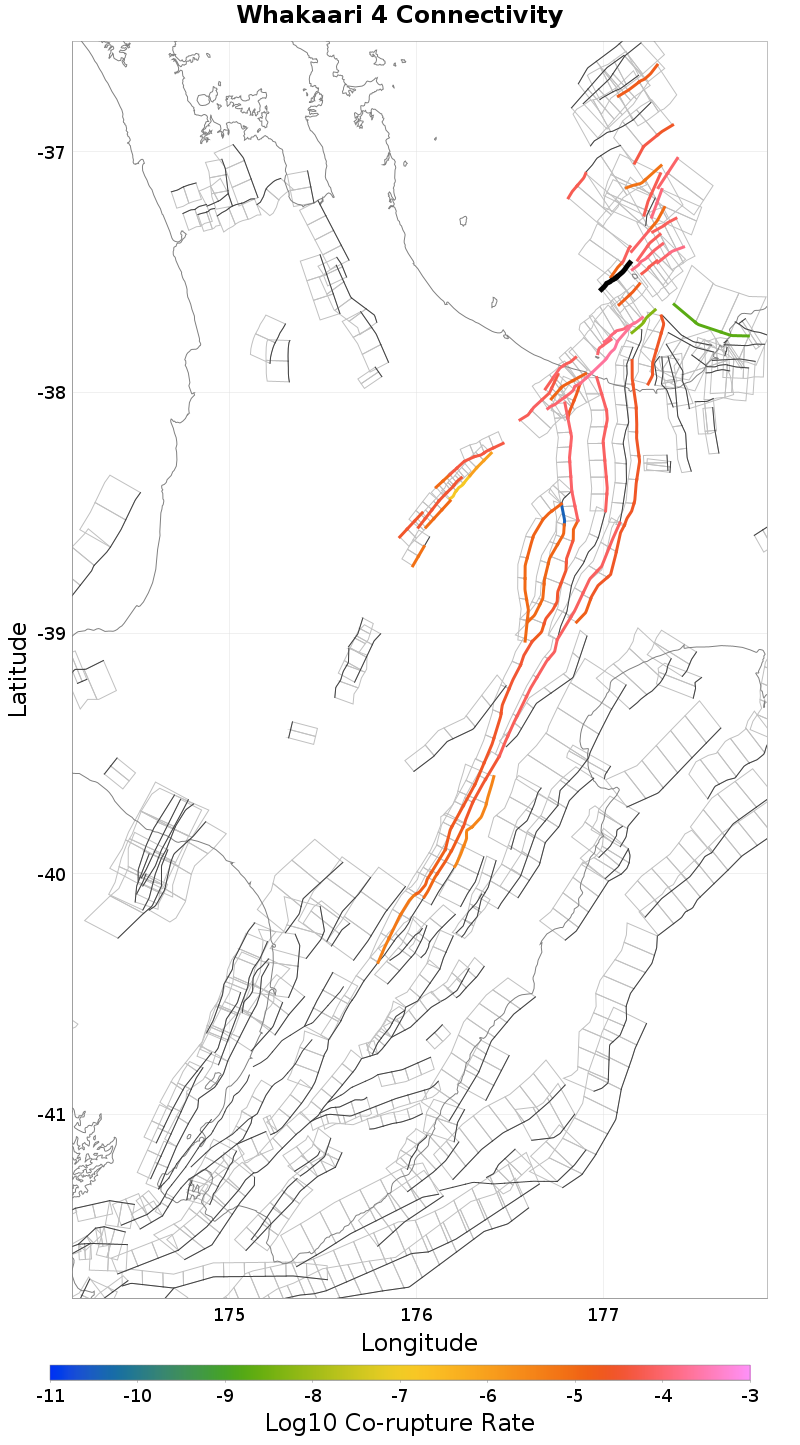

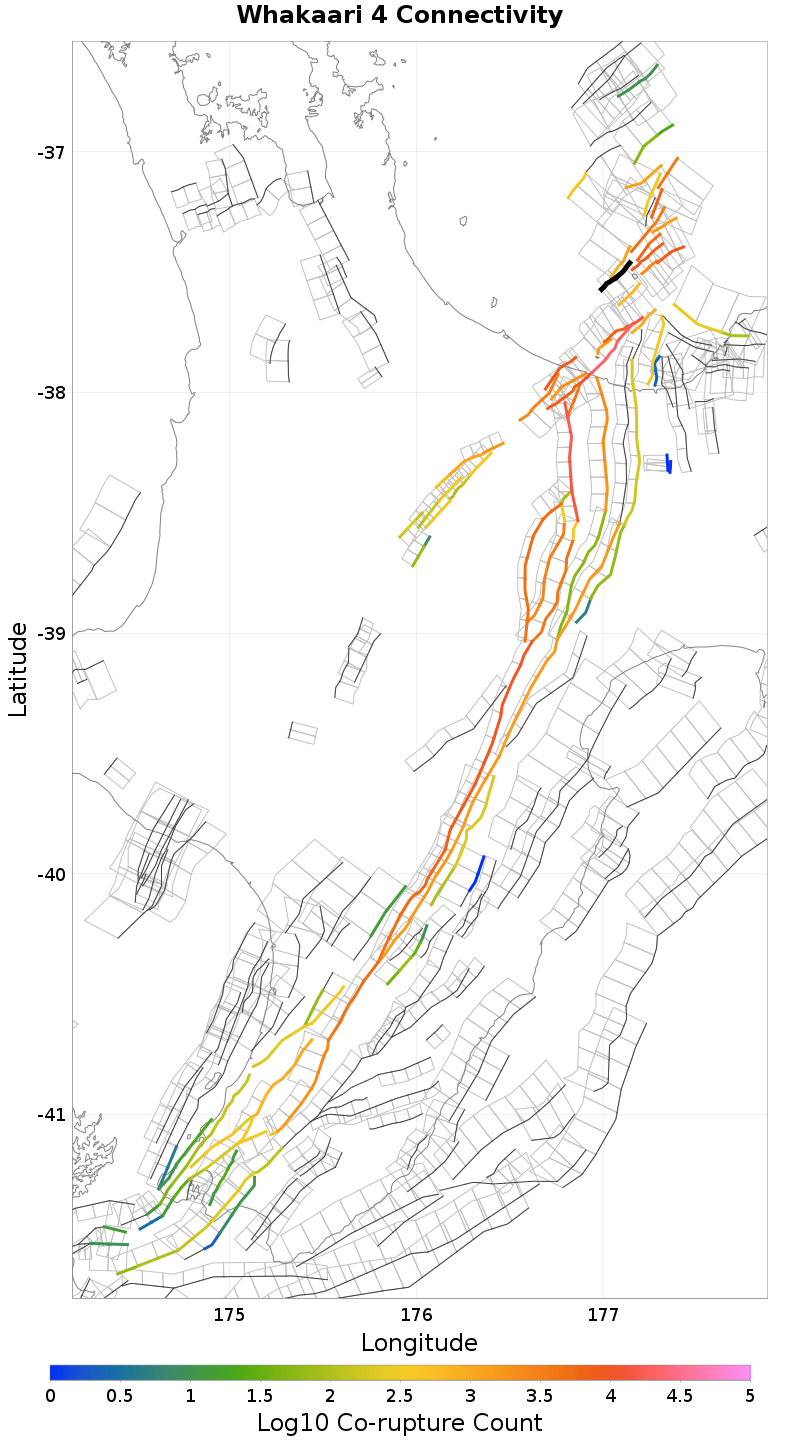

Connectivity

Nearby Sections

Fault Section	Fault Section
Ohiwa 1, 0.14 km away	Waimanawa - Waikaremoana, 7.01 km away
Calypso 2, 0.2 km away	Opotiki 3, 8.08 km away
Rangitaiki 2, 0.45 km away	Rangitaiki 1, 10.86 km away
White Island 2, 0.45 km away	Tuatoru 2, 11.04 km away
White Island 1, 1.52 km away	Te Arawa 3, 14.7 km away
Volkner 3, 1.58 km away	Waimana: North, 15.48 km away
Te Arawa 1, 2.25 km away	Hariki, 17.21 km away
Te Arawa 2, 3.86 km away	Ohae 1, 17.38 km away
Volkner 4, 5.31 km away	Otara West 1, 18.82 km away
Tuatoru 1, 5.84 km away

Ohiwa 1, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	13,601
Co-rupture Rate	1.8197503E-4

Calypso 2, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	643
Co-rupture Rate	1.6541817E-5

Rangitaiki 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	6,385
Co-rupture Rate	1.2487559E-4

White Island 2, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	937
Co-rupture Rate	5.033109E-9

White Island 1, 1.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	23,047
Co-rupture Rate	2.1739342E-4

Volkner 3, 1.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	1,269
Co-rupture Rate	7.175585E-5

Te Arawa 1, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	8,473
Co-rupture Rate	1.2952556E-4

Te Arawa 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	6,368
Co-rupture Rate	8.019131E-5

Volkner 4, 5.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	4,685
Co-rupture Rate	8.084216E-5

Tuatoru 1, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	true
Co-rupture Count	2,654
Co-rupture Rate	5.9262475E-5

Waimanawa - Waikaremoana, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	370
Co-rupture Rate	2.4918514E-5

Rangitaiki 1, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	1,451
Co-rupture Rate	9.490441E-5

Tuatoru 2, 11.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	9,351
Co-rupture Rate	1.4012402E-4

Te Arawa 3, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	1,637
Co-rupture Rate	7.190053E-5

Waimana: North, 15.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 17.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	true
Directly Connected?	false
Co-rupture Count	251
Co-rupture Rate	1.7998906E-9

Ohae 1, 17.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 1, 18.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTYuMEdTeWRD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
