Rangitaiki 1 Details

PropertyValue
Rupture Count2,001
Ruptures Above Sect Min Mag2,001
Ruptures w/ Nonzero Rates105
Magnitude Range[6.52, 7.80]
Length Range[9, 201] km
Total Rate3.5378823E-4 /yr
Multi-Fault Rate3.5378744E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults36

Table Of Contents

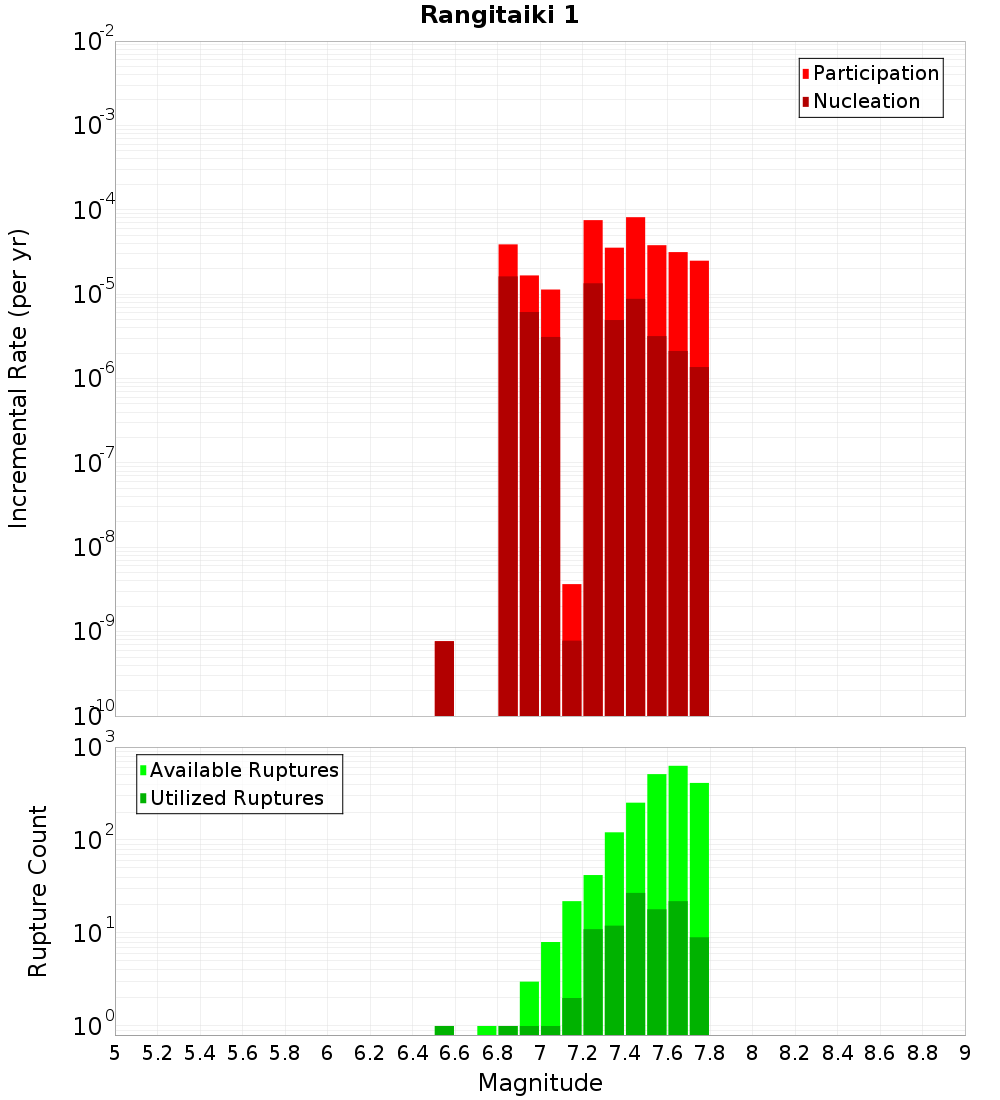

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

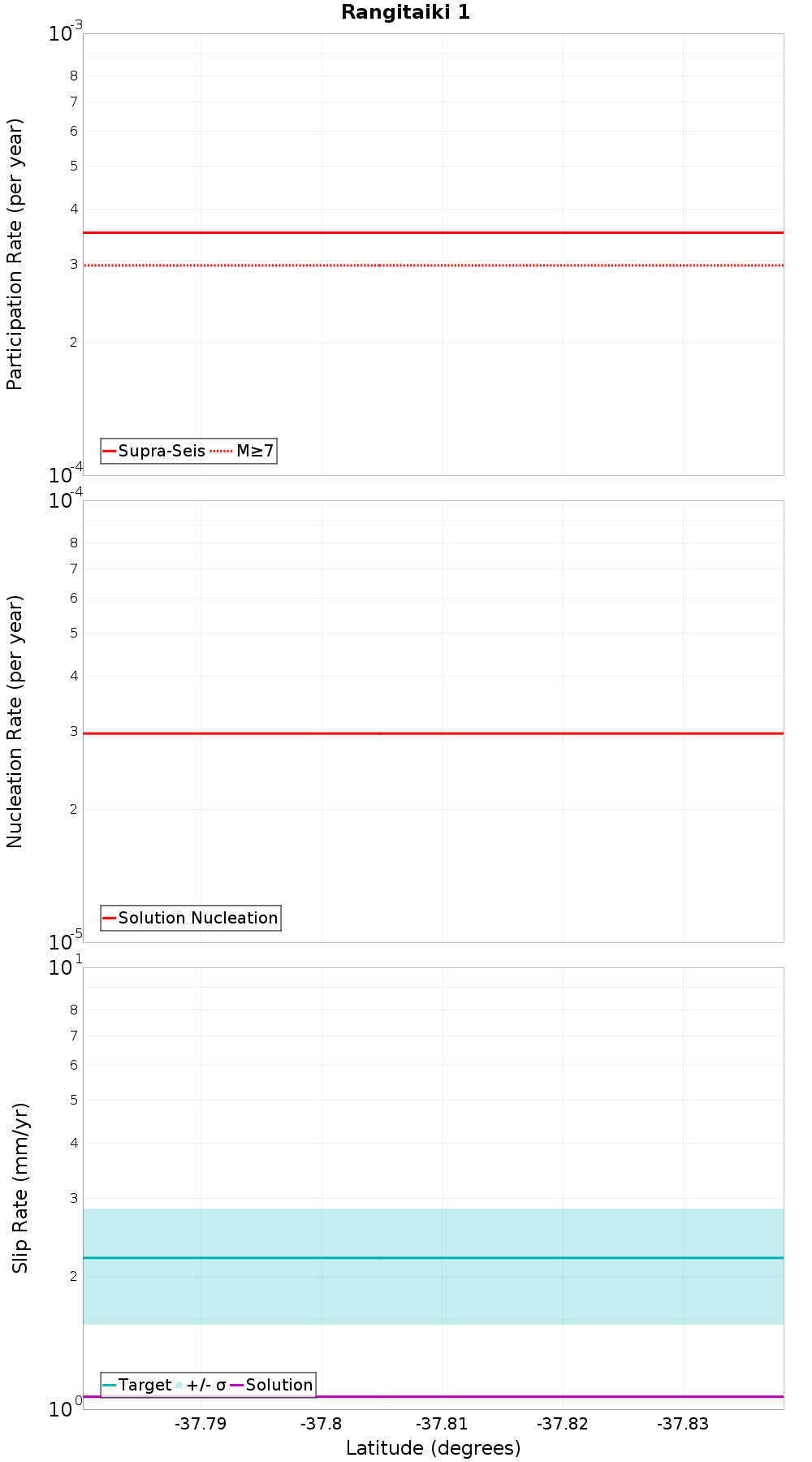

Along-Strike Values

(top)

Along-strike plot

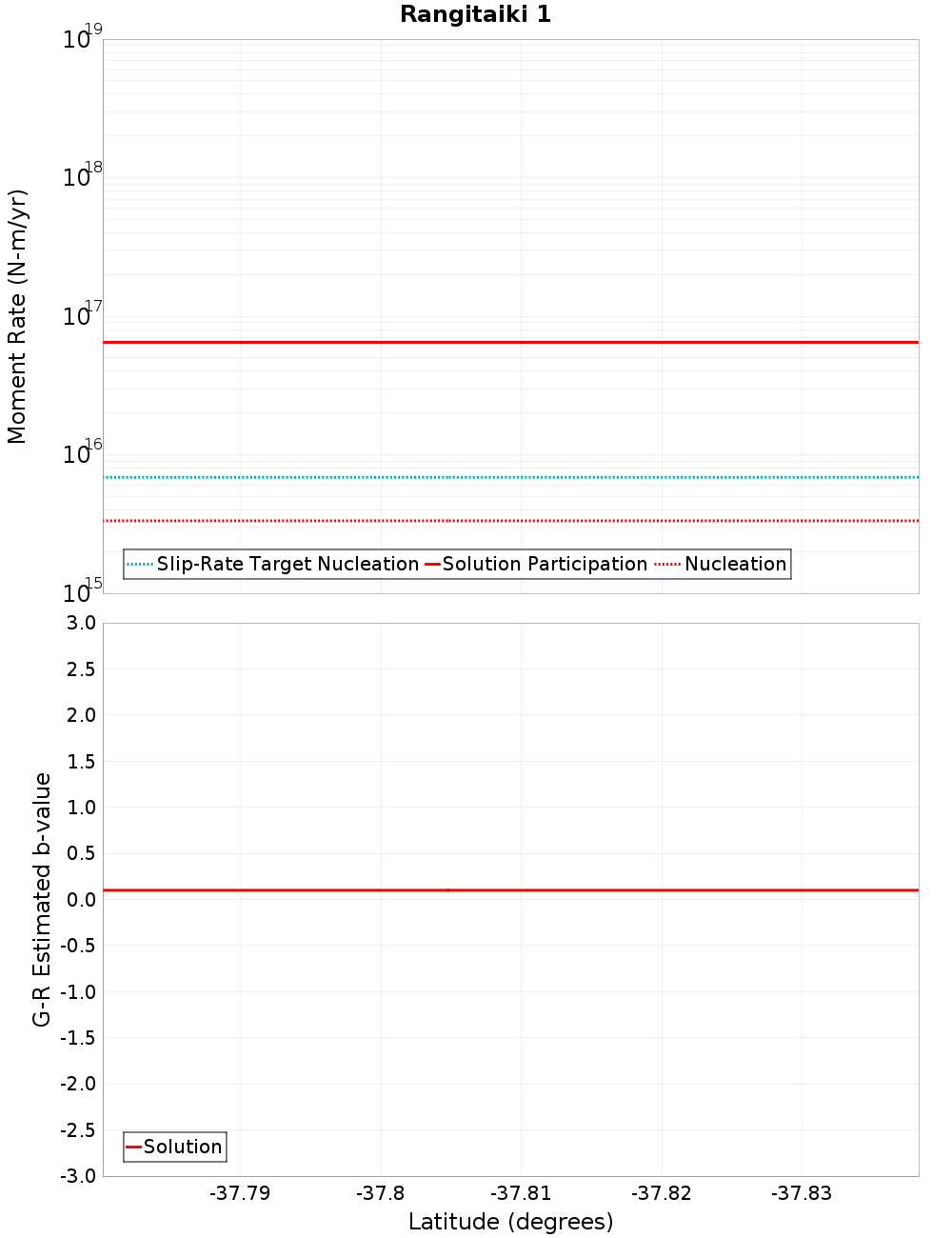

Moment-Rates and b-Values

(top)

Along-strike plot

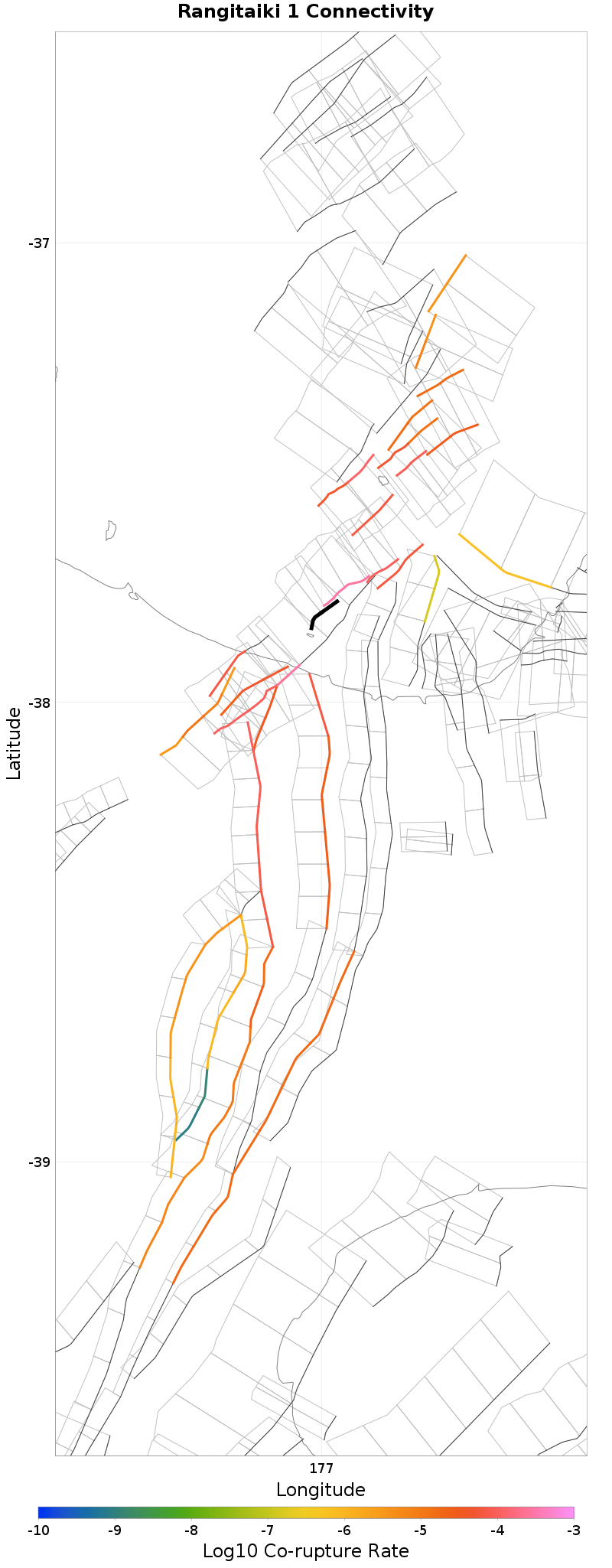

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count1,905
Co-rupture Rate2.7586942E-4

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count511
Co-rupture Rate1.00612124E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count1,897
Co-rupture Rate2.9571445E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count303
Co-rupture Rate7.033819E-5

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count419
Co-rupture Rate6.317624E-5

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count1,302
Co-rupture Rate1.18115786E-4

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate4.736722E-5

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count145
Co-rupture Rate6.9598296E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate6.925122E-5

Edgecumbe 1987, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count626
Co-rupture Rate1.0082038E-4

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count685
Co-rupture Rate3.5624085E-5
