Waimanawa - Waikaremoana Details

Property	Value
Rupture Count	143
Ruptures Above Sect Min Mag	143
Ruptures w/ Nonzero Rates	18
Magnitude Range	[6.65, 7.80]
Length Range	[15, 202] km
Total Rate	3.3793596E-4 /yr
Multi-Fault Rate	3.3793596E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

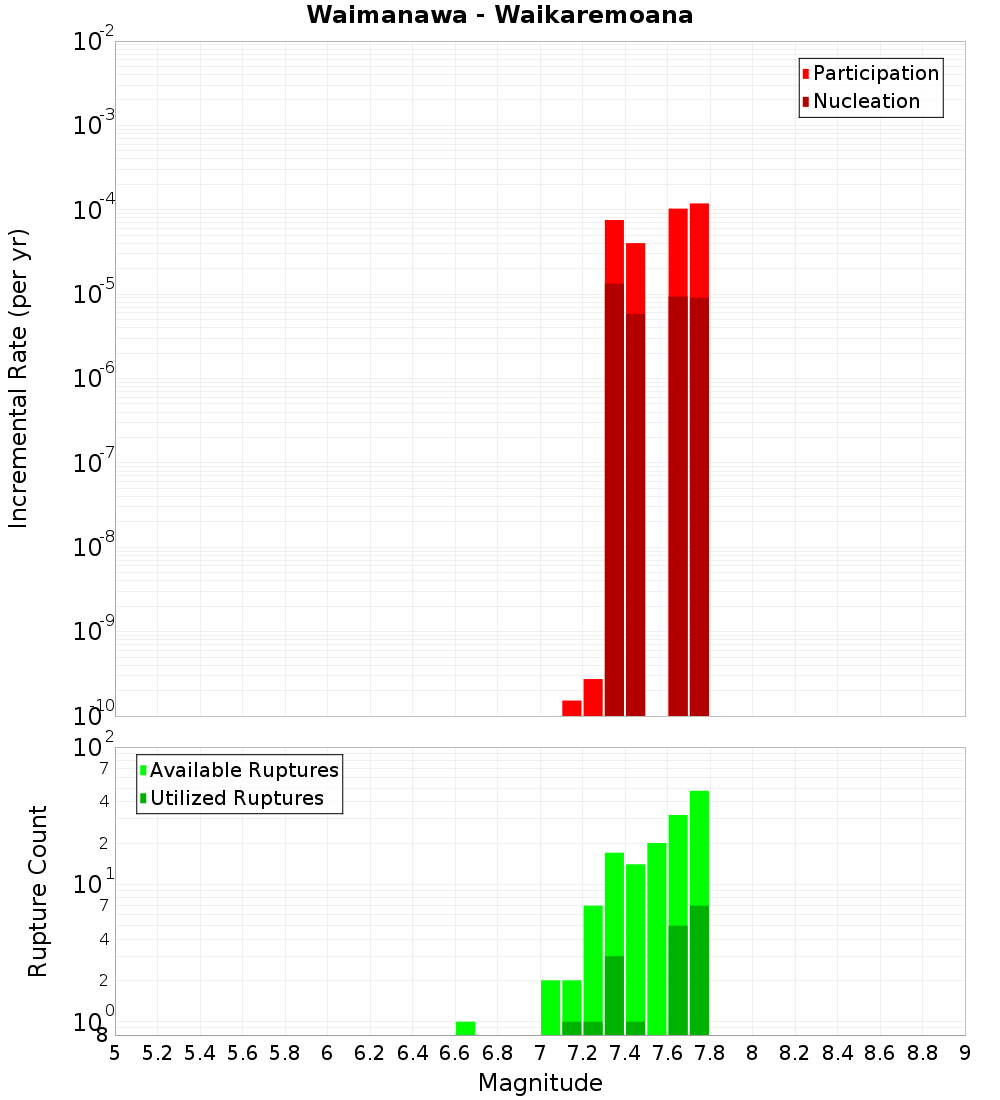

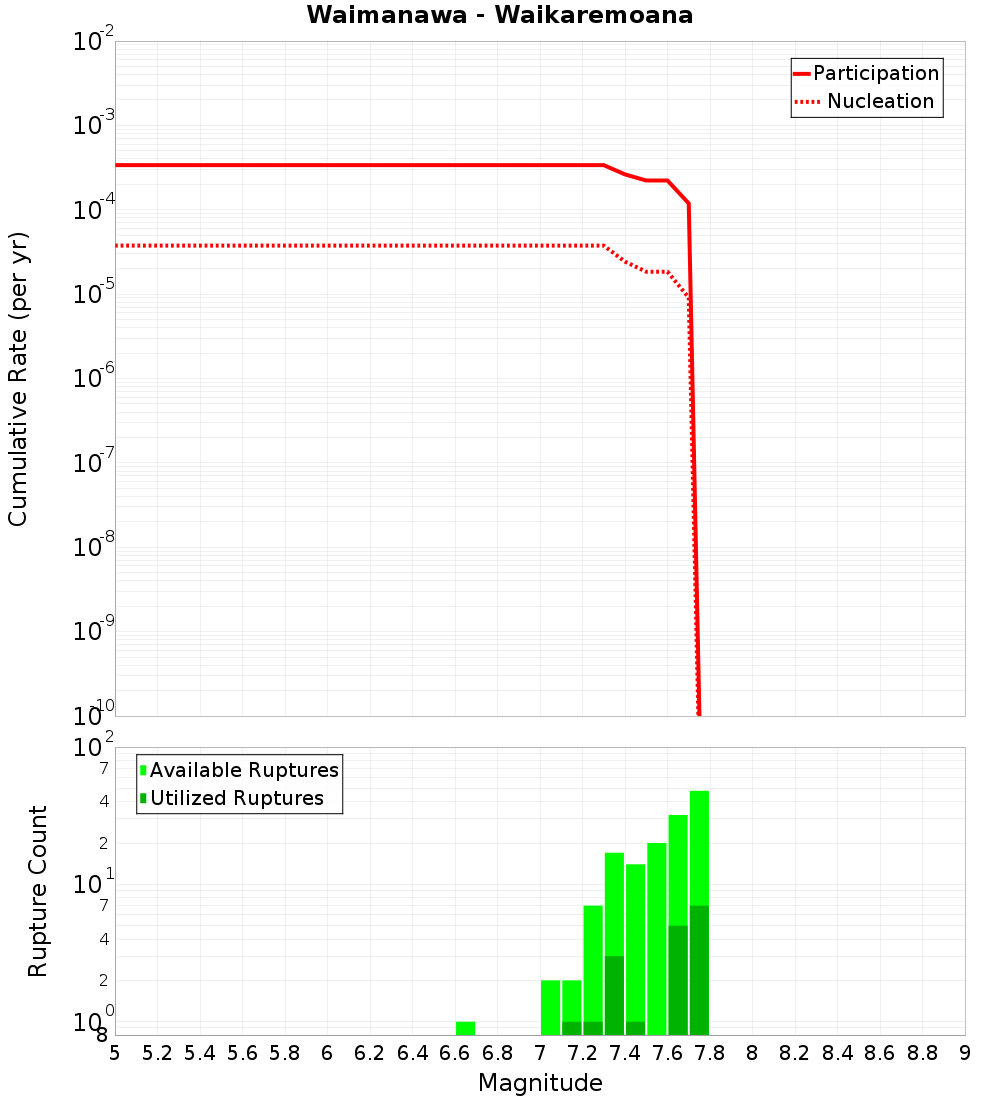

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Waimana: North, 0.33 km away	Opape 1, 11.99 km away
Waiotahi: North, 0.38 km away	Tirohanga, 12.06 km away
White Island 2, 1.87 km away	Rangitaiki 1, 12.26 km away
Ohiwa 1, 4.14 km away	Kotare - Moutuhora, 14.48 km away
White Island 1, 5.15 km away	Calypso 2, 14.96 km away
Rangitaiki 2, 6.46 km away	Te Arawa 1, 16.98 km away
Whakaari 4, 7.01 km away	Matata, 17.19 km away
Opotiki 3, 7.68 km away	Whakatane: North, 18.17 km away
Ohae 1, 7.92 km away	Tuatoru 1, 18.66 km away
Opotiki 2, 10.21 km away	Hariki, 19.19 km away
Ohae 2, 11.96 km away	Edgecumbe Coastal, 19.37 km away

Waimana: North, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	2.3332314E-4

Waiotahi: North, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	1.7180257E-4

White Island 2, 1.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 4.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	1.0934908E-5

Opotiki 2, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 11.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	2.3766147E-6

Opape 1, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tirohanga, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 1, 16.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Matata, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 18.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	4.4929777E-5

Tuatoru 1, 18.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hariki, 19.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
