Whakatane: South Details

PropertyValue
Rupture Count7,058
Ruptures Above Sect Min Mag7,056
Ruptures w/ Nonzero Rates17
Magnitude Range[7.04, 8.56]
Length Range[26, 994] km
Total Rate3.920163E-4 /yr
Multi-Fault Rate3.920163E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults90

Table Of Contents

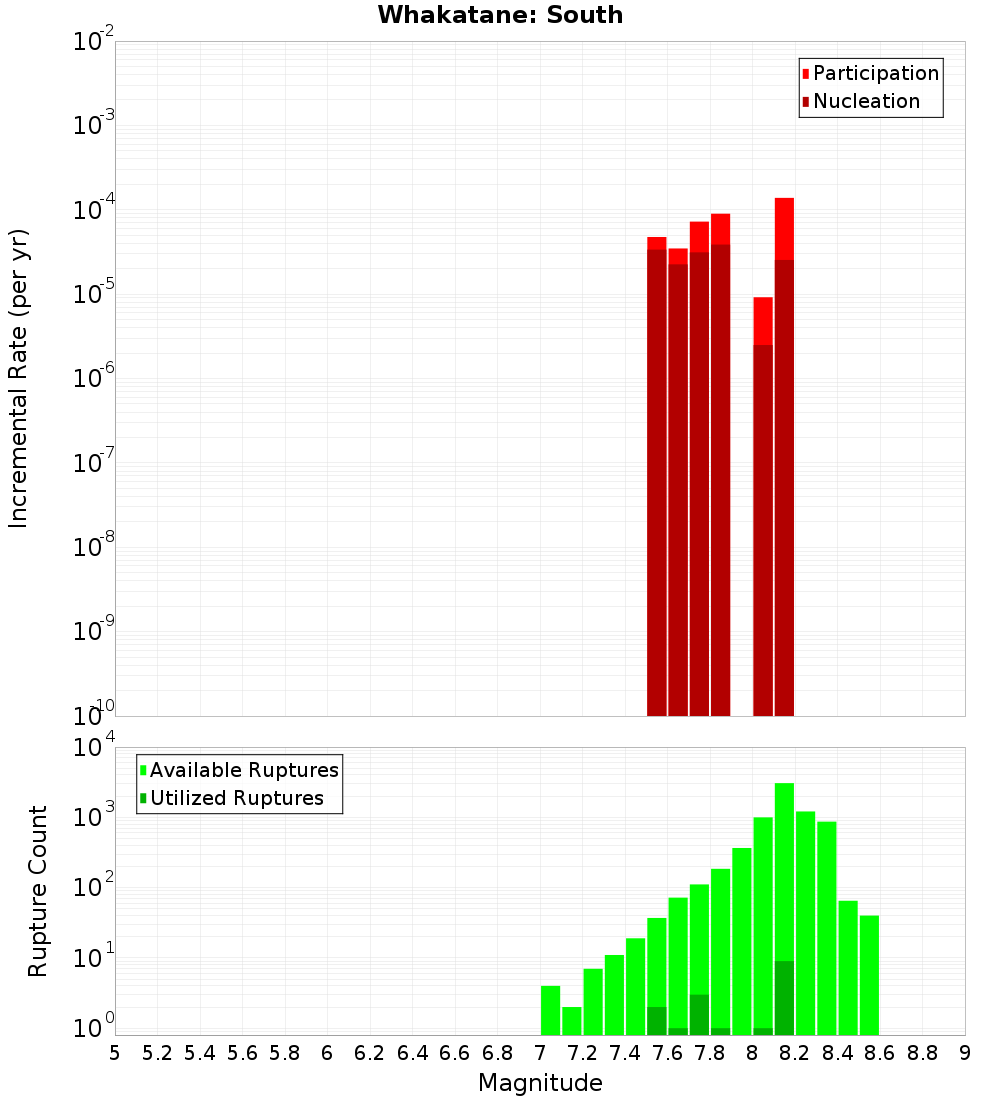

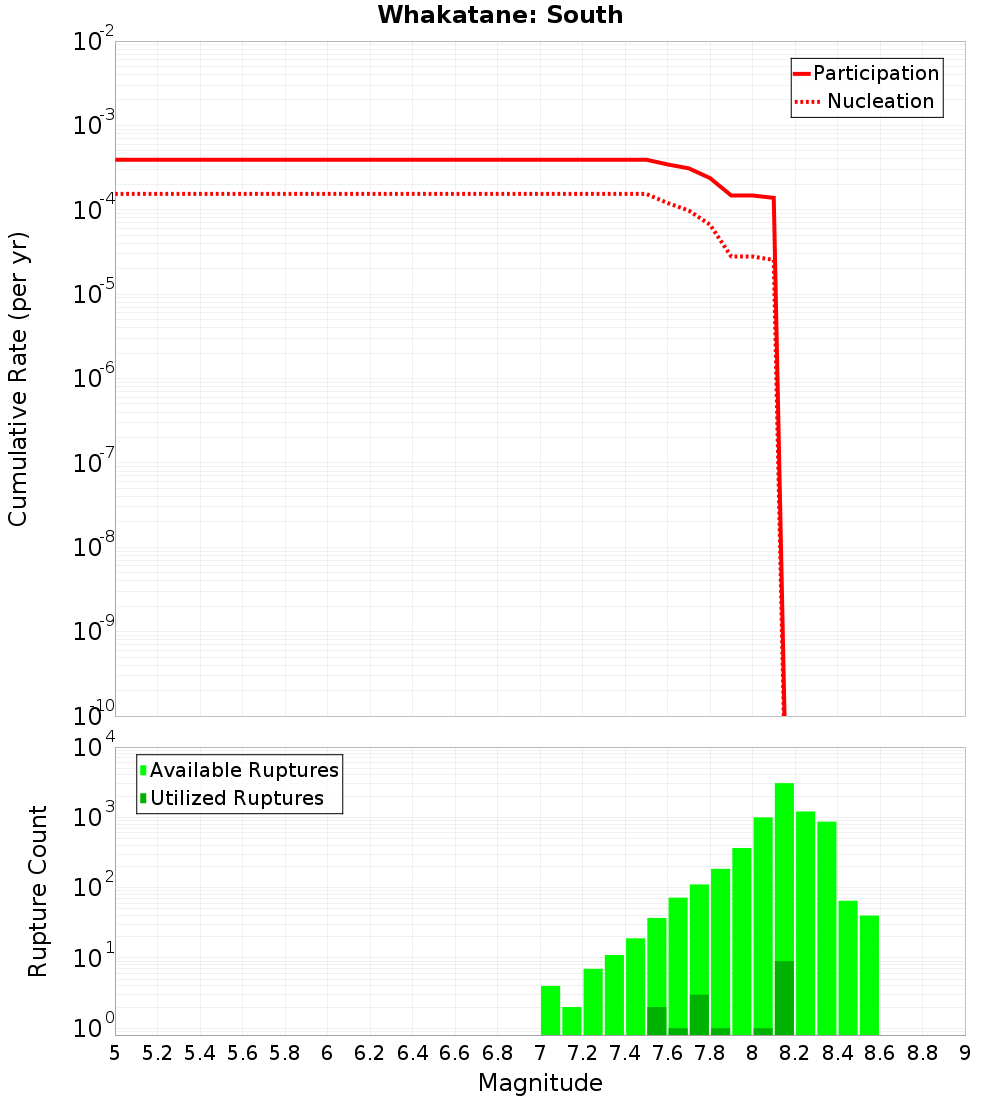

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

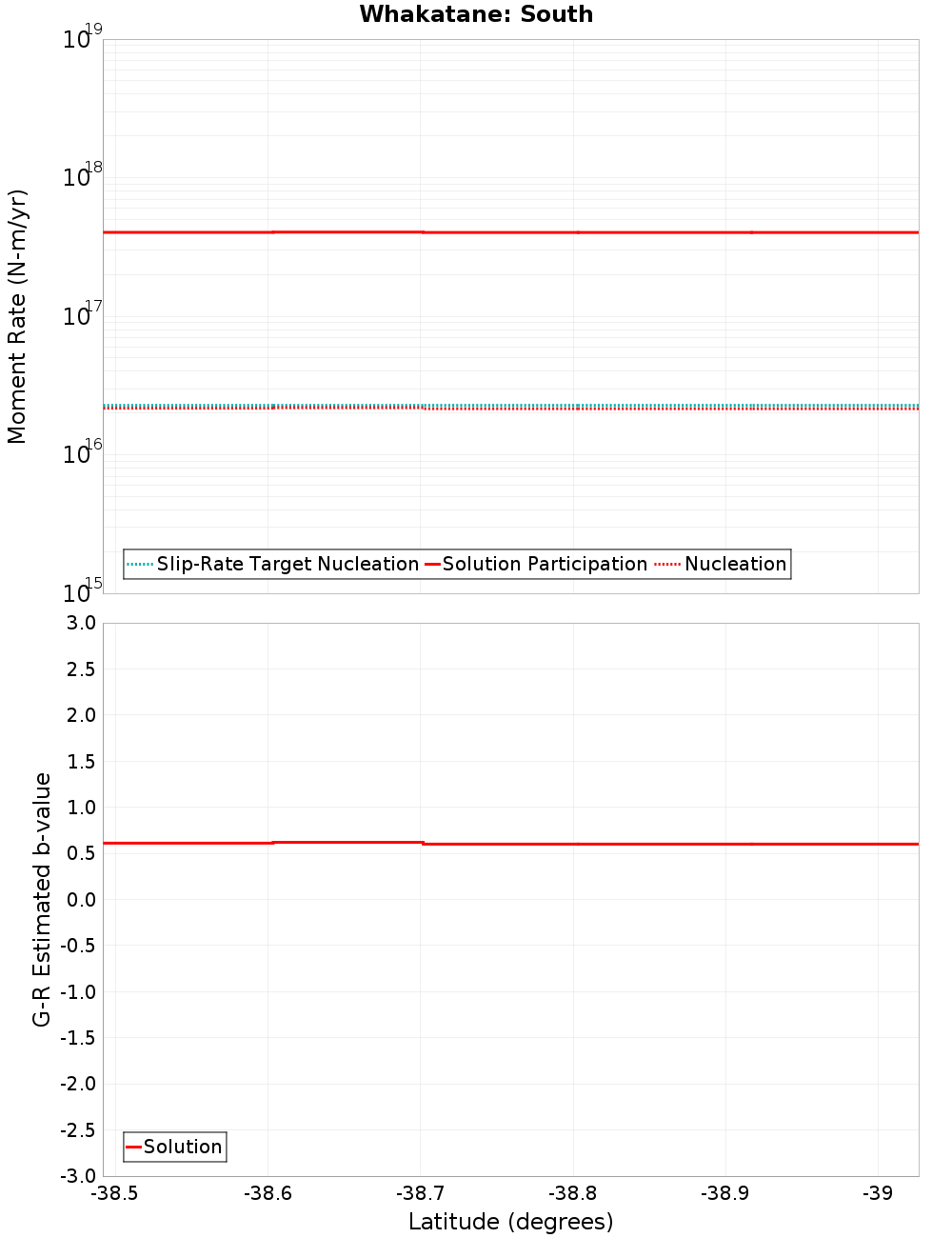

Moment-Rates and b-Values

(top)

Along-strike plot

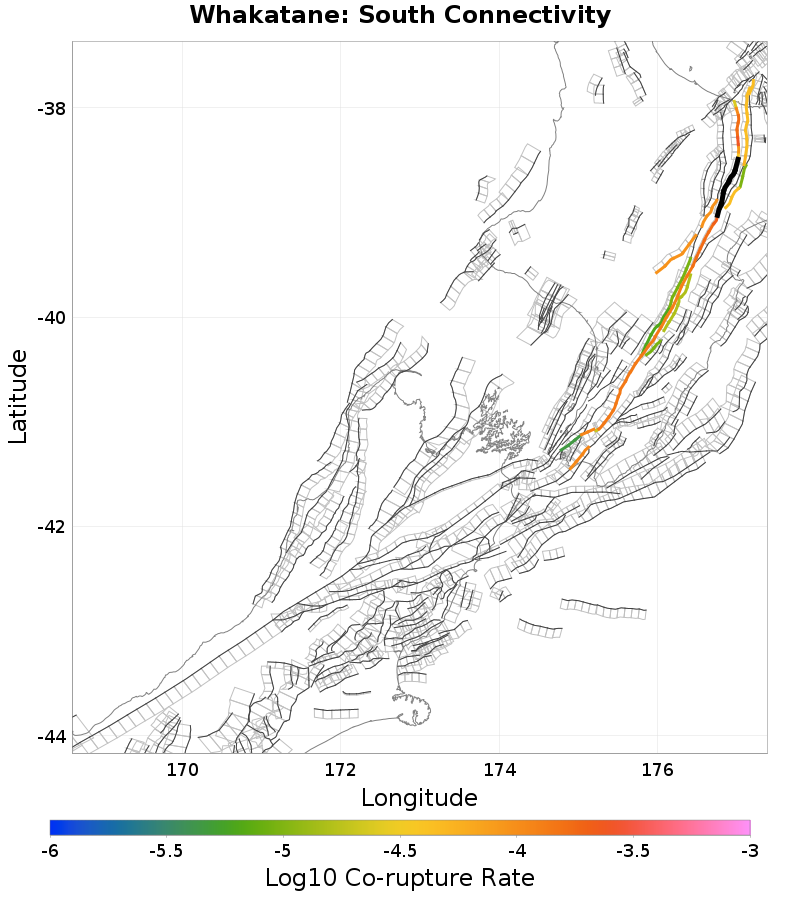

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimana: South, 0 km away
Whakatane: North, 0 km away
Mohaka: North, 0 km away
Waiohau: South, 4.67 km away
Waimana: North, 5.63 km away
Waiotahi: South, 5.93 km away
Waiotahi: North, 10.09 km away
Waiohau: North, 11.09 km away
Ruahine: North, 11.52 km away
Te Whaiti South, 11.9 km away
Patoka - Rangiora, 12.36 km away
Wheao: South, 14.52 km away
Te Whaiti North, 18 km away
Awanui, 18.5 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count619
Co-rupture Rate0.0

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count940
Co-rupture Rate2.452734E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count5,828
Co-rupture Rate2.0629104E-4

Waiohau: South, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count1,176
Co-rupture Rate9.323989E-5

Waimana: North, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?true
Co-rupture Count142
Co-rupture Rate5.4478412E-5

Waiotahi: South, 5.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate4.4319906E-5

Waiotahi: North, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waiohau: North, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: North, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count2,003
Co-rupture Rate1.0242298E-4

Te Whaiti South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wheao: South, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti North, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 18.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM0OTcuMDN1d0Fn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
