Hope: Kakapo-2-Hamner Details

PropertyValue
Rupture Count47,490
Ruptures Above Sect Min Mag47,489
Ruptures w/ Nonzero Rates120
Magnitude Range[6.37, 8.59]
Length Range[6, 1,147] km
Total Rate0.0029102638 /yr
Multi-Fault Rate0.0029102638 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults113

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

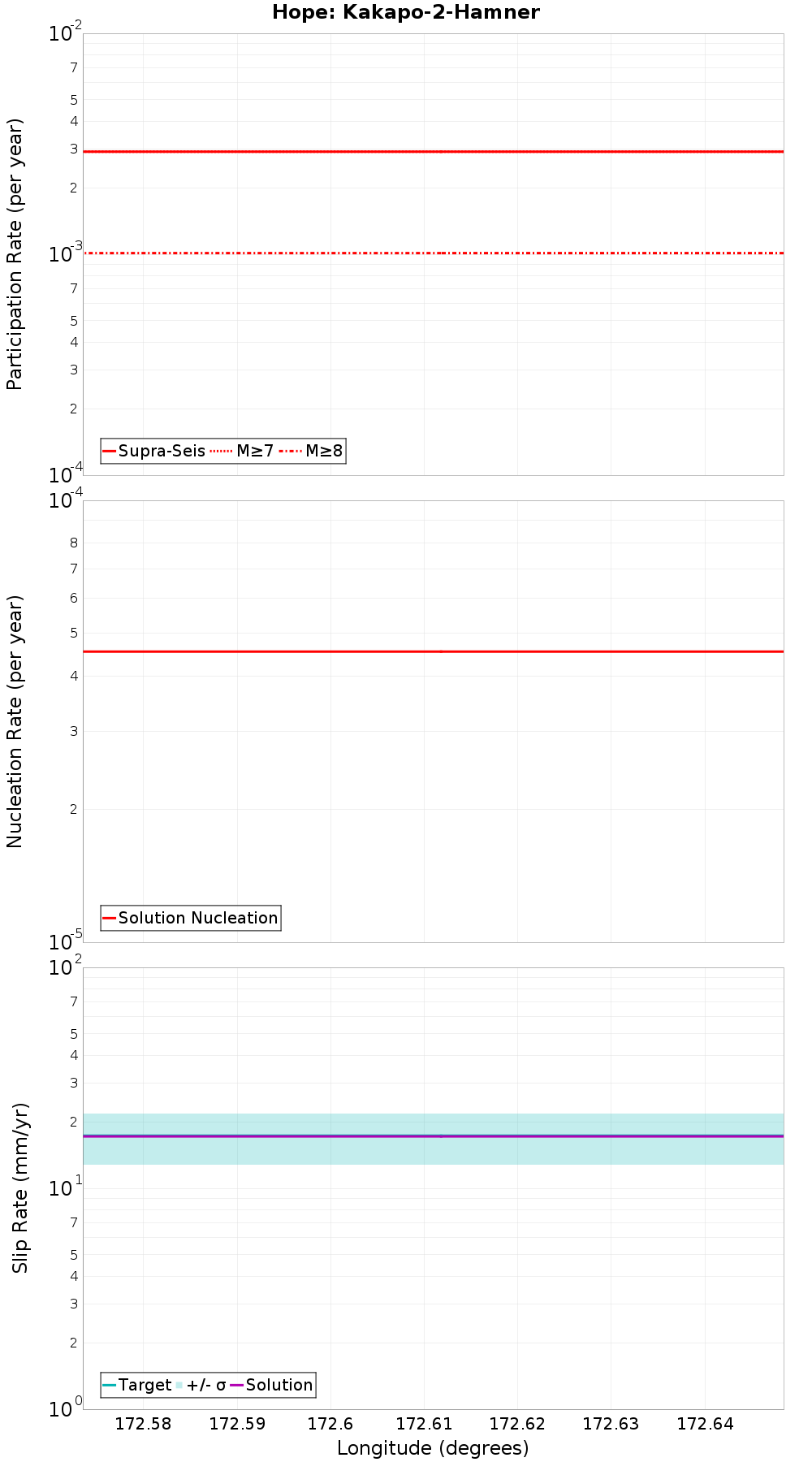

Along-Strike Values

(top)

Along-strike plot

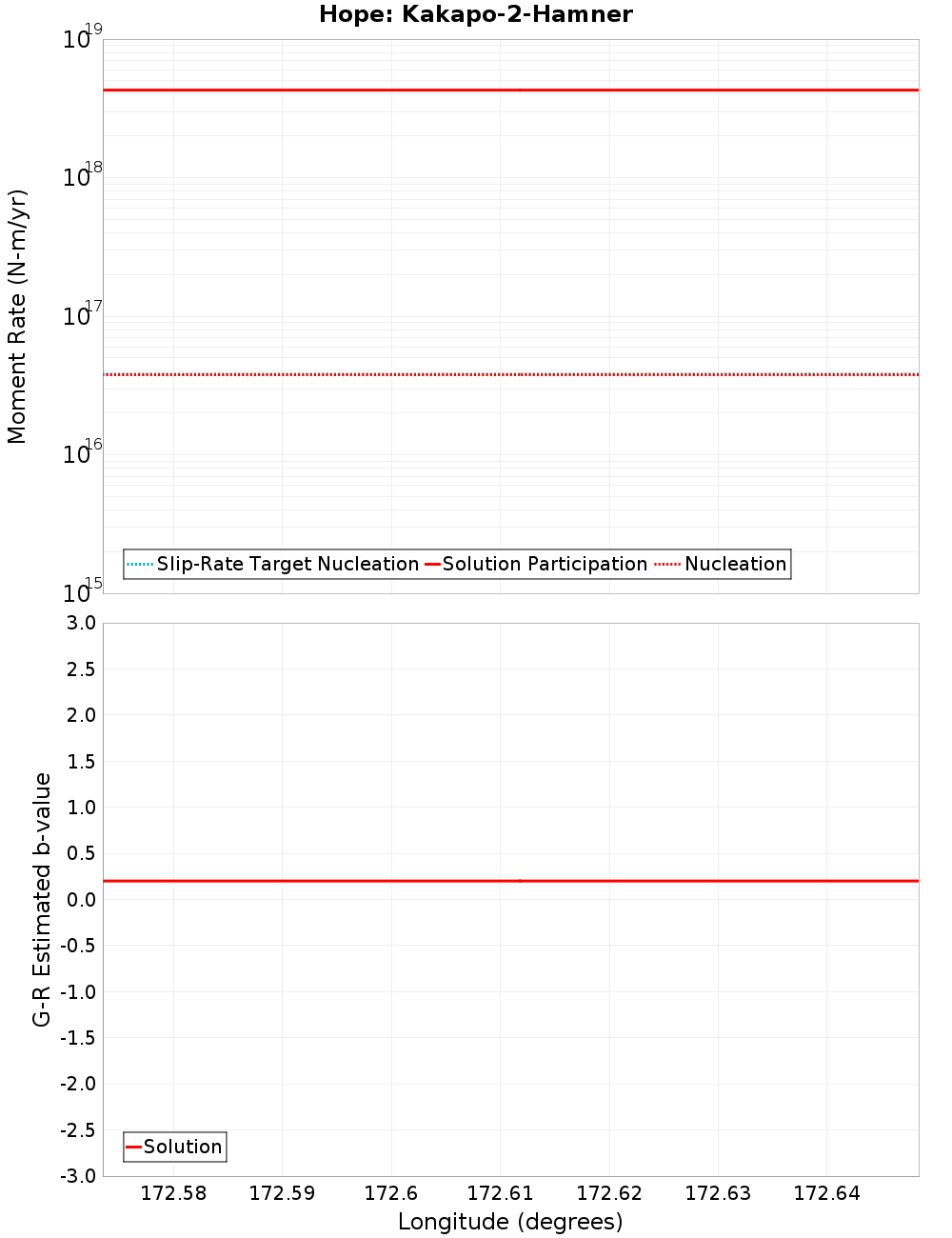

Moment-Rates and b-Values

(top)

Along-strike plot

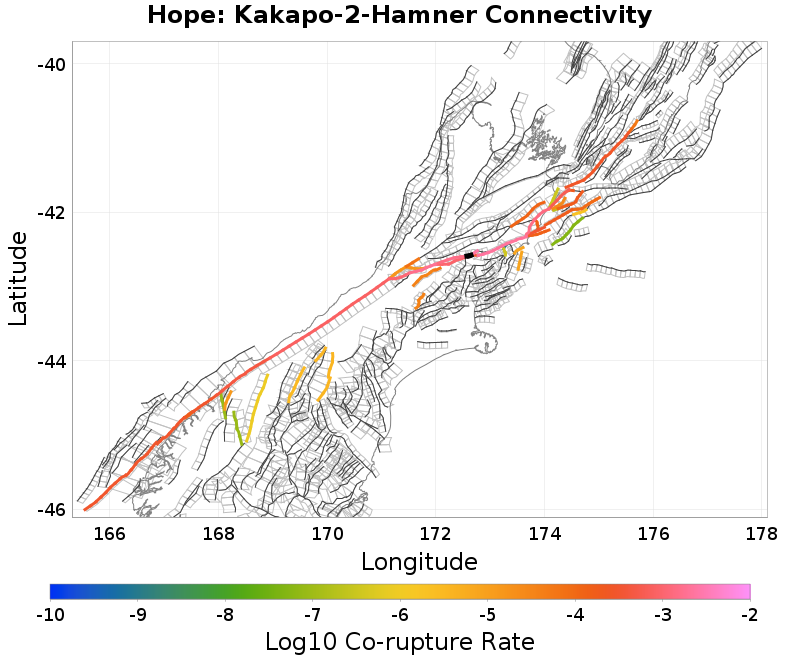

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kakapo, 0 km away
Hope: Hanmer NW, 0 km away
Hope: Hope River, 0 km away
Hope: Hamner SW, 0 km away
Esk North, 4.29 km away
Hanmer, 7.2 km away
Hope: Hamner SE, 10.42 km away
Clarence: Southwest, 12.23 km away
Hurunui Peak, 12.99 km away
Mt Culverden, 15.65 km away
Balmoral, 16.28 km away
Fowlers, 19.64 km away

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?true
Co-rupture Count16,492
Co-rupture Rate0.0011159723

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?true
Co-rupture Count10,192
Co-rupture Rate0.0024015047

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?true
Co-rupture Count31,264
Co-rupture Rate0.0016173712

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?true
Co-rupture Count36,241
Co-rupture Rate2.8466719E-4

Esk North, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 10.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?false
Co-rupture Count45,171
Co-rupture Rate0.0022268703

Clarence: Southwest, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?false
Co-rupture Count135
Co-rupture Rate0.0

Hurunui Peak, 12.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 15.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 16.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fowlers, 19.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTYuMFBjVFdx
Connected?true
Directly Connected?false
Co-rupture Count67
Co-rupture Rate0.0
