Awakeri Details

Property	Value
Rupture Count	4,653
Ruptures Above Sect Min Mag	4,653
Ruptures w/ Nonzero Rates	124
Magnitude Range	[6.66, 7.80]
Length Range	[17, 202] km
Total Rate	6.134843E-5 /yr
Multi-Fault Rate	6.134843E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

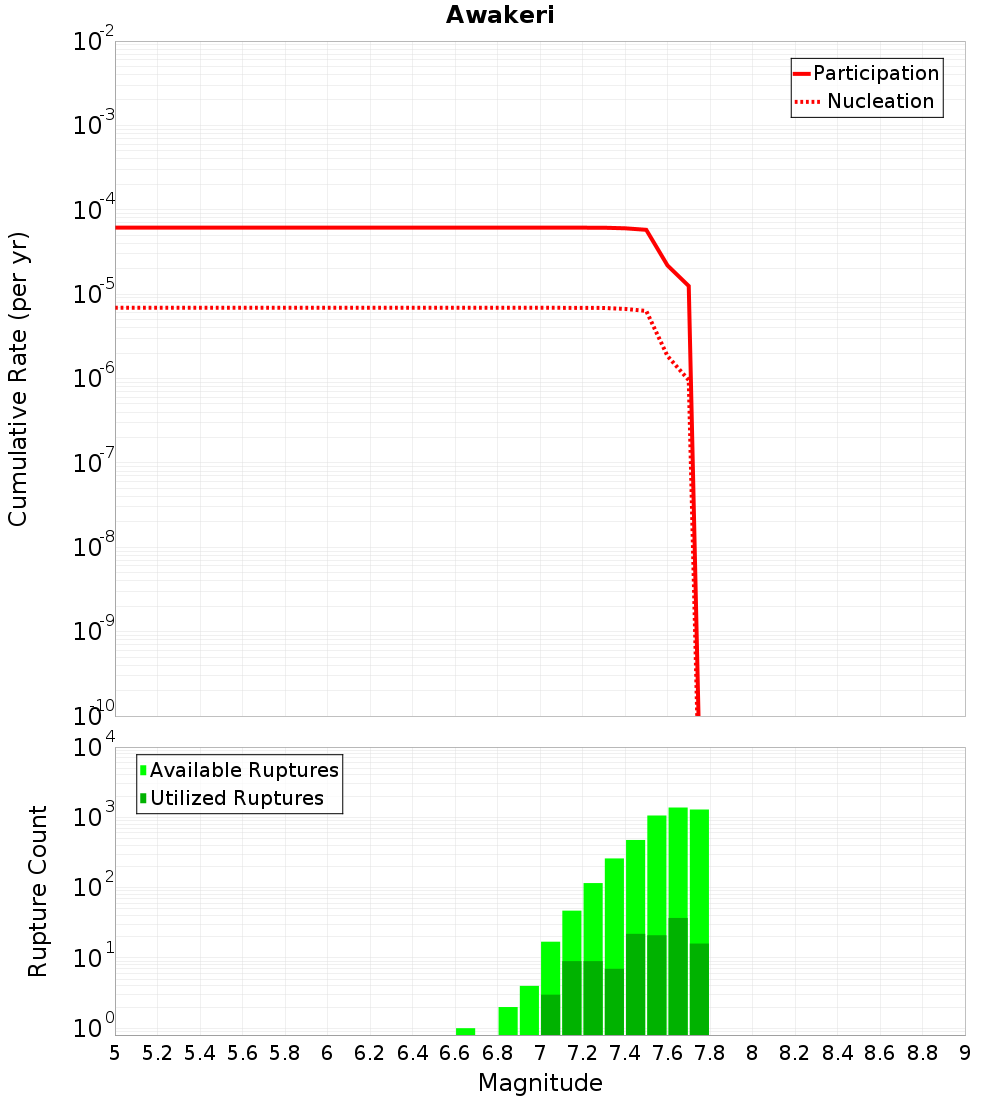

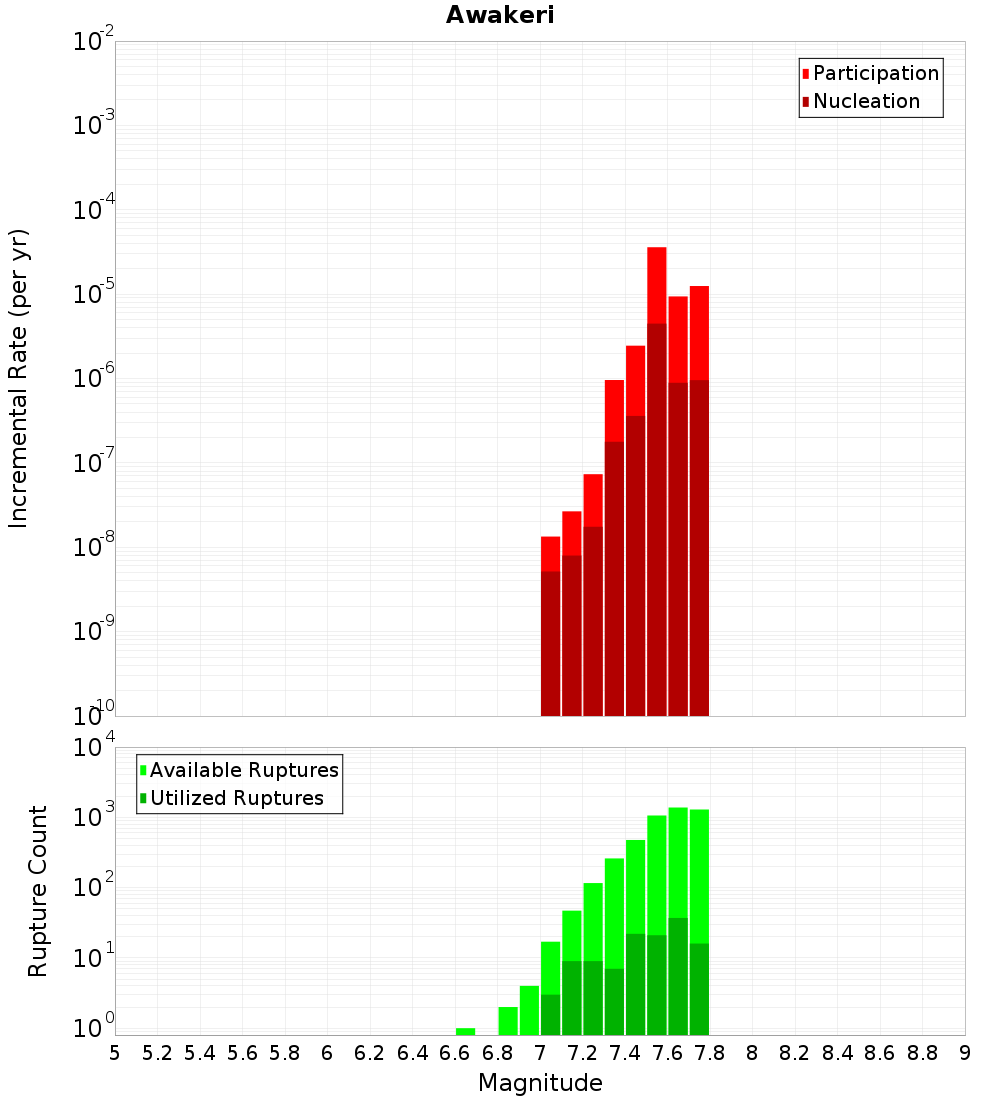

Magnitude-Frequency Distribution

Incremental	Cumulative

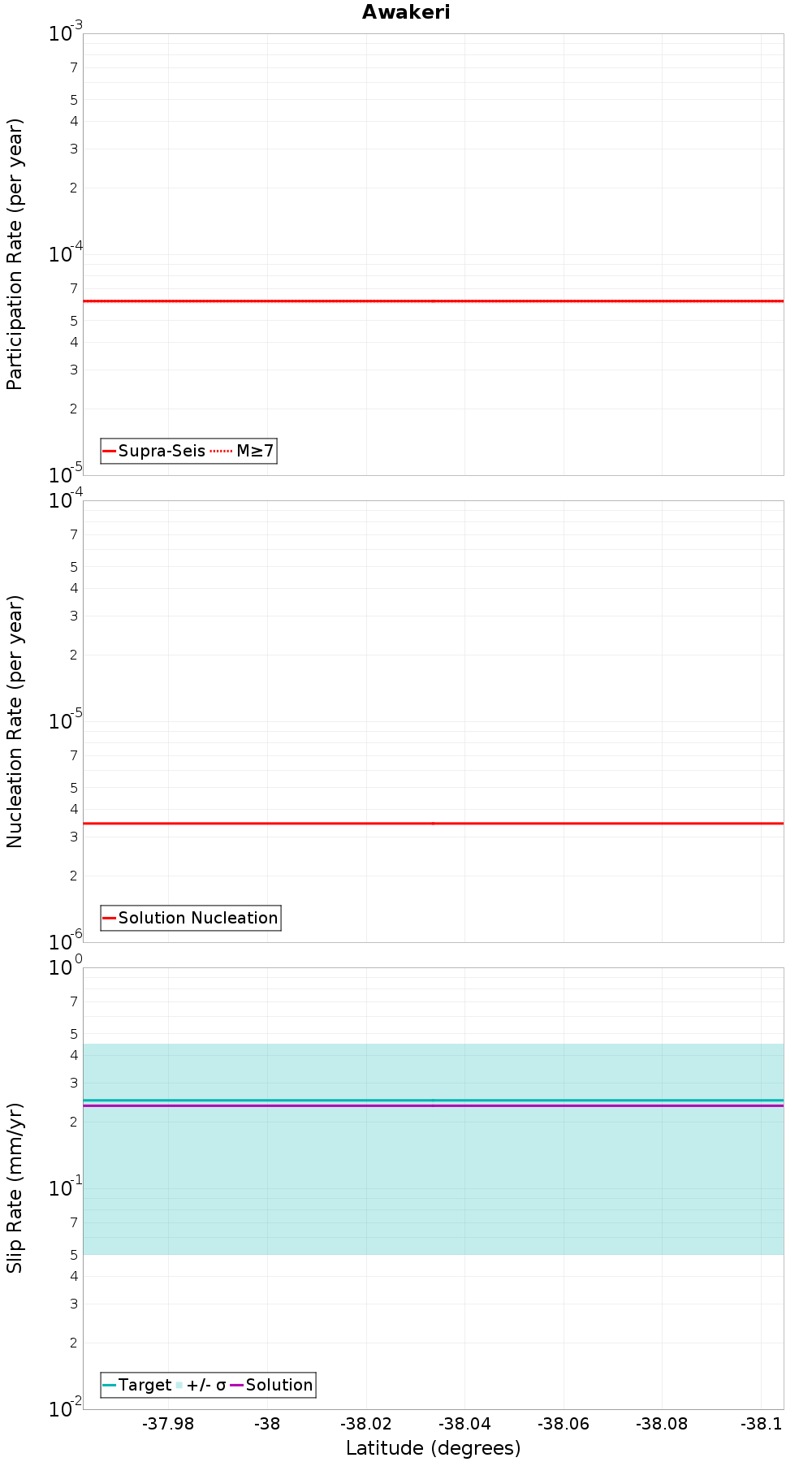

Along-Strike Values

Moment-Rates and b-Values

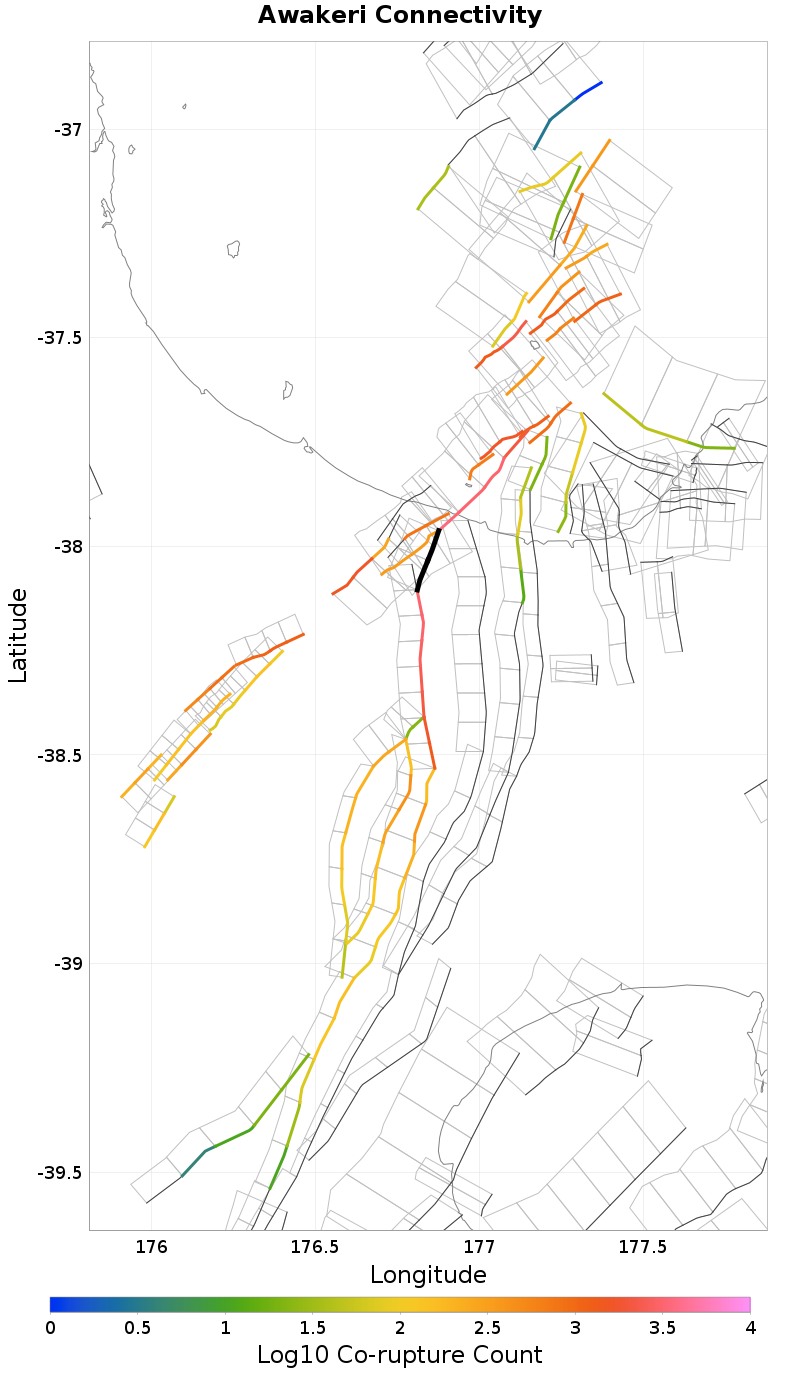

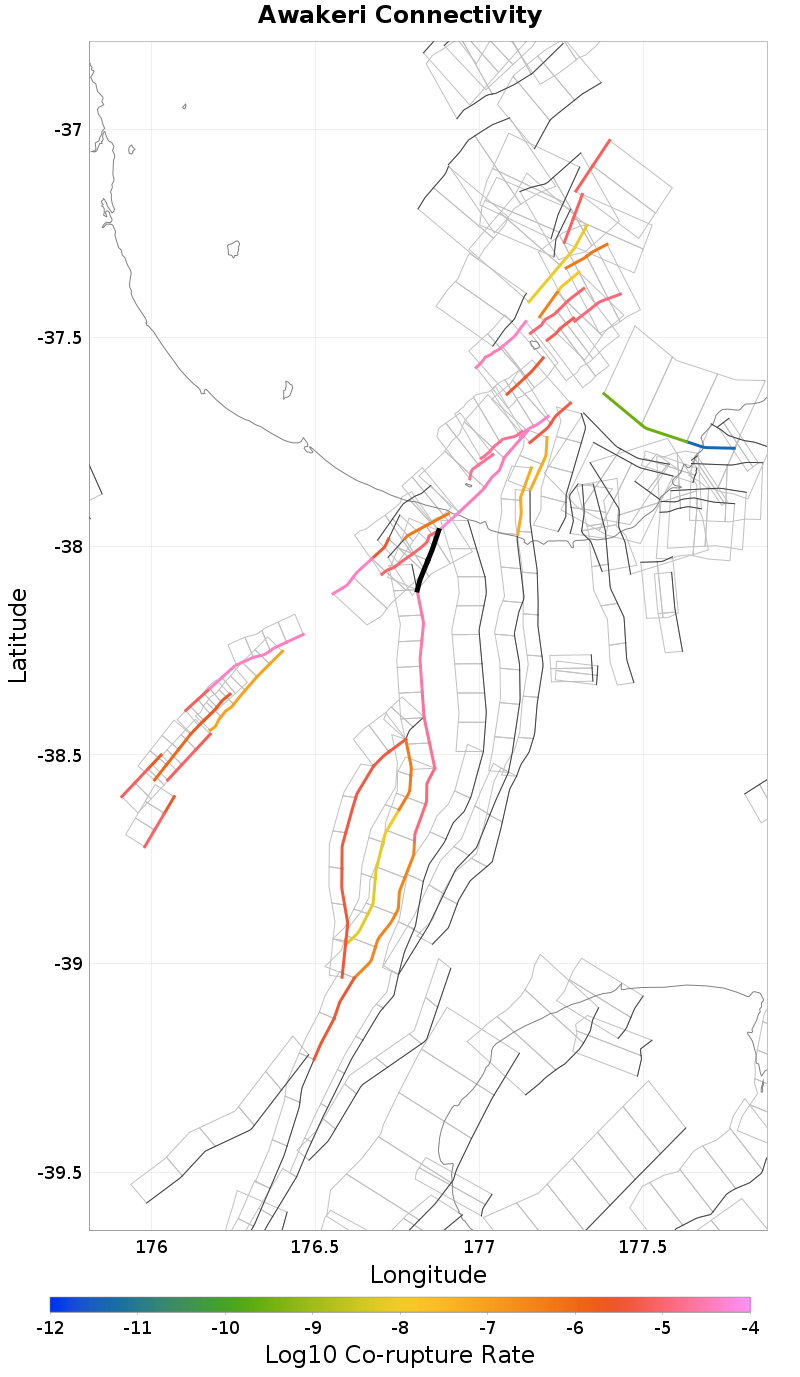

Connectivity

Nearby Sections

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	false
Co-rupture Count	351
Co-rupture Rate	9.495821E-6

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,527
Co-rupture Rate	6.0734077E-5

Braemar, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,691
Co-rupture Rate	4.2424253E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	true
Co-rupture Count	792
Co-rupture Rate	5.974099E-7

Waiohau: North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,078
Co-rupture Rate	2.6582304E-5

Matata, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	false
Co-rupture Count	3,101
Co-rupture Rate	3.3550798E-5

Whakatane: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MTkuMFZVNVR3
Connected?	true
Directly Connected?	false
Co-rupture Count	685
Co-rupture Rate	1.821802E-5
