Caswell High 67 Details
| Property | Value |
|---|---|
| Rupture Count | 1,909 |
| Ruptures Above Sect Min Mag | 1,899 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.61, 8.45] |
| Length Range | [16, 778] km |
| Total Rate | 2.4923438E-4 /yr |
| Multi-Fault Rate | 1.8735937E-4 /yr (75.17%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 36 |
Table Of Contents

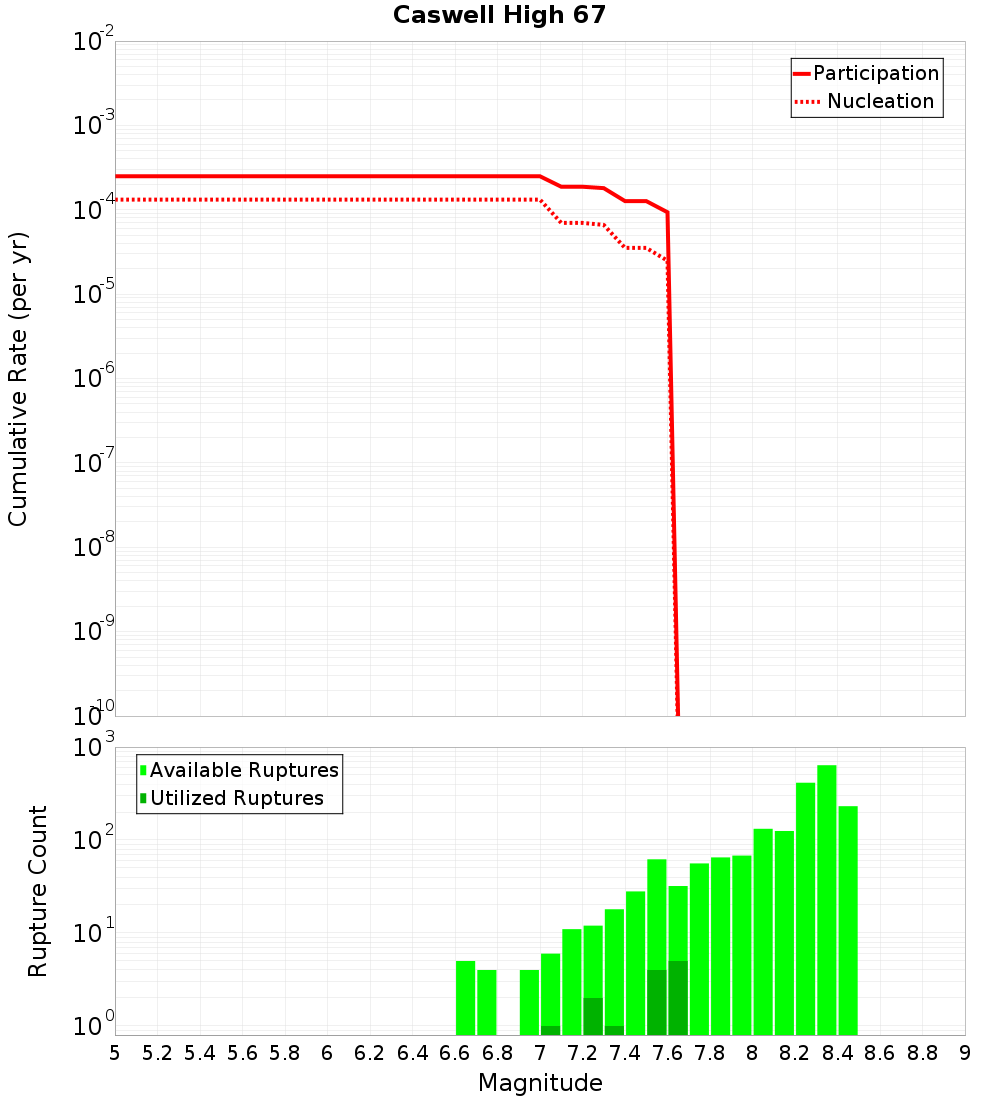

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

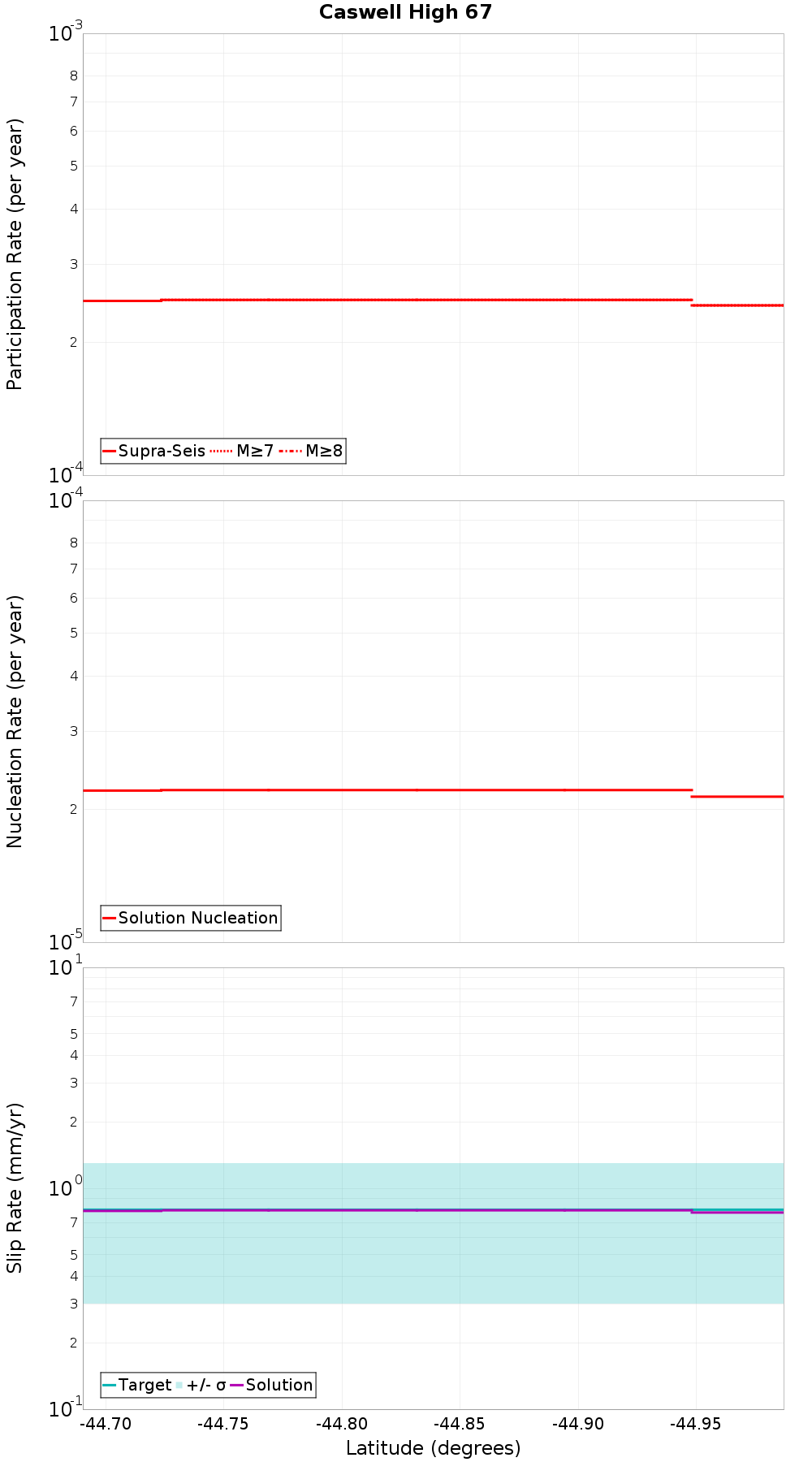

Along-Strike Values
Moment-Rates and b-Values

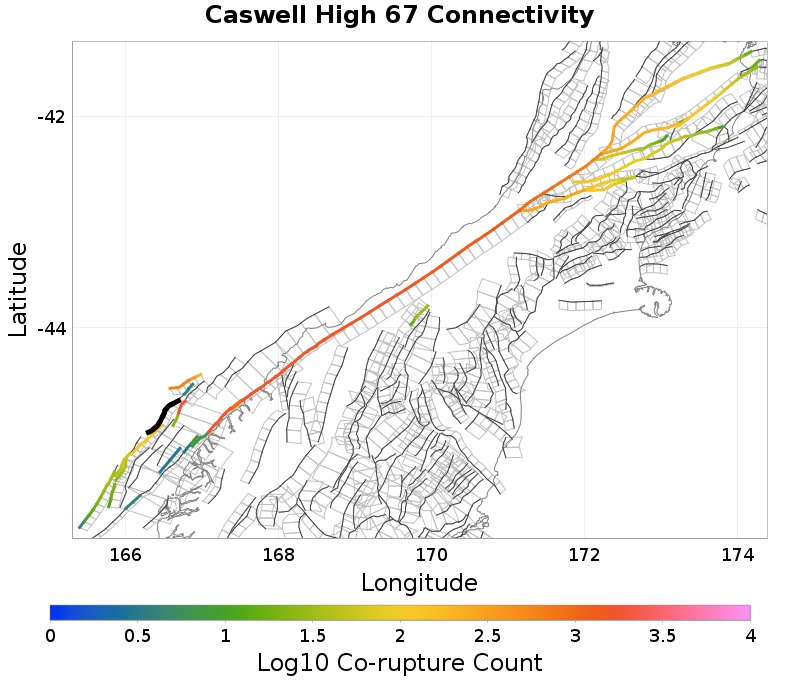

Connectivity
 |  |
|---|
Nearby Sections
Caswell High 5, 1.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 121 |
| Co-rupture Rate | 1.2663296E-4 |
Caswell High 9, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.2717558E-6 |
Central Wedge 1 & 2 & 3, 4.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,758 |
| Co-rupture Rate | 0.0 |
Caswell High 10, 5.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Central Wedge 4 - South Wedge 411, 7.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 4, 8.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 56 |
| Co-rupture Rate | 2.347435E-5 |
Caswell High 8, 10.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 594 |
| Co-rupture Rate | 1.6222452E-4 |
South Wedge 5, 15.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 16.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 2, 18.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
