Lindis River Details

PropertyValue
Rupture Count110
Ruptures Above Sect Min Mag109
Ruptures w/ Nonzero Rates8
Magnitude Range[6.94, 8.13]
Length Range[22, 248] km
Total Rate1.2669306E-5 /yr
Multi-Fault Rate1.2669306E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults17

Table Of Contents

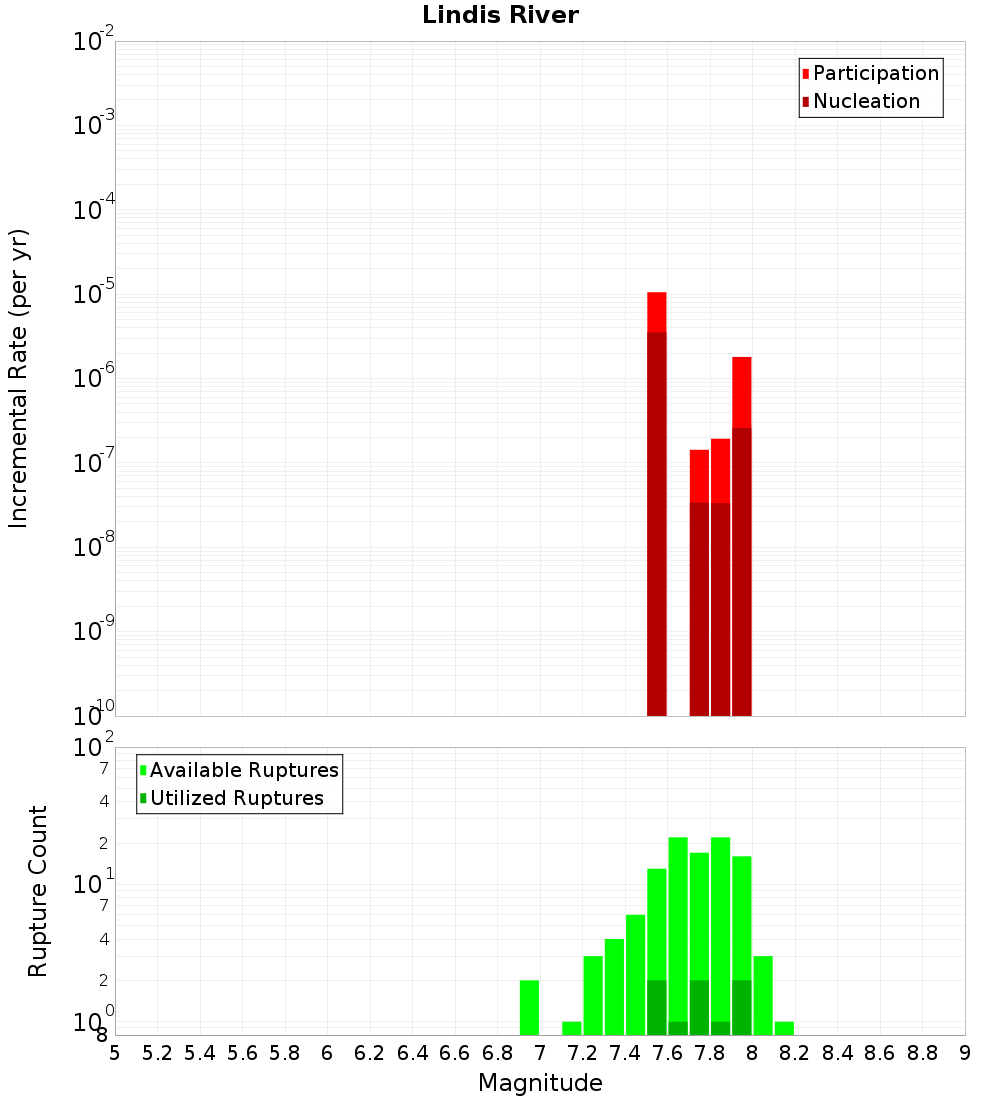

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

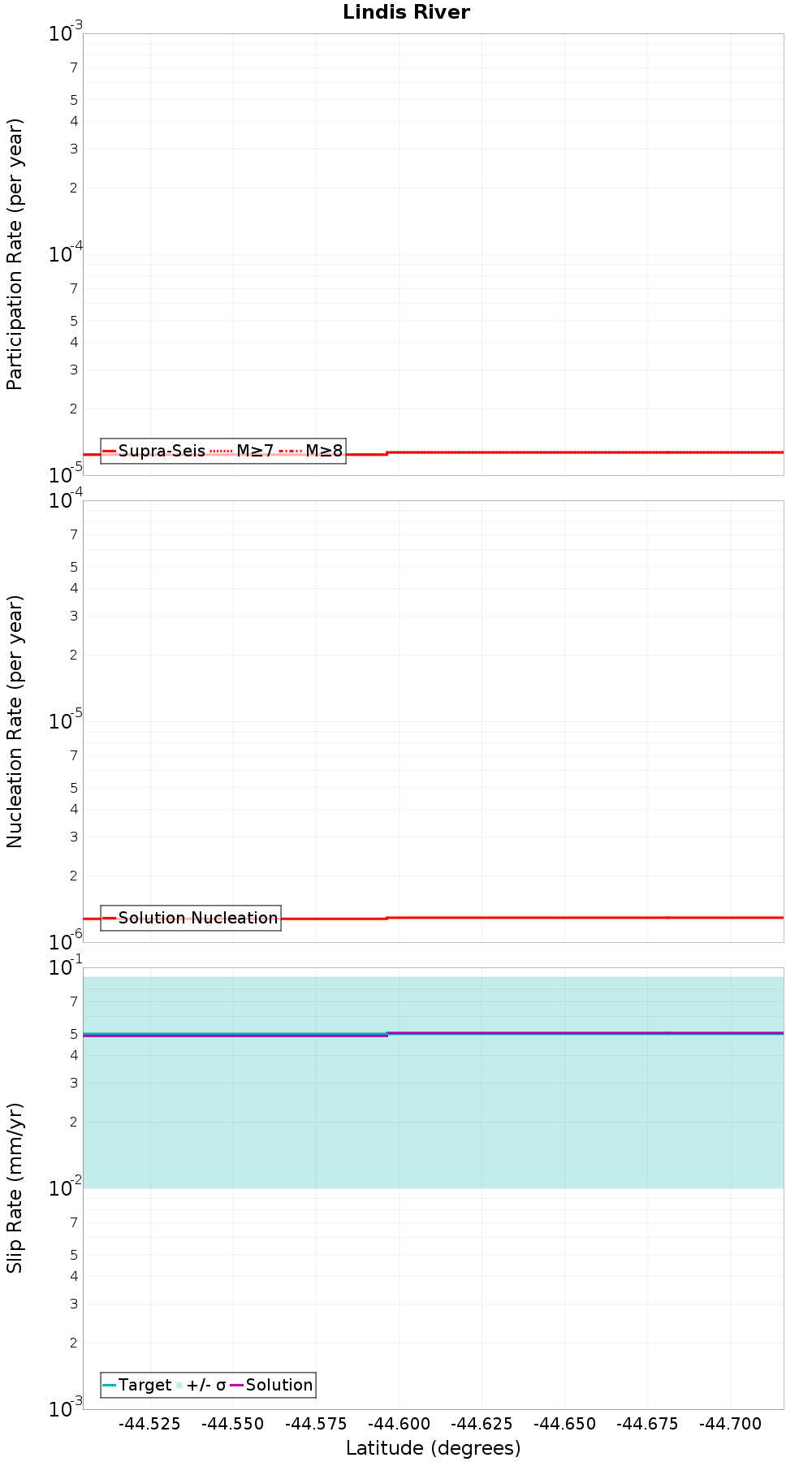

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

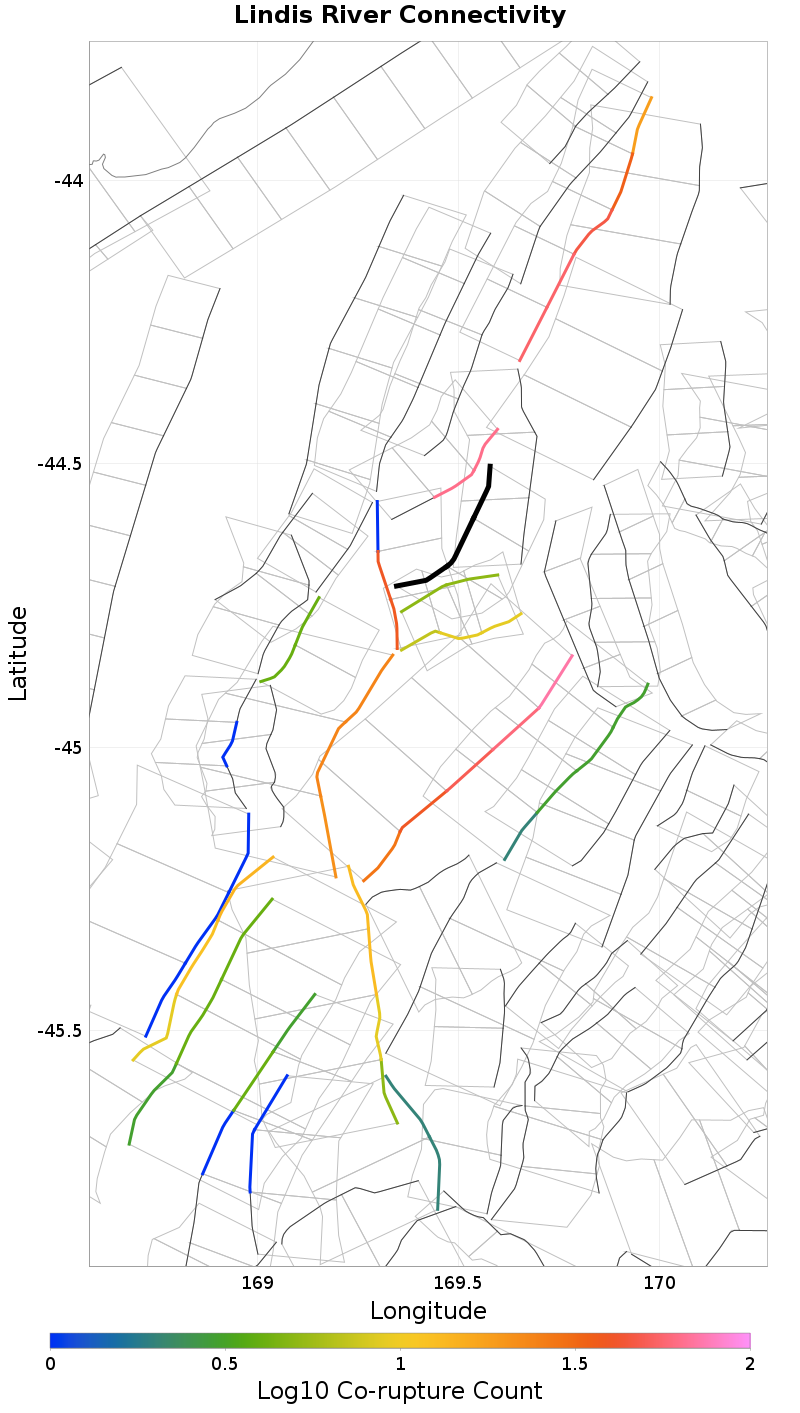

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cluden, 0.14 km awayDingle, 10.56 km away
Dromedary, 0.15 km awayCardrona - Hawea, 12.02 km away
Dunstan, 0.19 km awayRaggedy - Blackstone, 12.11 km away
Grandview, 0.23 km awayPisa, 12.93 km away
Goodger, 2.42 km awayPaddys Ridge, 13.84 km away
Timaru Creek, 2.49 km awayNW Cardrona North, 17.21 km away
Ostler South, 7.13 km awayHawkdun, 18.61 km away
Blue Lake, 8.67 km awayHunter Valley, 18.97 km away

Cluden, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate2.0568818E-6

Dromedary, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate1.25883E-5

Grandview, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate0.0

Goodger, 2.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate8.1005375E-8

Timaru Creek, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate1.4296354E-7

Ostler South, 7.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 8.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dingle, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cardrona - Hawea, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.0531418E-5

Pisa, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.9949237E-6

Paddys Ridge, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

NW Cardrona North, 17.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 18.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 18.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
