Opotiki 3 Details

PropertyValue
Rupture Count2,893
Ruptures Above Sect Min Mag2,890
Ruptures w/ Nonzero Rates13
Magnitude Range[6.72, 8.38]
Length Range[16, 648] km
Total Rate6.179988E-5 /yr
Multi-Fault Rate6.178781E-5 /yr (99.98%)
Directly-Connected Faults3
All Co-Rupturing Faults80

Table Of Contents

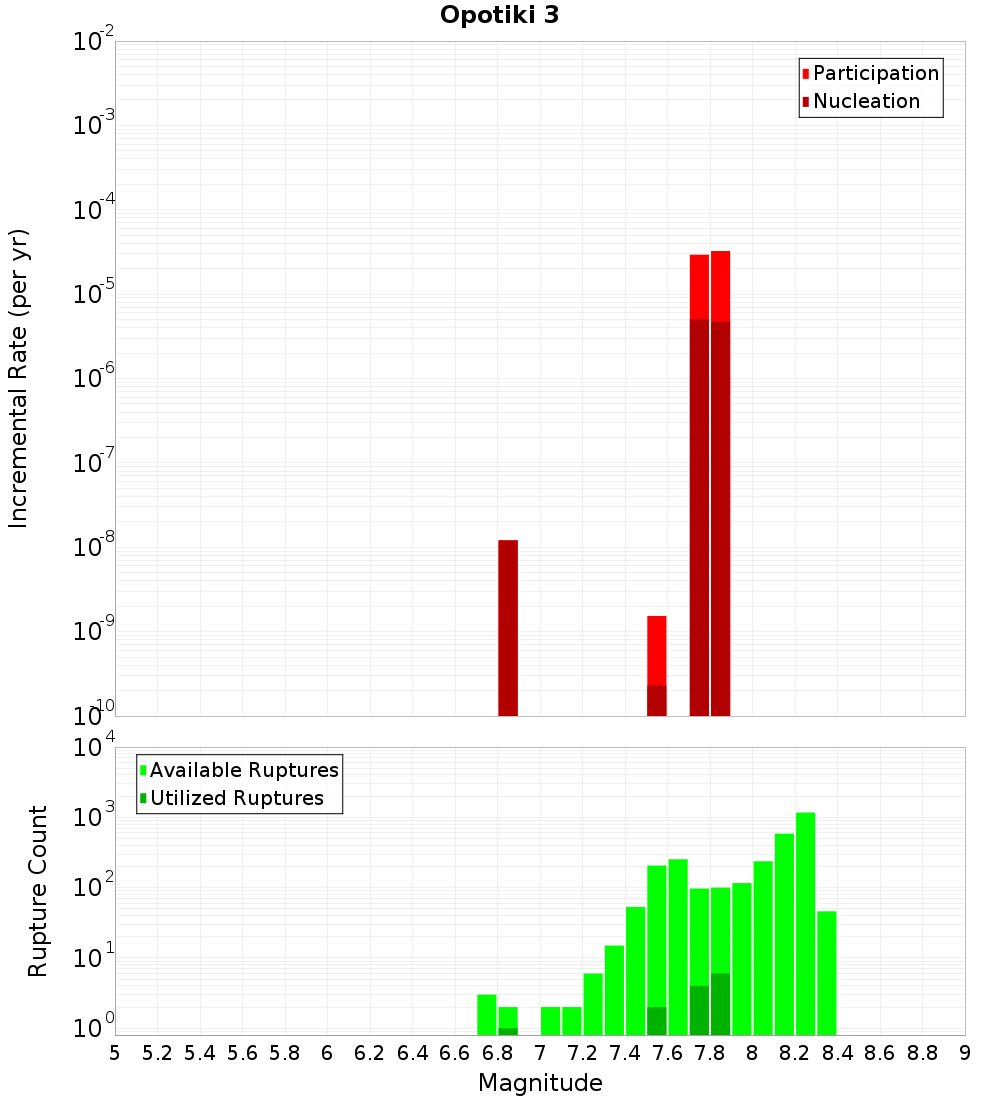

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

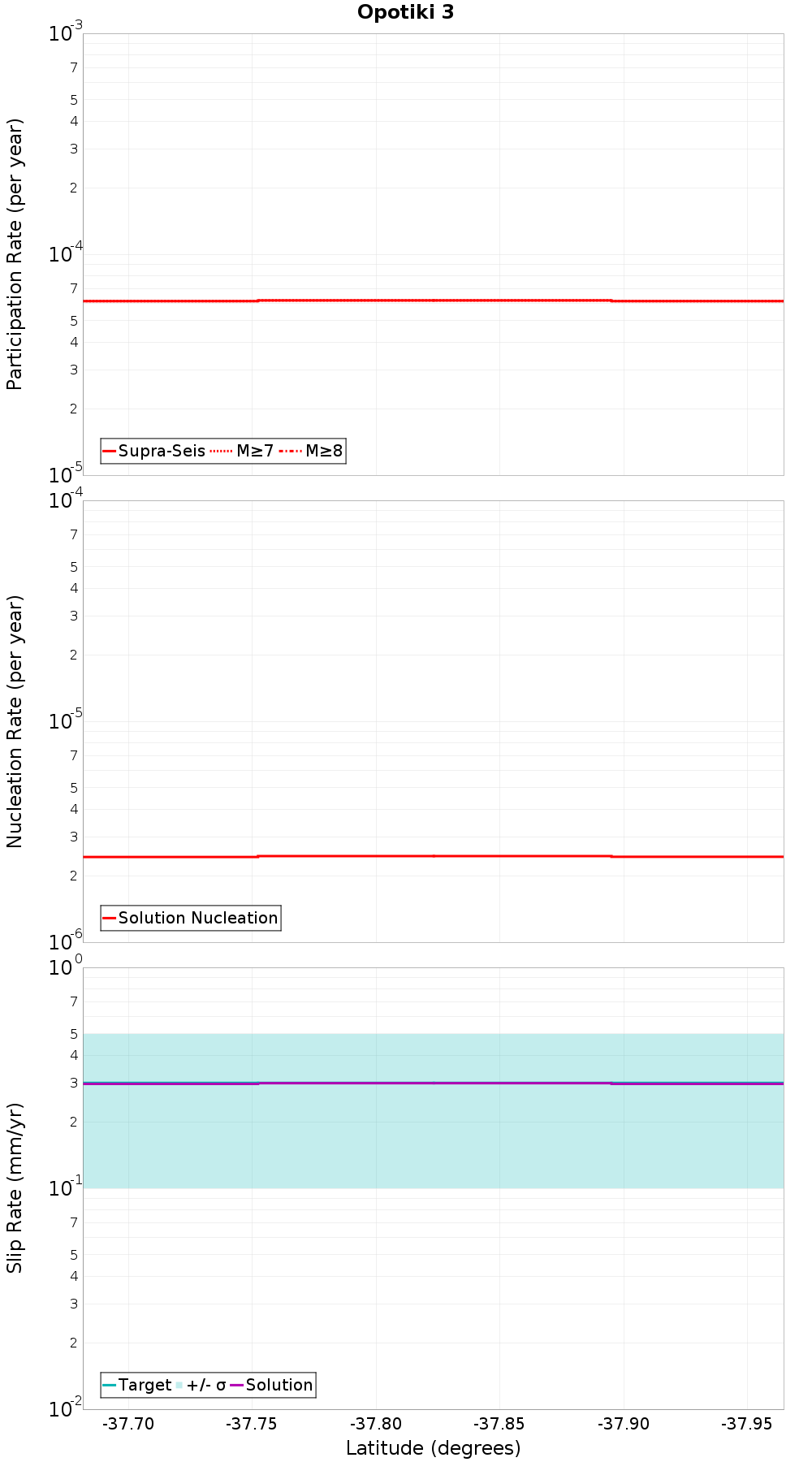

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

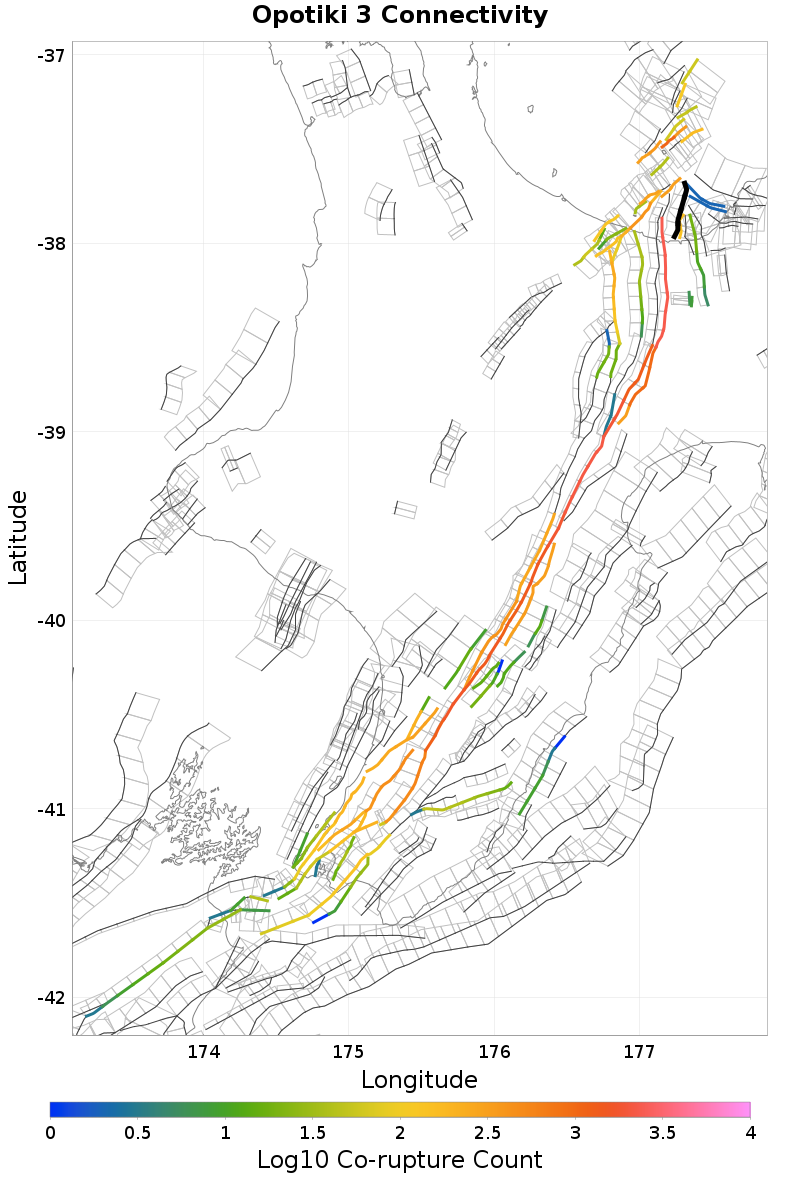

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 1, 0.13 km awayWhakaari 4, 8.08 km away
Opotiki 2, 1.03 km awayOhiwa 1, 8.42 km away
Ohae 2, 3.15 km awayWaimana: North, 8.43 km away
Tirohanga, 3.42 km awayTuatoru 1, 8.45 km away
Opape 1, 3.74 km awayWhite Island 1, 13.82 km away
White Island 2, 3.83 km awayTe Arawa 2, 14.7 km away
Waiotahi: North, 3.94 km awayRangitaiki 2, 15.11 km away
Kotare - Moutuhora, 6.08 km awayCalypso 2, 16.55 km away
Te Arawa 1, 7.5 km awayOhae 3, 16.66 km away
Waimanawa - Waikaremoana, 7.68 km awayOtakiri, 18.35 km away
Hariki, 8.05 km away

Ohae 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Opotiki 2, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count159
Co-rupture Rate4.573464E-7

Ohae 2, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Tirohanga, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count320
Co-rupture Rate6.399644E-6

Waiotahi: North, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count2,395
Co-rupture Rate6.1786275E-5

Kotare - Moutuhora, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate1.5342548E-9

Te Arawa 1, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?true
Co-rupture Count1,112
Co-rupture Rate6.1331135E-5

Waimanawa - Waikaremoana, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count370
Co-rupture Rate0.0

Ohiwa 1, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 8.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count405
Co-rupture Rate0.0

Te Arawa 2, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Rangitaiki 2, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate5.5425917E-6

Calypso 2, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate2.573694E-5

Ohae 3, 16.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 18.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MjMuMFZ5SDJ4
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0
