Wakamarama Details
| Property | Value |
|---|---|
| Rupture Count | 126 |
| Ruptures Above Sect Min Mag | 121 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.76, 7.96] |
| Length Range | [18, 246] km |
| Total Rate | 8.647066E-5 /yr |
| Multi-Fault Rate | 8.557358E-5 /yr (98.96%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

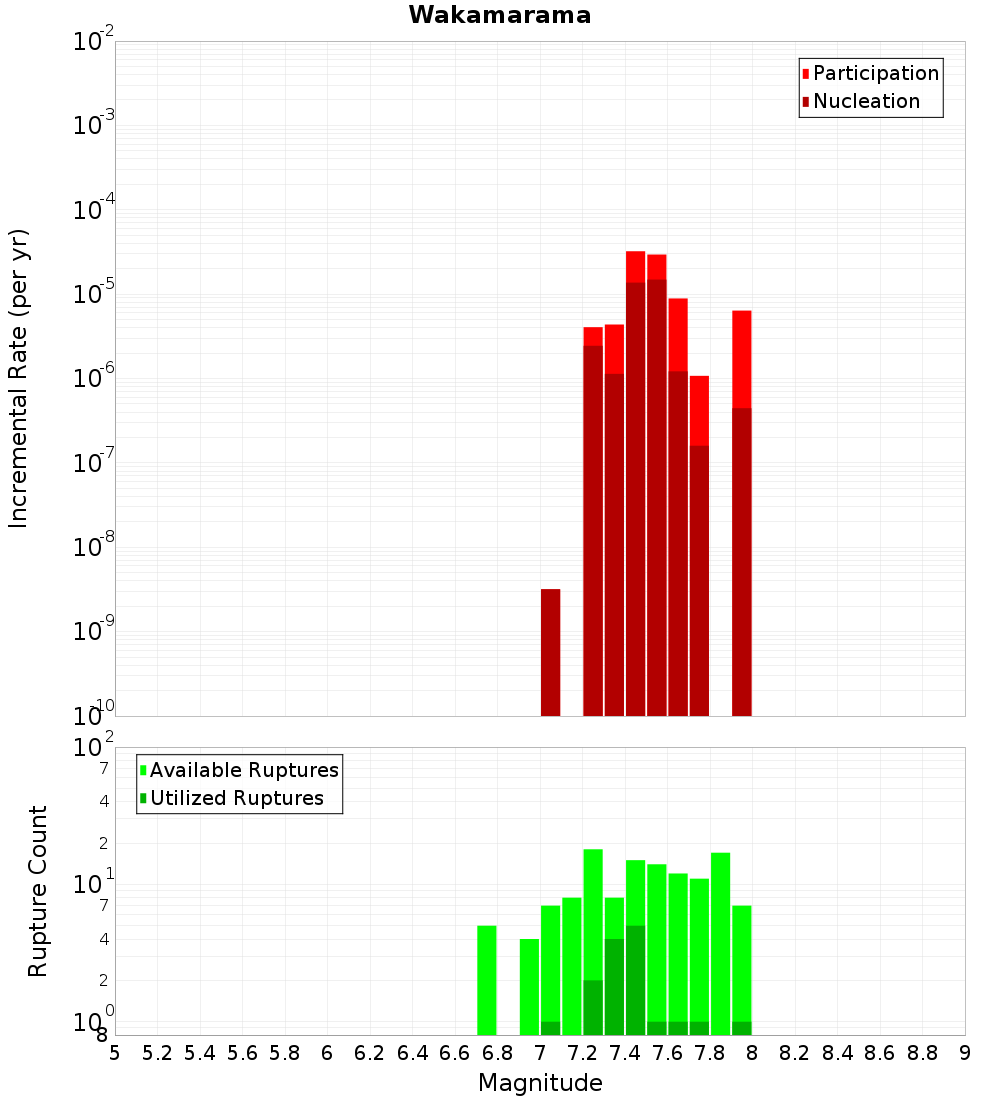

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

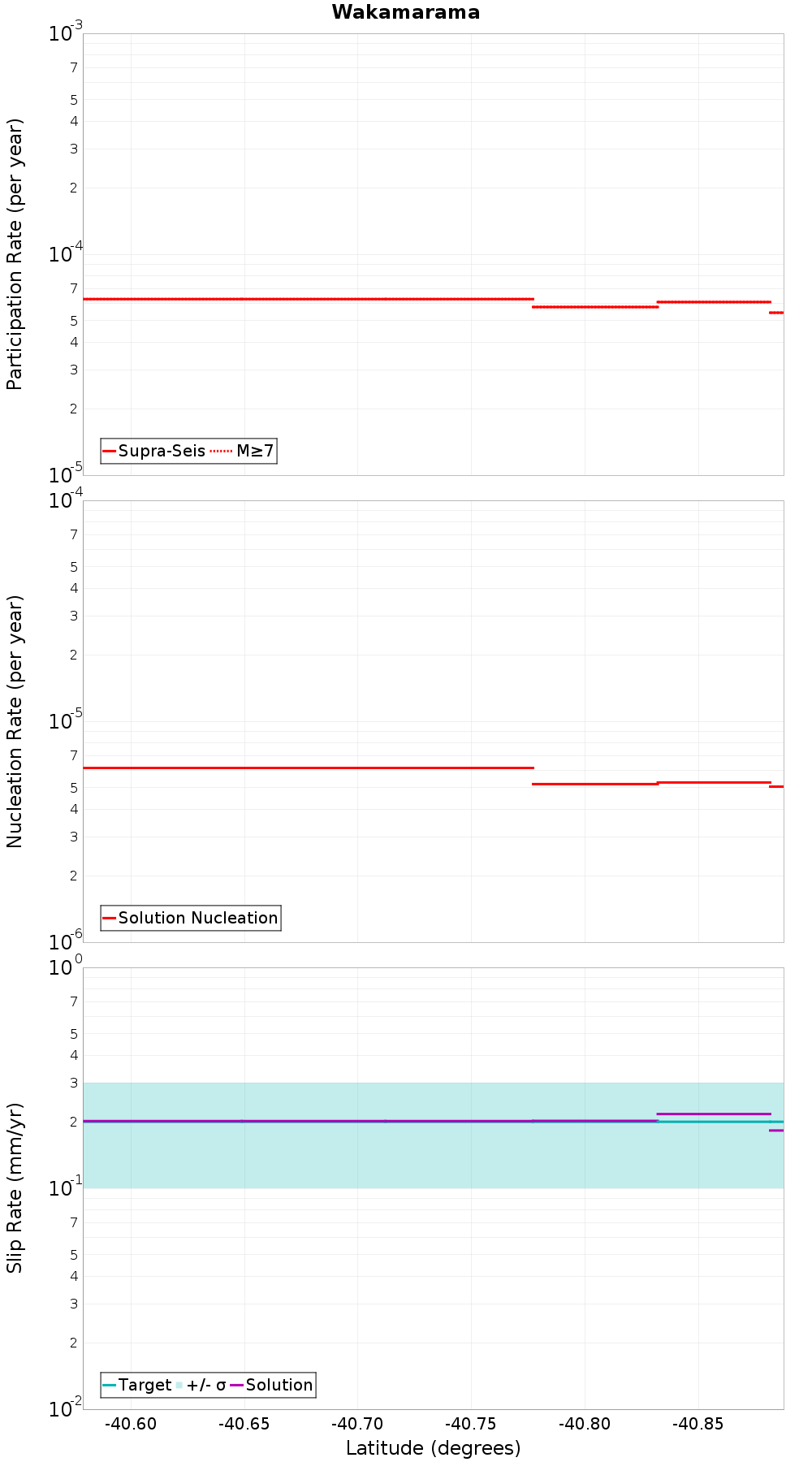

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.07 km away |
| Farewell, 0.23 km away |
| Kongahau, 0.44 km away |
| Wakamarama Offshore, 1.32 km away |
| Cape Foulwind 4, 1.46 km away |
| Kohaihai, 9.33 km away |
Kahurangi, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 59 |
| Co-rupture Rate | 1.5271658E-5 |
Farewell, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Kongahau, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.1194514E-5 |
Wakamarama Offshore, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 6.172729E-5 |
Cape Foulwind 4, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Kohaihai, 9.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzQuMEpVb011 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.7624027E-6 |
