Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 79 |
| Ruptures Above Sect Min Mag | 73 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.76, 7.81] |
| Length Range | [19, 178] km |
| Total Rate | 4.1949002E-5 /yr |
| Multi-Fault Rate | 2.729229E-5 /yr (65.06%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

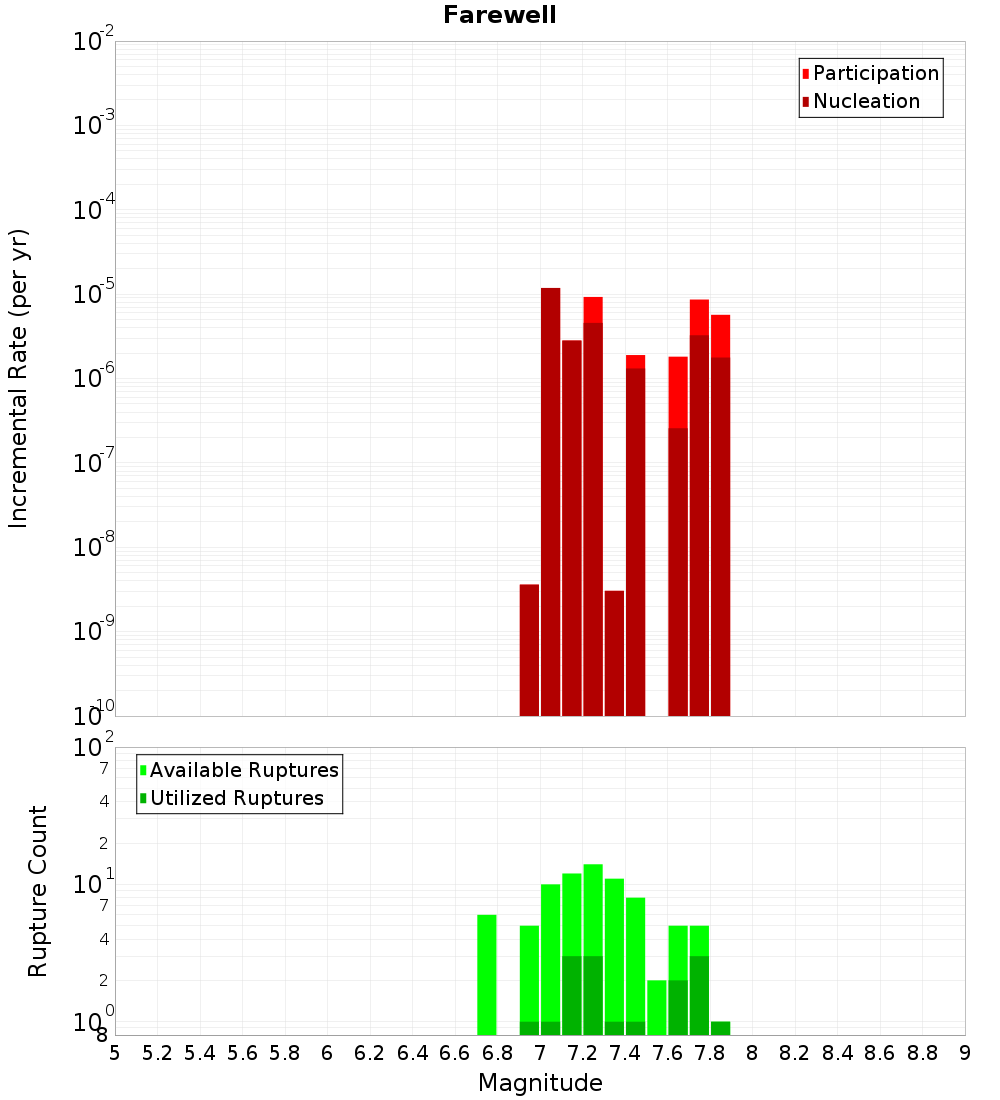

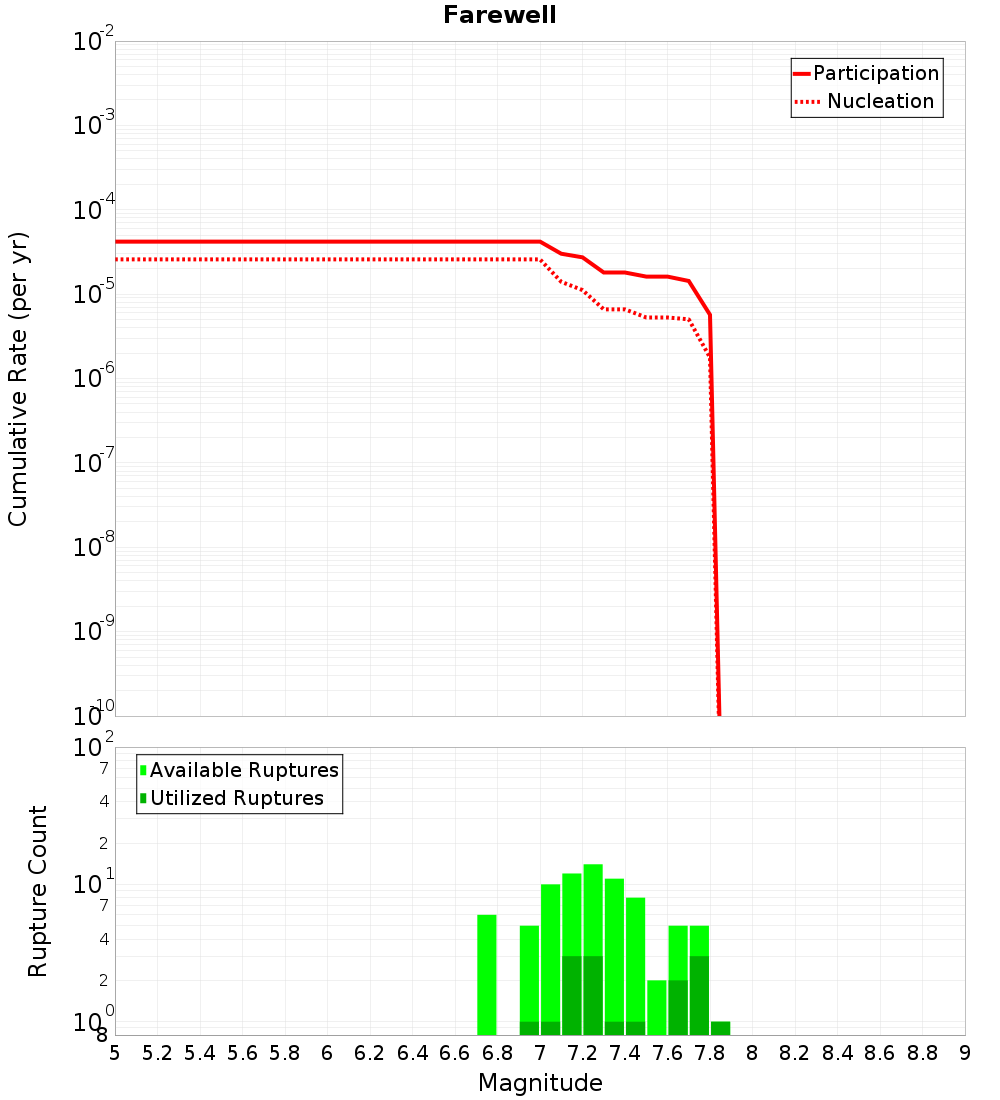

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

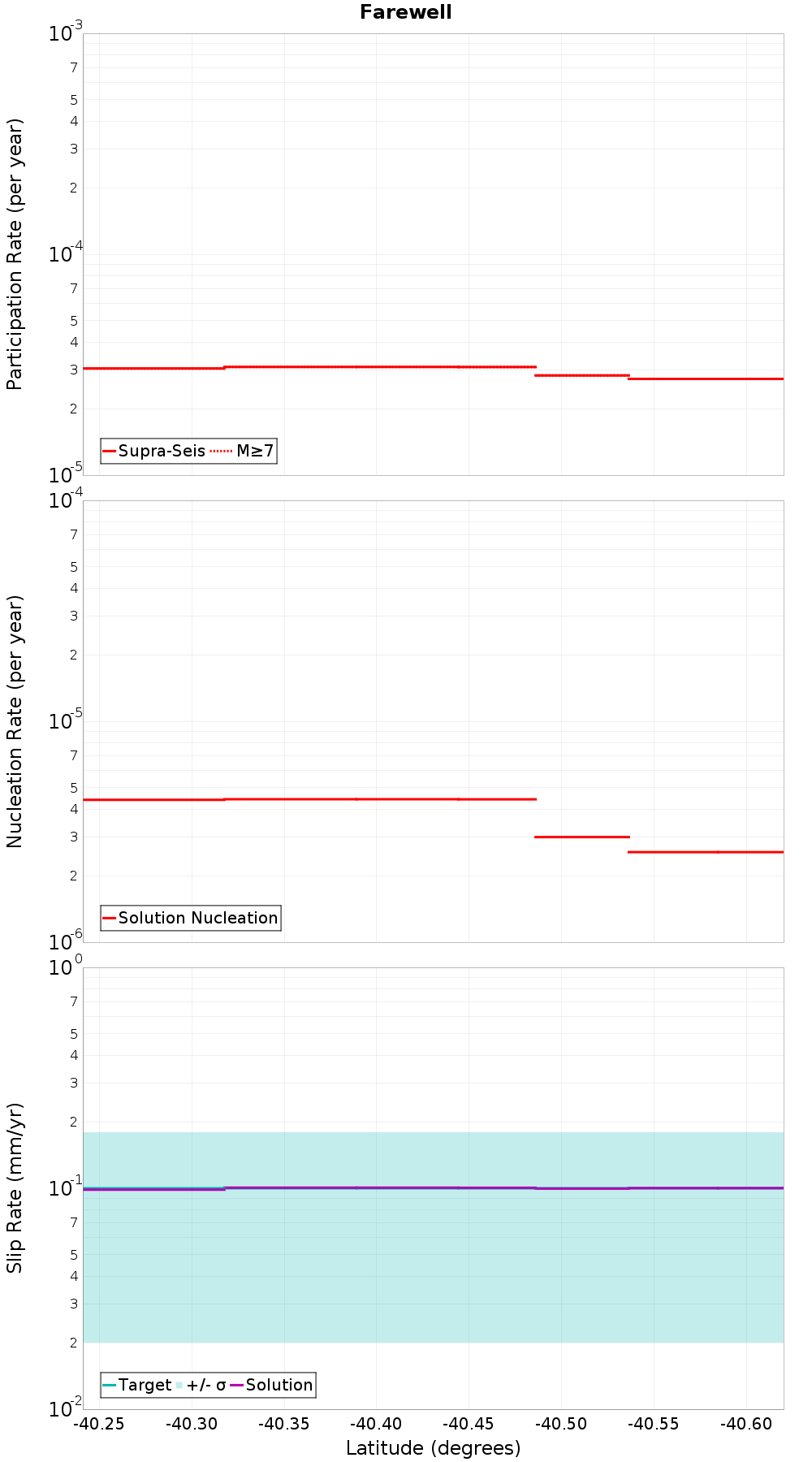

Along-Strike Values
Moment-Rates and b-Values

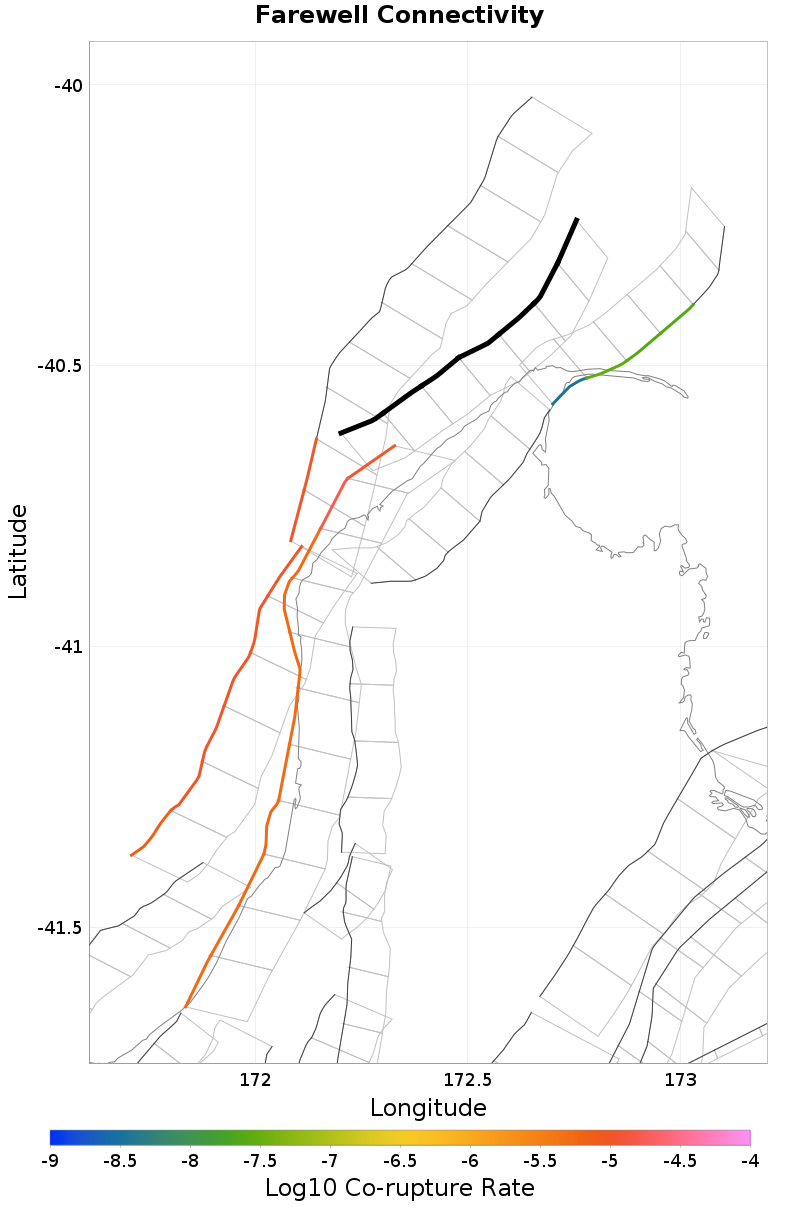

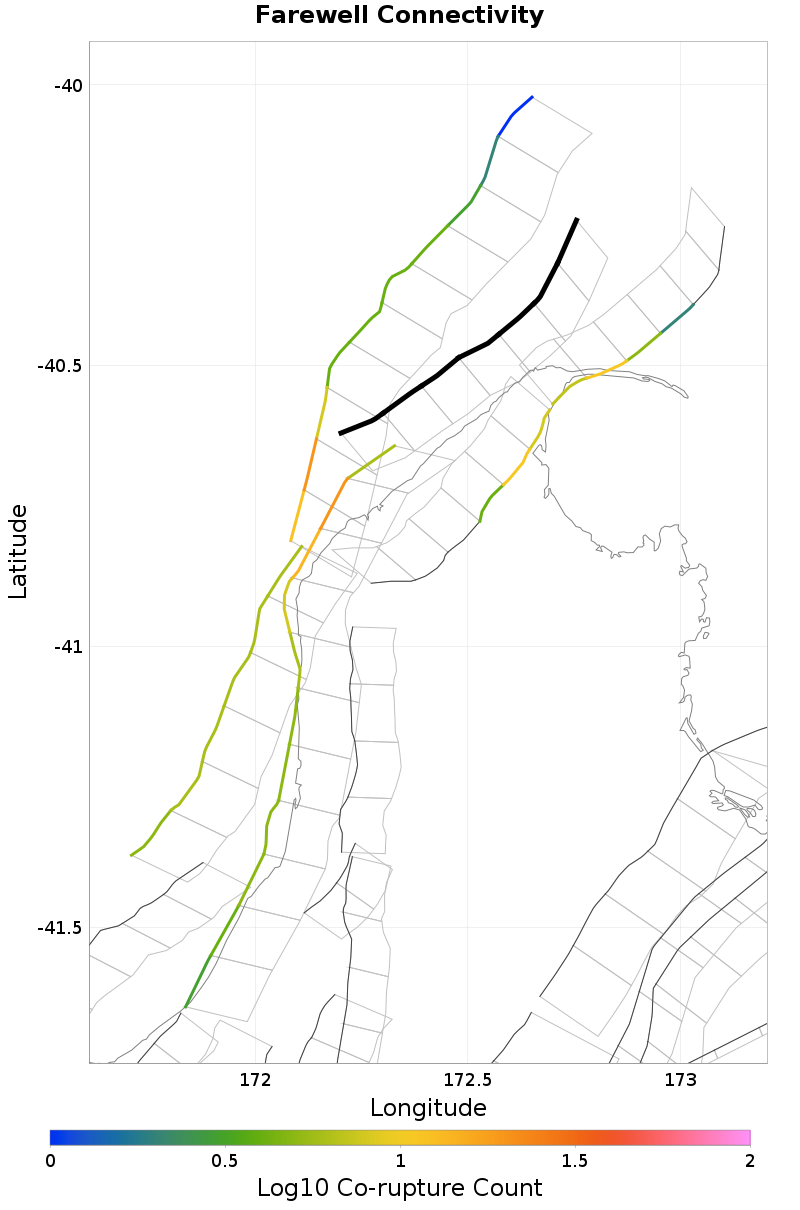

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0.22 km away |
| Wakamarama, 0.23 km away |
| Kahurangi, 0.25 km away |
| Kongahau, 3.83 km away |
| Cape Foulwind 4, 19.87 km away |
Wakamarama Offshore, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 2.657818E-8 |
Wakamarama, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Kahurangi, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.044445E-5 |
Kongahau, 3.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.6821261E-5 |
Cape Foulwind 4, 19.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.044445E-5 |
