Okaia 3 Details
| Property | Value |
|---|---|
| Rupture Count | 26 |
| Ruptures Above Sect Min Mag | 25 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.71, 7.88] |
| Length Range | [10, 143] km |
| Total Rate | 1.2957178E-5 /yr |
| Multi-Fault Rate | 1.2957178E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

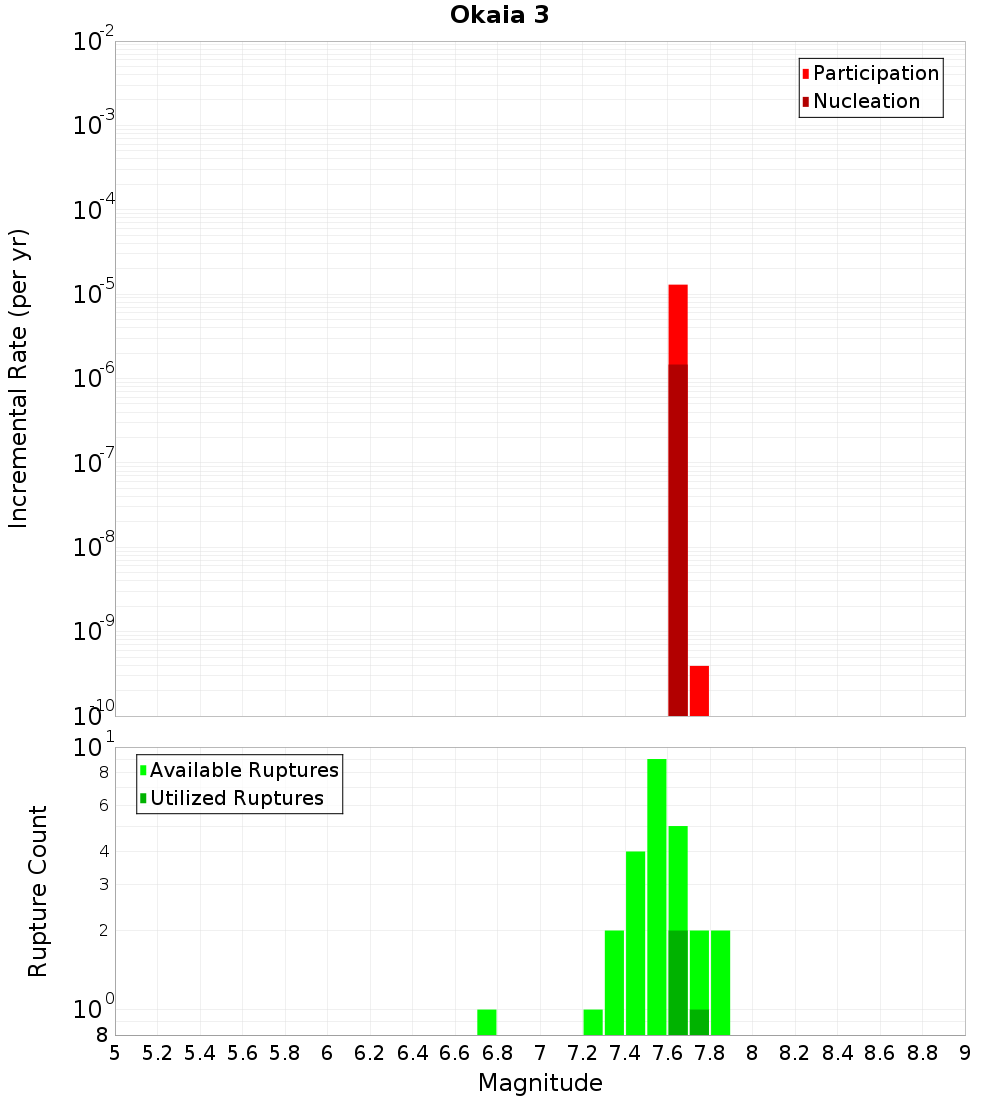

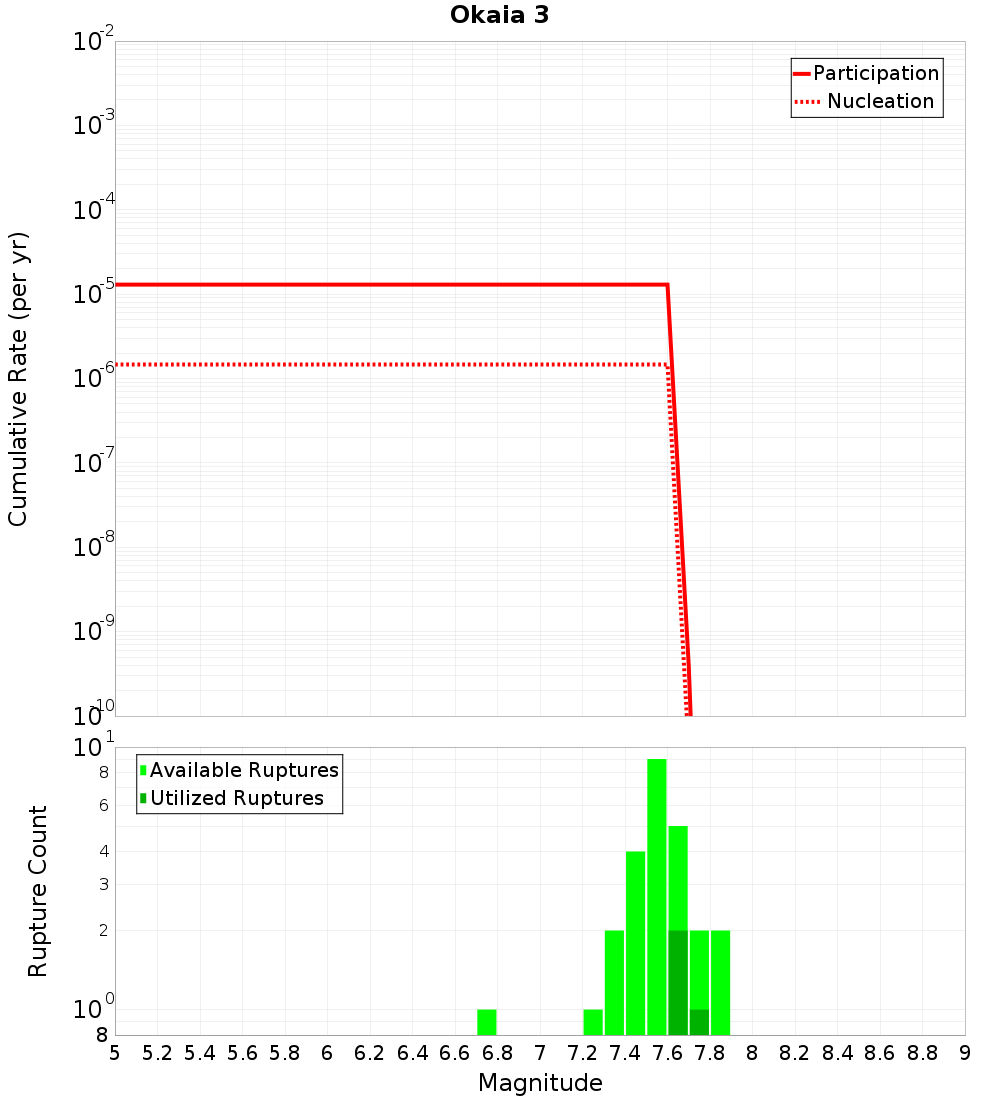

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

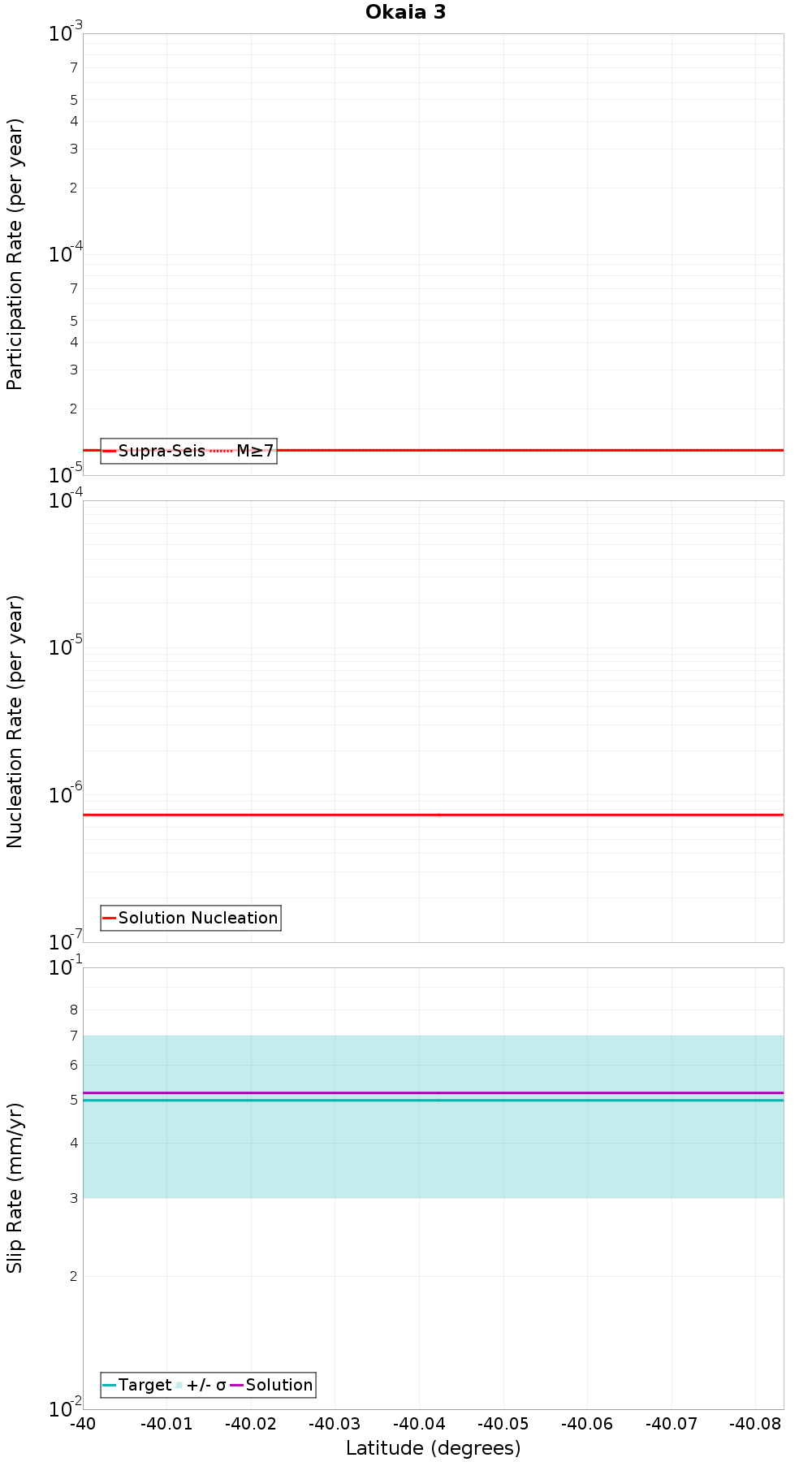

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Okaia 5, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitotara 8 & 9, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.0887103E-5 |
Waverley - Okaia 1, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 3.923928E-10 |
Ridge Road - Okaia 2, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Waitotara 10 & 11, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 1.2957178E-5 |
Moumahaki - Okaia 4, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 2.0700754E-6 |
Nukumuru - Waitotara 1-6, 8.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1MzguMEVMM2hD | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
