Kairakau South Details

PropertyValue
Rupture Count67
Ruptures Above Sect Min Mag66
Ruptures w/ Nonzero Rates6
Magnitude Range[6.71, 7.61]
Length Range[17, 129] km
Total Rate0.0011097023 /yr
Multi-Fault Rate8.9521916E-4 /yr (80.67%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

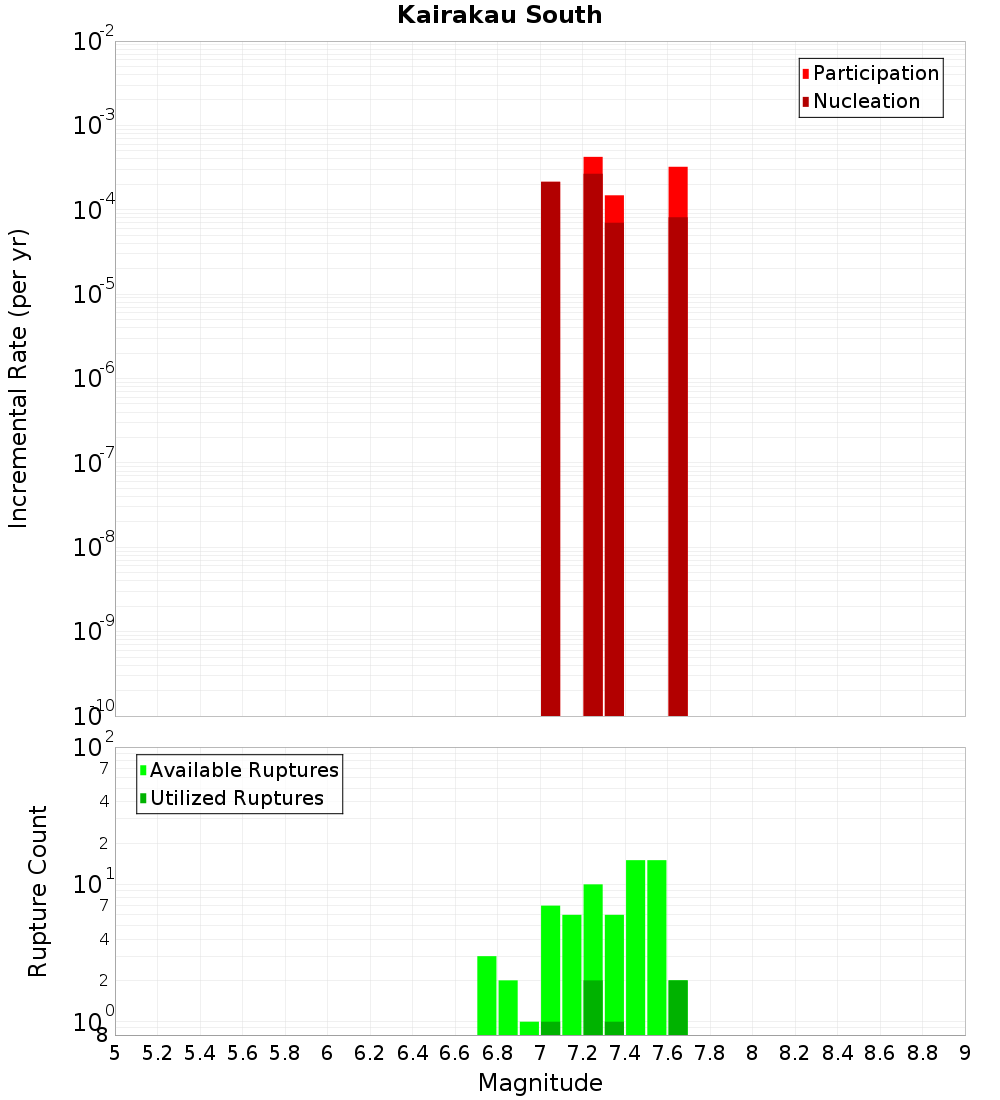

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

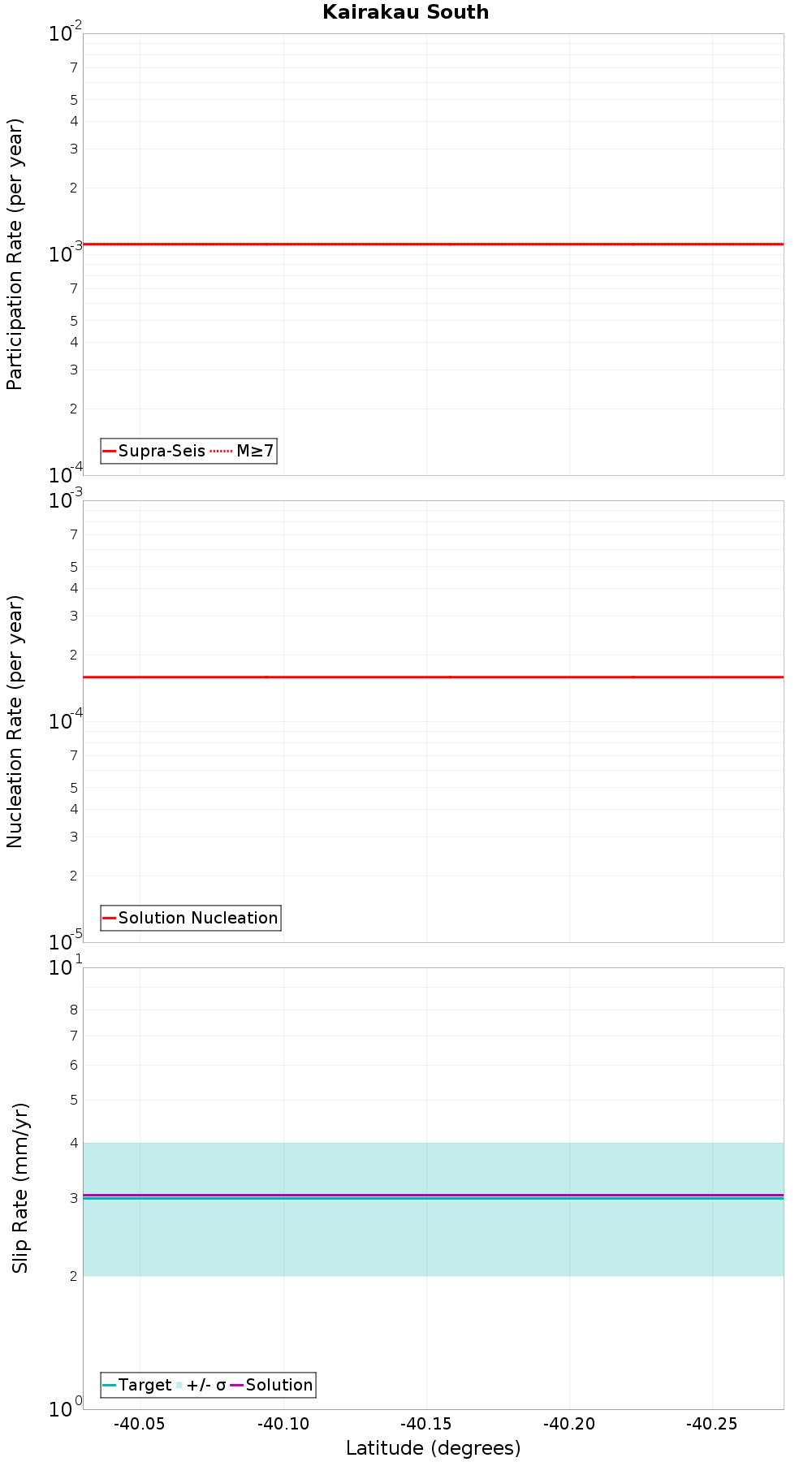

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

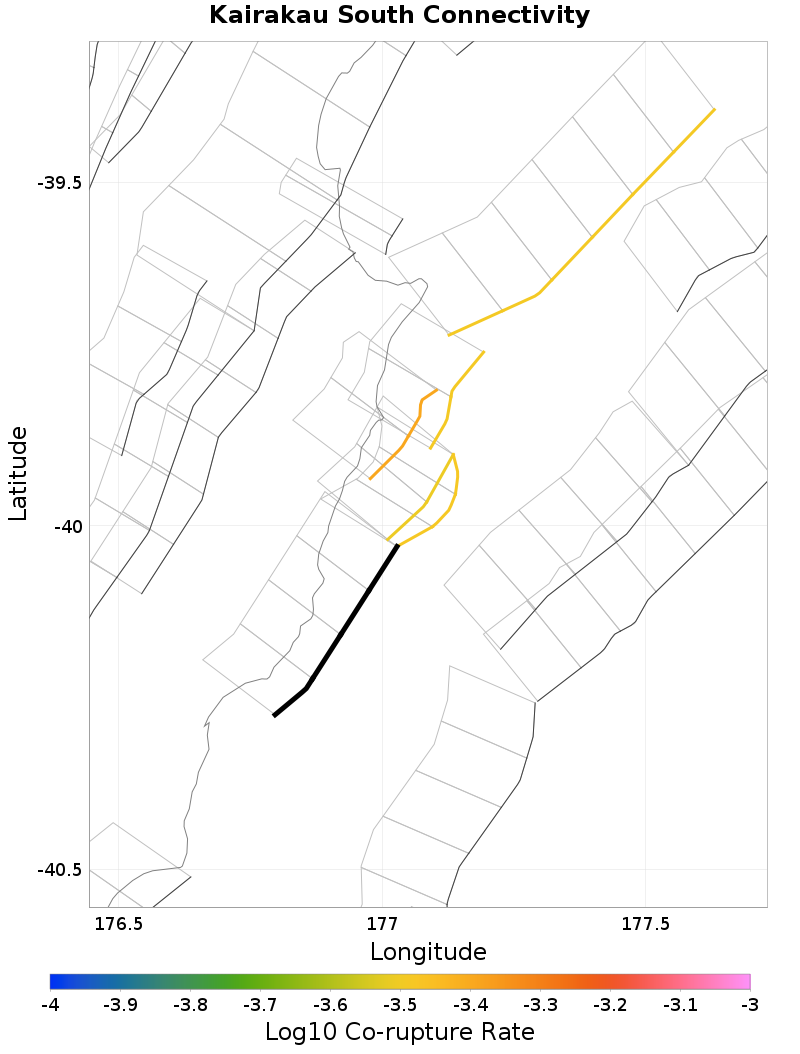

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kairakau 2, 0 km away
Kairakau North, 1.29 km away
Waimarama 1 & 2, 8.89 km away
Waimarama 3 & 4, 14.88 km away
Motu o Kura Ridge, 15.16 km away
Tukituki Thrust, 18.71 km away

Kairakau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate3.2979835E-4

Kairakau North, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate3.1082187E-4

Waimarama 1 & 2, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate4.0299844E-4

Waimarama 3 & 4, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate3.2321273E-4

Motu o Kura Ridge, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 18.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
